1/2 - 2” BSP UPVC Fast Acting Electric Actuated Ba
- Ports size: 1/2″ - 2" BSP
- Voltage: 12V DC, 24V DC
- Opening/Closing Time: ≤2 sec
- Features: Manual Override, Visual Indicator & Feedback
- Body material: UPVC
AU $472.23

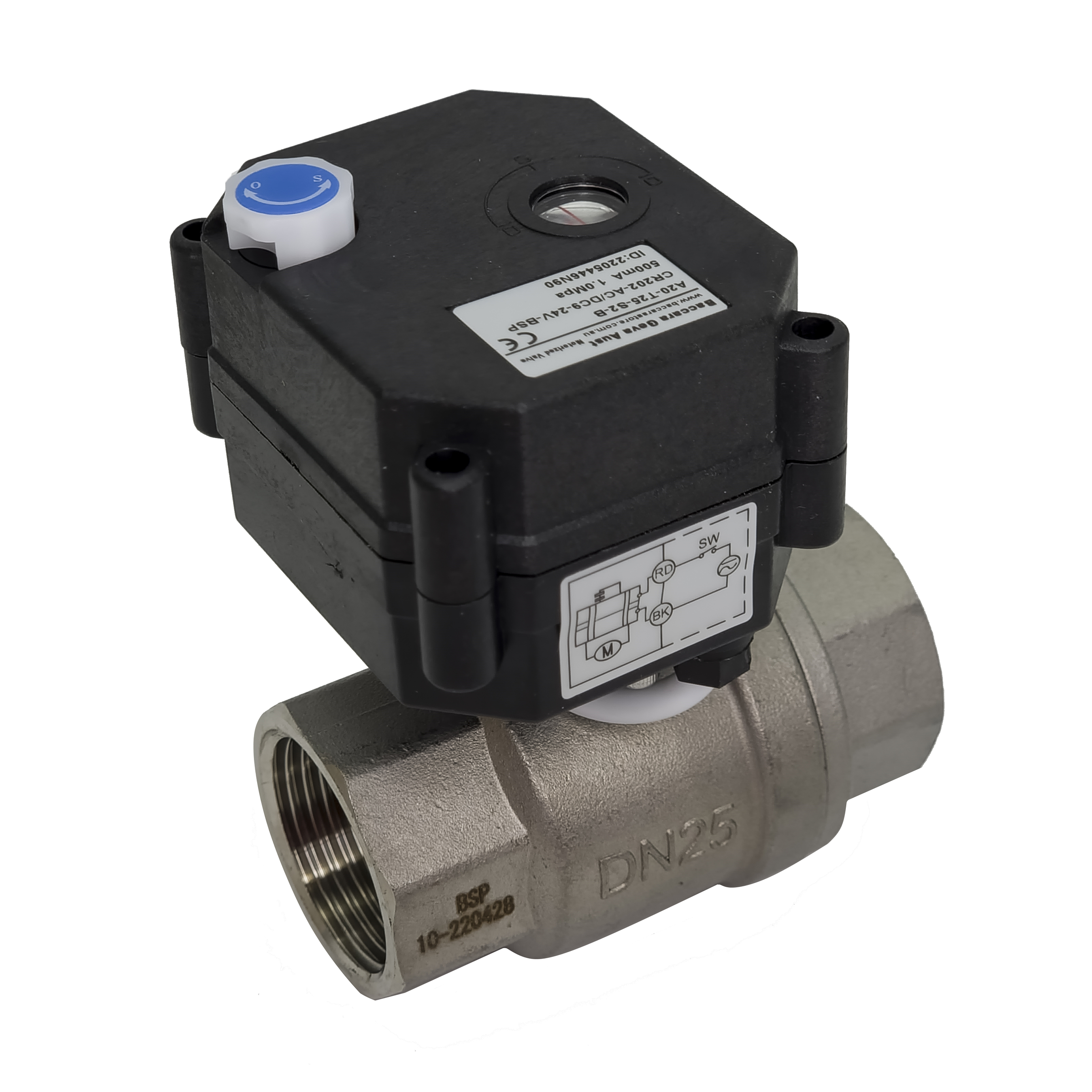

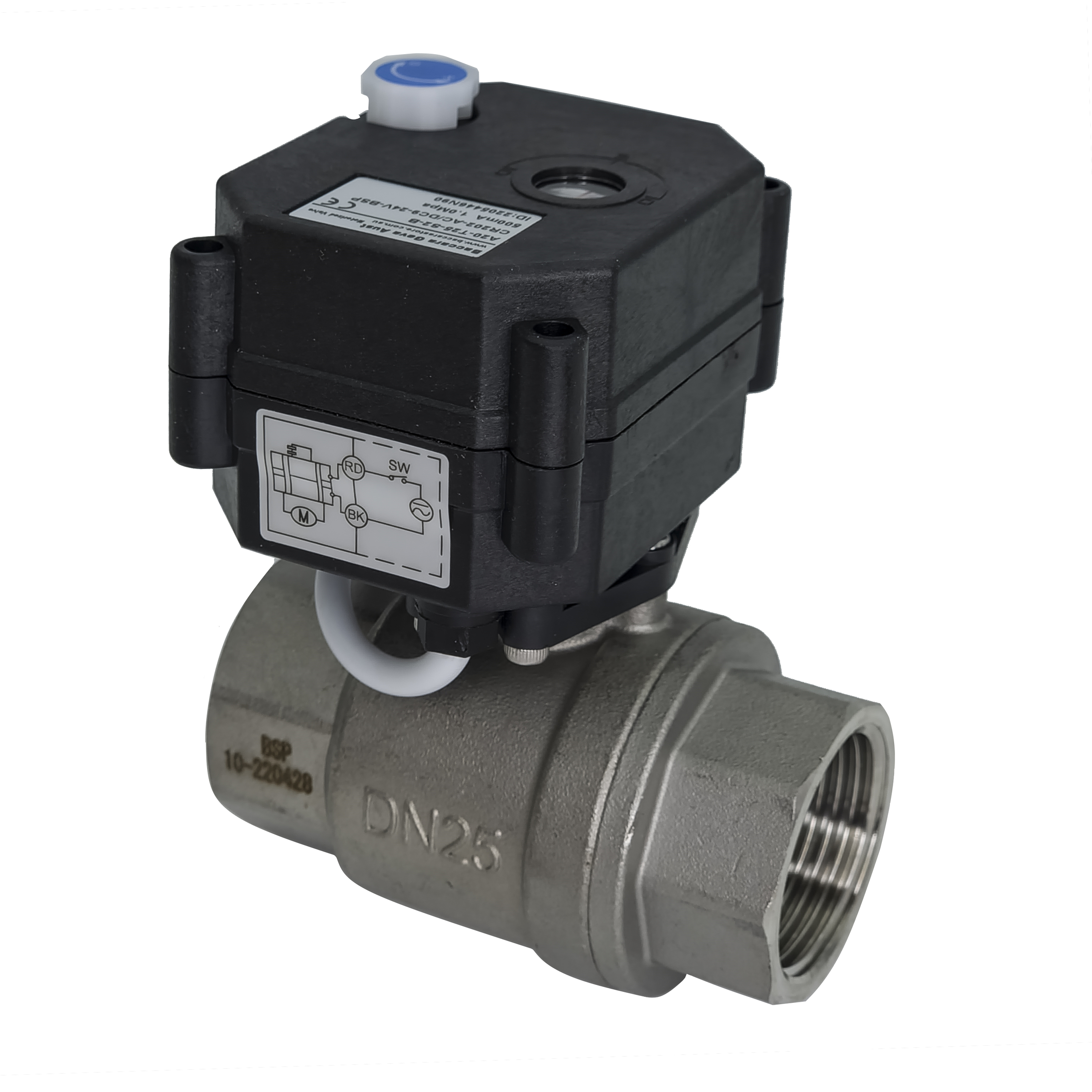

Motorized Water Valve is ideal for water heater, water treatments, brewing and water meters. It is a stainless steel valve which has a 9-24V AC/DC or 12-24V DC & 24V AC or 110V-230V AC or 110V-240V AC voltage with 2 or 3 wires. It also has a pressure of 1.0Mpa with a torque of 2Nm. Its on/off time is 5 seconds. Its service life is up to 70,000 times with a current of 500mA which is ideal for battery driving. Its environment temperature is -15℃ ~ 50℃ and a 2℃ ~ 90℃ liquid temperature.
| Size | 1/4″ – 2″ BSP |
| Function | 2 Way Normally Closed |
| Valve Operation | Electric Ball Valve |
| Body Material | Stainless Steel S304 |
| Seal | FKM & PTFE |
| Open/close time | ≤5S |
| Pressure Range | 10 bar |
| Manual Override | Yes |
| Open/close indicator | Yes |
| Cable lenght | 0.5m |
| Media | Air & Fluid |
Design Features
(SS304-Ball-Valve)
Technical Data
|
Product size |
1/4" 1/2"' 3/4'' 1'' 1 1⁄2” 2" BSP |
|
Maximum working pressure |
1.0 MPa (10 Bar) |
|
Circulation medium |
Fluid, air |
|
Working voltage |
9-24V AC& DC / 12-24V DC & 24V AC / 110-230V AC |
|
Wiring control methods |
CR202 CR305 CR306 |
|
Working current |
≤500mA |
|
Open/close time |
≤5S |
|
Life time |
70,000 times at least |
|
Valve Body Material |
Stainless Steel SS304 |
|
Actuator Material |
Engineering Plastics |
|
SealingMaterial |
FKM & PTFE |
|
Actuator rotation |
90° |
|
Max. torque force |
2 N.m |
|
Cable Length |
0.5m,1.5m(Optional) |
|
Environment temperature |
-15℃~50℃ |
|
Liquid temperature |
2℃~90℃ |
|
Manual override |
YES |
|
On/off Indicator |
YES |
|
Protection class |
IP67 |
