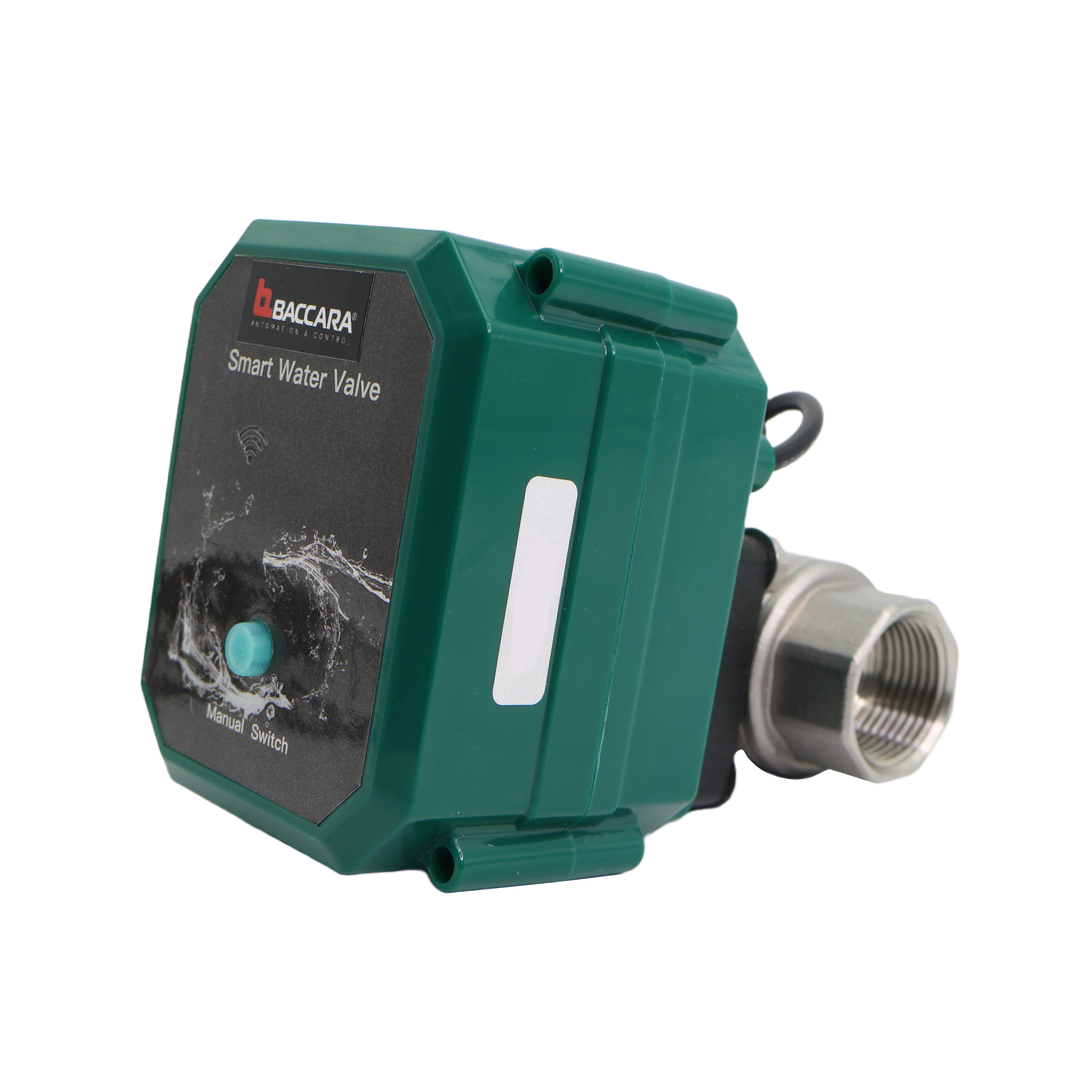

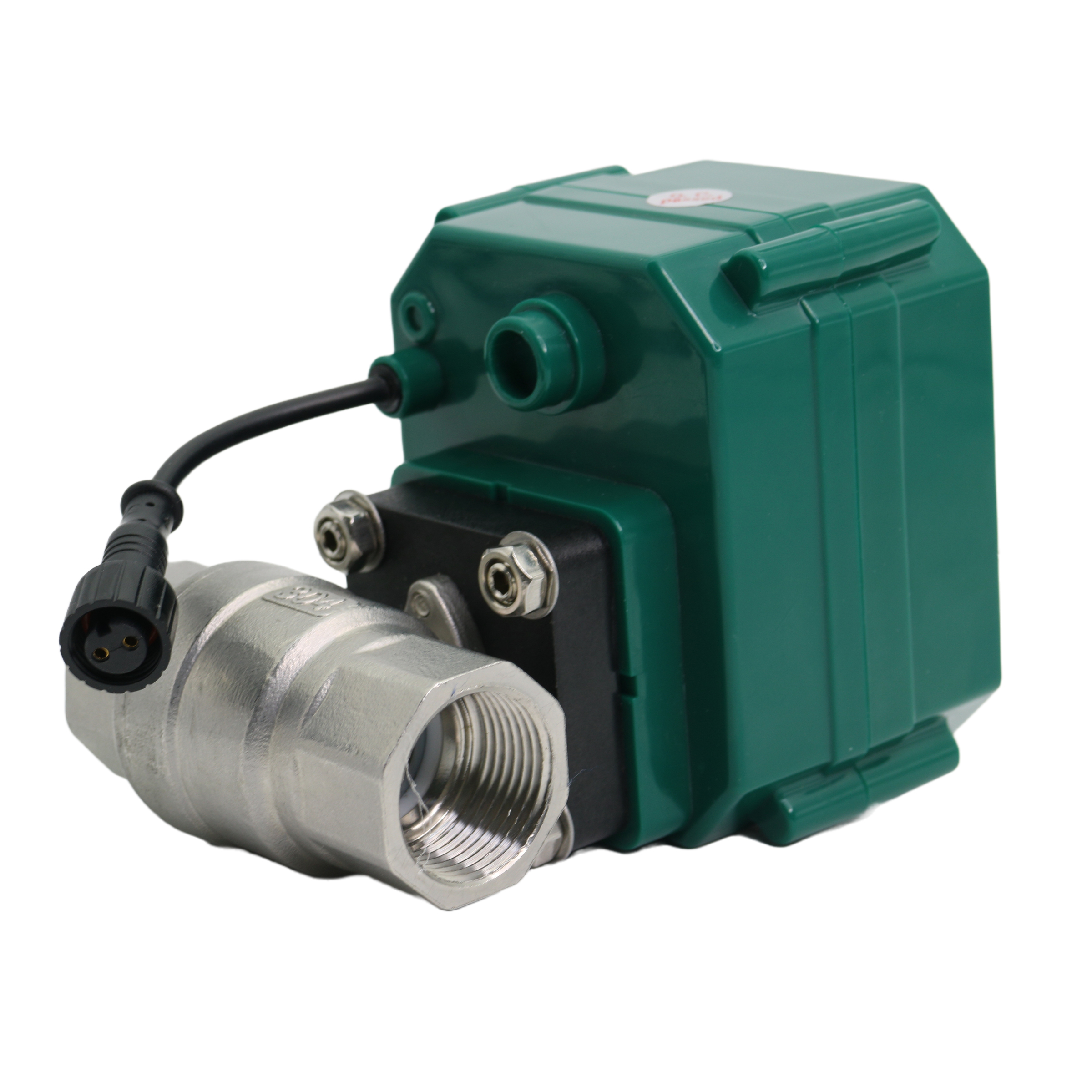

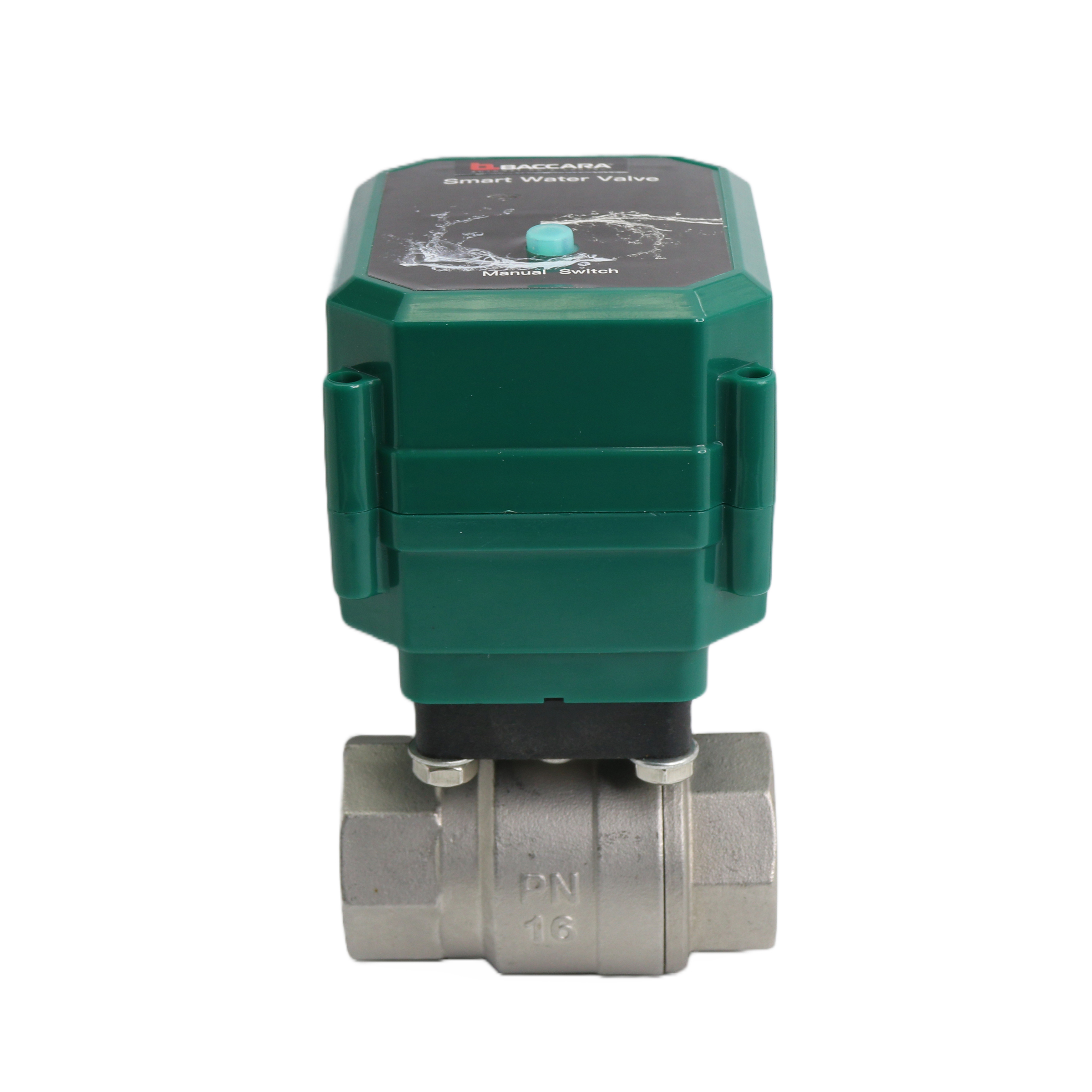

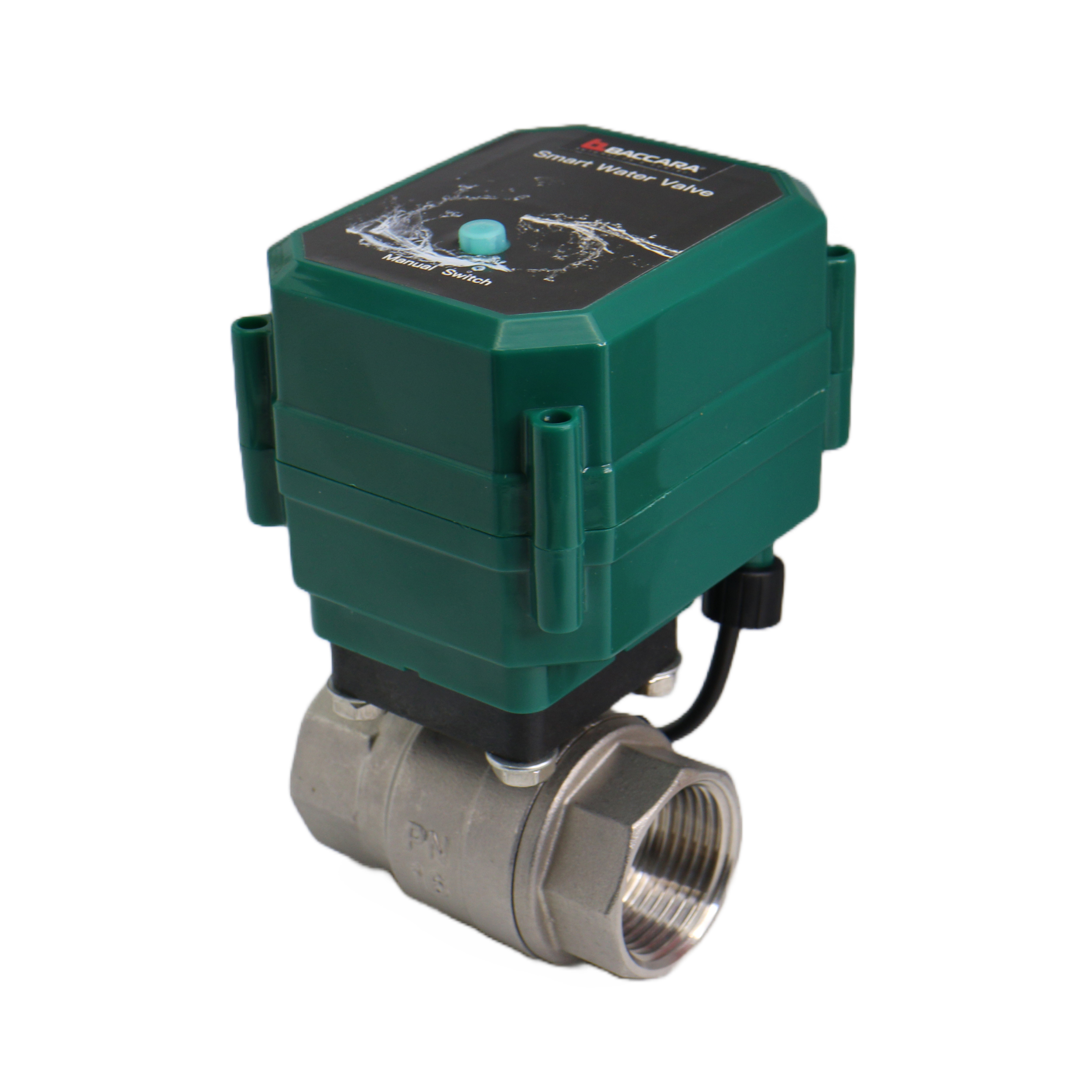

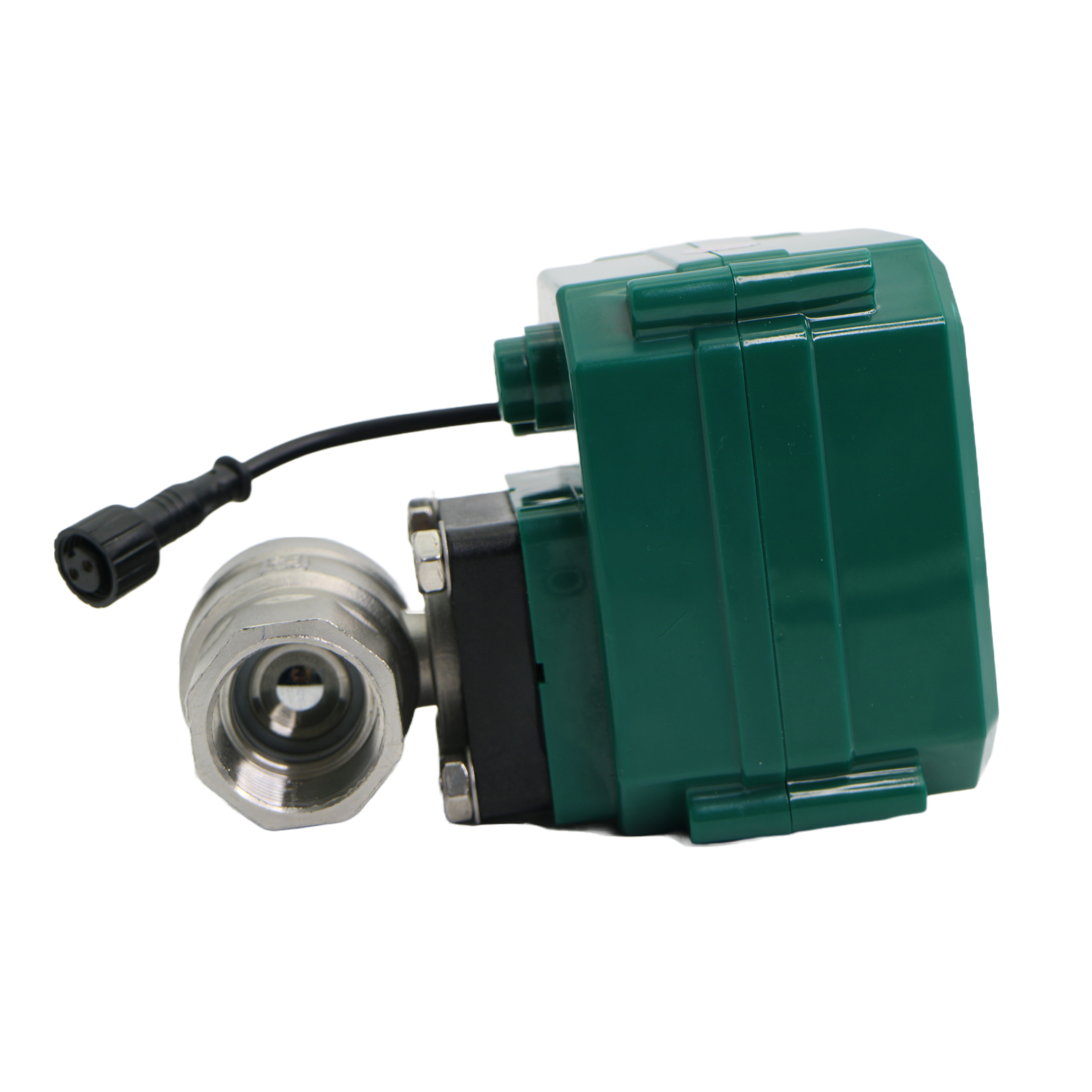

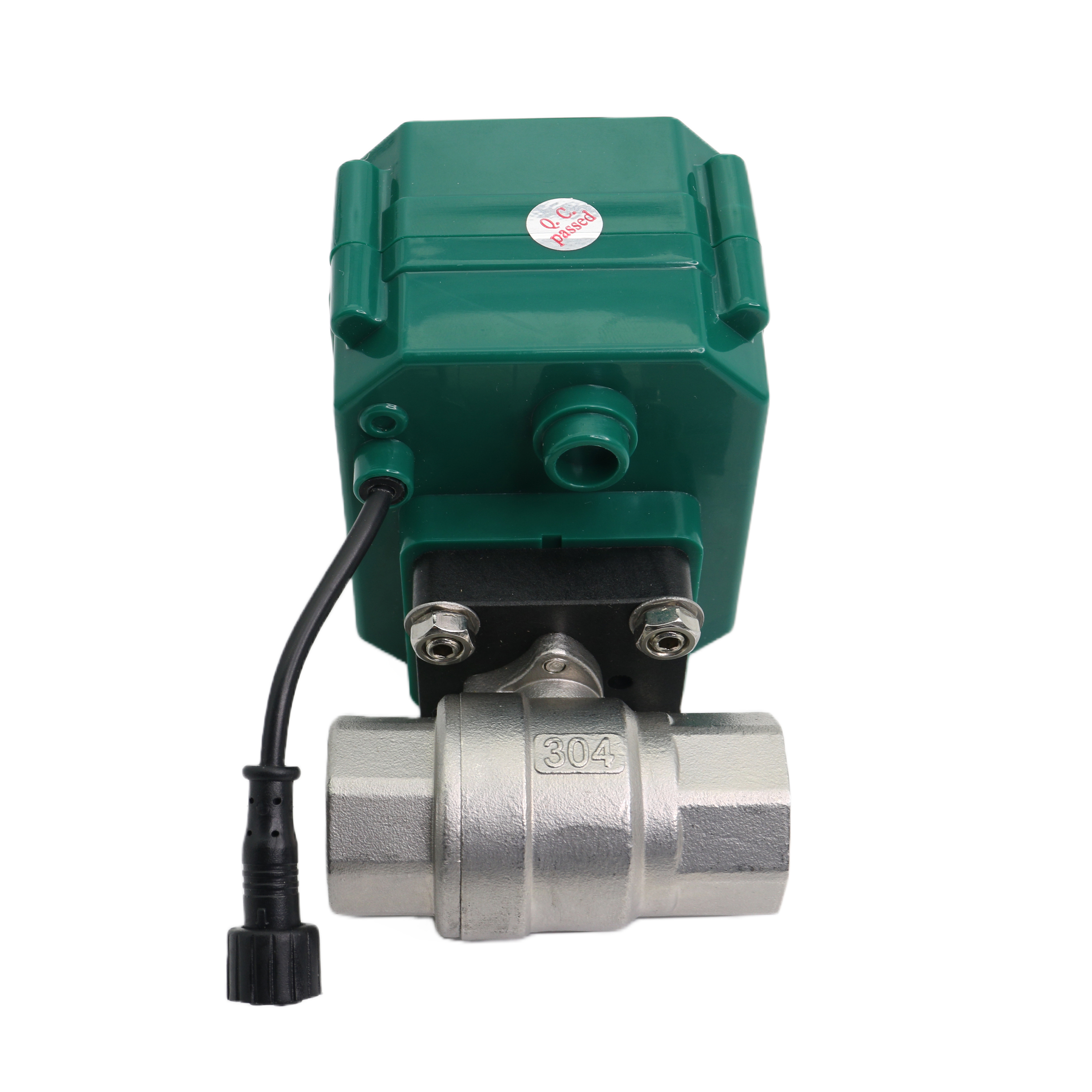

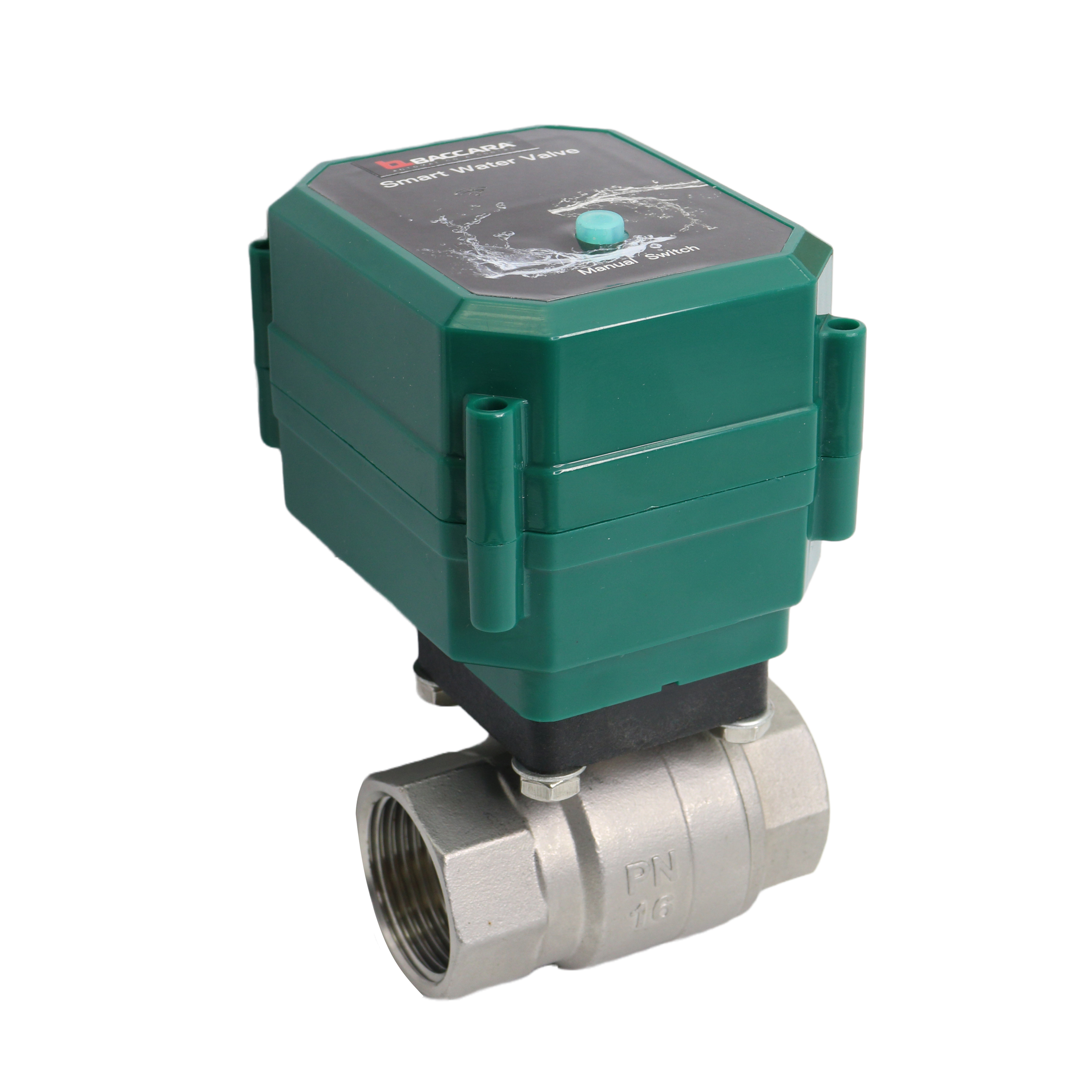

Our Smart Actuated Ball Valve can be controlled to water with your smartphones from anywhere. These ball valves can be operated via a battery pack a power bank* (5V, 2A) or via AC Adapter (with USB-A).
Application
Design Features
*This ball valve can be operated via power bank; however, most power banks available in the market go to standby mode when no current is drawn, and you need to reactivate it by pressing a button. So, please make sure the power bank can do constant 5V, 2 Amps and doesn't turn off itself.
Size | 1/2″ – 1″ BSP |
Function | 2 Way (can be programmed as Normally Closed or Normally Open from the Tuya App) |
Valve Operation | Electric Smart Wireless Ball Valve |
Wireless Operation |
|
Body Material | SS304 & Engineered Plastic |
Seal | FKM & PTFE |
Pressure Range | 10 bar |

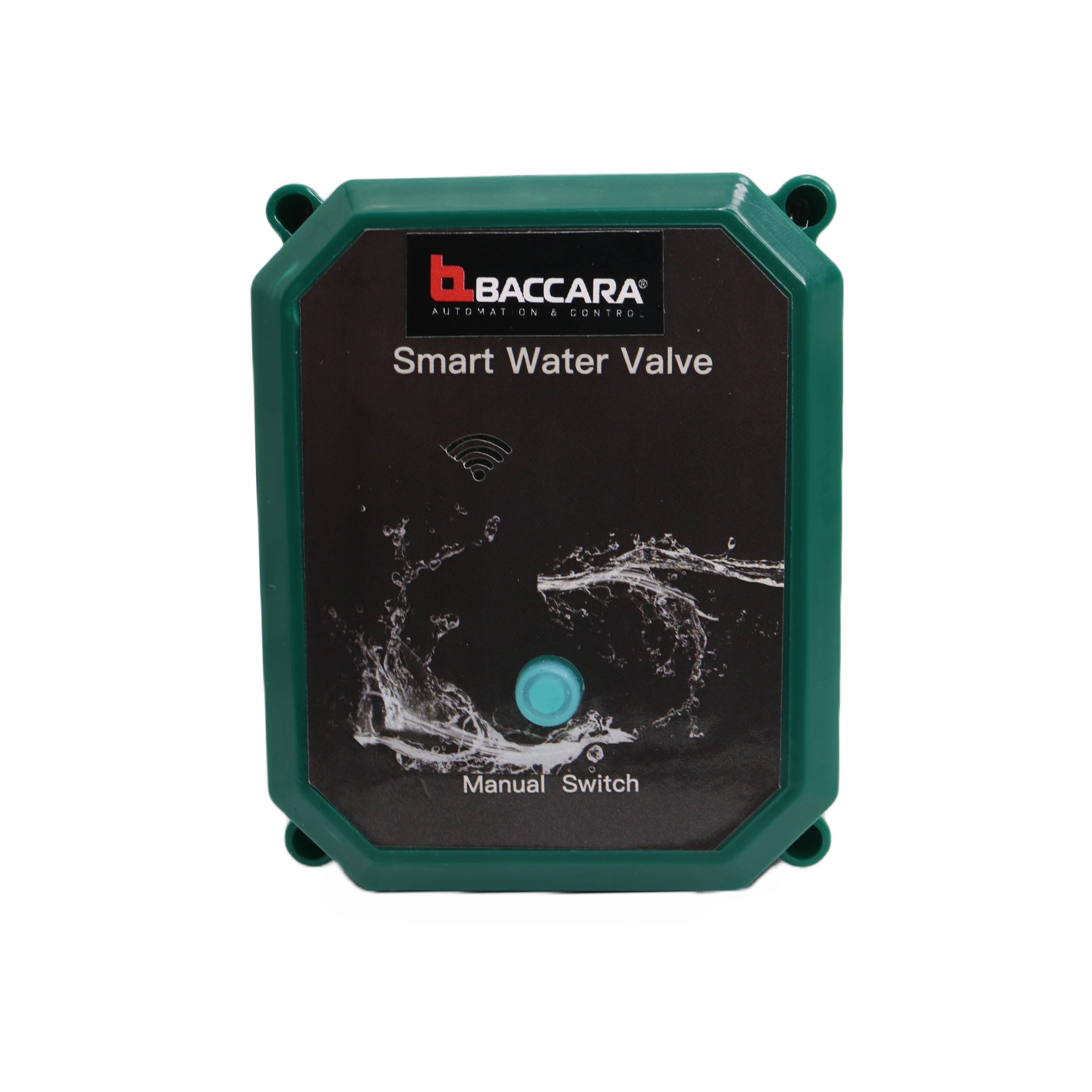

Manual Switch | Yes |
Open/close indicator | Yes (via Smart Life / Tuya App) |
Cable length | 0.5m |
Input Voltage | 5V DC / 2 A power supply |
Bore | Can be open fully or partially (10% - 100%) |
Power Failure Staus |
|

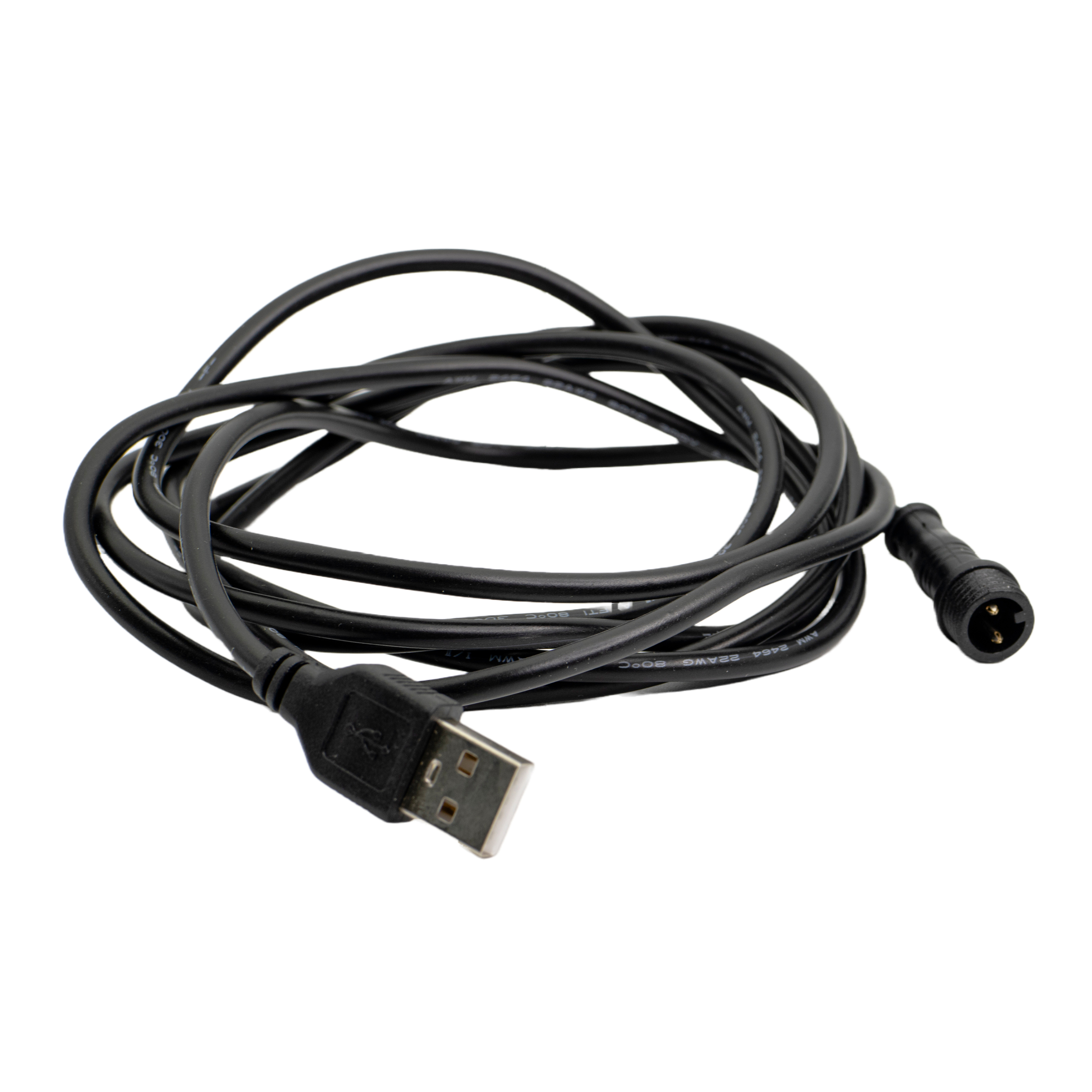

Cable Connection Type | USB Type A |
Media | Air & Fluid |
(SS304-Smart-Ball-Valve)
Technical Data
Product size | 1/2", 3/4'', 1'', 1 1/4 BSP | Valve Body Material | SS304 |
Maximum working pressure |
1.0 MPa (10 bar) | Actuator Material | Engineered Plastic |
Circulation medium | Fluid, Air | Sealing Material | FKM & PTFE |
Working voltage | DC 5V | Actuator rotation | Full Port |
Working current | 2A | Max. torque force | 6 N.m |
Operating Time | ≤30S | Cable Length | 0.5m |
App Control | Tuya App (iOS and Android) | Environment temperature | -15℃~90℃ |
Wireless |
|
Media temperature | 1℃~90℃ |
Control Position | 10-100 % | Visual Position Indicator | Yes |
Lifetime | 50,000 times at least | Protection | IP67 |

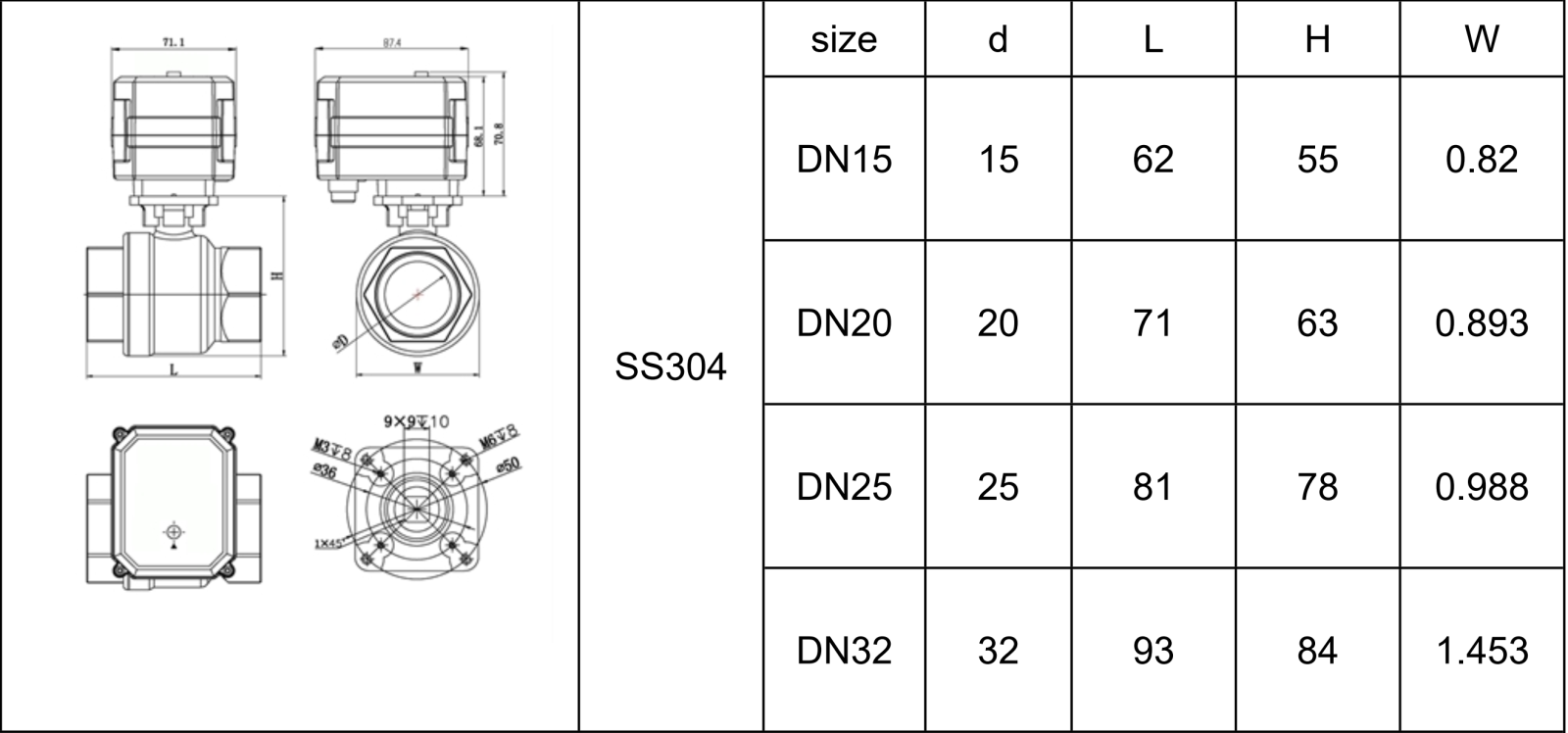

Construction Diagrams
