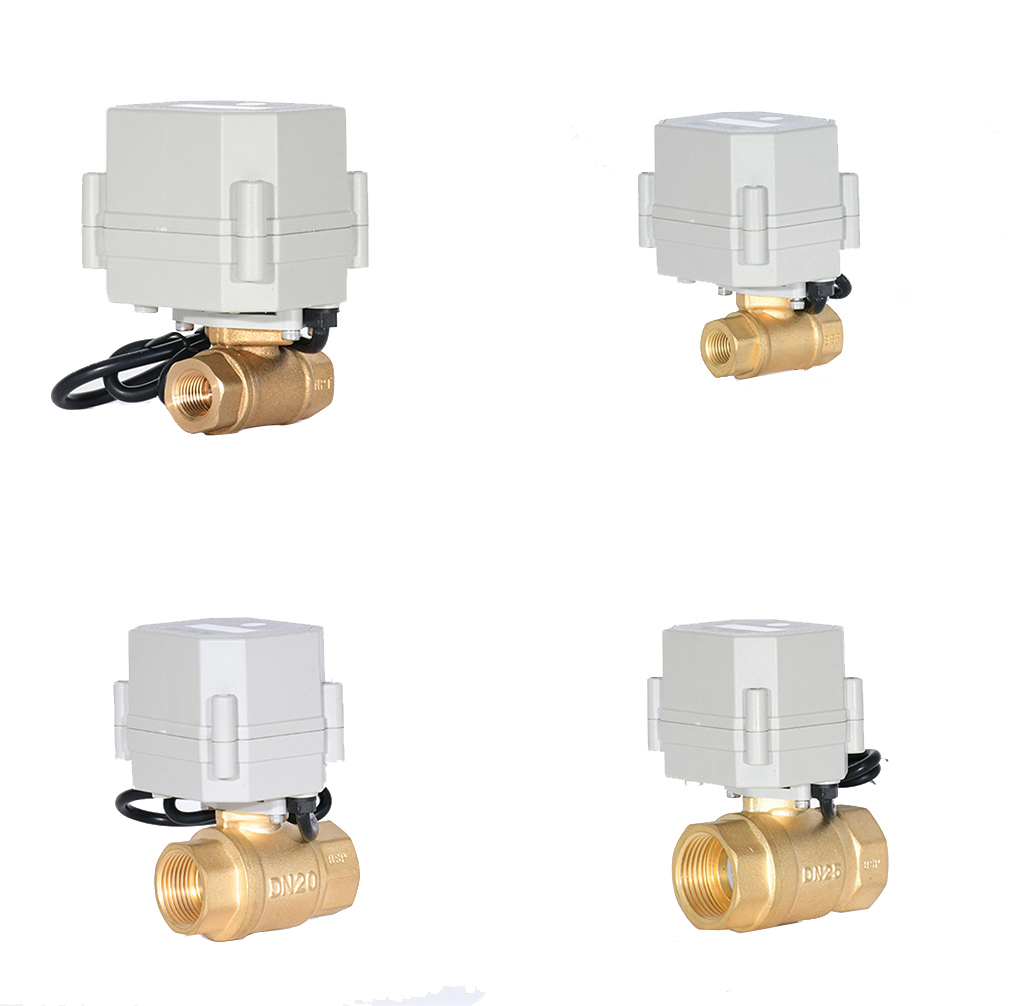

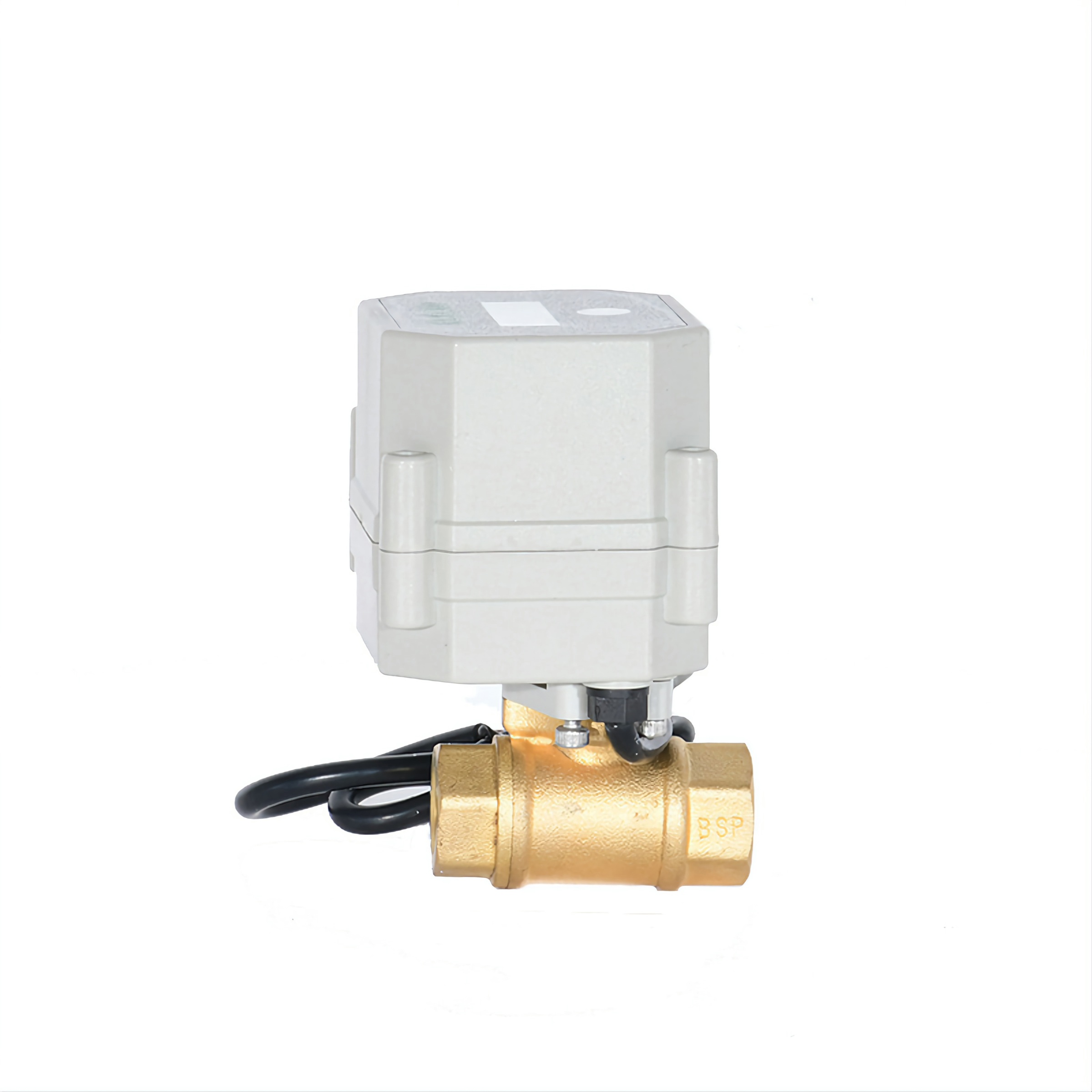

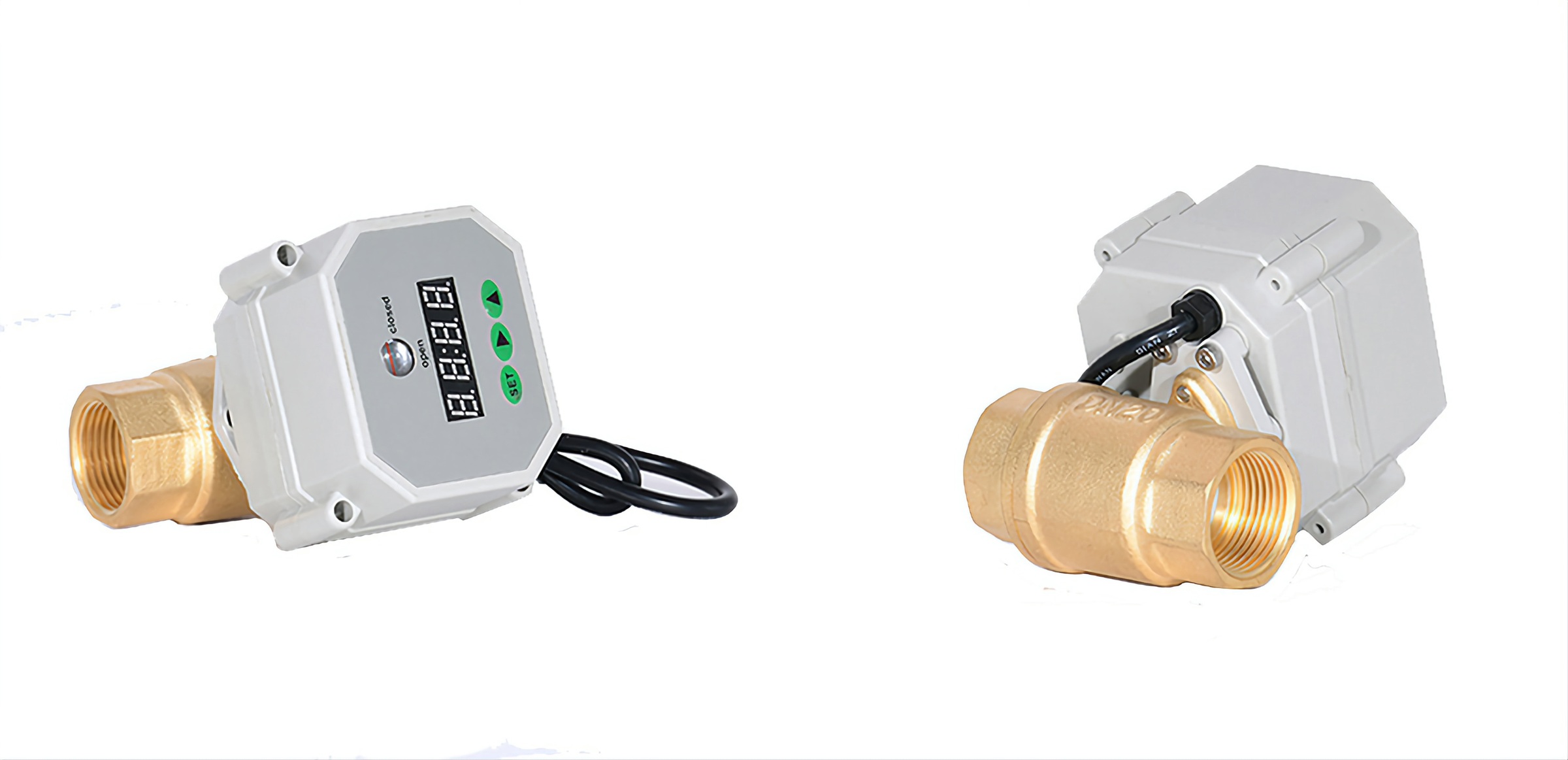

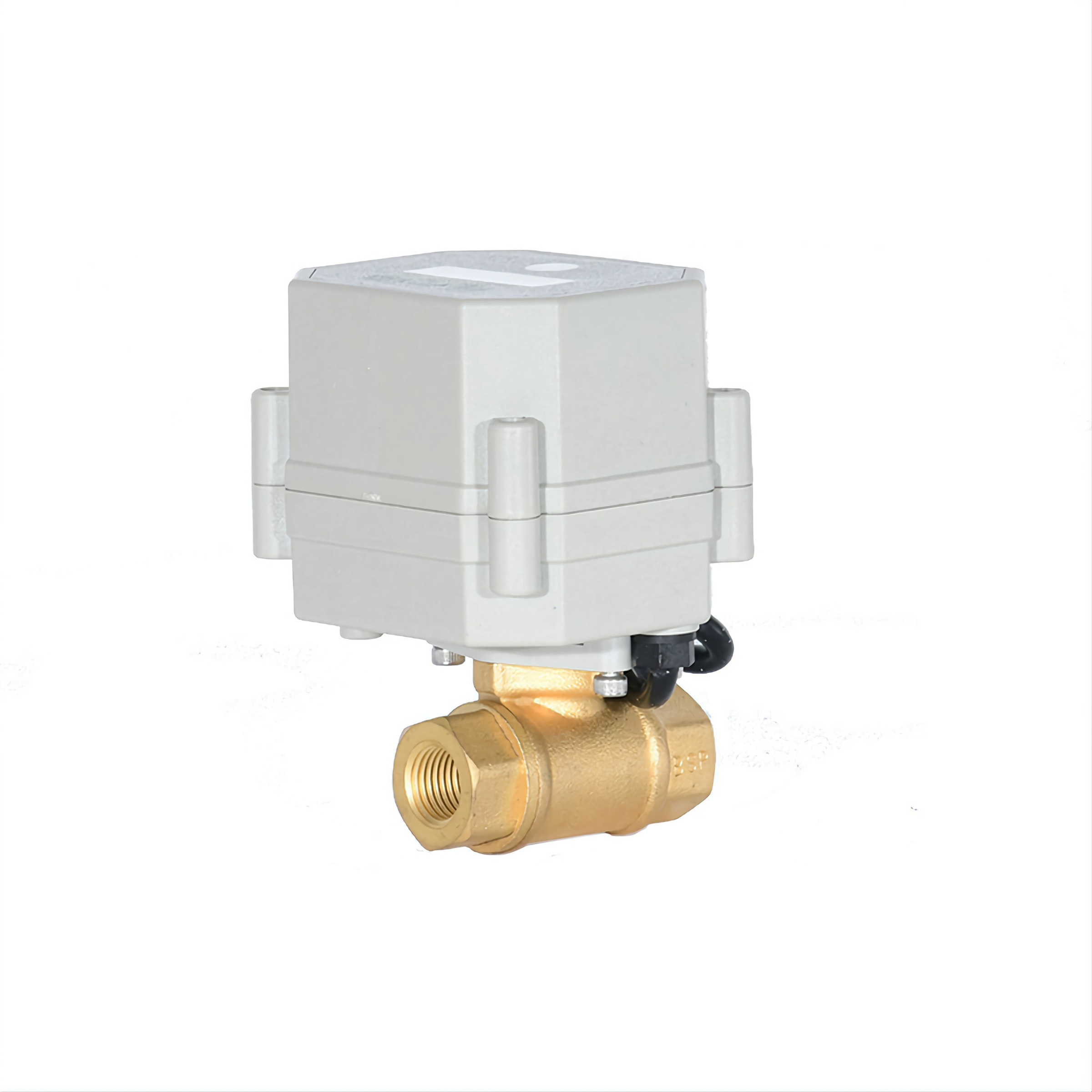

Motorized Water Valve is ideal for water heater, water treatments, brewing and water meters. It is a brass valve which has a 9-24V AC/DC or 110V-230V ACvoltage. It also has a pressure of 1.0Mpa with a torque of 2Nm. Its on/off time is 5 seconds. Its service life is up to 70,000 times with a current of 500mA which is ideal for battery driving. Its environment temperature is -15℃ ~ 50℃ and a 2℃ ~ 90℃ liquid temperature.
| Size | 1/2″ – 1″ BSP |
| Function | 2 Way Normally Closed |
| Valve Operation | Electric Ball Valve |
| Body Material | Brass |
| Seal | FKM & PTFE |
| Open/close time | ≤5S |
| Pressure Range | 10 bar |
| Manual Override | Yes |
| Open/close indicator | Yes |
| Cable lenght | 0.5m |
| Media | Air & Fluid |
Applications

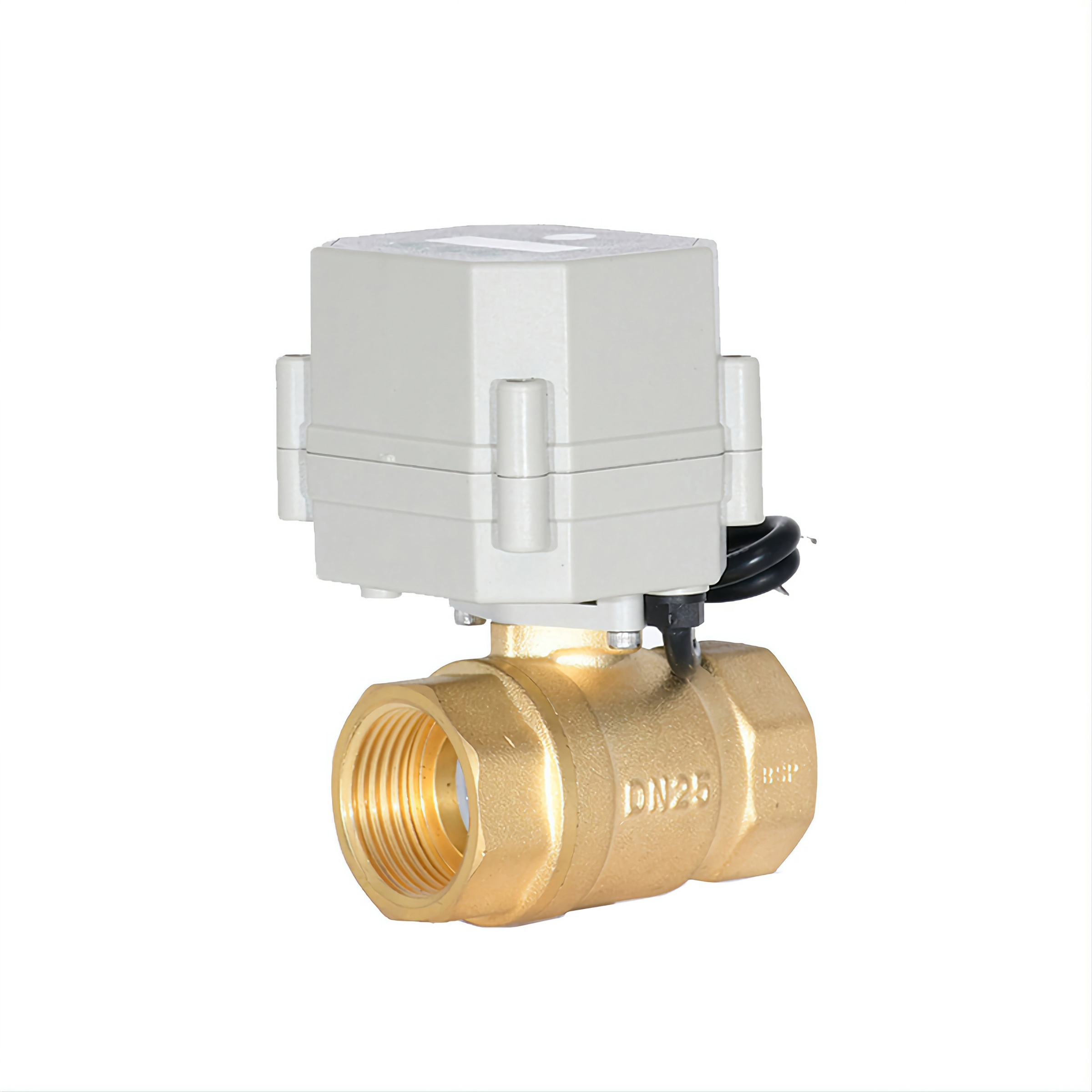

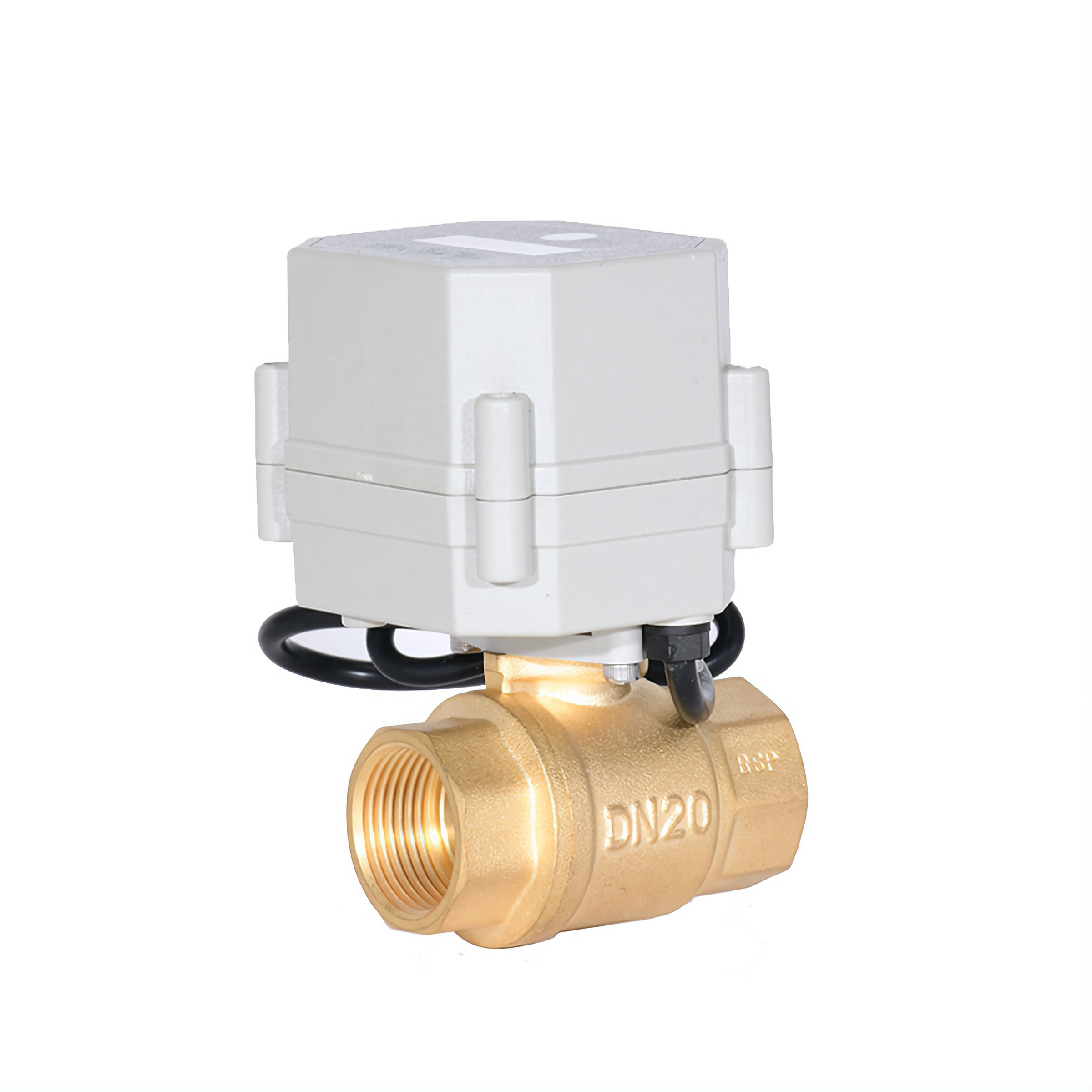

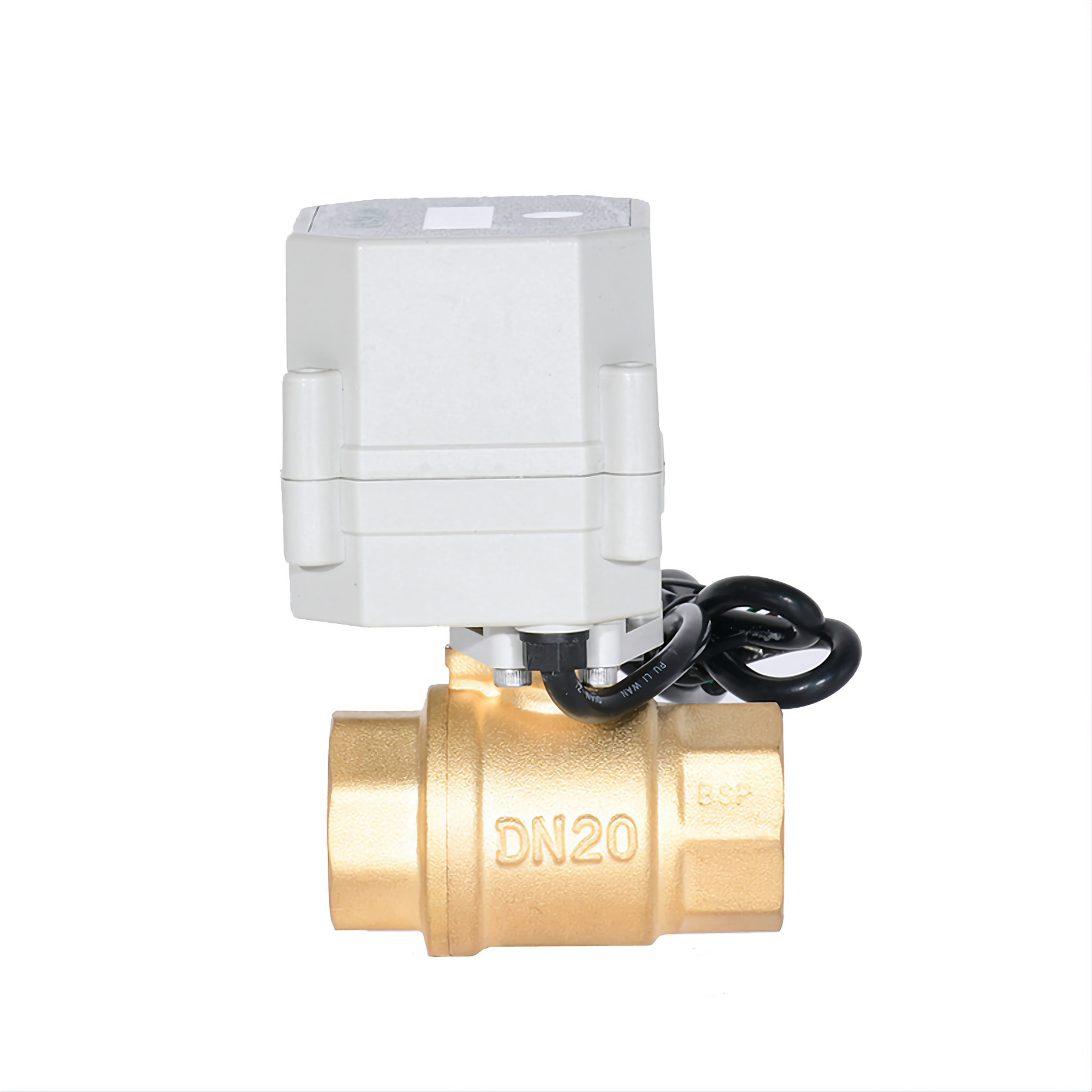

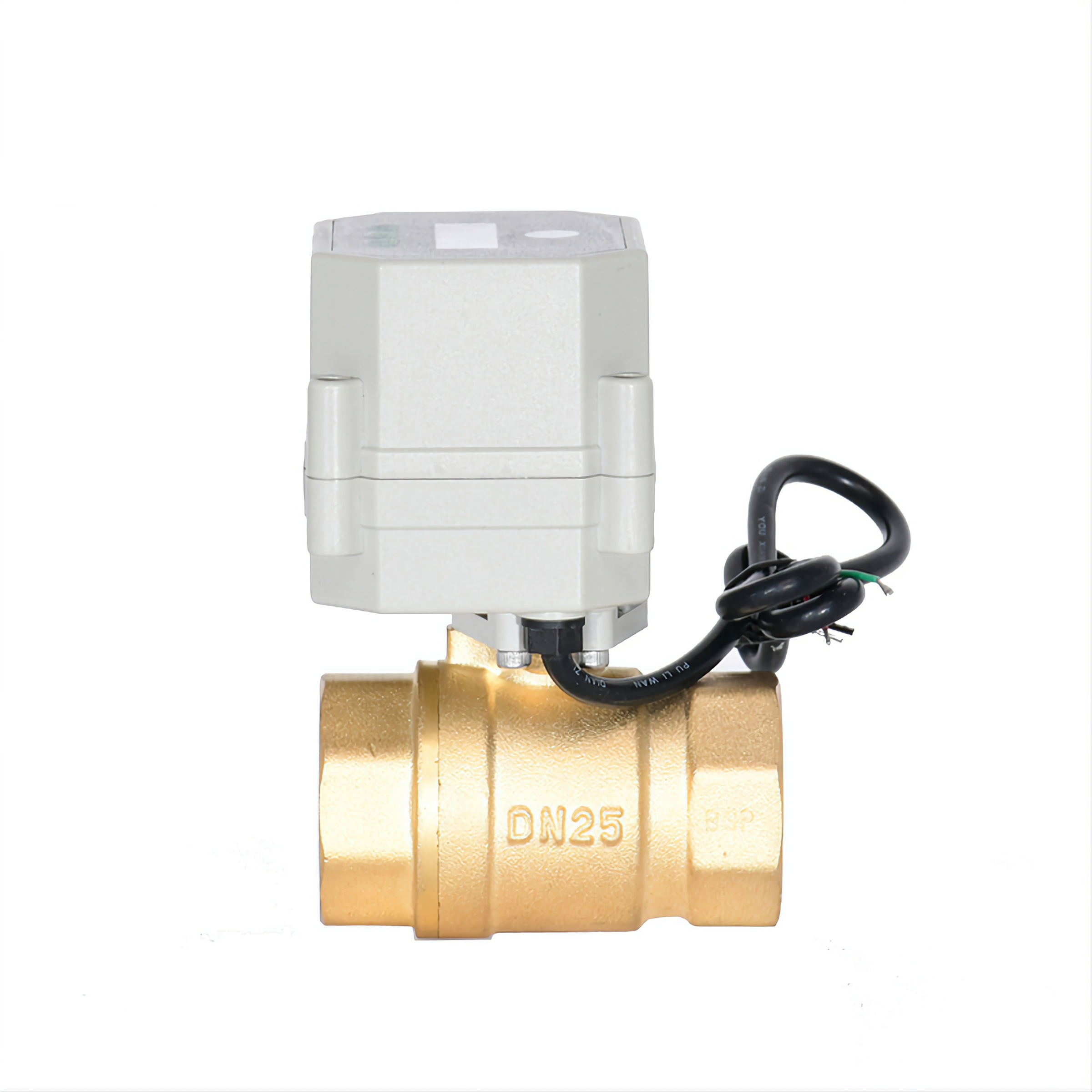

(Sxx-B2-C-xxHR)
Technical Data
|
Product size |
1/2" 3/4'' 1'' BSP |
|
Maximum working pressure |
1.0MPa (10 Bar) |
|
Circulation medium |
Fluid, air |
|
Valve open /closed time |
≤ 7S |
|
Working Voltage |
AC/DC9-24V AC110-230V) |
|

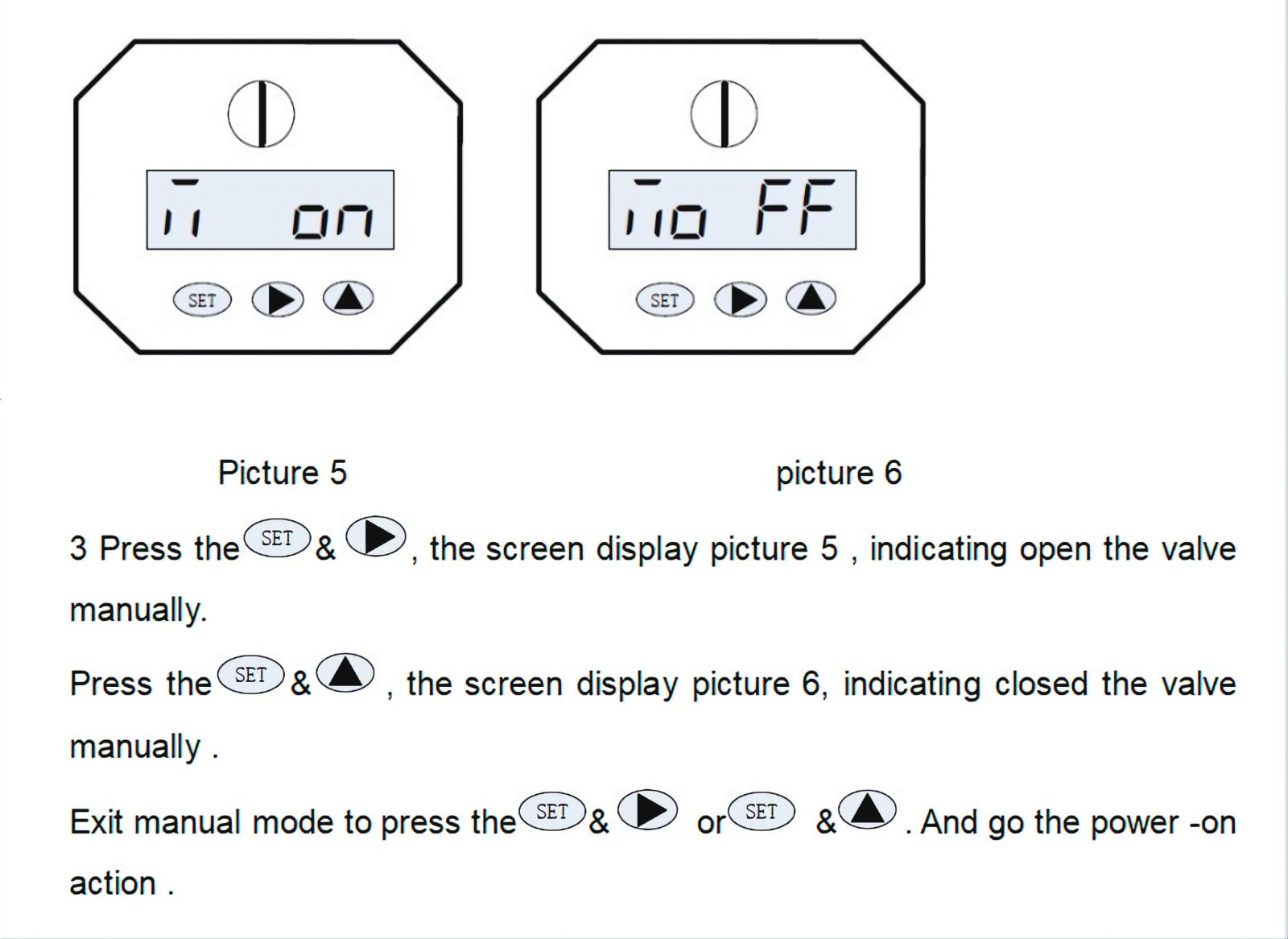

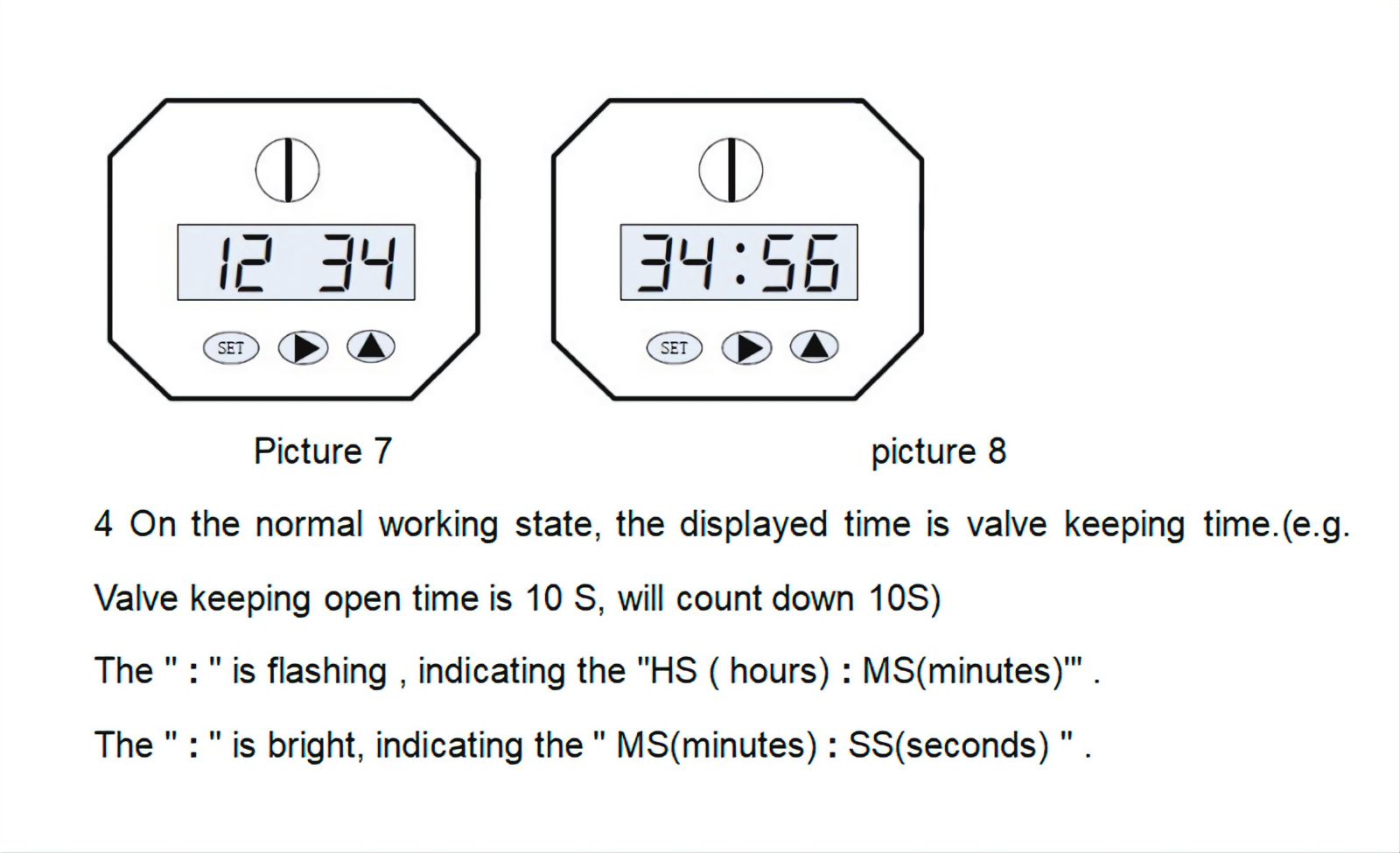

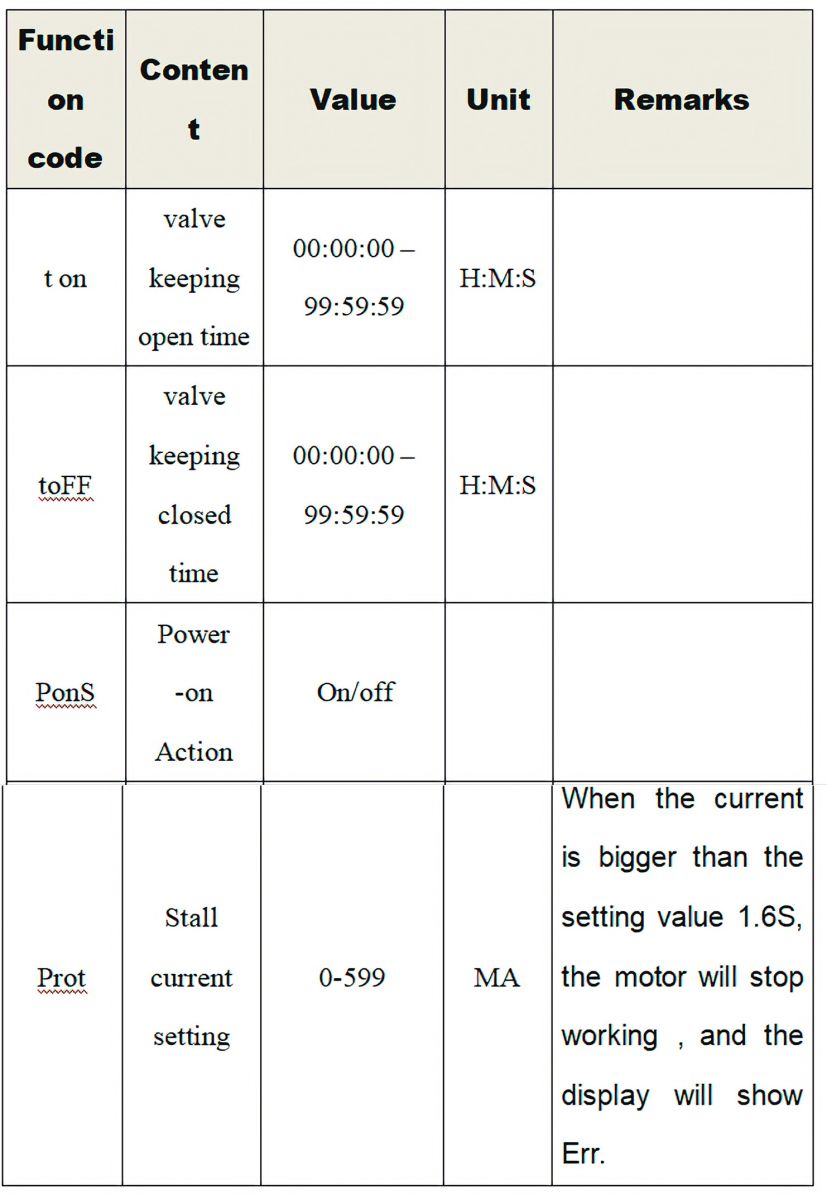

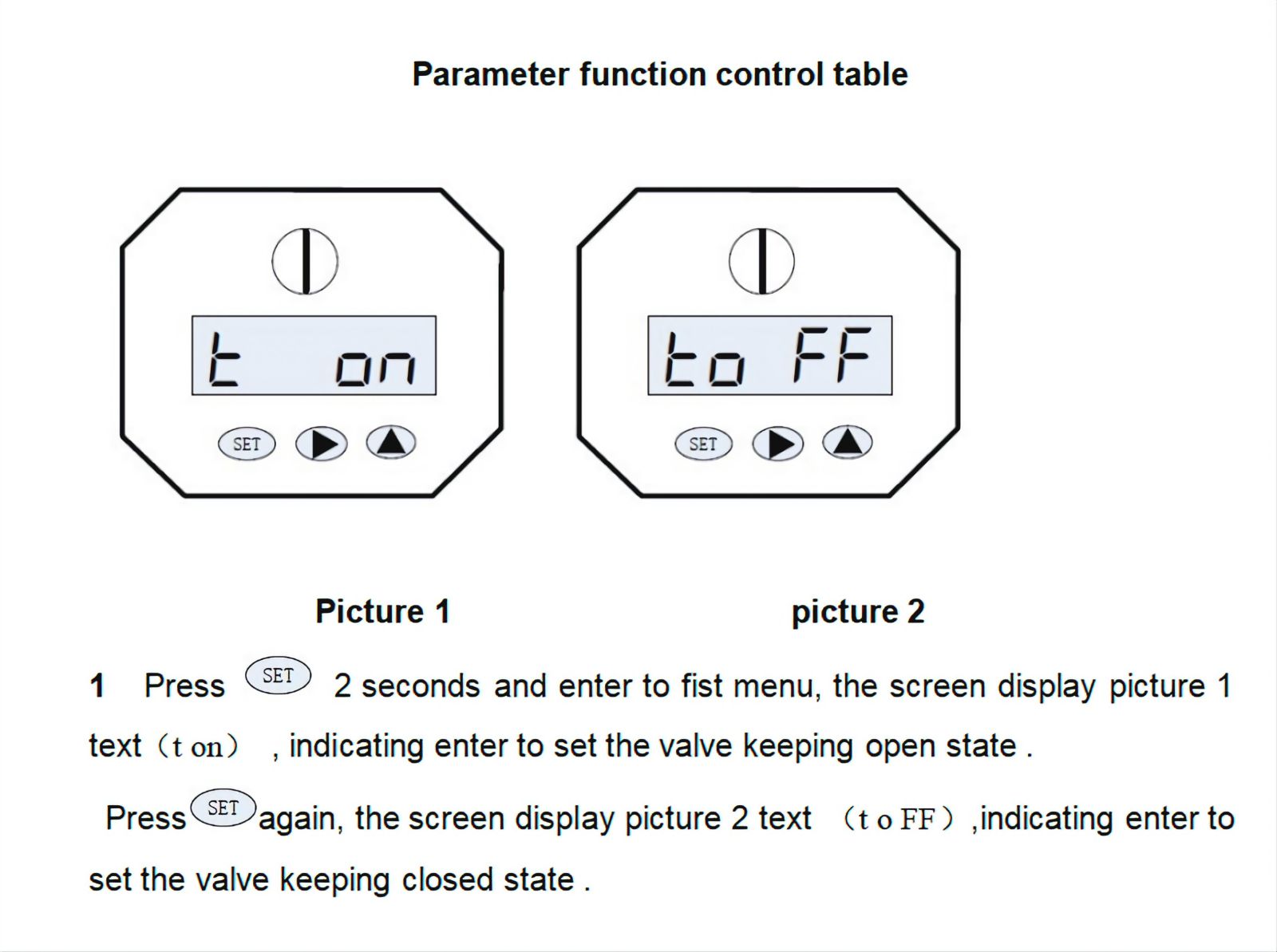

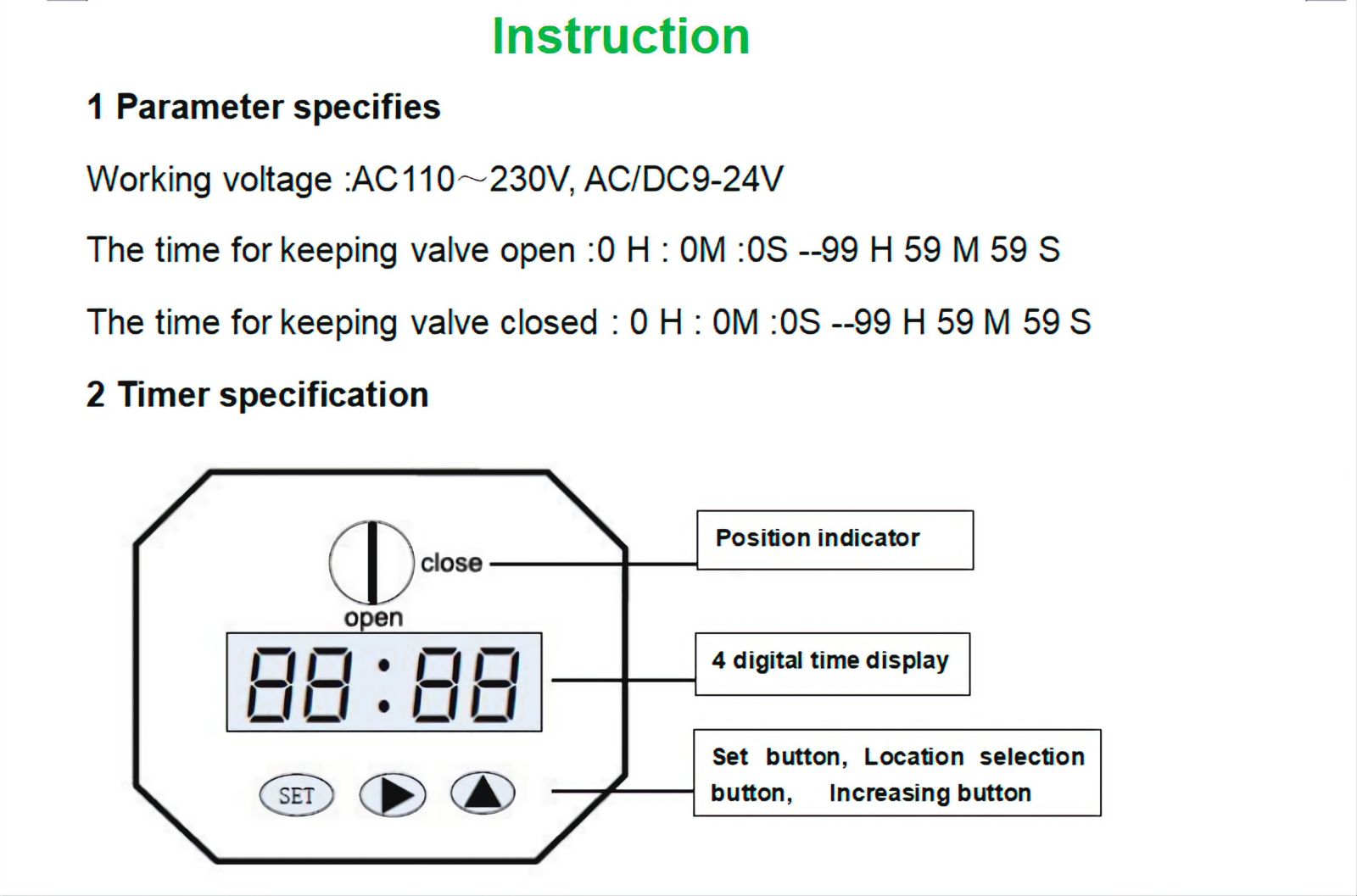

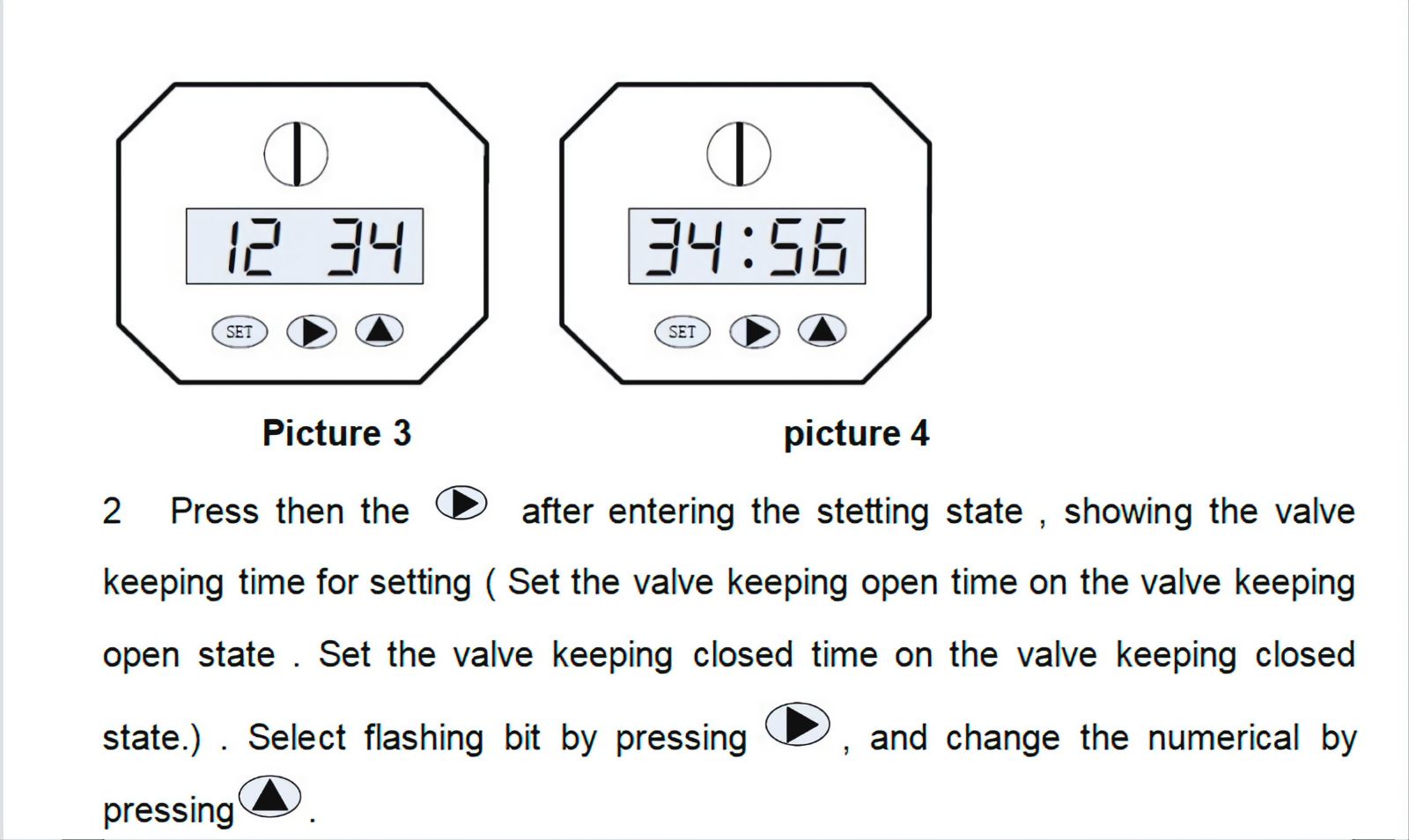

Keeping valve open time |
00:00:00-99:59:59 |
|
Keeping valve closed time |
00:00:00-99:59:59 |
|
Working current |
≤500mA |
|

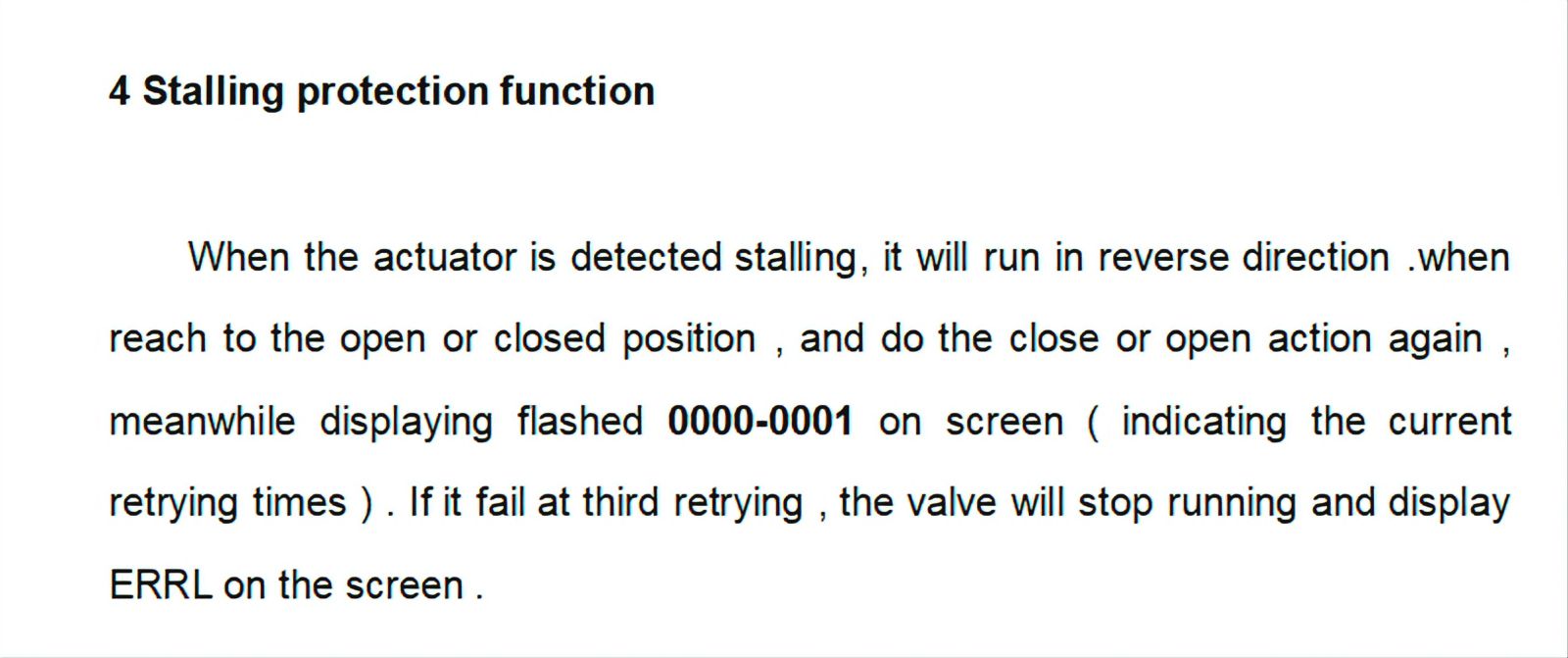

Stall current setting |
0-599mA |
|
Life time |
70,000 times at least |
|

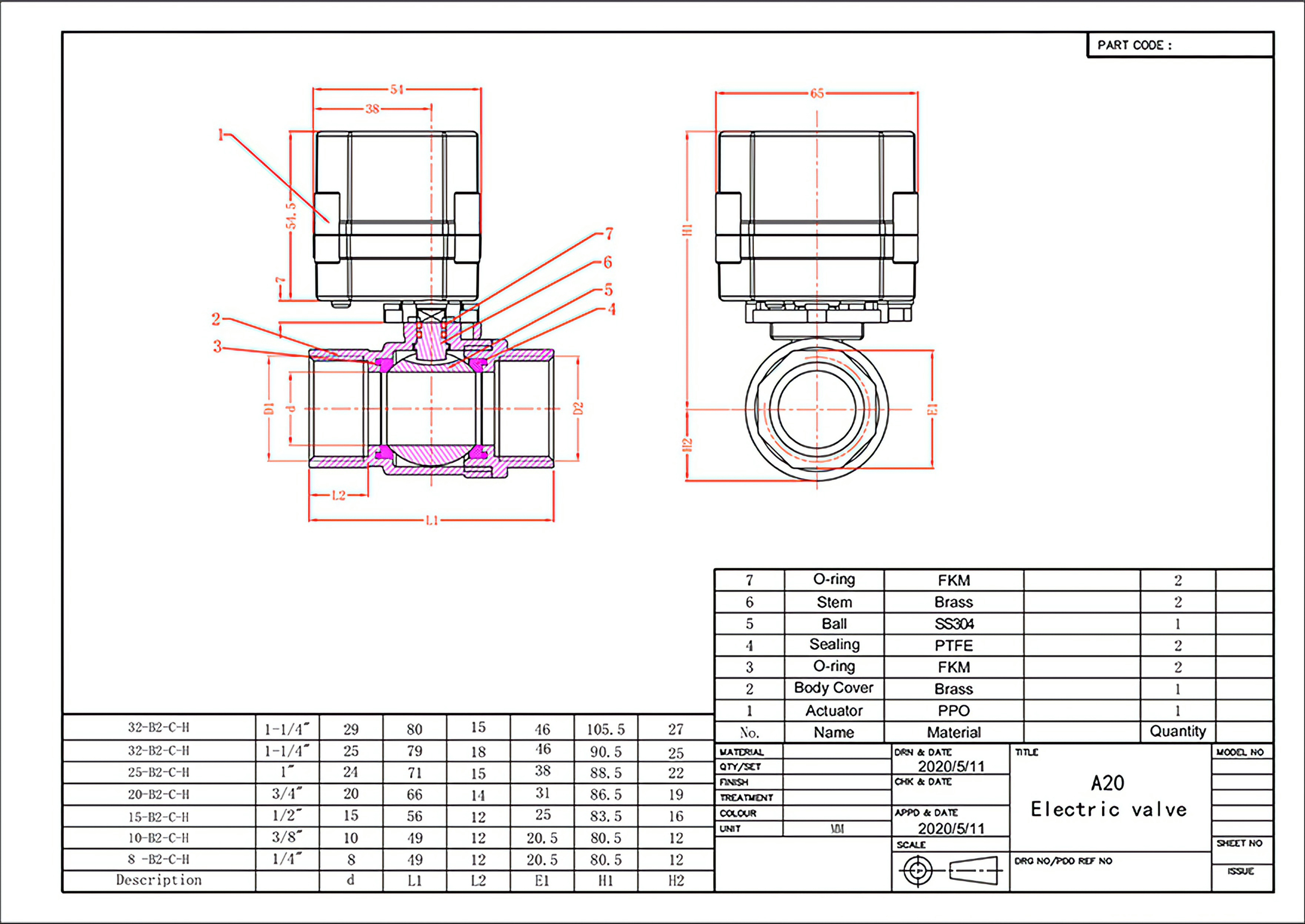

Valve Body material |
SS304 |
|
Actuator material |
PPO |
|
Sealing material |
EPDM & PTFE |
|
Actuator rotation |
90° |
|
Max. torque force |
4N.M |
|
Cable Length |
0.5m |
|
Environment temperature |
-15℃~50℃ |
|
Liquid temperature |
2℃~90℃ |
|
Manual override |
No |
|

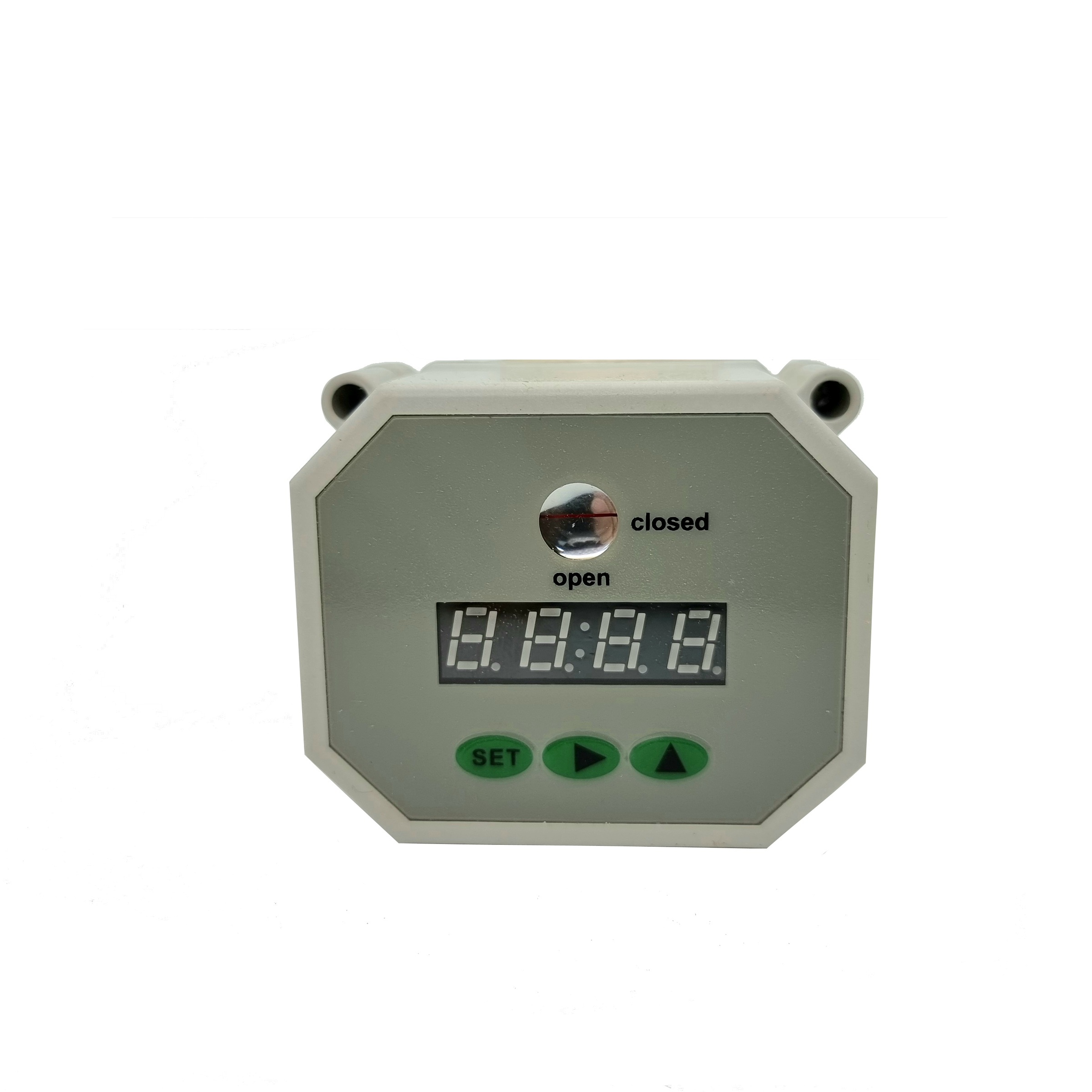

Open/close Indicator |
Yes |
|
Protection Class |
IP67 |
