1/2 - 1 1⁄4” BSP SS304 Electric Actuated Proportio
- Ports size: 1/2″ - 2" BSP
- Protection class IP67
- Manual Override: No
- Open/close indicator: Yes
- Body material: SS304
AU $439.34
Motorized Water Valve is ideal for water heater, water treatments, brewing and water meters. It is a stainless steel valve which has a 9-24V AC/DC or 12-24V DC & 24V AC or 110V-230V AC or 110V-240V AC voltage with 2 or 3 wires. It also has a pressure of 1.0Mpa with a torque of 2Nm. Its on/off time is 5 seconds. Its service life is up to 70,000 times with a current of 500mA which is ideal for battery driving. Its environment temperature is -15℃ ~ 50℃ and a 2℃ ~ 90℃ liquid temperature.
Size | 1/4″ – 2″ BSP |
Function | 2 Way Normally Closed |
Valve Operation | Electric Ball Valve |
Body Material | Stainless Steel S304 |
Seal | FKM & PTFE |
Open/close time | ≤5S |
Pressure Range | 10 bar |

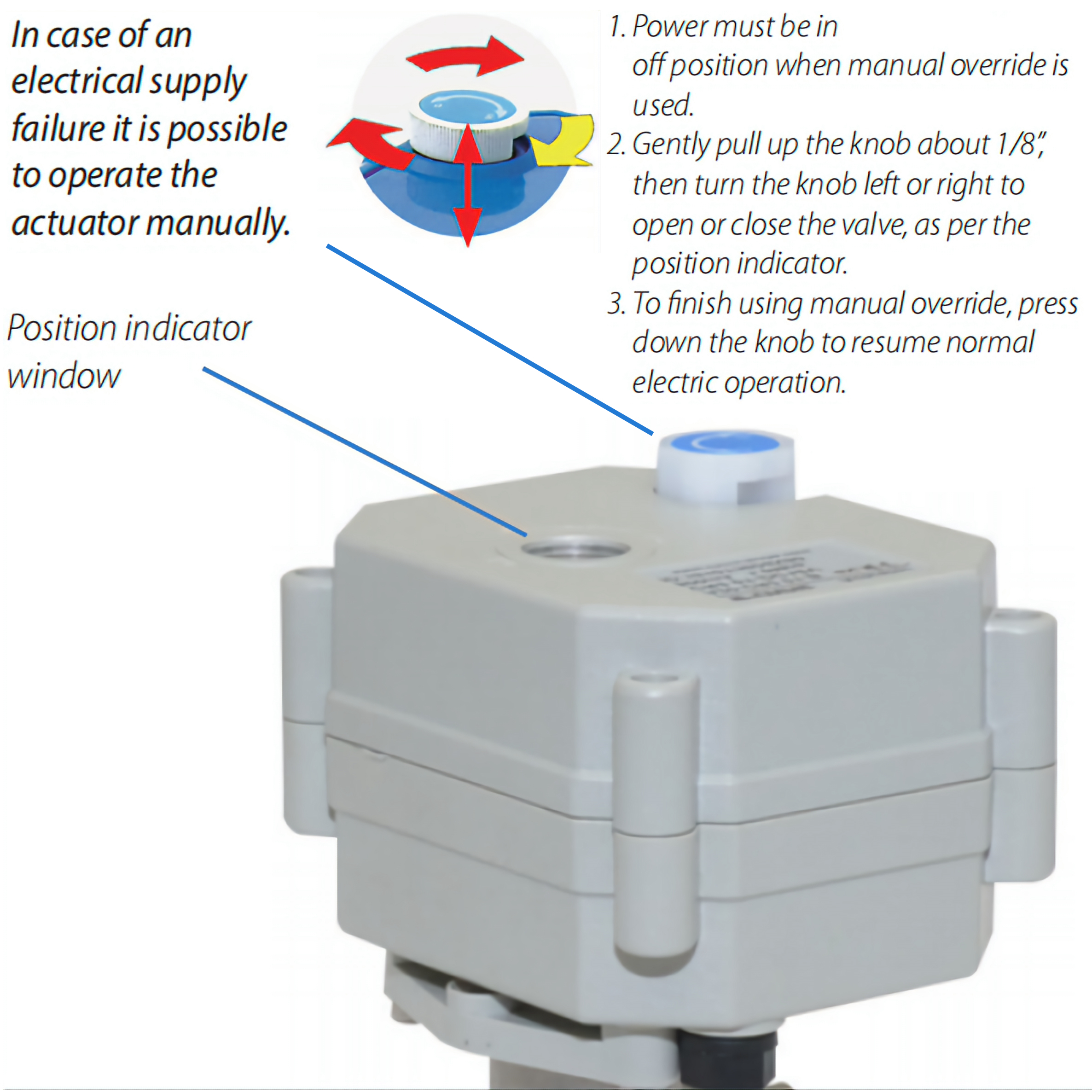

Manual Override | Yes |
Open/close indicator | Yes |
Cable lenght | 0.5m |
Media | Air & Fluid |

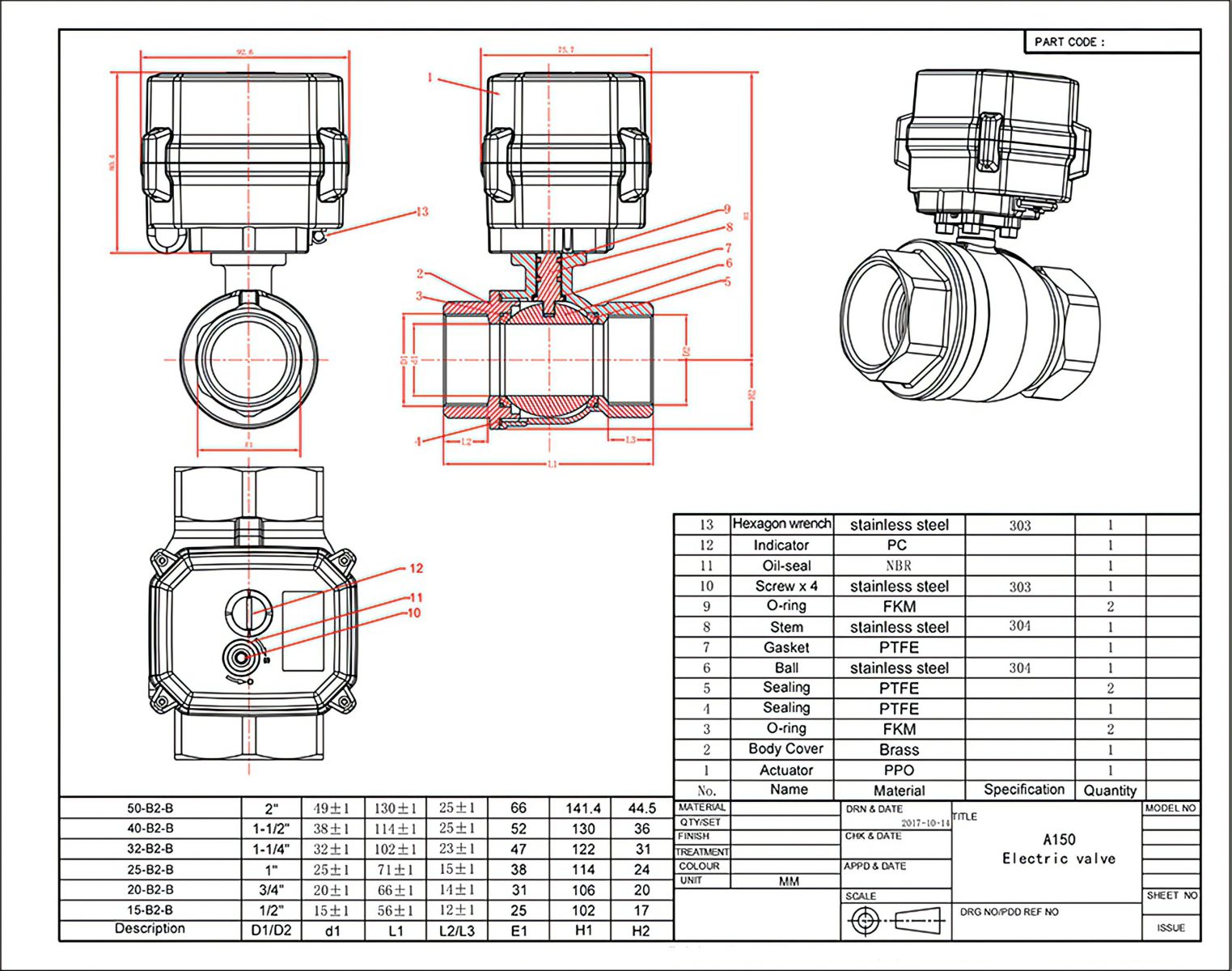

Design Features

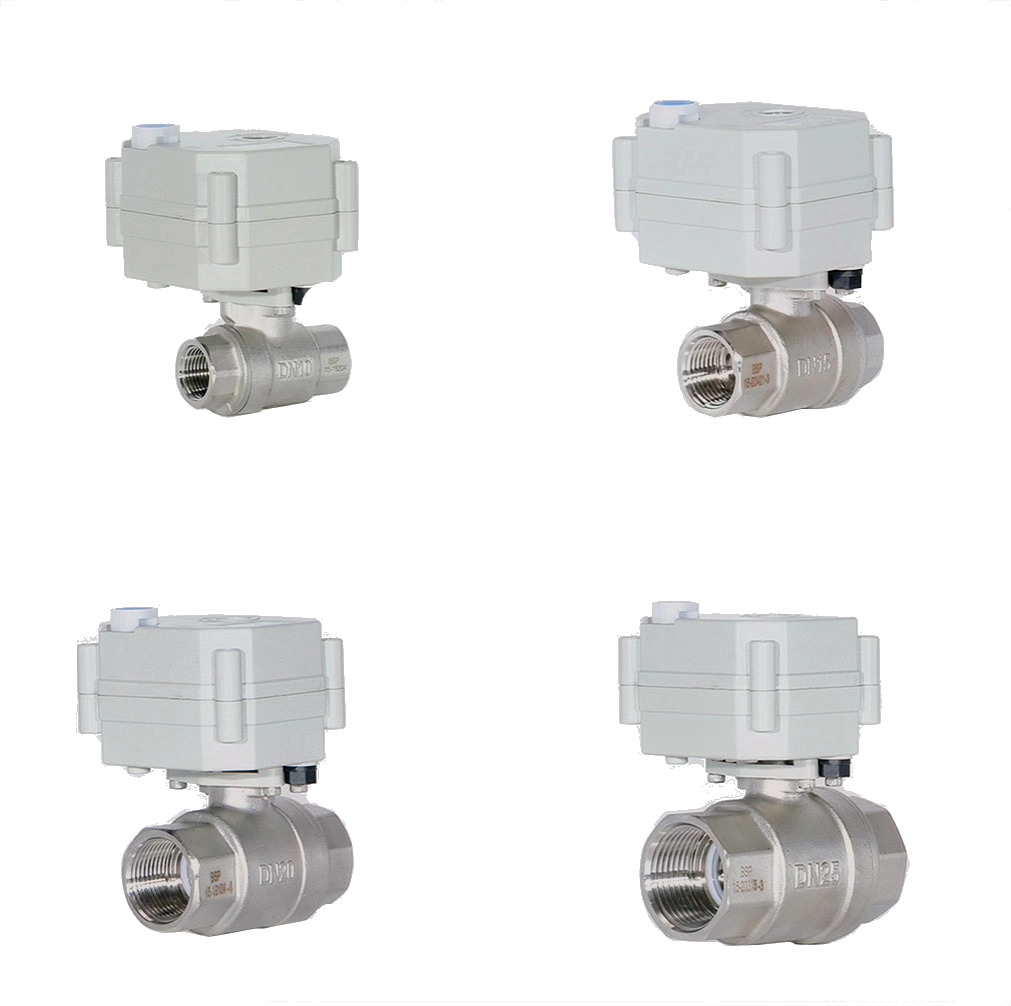

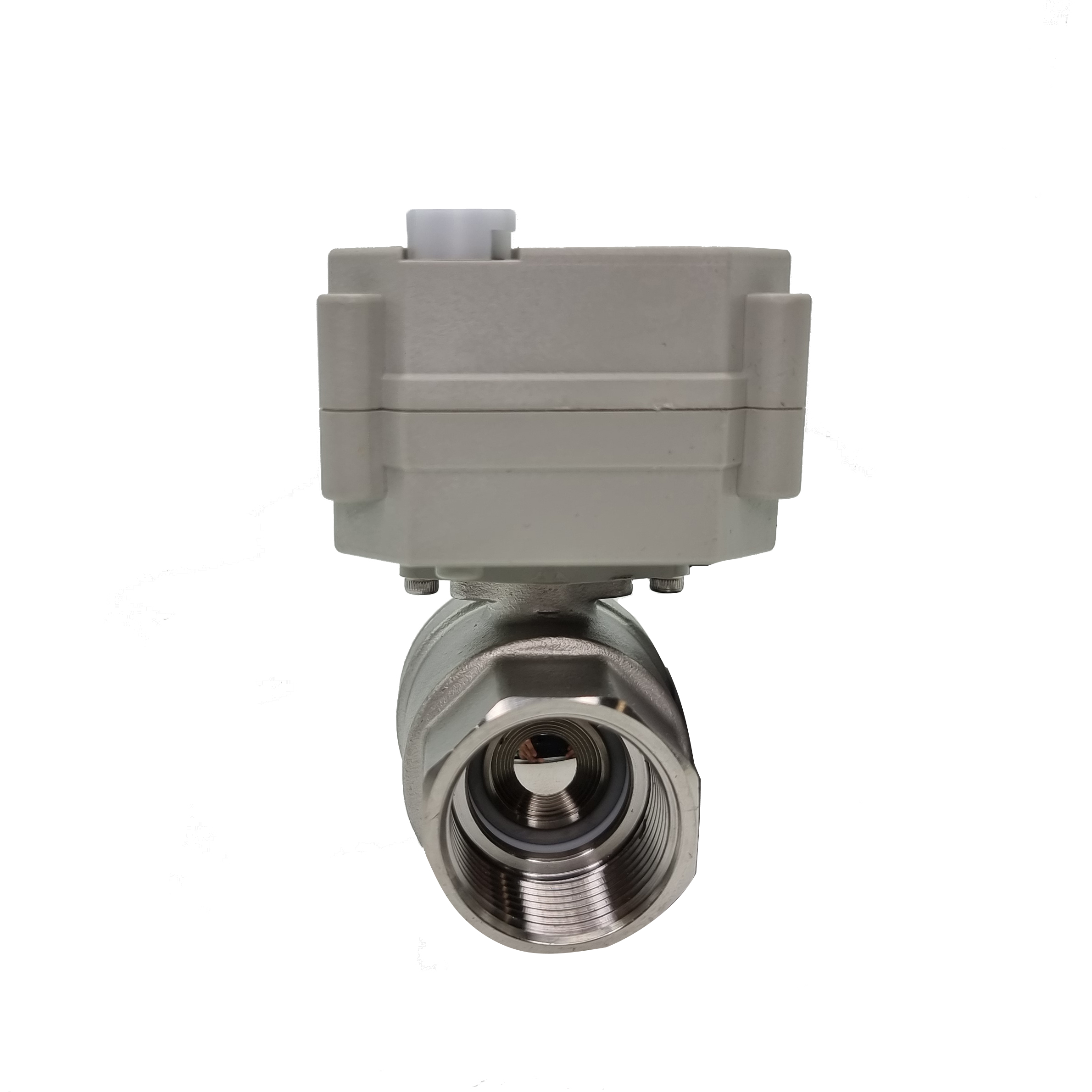

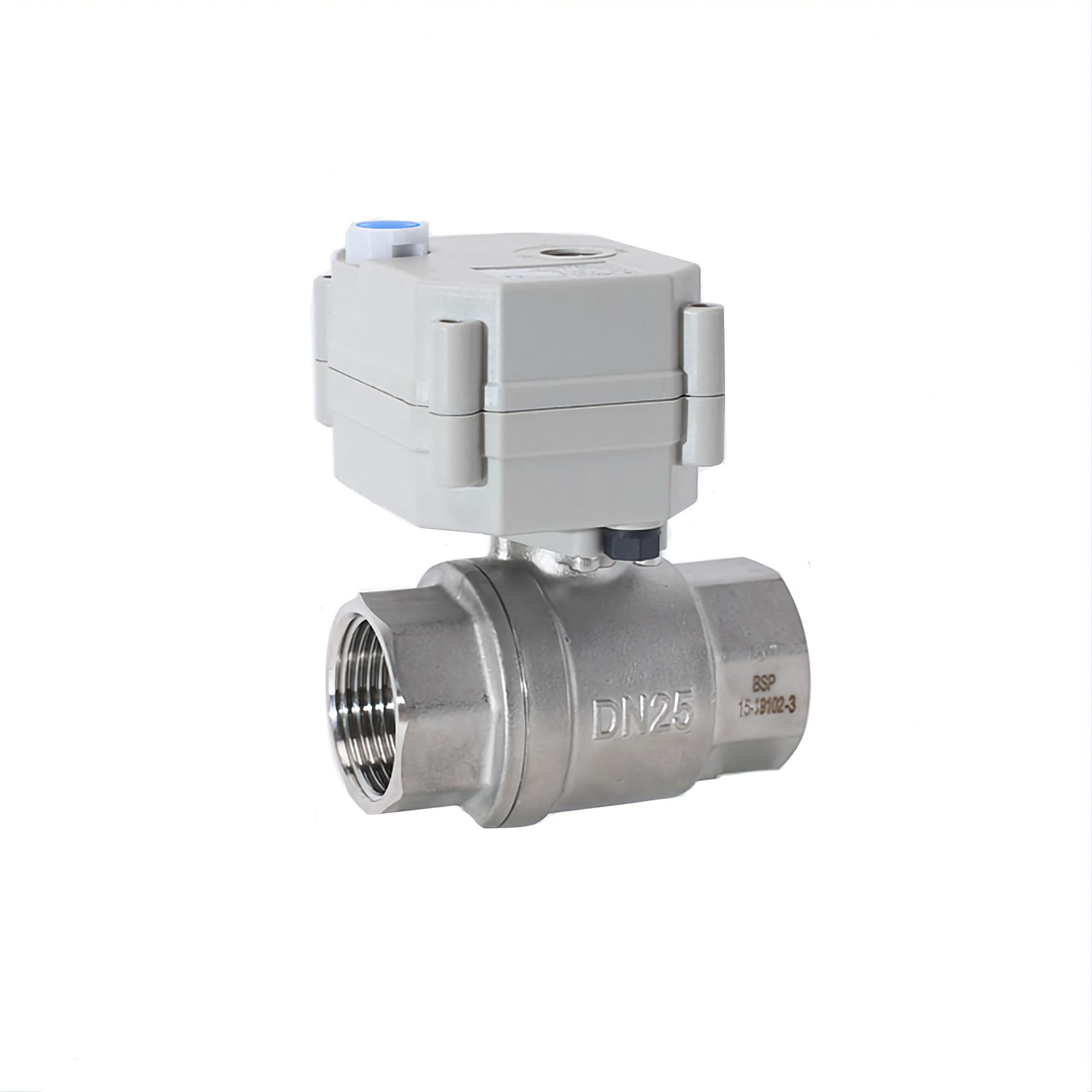

(SS304-Ball-Valve)

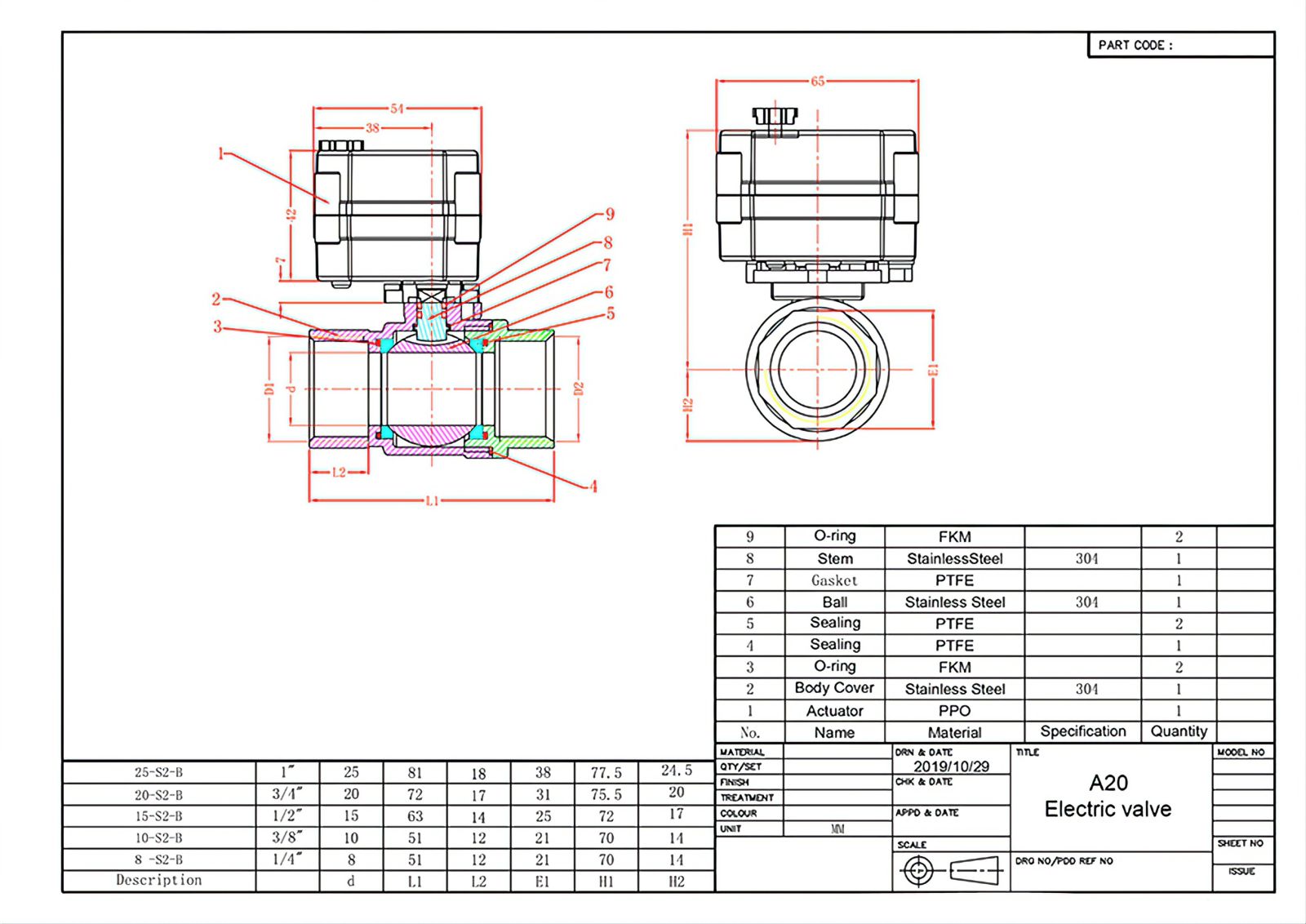

Technical Data
Product size |
1/4" 1/2"' 3/4'' 1'' 1 1⁄2” 2" BSP |
Maximum working pressure |
1.0 MPa (10 Bar) |
Circulation medium |
Fluid, air |
Working voltage |
9-24V AC& DC / 12-24V DC & 24V AC / 110-230V AC |
Wiring control methods |

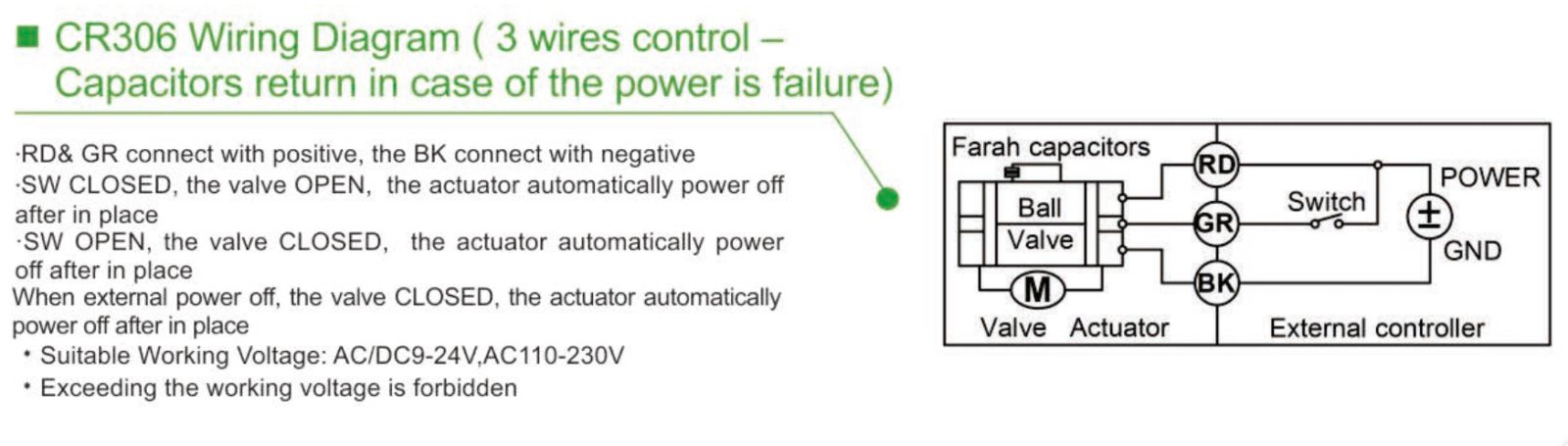

CR202 CR305 CR306 |
Working current |
≤500mA |
Open/close time |
≤5S |
Life time |
70,000 times at least |
Valve Body Material |
Stainless Steel SS304 |
Actuator Material |
Engineering Plastics |
SealingMaterial |
FKM & PTFE |
Actuator rotation |
90° |
Max. torque force |
2 N.m |
Cable Length |
0.5m,1.5m(Optional) |
Environment temperature |
-15℃~50℃ |
Liquid temperature |
2℃~90℃ |
Manual override |
YES |
On/off Indicator |
YES |
Protection class |
IP67 |
