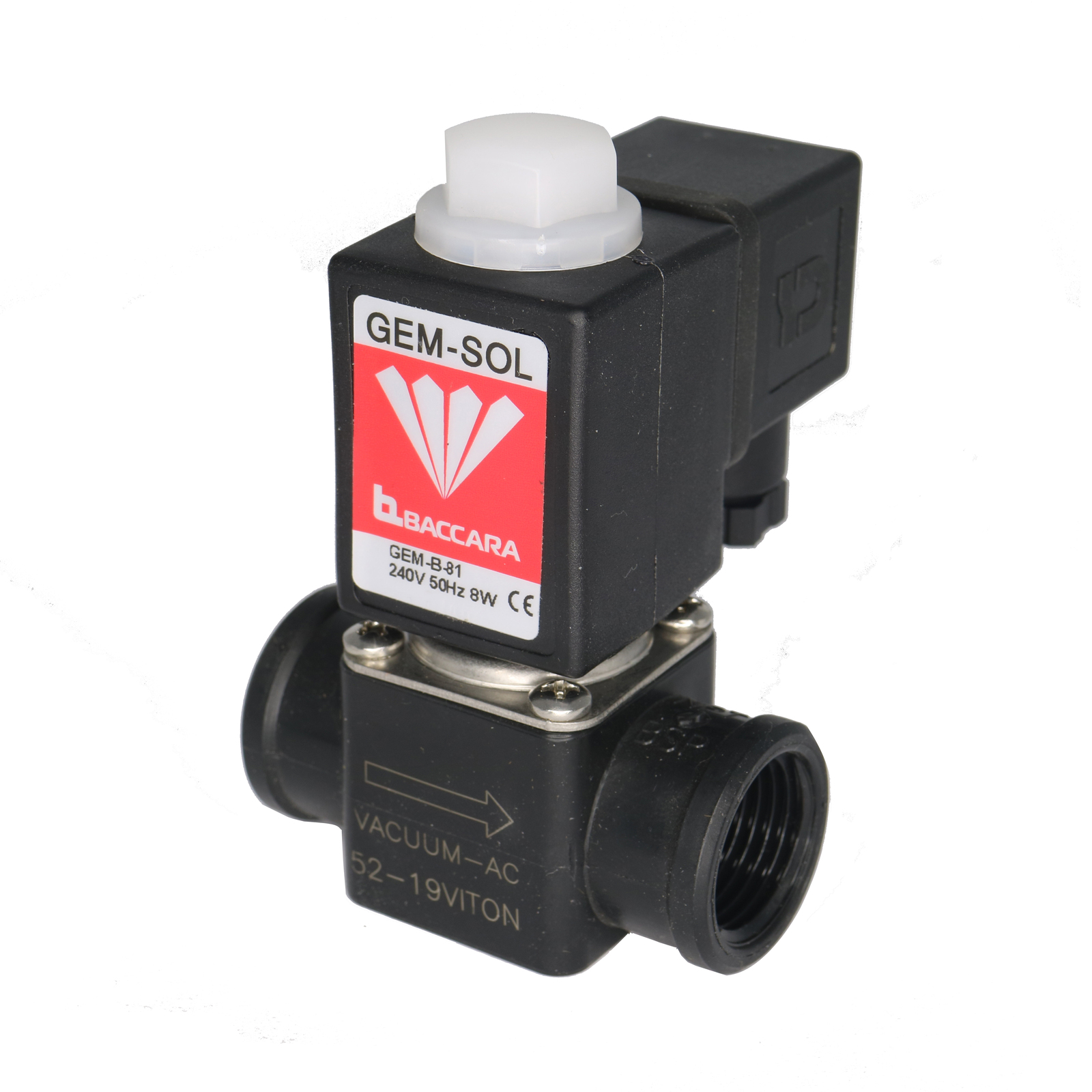

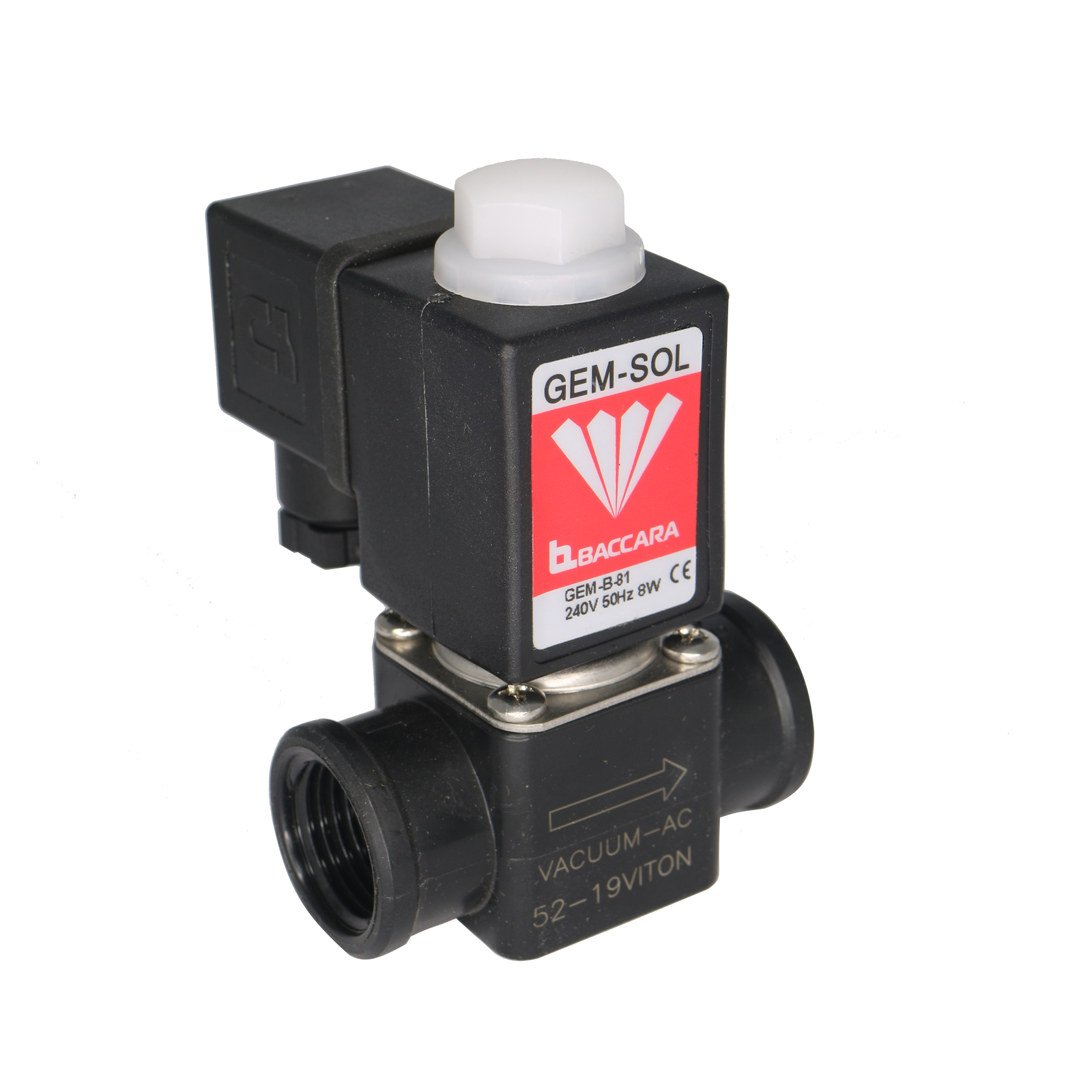

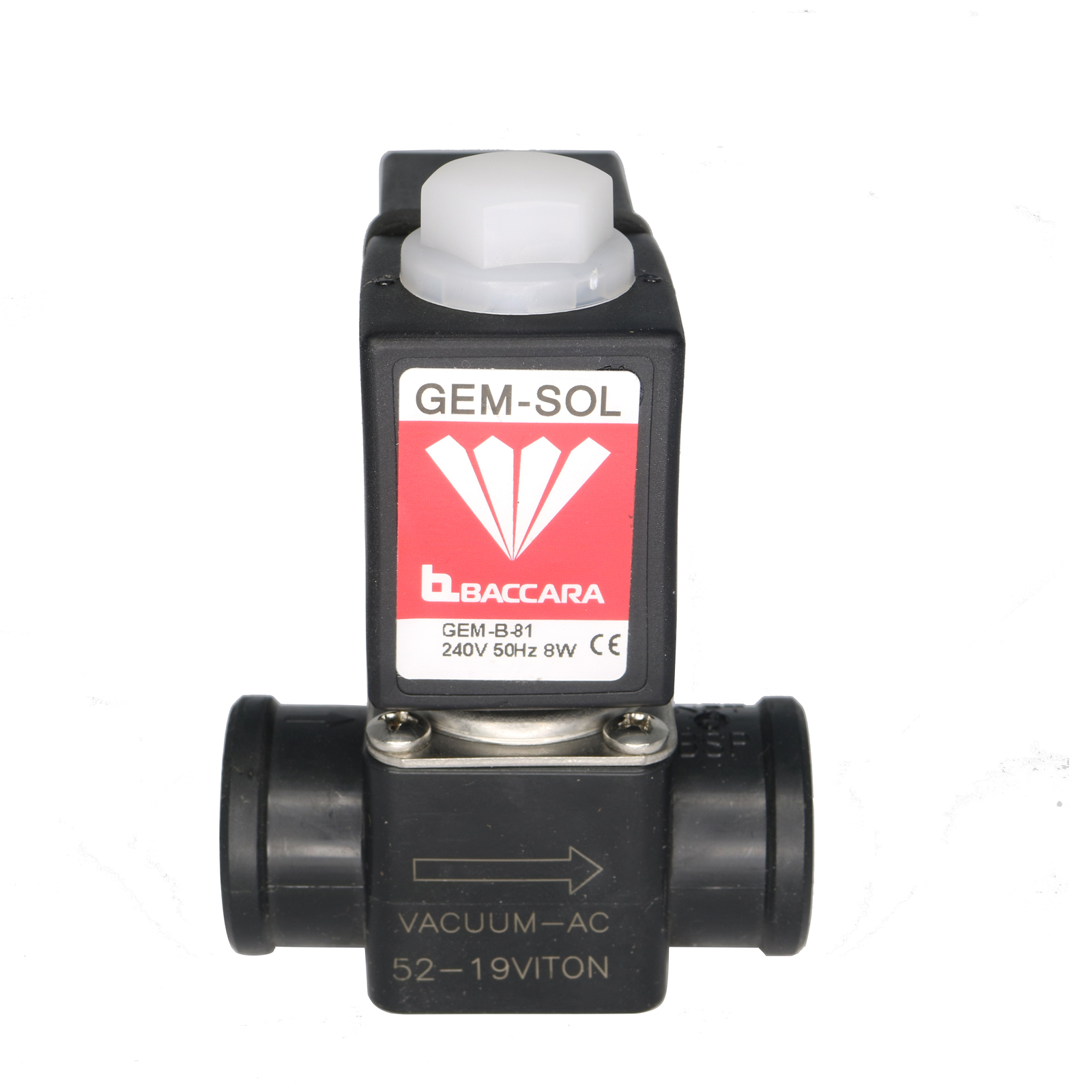

Size | 1/4" - 1/2" BSP |
Function | 2 Way NC NO |
Valve Operation | Isolated |
Body Material | Plastic |
Seal | FPM (Viton®) |
Pressure Range | See techinal data |
Media |
(GEM-C)
GEM-C 1/4" Technical Specifications
Technical Data
Function | 2 Way NC, NO |
Ports size | 1/4" BSP & NPT |
Orifice size | 4.5mm |
Pressure range | See table |
Kv (l/min) | 5 l/min |
Temperature range | Fluid : 5º to 50ºC (no freezing) Ambient : -10ºC to 50ºC |
Materials in contact with media |
Manual override: NC : Plastic NO : Manual override is not available Main Valve: Reinforced PPA Seals: FPM (Viton®), EPDM, Silicone |
Applications | • Chemical process • Water treatment • Analysis device etc |
Coil voltage | • Voltage and power consumption - see table • All Baccara coil voltages are ± 10% of nominal |
Standard protection class | IP65 with connector * Option : IP68 (please refer to GEM-BP Coil) |

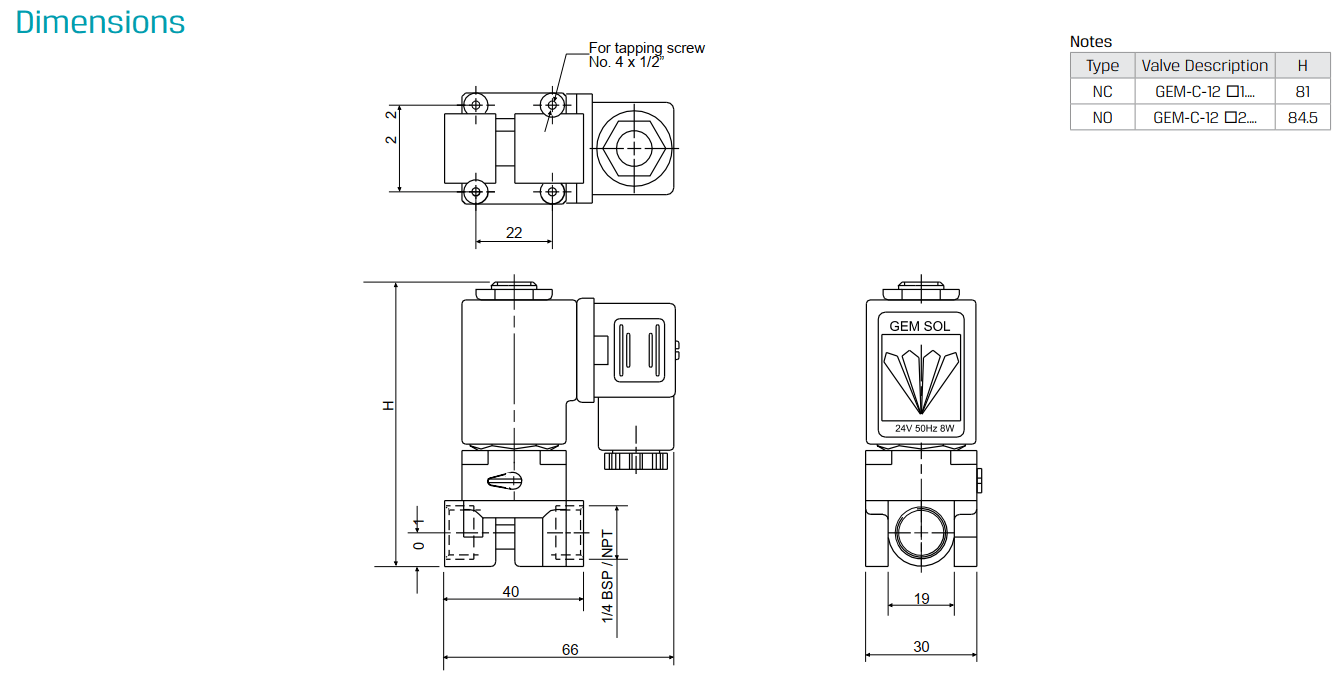

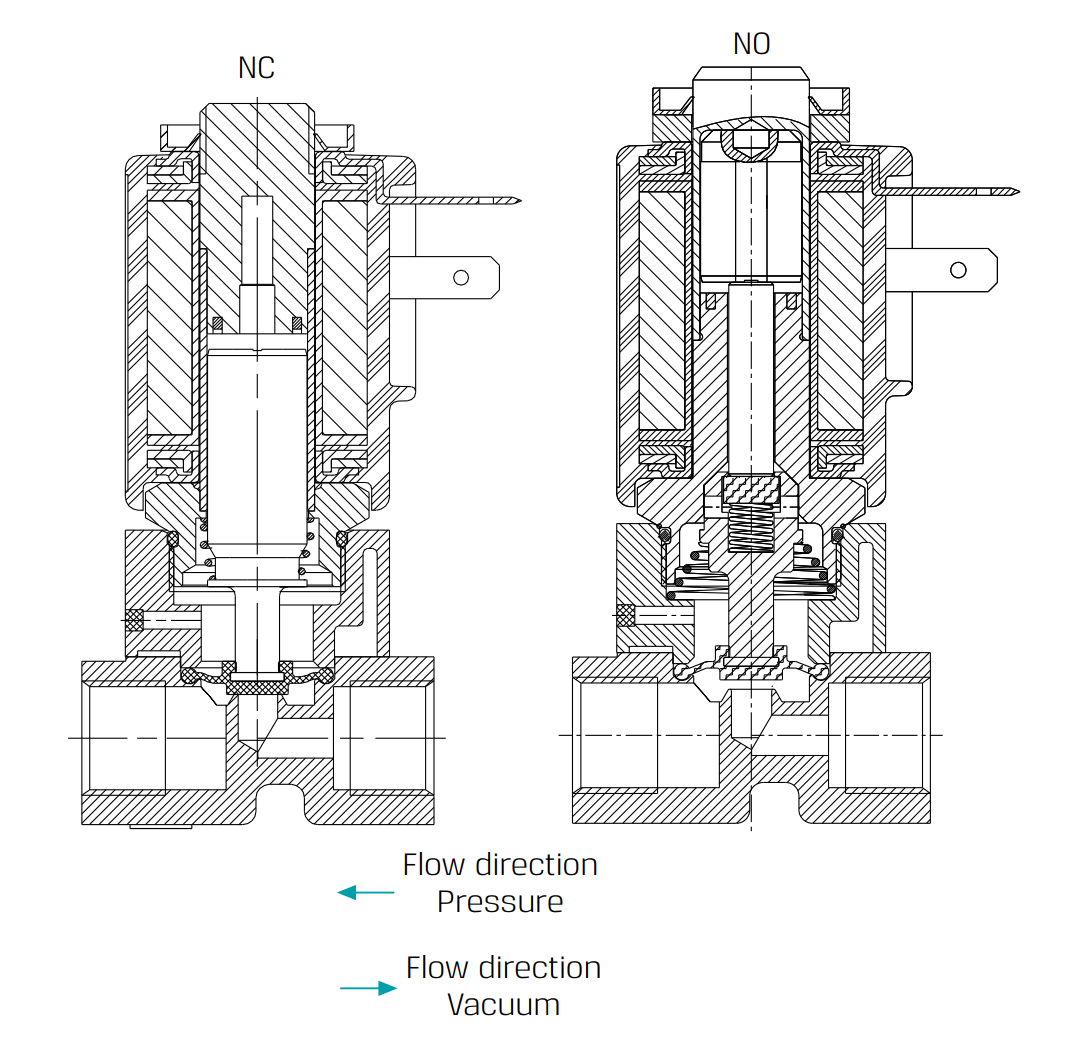

Pressure (bar) table NC
Coil | Flow direction not restricted |
Flow direction restricted |
ADC * | 0 to 2.5 bar | 0 to 0.6 bar |
AC 8W | 0 to 2.5 bar | 0 to 0.7 bar |
AC 5.5W | 0 to 2 bar | 0 to 0.5 bar |
DC 5.5W | 0 to 1.5 bar | 0 to 0.4 bar |
Vacuum (bar) table NC
Coil | Flow direction not restricted |
minimum rp |
ADC * | -1 to 0 bar | 1 bar |
AC 5.5W | -1 to 0 bar | |
DC 5.5W | -1 to 0 bar |
Pressure (bar) table NO
Coil & power rating | Flow direction not restricted |
Flow direction restricted (1) |
ADC *, AC 8W or DC10W | 0 to 1 bar | 0 to 0.5 bar |
5.5W AC/DC | 0 to 1 bar | 0 to 0.5 bar |
(1) Higher input pressure of up to 1atm can be achieved with minimal pressure drop on the valve of 0.3atm
* ADC valves are only suitable for use with AC8W or DC10W coils. Voltage & Power Consumption NC & NO valves

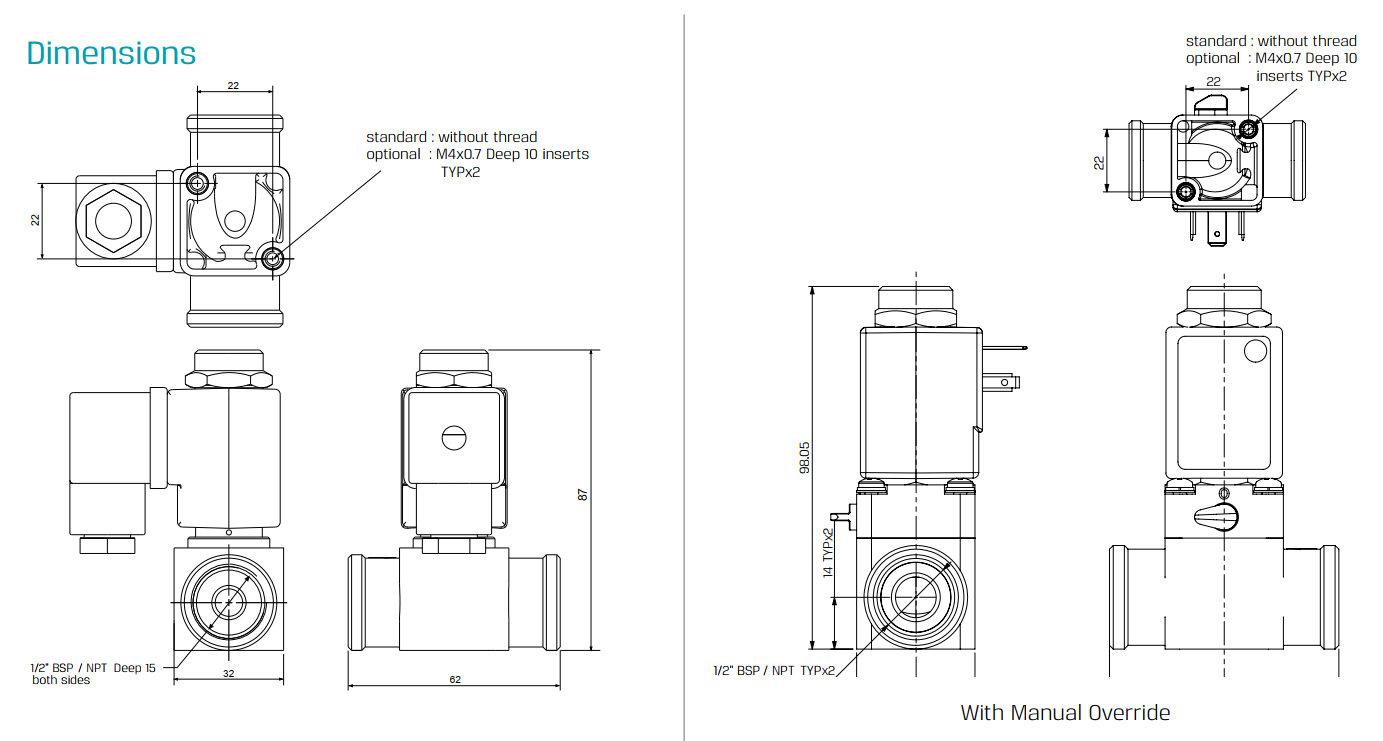

GEM-C 1/2" Technical Specifications
Technical Data
Function | 2 Way NC |
Ports size | 1/2" BSP & NPT |
Orifice size |
8.0mm |
Pressure range | See table below |
Kv (l/min) |
18 l/min |
Temperature range | Fluid : 5ºC to 50ºC (no freezing) Ambient : -10ºC to 50ºC |
Materials in contact with media |
Manual override: Plastic * Available for vacuum application only Main Valve: PVC Seals: FPM (Viton®), EPDM |
Applications | • Chemical process • Water treatment • Analysis device etc |
Coil voltage | • Voltage and power consumption - see table • All Baccara coil voltages are from -5% to ±10% of nominal |
Standard protection class | IP65 with connector * Option : IP68 (please refer to GEM-BP Coil) |
• Supplied with mounting threads on request, please specify
Pressure (bar) table NC
Coil | Flow direction not restricted |
Flow direction restricted |
AC 8W, DC10W | 0 to 0.7 bar | Min dp 0.3 bar |

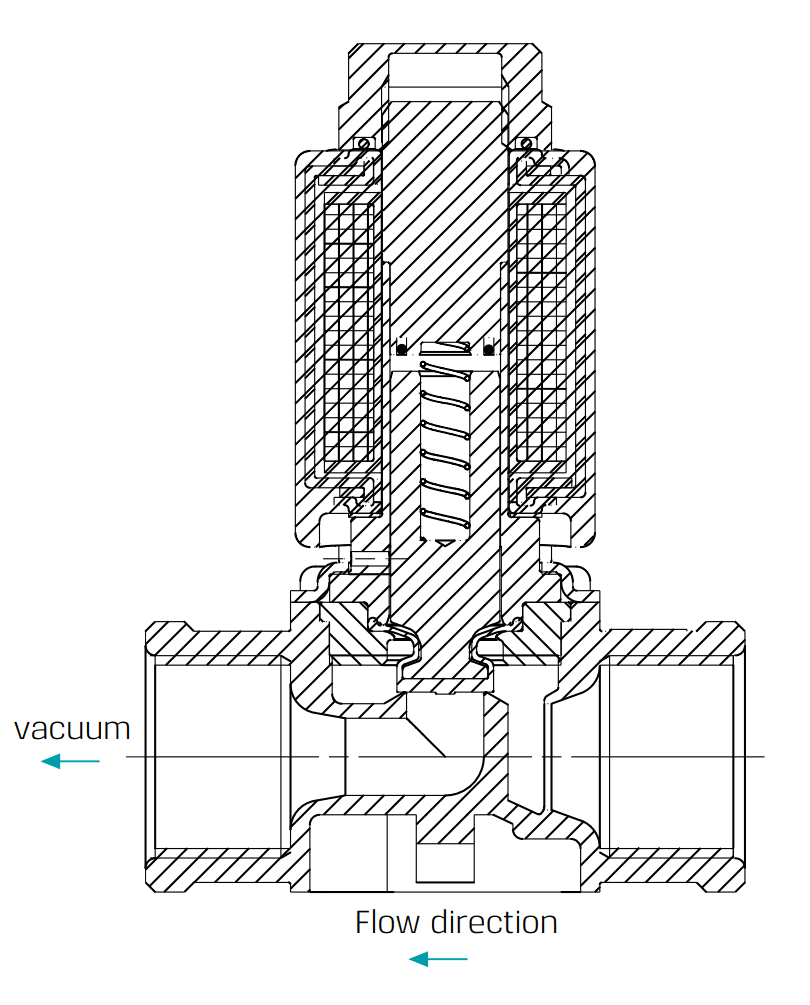

Vacuum (bar) table NC
Coil | Flow direction not restricted |
Flow direction restricted |
AC 8W | -1 to 0.5 bar | -1 to 0.5 bar |
AC 5.5W | -0.5 to 0.5 bar | -0.8 to 0.5 bar |
DC 10W | -0.4 to 0.5 bar | -0.6 to 0.5 bar |
