- Port Size: M5 - 1/2"
- Working pressure: 0~16 bar
- Temperature: 0~60°C
- Type: Straight, Union Straight, Elbow, Branch Tee, Run Tee

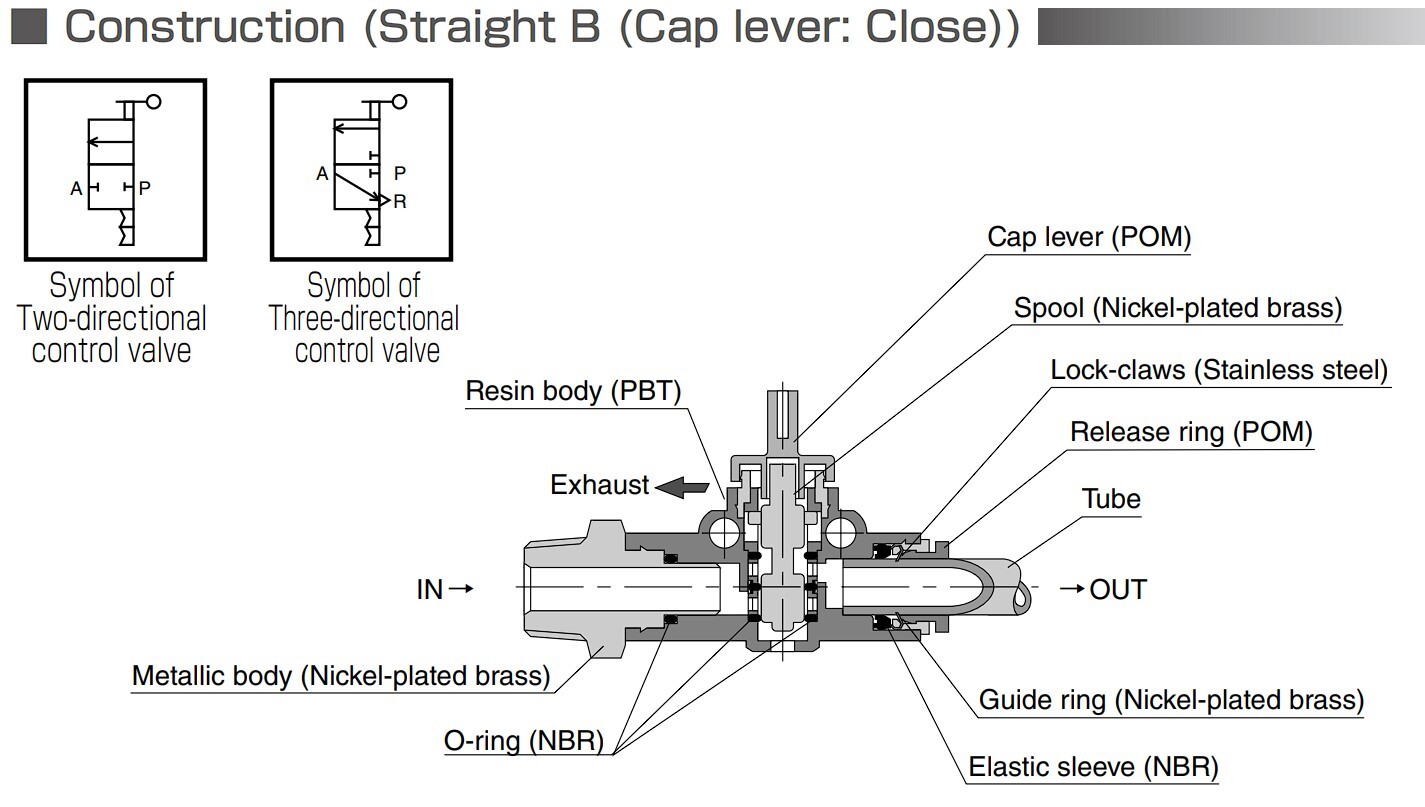

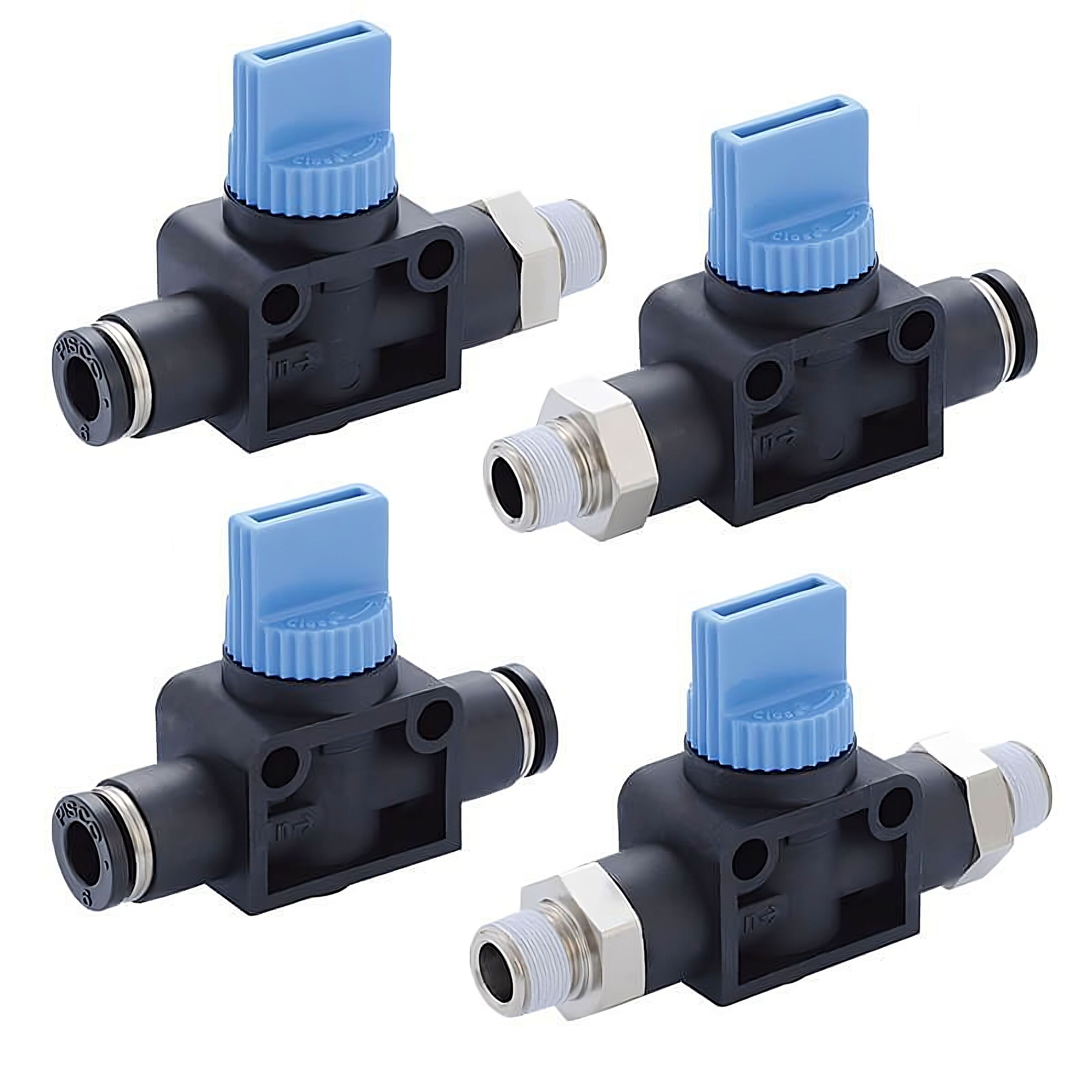

Hand Valve turns on and off air pressure to pneumatic devices. As the three-directional control valve discharges the residual pressure, suitable for frequent maintenance at output side devices.
|Operating pressure range||0~0.9 MPa|
|Max. vacuum||-100 kpa|
|Operating temp. range||0~+60℃ (no freezing)|
