  4. Hydraulic / Electric Valve Flanged Valve 3” - 6" | BH-S

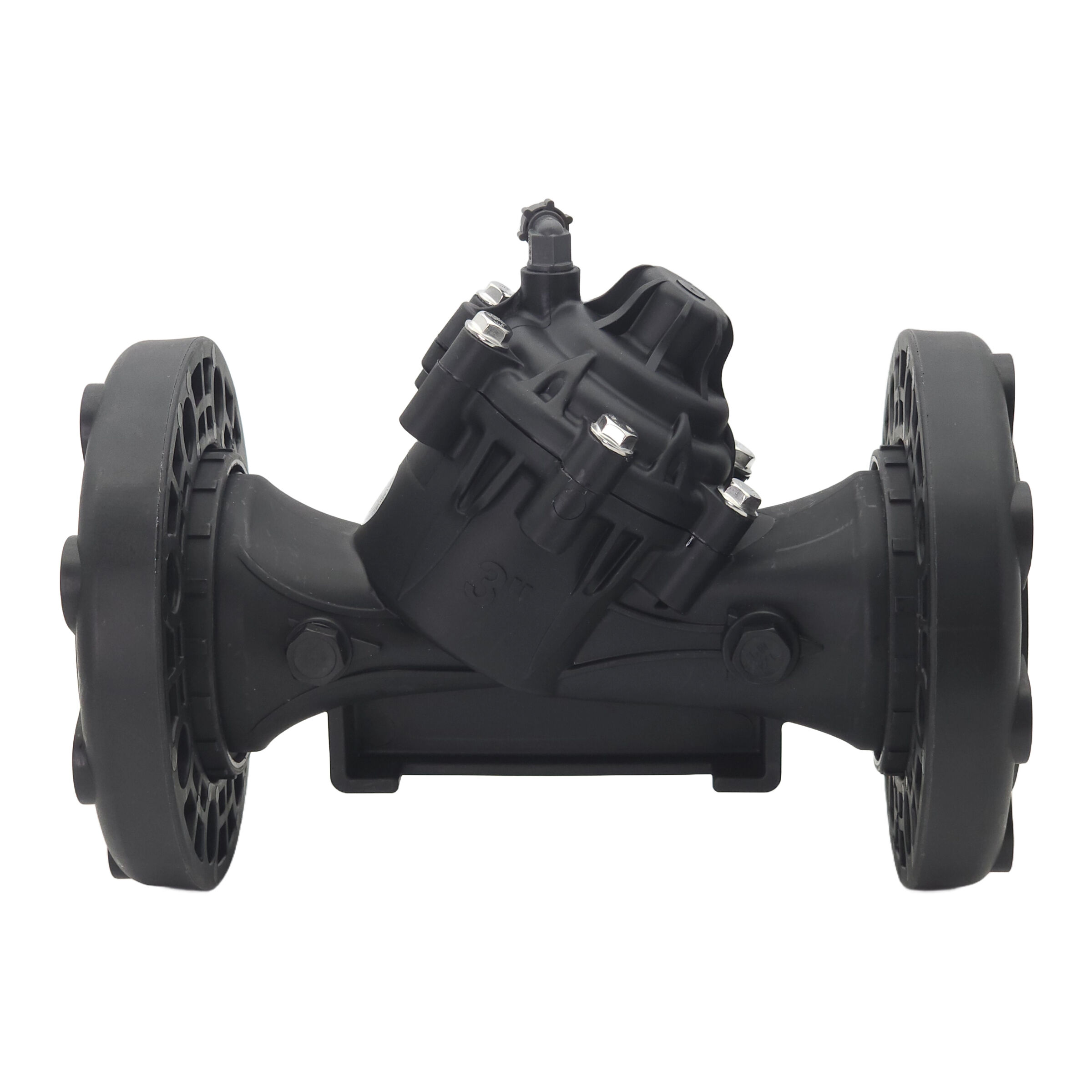

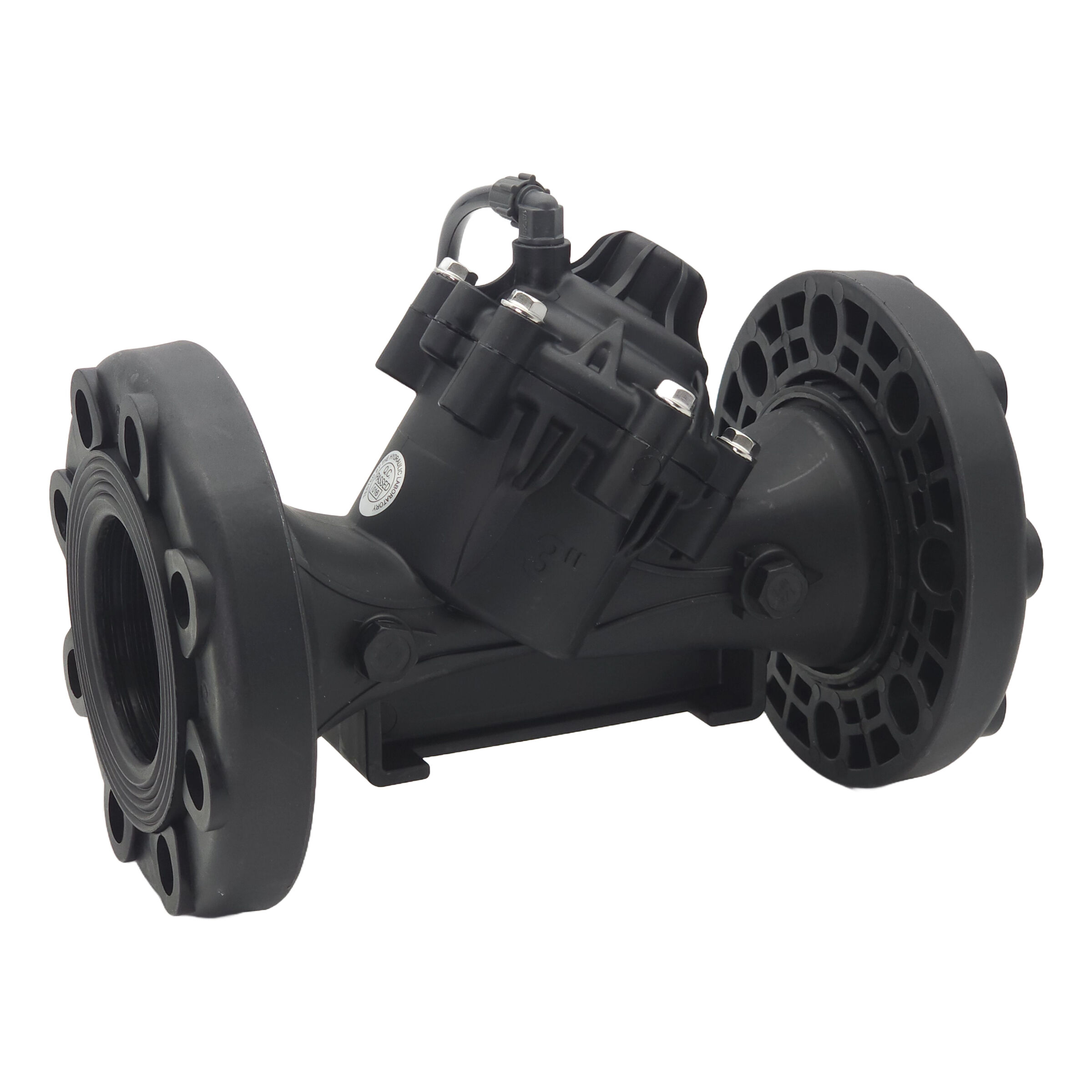

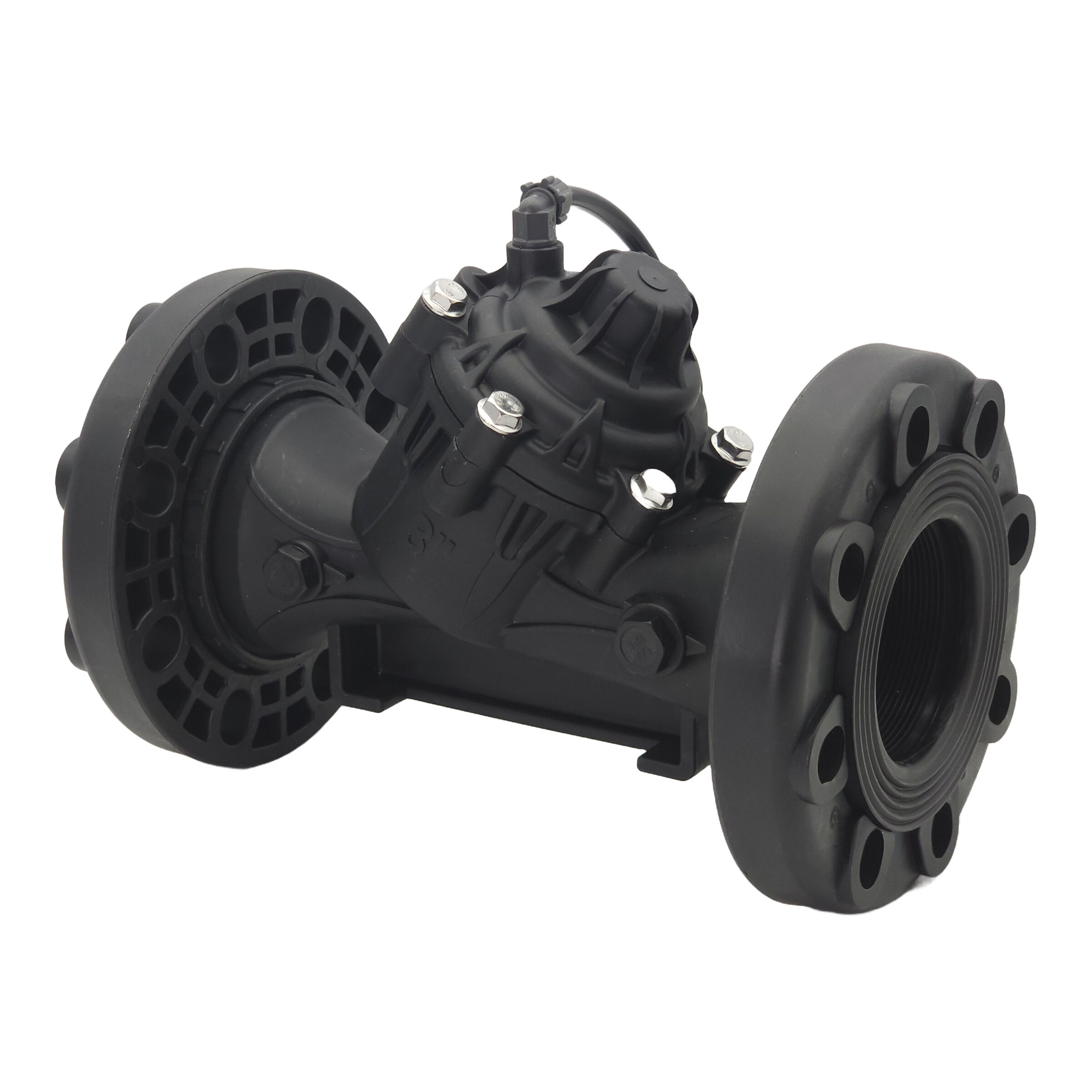

Hydraulic / Electric Valve Diaphragm Valve 3⁄4” - 6" | BH-S

Product main image
product

Hydraulic / Electric Valve Diaphragm Valve 3⁄4” - 6" | BH-S

  • Facebook
  • Twitter
  • Pinterest
  • Google+
AU $296.78
In Stock Item Number: BH-S
Technical Info Product Enquiry

Compliment your order with the below

View More Options

Add to my order

Upgrade to Electric Solenoid Control Valve - Voltage: 12V AC

AU $82.39 In Stock Item Number: 1259010418

Qty:

Add to my order

Upgrade to Electric Solenoid Control Valve - Voltage: 12V DC

AU $82.39 In Stock Item Number: 1259010417

Qty:

Add to my order

Upgrade to Electric Solenoid Control Valve - Voltage: 24V AC

AU $82.39 In Stock Item Number: 1259010421

Qty:

Add to my order

Upgrade to Electric Solenoid Control Valve - Voltage: 24V AC w/out Diode

AU $82.20 Sold Out - Backorder Available Item Number: 1259010205

Qty:

Add to my order

Upgrade to Electric Solenoid Control Valve - Voltage: 24V DC

AU $82.39 Sold Out - Backorder Available Item Number: 1259010416

Qty:

Add to my order

Upgrade to Electric Solenoid Control Valve - Voltage: Latch 12Ω

AU $89.10 In Stock Item Number: 1259010419

Qty:

Add to my order

Upgrade to Electric Solenoid Control Valve - Voltage: Latch 23Ω

AU $89.10 Sold Out - Backorder Available Item Number: 1259010423

Qty:

Add to my order

Upgrade to Electric Solenoid Control Valve - Voltage: Latch 4Ω

AU $89.10 In Stock Item Number: 1259010422

Qty:

Add to my order

Upgrade to Electric Solenoid Control Valve - Voltage: Latch 9Ω

AU $89.10 Sold Out - Backorder Available Item Number: 1259010430

Qty:

Email Enquiry Form Complete this form to email us your enquiry.



  • Ports size: 3″ – 6″ Flange
  • Opening pressure: 0.35 - 10 bar
  • Applications : For water distribution and field
  • For local operation of hydraulic valve by manual command

Notify me when back in stock

Please tick this box to proceed.
  • Description
  • Technical Data
  • Dimensions
  • Plumbing Diagram
  • Video

BH Series Valve: Precision Manual Control for Demanding Fluid Systems

Discover unparalleled control and durability with the BH Series Valve, engineered for optimal performance in a wide range of industrial and commercial applications. This robust valve combines a user-friendly manual operation with a resilient design, making it an essential component for any system requiring precise fluid regulation.

The BH Series Valve often features a Y-type body configuration, known for its excellent flow characteristics and minimal pressure drop. Constructed from high-quality, corrosion-resistant plastic materials, these valves are built to withstand harsh environments and a variety of media, ensuring a long service life and reduced maintenance costs. The flanged end connections provide a secure, leak-proof seal and facilitate straightforward installation and removal.

Key Features & Benefits:

  • Precision Manual Control: Offers fine-tuned adjustments for accurate flow management.
  • Durable Construction: Often utilizes high-grade plastic materials for excellent chemical resistance and longevity.
  • Efficient Flow: Y-type design (if applicable to the specific Bh Series model) promotes optimal flow with reduced turbulence and pressure loss.
  • Secure Flanged Connections: Ensures easy installation and a reliable, leak-free performance in your pipeline.
  • Versatile Applications: Suitable for water treatment, chemical processing, irrigation, industrial plumbing, and more.
  • Low Maintenance: Robust build and quality materials minimize upkeep requirements.
  • Cost-Effective Solution: Provides reliable performance and durability at a competitive price point.

Whether you're managing water, chemicals, or other fluids, the Bh Series Valve offers a dependable and efficient solution. Its ergonomic design allows for easy manual operation, giving you complete command over your system's flow. Invest in the Bh Series Valve for consistent performance and peace of mind.

Applications

  • Water Treatment Plants: Control flow of treated water, wastewater, and chemical dosing lines.
  • Chemical Processing & Transfer: Manage flow of acids, alkalis, solvents, and other corrosive chemicals.
  • Irrigation Systems & Agriculture: Regulate water flow in main/distribution lines; control liquid fertilizers/pesticides.
  • Aquaculture & Aquariums: Manage water circulation, filtration systems, and drainage in fish farms and large aquariums.
  • Industrial Plumbing & Effluent Treatment: Control process water, cooling lines, and industrial effluent.
  • Food & Beverage Processing: Utility lines (e.g., CIP systems) where appropriate plastic material is used.
  • Mining Operations: Handle slurries (depending on material) and corrosive leaching solutions.
  • Swimming Pools & Water Parks: Control water flow in filtration, backwash, and feature supply lines.
  • Landfill Leachate Management: Control the flow of corrosive leachate.
  • Demineralized Water Systems: Used where metal ion leaching is a concern (e.g., labs, electronics manufacturing).



(BH-S)

Feature

Specification

Type Y-Type Manual Control Valve (Example)
Size Range 3/4 Inch to 6 Inch (DN20 to DN150)
Body Material Engineeering Plastic
Seal Material NBR
End Connections

Flanged (Table D compatible

Pressure Rating 0.35 - 10 bar
Temperature Range Fluid : 5ºC to 50ºC (no freezing)
Ambient : -10ºC to 50ºC
Operation Manual (Handwheel or Lever Actuated)
Standards Compliance NSF

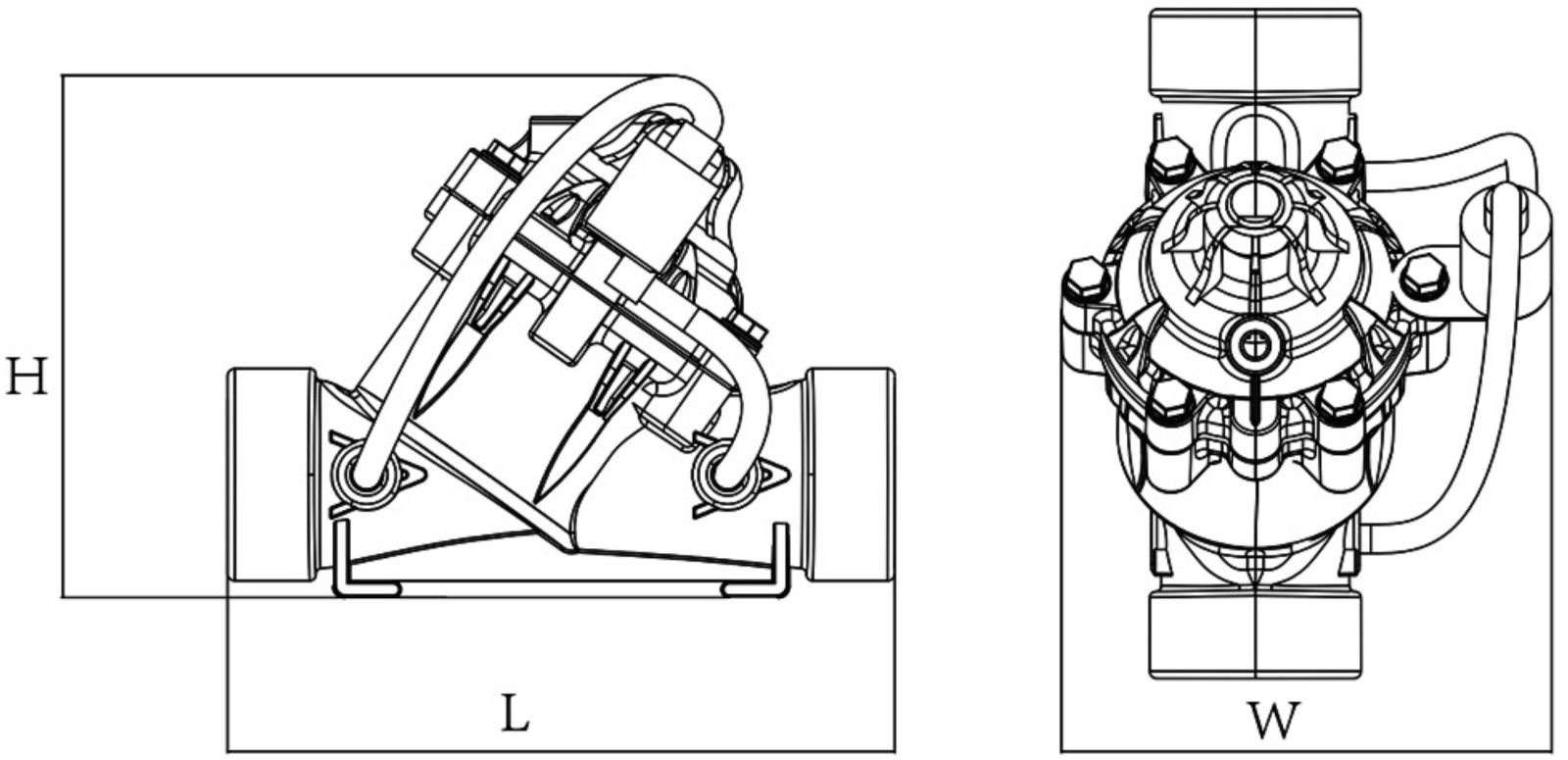

MODEL L (mm) W (mm) H (mm)
BH-S-20 110 75 120
BH-S-25 110 75 120
BH-S-40-T 172 126 171
BH-S-50-T 172 126 171
BH-S-40 226 120 150
BH-S-50 230 150 200
BH-S-80F 320 160 250
BH-S-100F 350 170 300
BH-S-150F 436 240 390

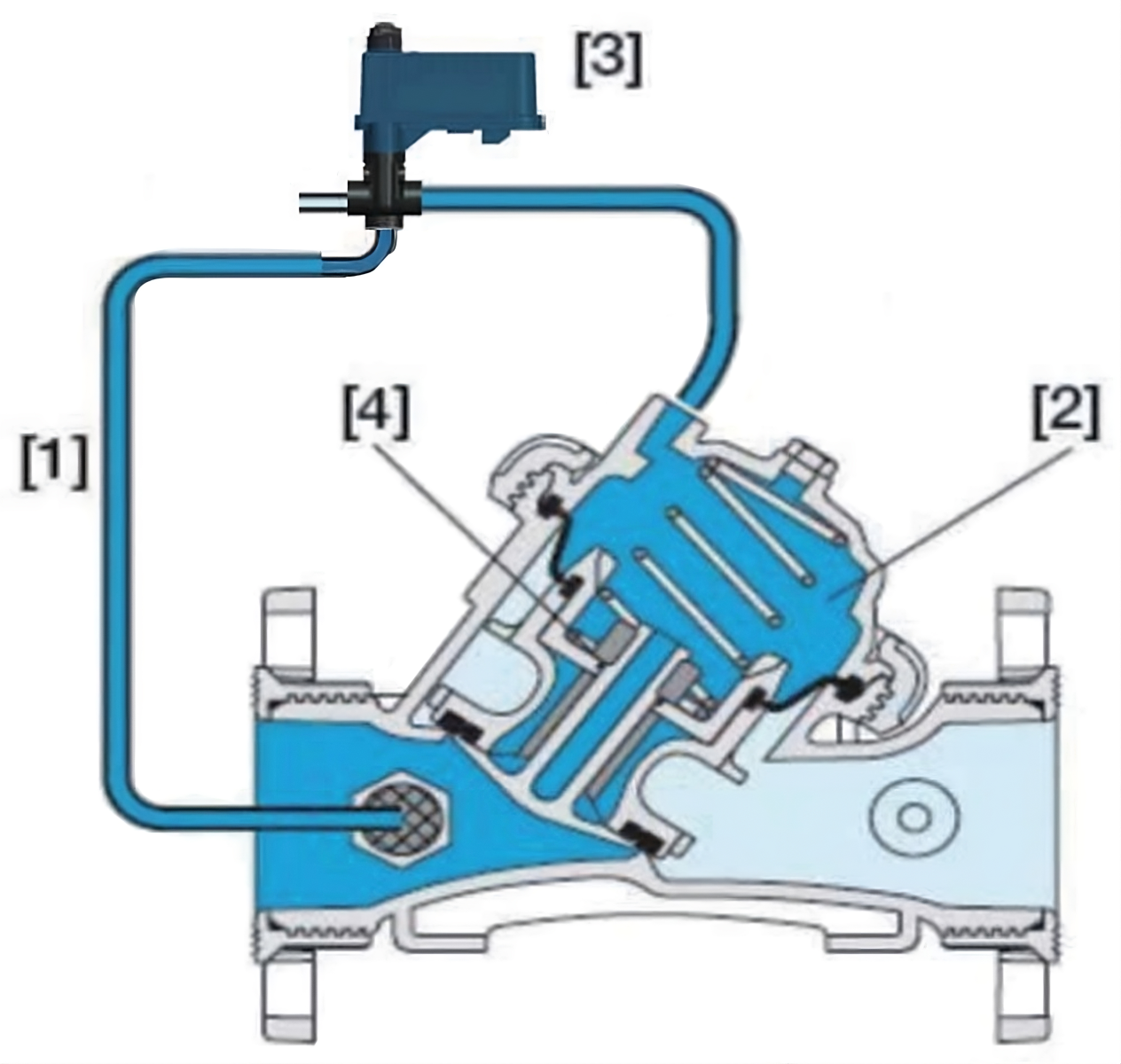

  • Line pressure [1]
  • Control Chamber [2]
  • 3 Way Solenoid Valve [3]
  • Diaphragm [4]
