PCS10 | Brass Adjustable Low Pressure Switch 1/8"
- Ports size: 1/8″ – 1/2″ BSPP
- Function: NC, NO, SPDT
- Pressure range: 0.3 - 20 bar ( 5 - 290 PSI )
- Body material: Brass
AU $183.70
Technical Data
| Switch rating | 3(2)A / 250Vac |
| Electrical connection | DIN 43650 PG09 |
| Adjusting range | 0.15..2 bar; 0.2…5 bar; 0.5…10 bar, 10…25 bar; 25…80 bar; 30…150 bar; 150…300 bar |
| Max static pressure | 30 bar, 60 bar, 100 bar, 150 bar, 600 bar (according to the possible pressure range) |
| Hysteresis | 30% set-point adjustment |
| Operating temperature | -5C… +6 |
| Contact (without pressure) | SPDT |
| Body material | Anodized aluminium Flange: Zinc-plated steel |
| Diaphragm/Piston seal | NBR (standard) – HNBR – FKM – Silicone |
| Threads | Taper: G1/8 G1/4 |
| Protection | IP65 |

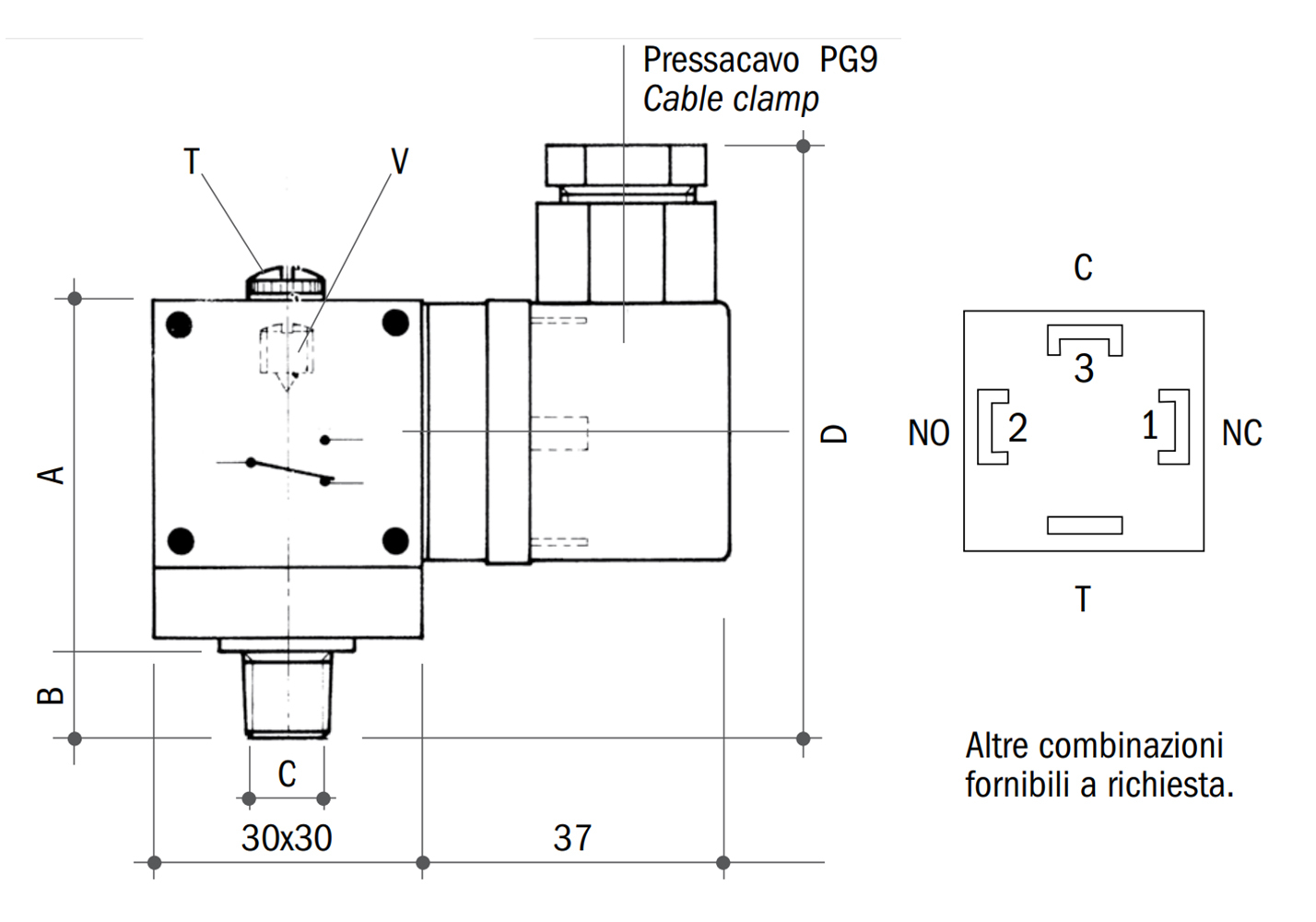

| Size | Body 30×30 + connector 37×30 Height 58mm; with connector max. 78mm |
| Certifications and Approvals | CE, RINA, Lloyds Register, ATEX, UR |
| Options | Set-point adjustment rising Set-point adjustment falling Gold contacts Degreasing for oxygen applications Execution with 2 SPDT contacts |

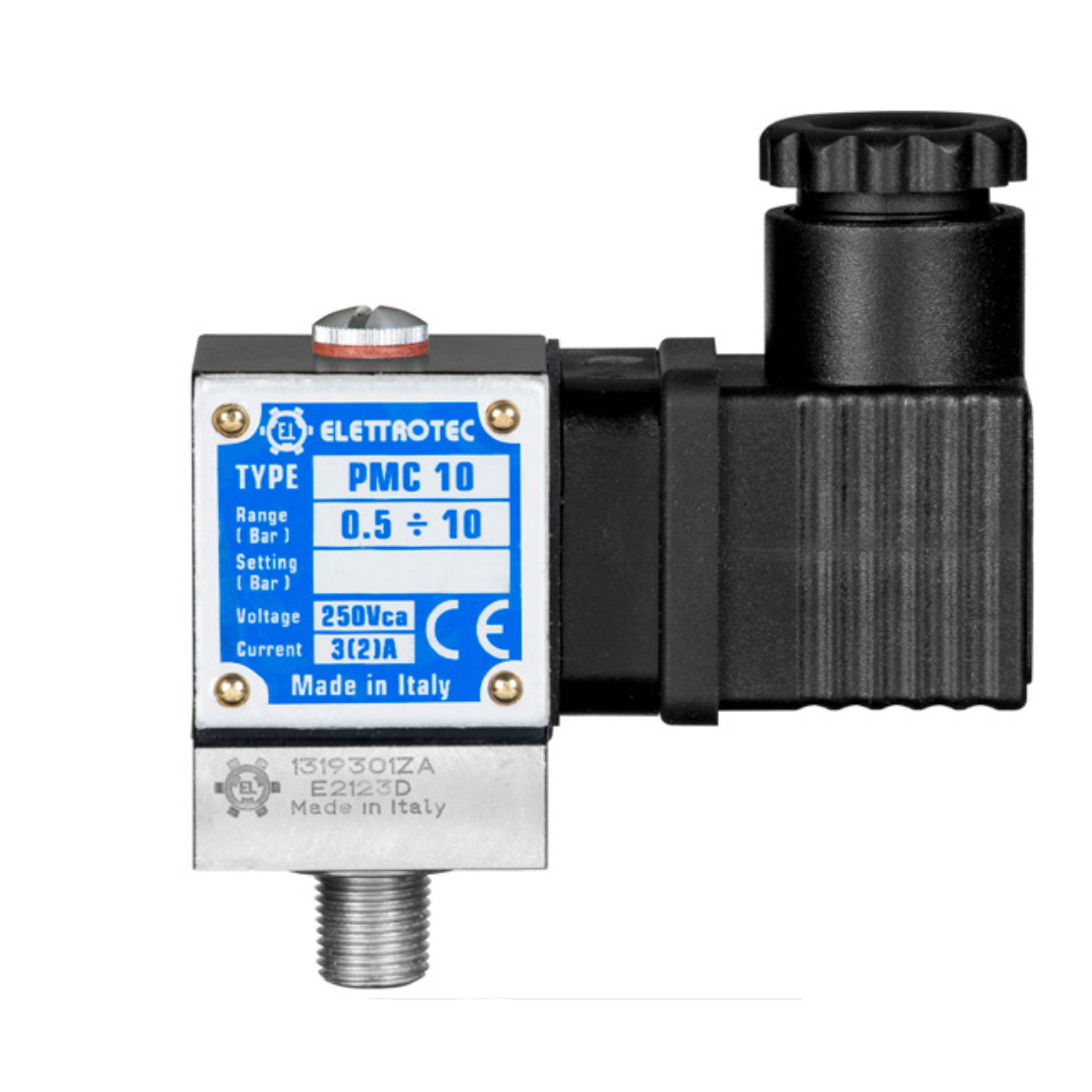

(PMC)
Technical Data
| Max. voltage | 250 Vac |
| Working voltage | 230 Vac / 28 Vdc |
| Switching currents | 7 A 28 Vdc / 7 A ( 4A ind. ) 250 Vac |
| Electric contact | SPDT |
| Environment temperature | -40°C…+120°C |
| Fluid temperature | see gasket table |
| Maximum protection grade | IP 67 |
| Electrical connector | Fast-on / DIN 43650 / M12/ Deutsch |
| Mechanical life | 1.000.000 cycle at 25°C |
| Recommended tightening torque | min. 3 Kgm ÷ max. 5 Kgm see page 3 |
| Approval | CE; UL (in progress) |
