PMN | Stainless Steel Adjustable Diaphragm Pressur
- Port Size(inch): 1/8", 1/4"
- Electric contact: SPST
- Environment temperature: -40°C to +120°C
- Body Material: Stainless Steel 316
AU $98.08
Technical Data
| Switch rating | 0,5(0,2)A / 48 Vac-dc |
| Electrical connection | Push-on terminals 6,3×0,8 |
| Adjusting range |
|
| Max static pressure | 300 bar, 600 bar (according to the possibile pressure range and the body material) |
| Hysteresis | Fixed |
| Operating temperature | -40C to +140C (according to diaphragm/piston seal material) |
| Contact (without pressure) | NA or NC |
| Body material | Brass, Zinc Plated stal, S.S. 316 on request for all models |
| Diaphragm/Piston seal | NBR, FKM, Silicone, HNBR, Neoprene, EPDM, Stainless Steel, ZNBR |
| Threads | Taper: G1/8 BSPT – G1/4 BSPT – M10x1 Parallel: M12x1,5 – G1/8 BSPP- G1/4 BSPP |
| Protection | FAST-ON:IP00; Con CAP1- CAP10: IP54; Con CAP3: IP65 |
| Mechanical life | 106 operations |

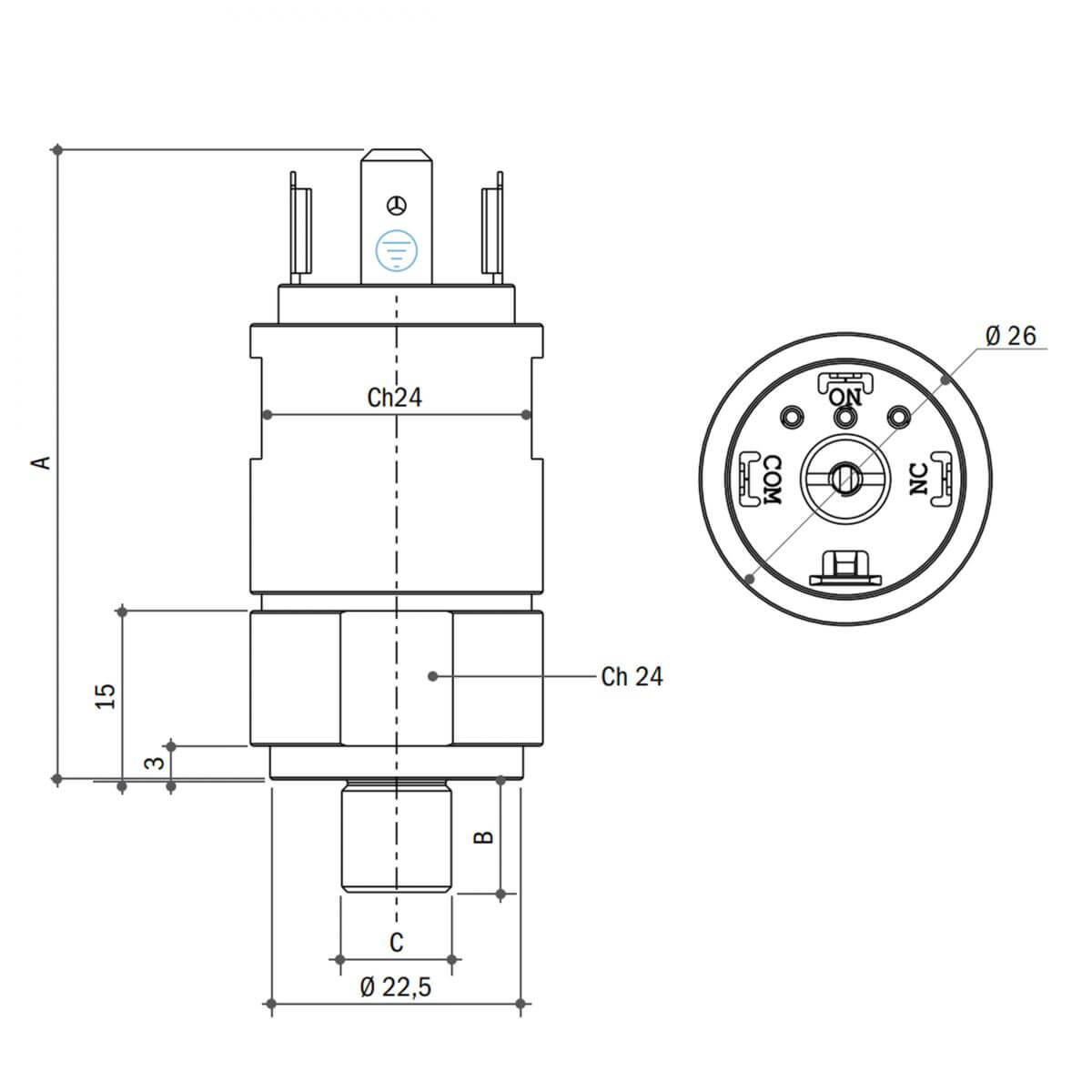

| Size | Body 24 AF Max height 40 mm (CAP 1) Max height 46 mm (CAP3) |
| Certifications | UR |
| Options | Set-point adjustment rising Set-point adjustment falling Gold contacts Degreasing for oxygen applications Gas test High pressure execution IP67 protection Special thread connections |

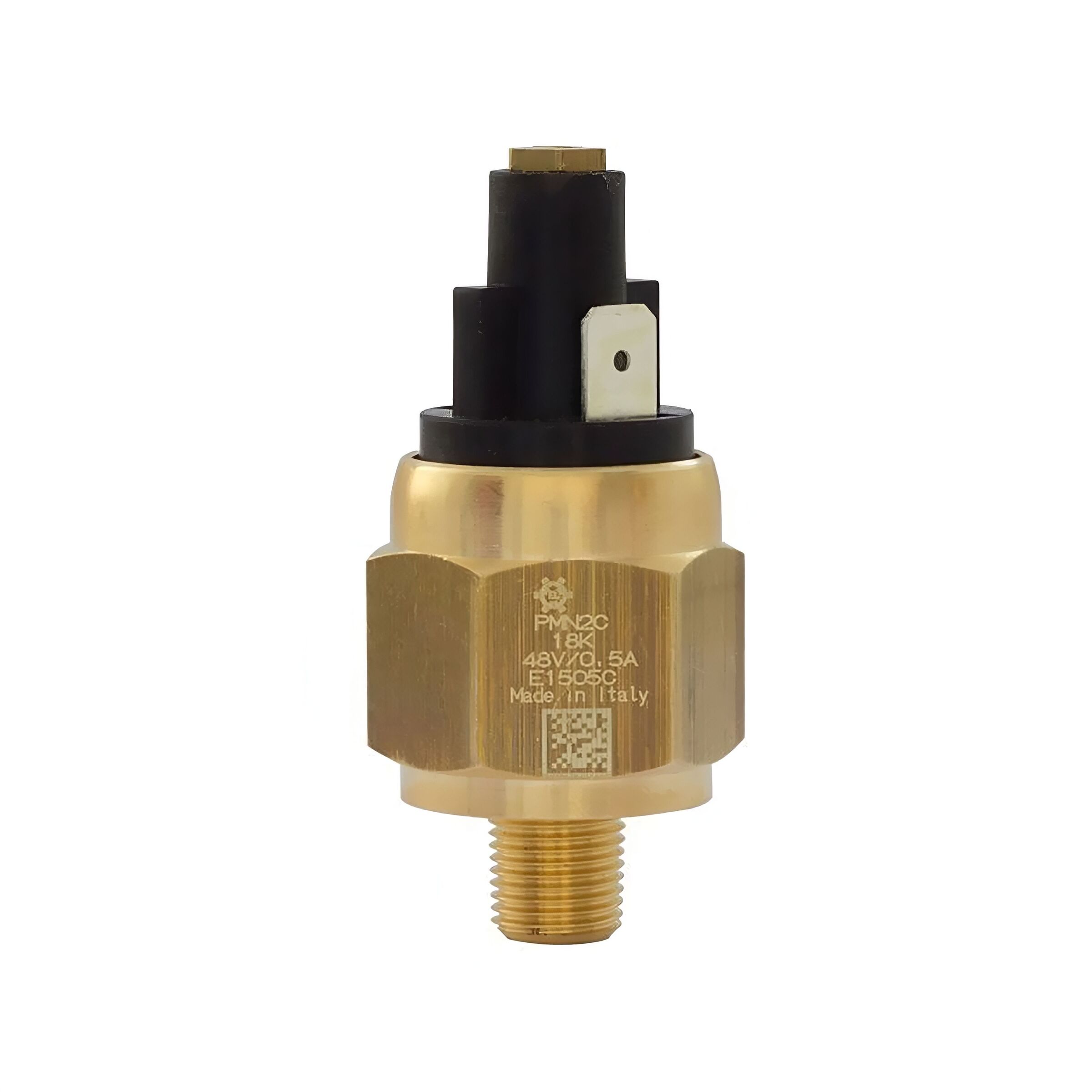

(PMN-BRASS)
Technical Data
| Max. voltage | 250 Vac |
| Working voltage | 230 Vac / 28 Vdc |
| Switching currents | 7 A 28 Vdc / 7 A ( 4A ind. ) 250 Vac |
| Electric contact | SPDT |
| Environment temperature | -40°C…+120°C |
| Fluid temperature | see gasket table |
| Maximum protection grade | IP 67 |
| Electrical connector | Fast-on / DIN 43650 / M12/ Deutsch |
| Mechanical life | 1.000.000 cycle at 25°C |
| Recommended tightening torque | min. 3 Kgm ÷ max. 5 Kgm see page 3 |
| Approval | CE; UL (in progress) |
