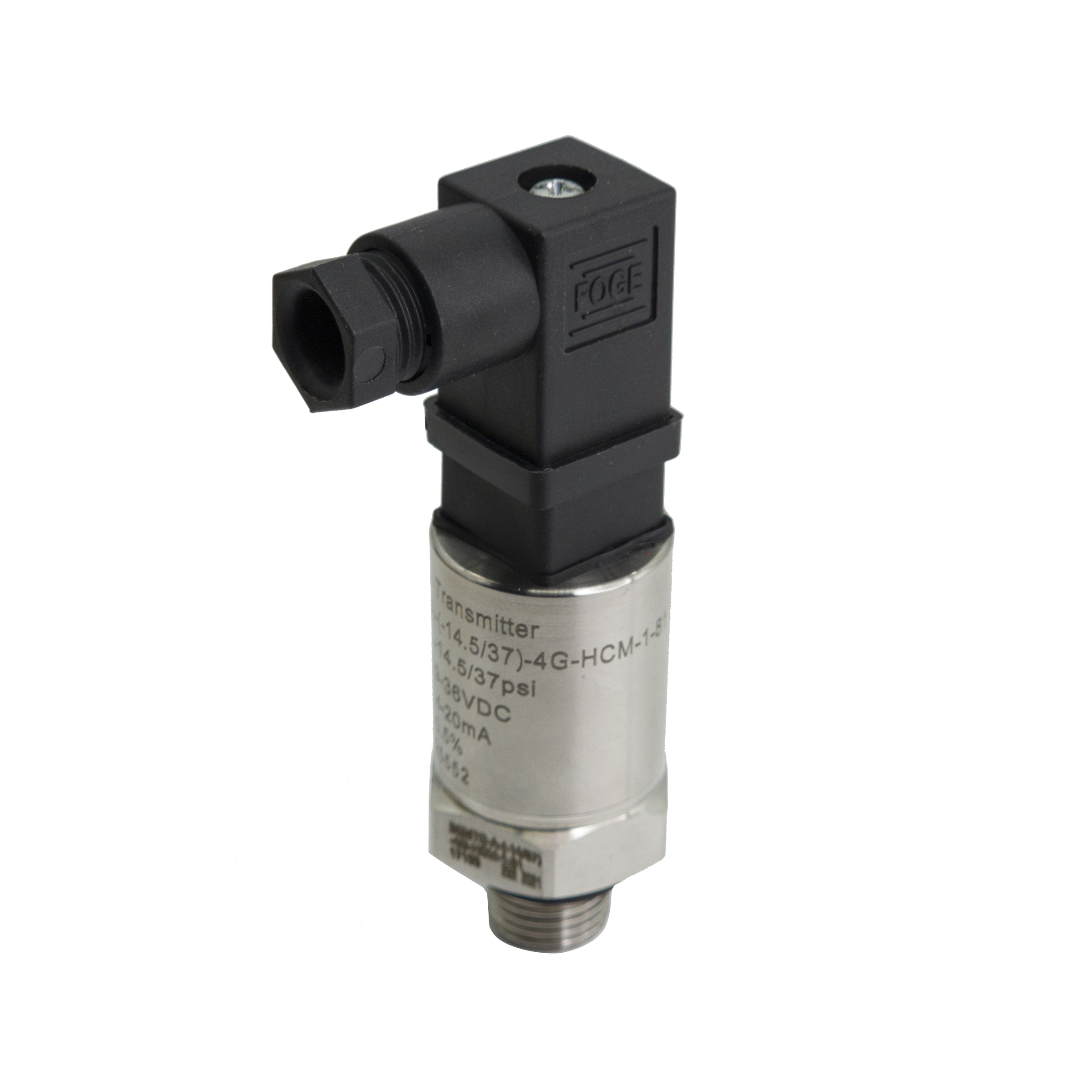

The STC pressure transducers offer Piezoresistive silicon chip, MEMS technology, Long Term Stability, Stainless Steel, Compact design, ideal for the industrial environment.
Applications
The transducers are widely used in
Air compressors
Air conditioning and refrigeration equipment
Automotive and hydraulic control
Size |
1/4″ BSPP |
Body Material |
304 Stainless Steel |
Pressure Range |
-1 to 1000 Bar ( -14.5 to 14,500 PSI ) |
How to choose a suitable pressure transducer?
If you need a pressure transducer for your project, you should compare the features of different models before making a decision. Here are some of the main differences between the XTC, VTC and STC series:
- The XTC series is a durable option that can withstand temperatures as low as -40º C. However, it has a ceramic element that can break if exposed to sudden pressure spikes, so it is not recommended for applications that involve such risks.
- The VTC series also uses a ceramic element, but it has a special mechanism that protects it from shattering in case of pressure spikes. It can also operate at temperatures as low as -40º C.
- The STC series has a silicon piezo chip element that is more resilient to pressure spikes and other harsh conditions. However, it can only tolerate temperatures up to -20º C, so it is not suitable for very cold environments.
(STC)
Technical Data
Ports size | 1/4" BSP | ||||||||||||
Pressure Range |
-1 to 1000 Bar ( -14.5 to 14,500 PSI ) Consult factory for higher pressure. Caution: Please specify if application has high pressure fluctuation, a pulse snubber should added against cavitation and liquid hammer. |
||||||||||||
Overload Pressure |
3 x Full Scan < 10PSI 1.5x Full Scan < 6000PSI 1.2x Full Scan @ 8700 psi |
||||||||||||
Operating Temperature | -40° to 275°F (-40° to 125°C) | ||||||||||||
Ambinent Temperature | --4° to 185°F (-20° to 85°C | ||||||||||||
Storage Temperature | -40° to 257°F (-40° to 125°C) | ||||||||||||
Temperature Drift |
±1.5% Full Scan max 4° to 185°F (-20° to 85°C) |
||||||||||||
Response Time | <1 millisecond | ||||||||||||
Materials in contact with media |
Sensing Element: Piezo resistive Silicon Chip Body: 304 Stainless Steel |
||||||||||||
Electrical |
|
||||||||||||
Accuracy | ± 0.5% (Full Scan) | ||||||||||||
Hysteresis & Repeatibility |
± 0.1% (Full Scan) |
