General Purpose Direct Operated Brass Zero Differe
- Port Size: 1/4" - 2″ BSPP
 - Function: 2 Way NC
 - Orifice Size: 1mm - 50 mm
 - Pressure Range: 0 - 20 bar

AU $140.58
| Size | 1/8" BSP |
| Function | 2 Way 3 Way NC, NO |
| Valve Operation | Direct Operated |
| Body Material | Brass |
| Seal | NBR, FKM (Vition), EPDM |
| Pressure Range | See technical data • Valves for pressure higher than 12 bar cannot be supplied with manual override  |

| Media | Air, water, oil |
(G80-A-BRASS)
Technical Data
| Function | 2 Way 3 Way NC, NO |
| Ports size | 1/8" BSP, NPT, #10UNF, M5 |
| Orifice size | See table |
| Pressure range | • See table • Valves for pressure higher than 12 bar cannot be supplied with manual override  |

| Kv (l/min) | See table |
| Temperature range | Fluid : -10ºC to 80ºC (no freezing) Ambient : -10ºC to 50ºC  |

| Materials in contact with media  |
			Manual override: Plastic * Maximum pressure : 16 bar Main Valve: Brass Solenoid Operator Stainless Steel AISI 300 & 400 series, Brass Seals: NBR, FKM, EPDM, FFKM  |

| Media | Air, water, oil |
| Coil voltage | • Voltage and power consumption - see table • All Baccara coil voltages are ± 10% of nominal  |

| Standard protection class | IP65 with connector |
Max. Pressure (bar) 2W NC table
| Coil Current/Power  |
			Orifice (mm) | |||||
| 1.0 | 1.2 | 1.6 | 2.0 | 2.4 | 3.0 | |
| AC - 7.5W | 40 | 35 | 35 | 12 | 10 | 8 |
| AC - 4W | 40 | 30 | 15 | 8 | 6 | 5 |
| DC - 6.5W | 40 | 35 | 20 | 12 | 10 | 7 |
| DC - 3W | 40 | 30 | 15 | 5 | 4 | 2.5 |
| Flow factor Kv(l/min) | 0.5 | 0.65 | 1.2 | 1.6 | 2 | 2.6 |
Max. Pressure (bar) 2W NO table
| Coil Current/Power  |
			Orifice (mm)  |
		|
| 1.2 | 1.6 | |
| AC - 4W | 15 | 10 |
| DC - 3W | 15 | 10 |
| Flow factor Kv(l/min) | 0.4 | 0.7 |
Max. Pressure (bar) 3W NC table
| Coil Current/Power  |
			Orifice (mm) | ||
| 1.0 | 1.2 | 1.6 | |
| AC - 7.5W | 15 | 12 | 10.5 |
| AC - 4W | 12 | 10 | 7 |
| DC - 6.5W | 15 | 12 | 10.5 |
| DC - 3W | 12 | 10 | 7 |
| Flow factor Kv(l/min) | 0.5 | 0.65 | 1 |
Max. Pressure (bar) 3W NO table
| Coil Current/Power  |
			Orifice(mm) | |
| 1.2 | 1.6 | |
| AC - 7.5W | 12 | 8 |
| AC - 4W | 10 | 7 |
| DC - 6.5W | 12 | 8 |
| DC - 3W | 10 | 6 |
| Flow factor Kv(l/min) | 0.4 | 0.7 |

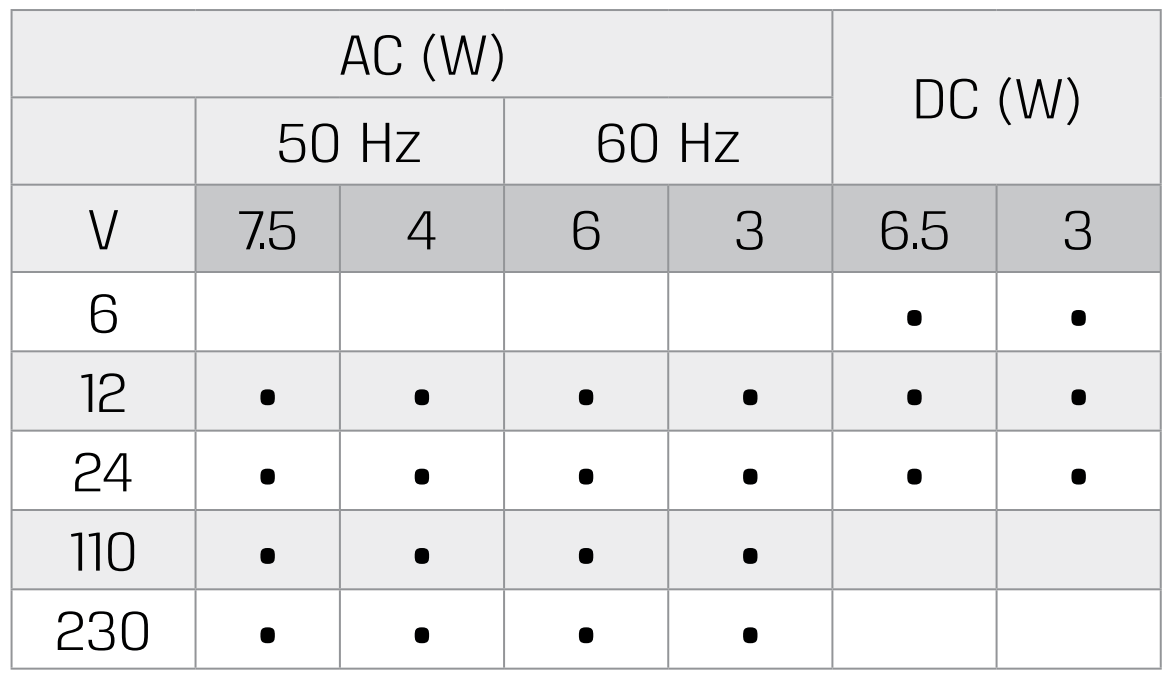

Voltage & Power Consumption

• Available options
