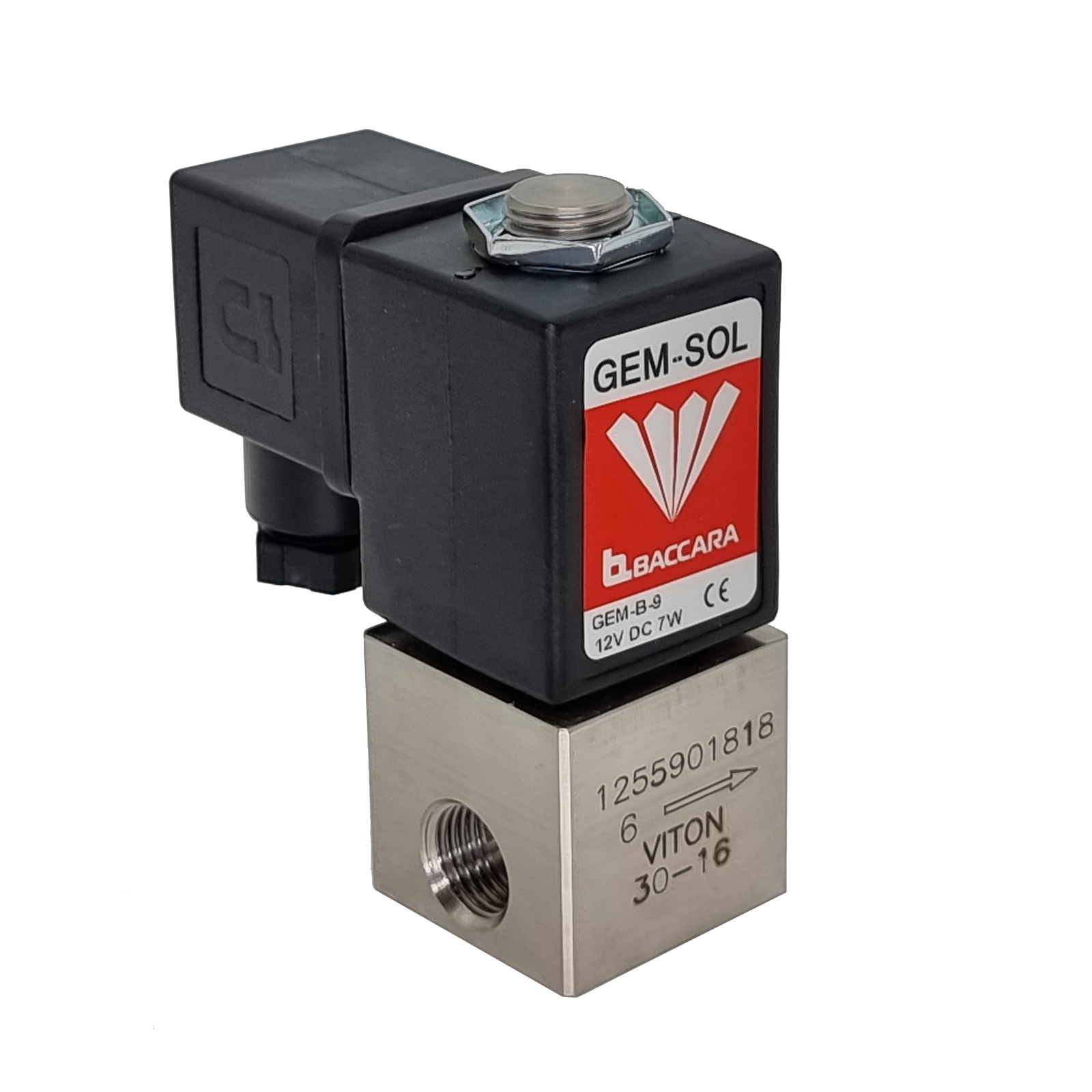

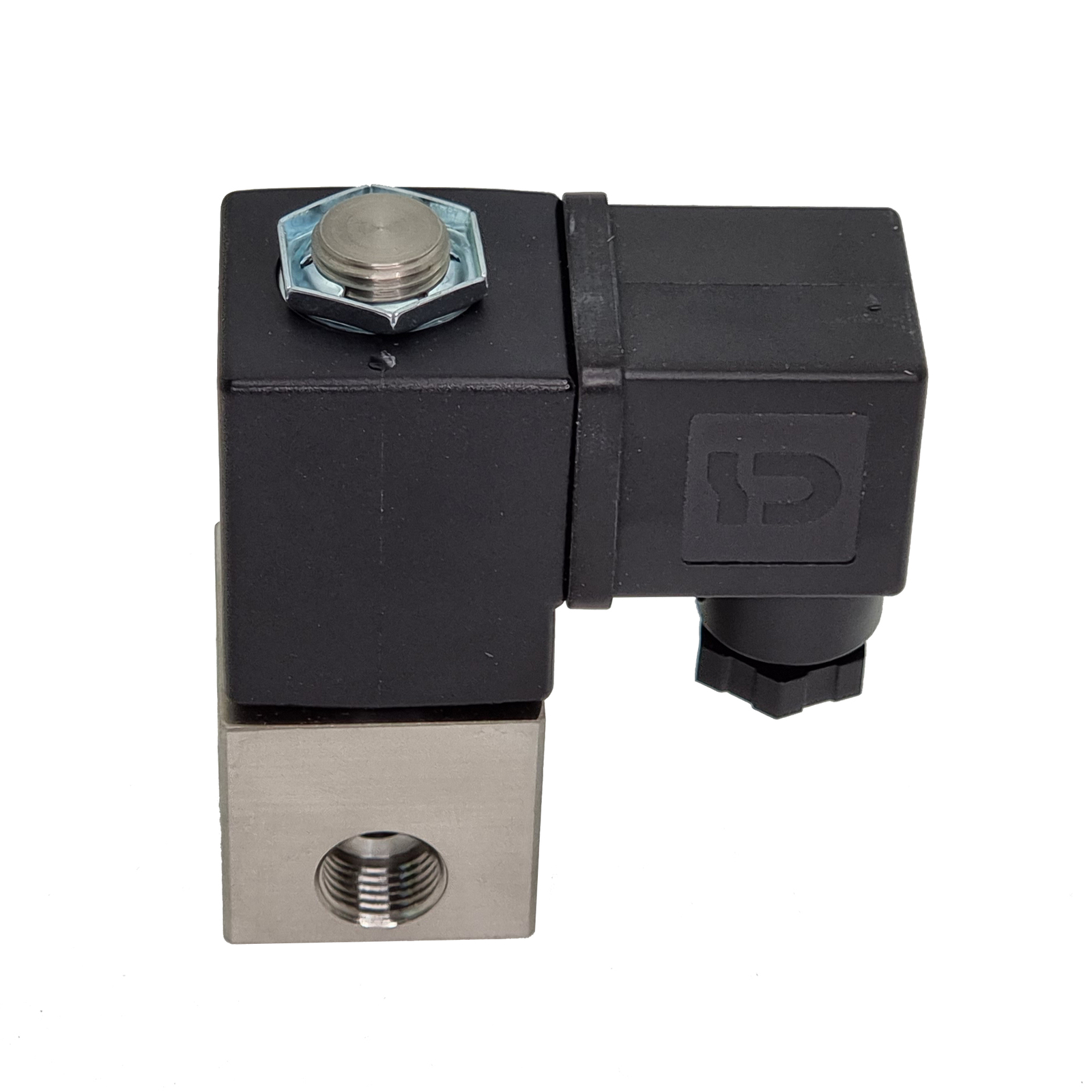

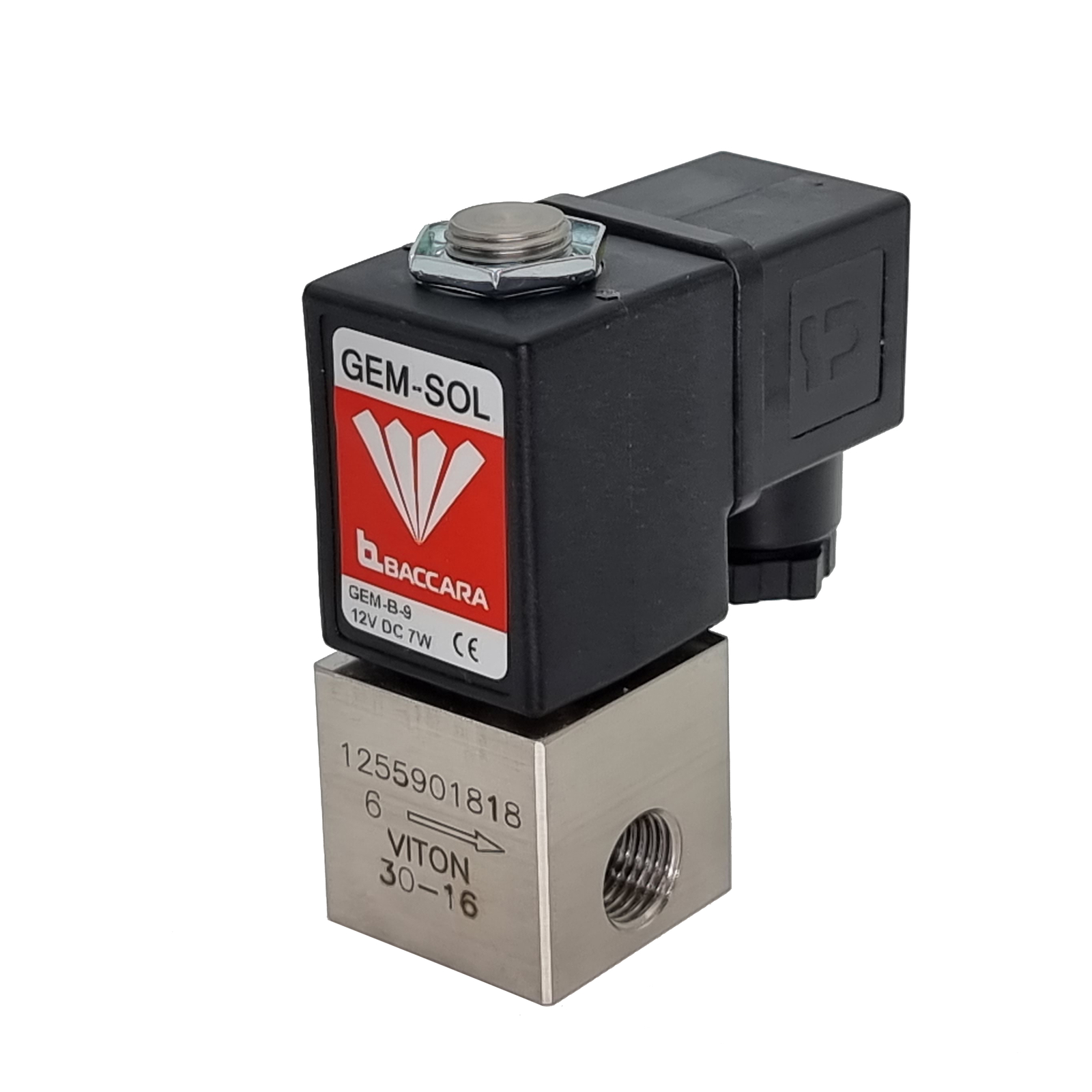

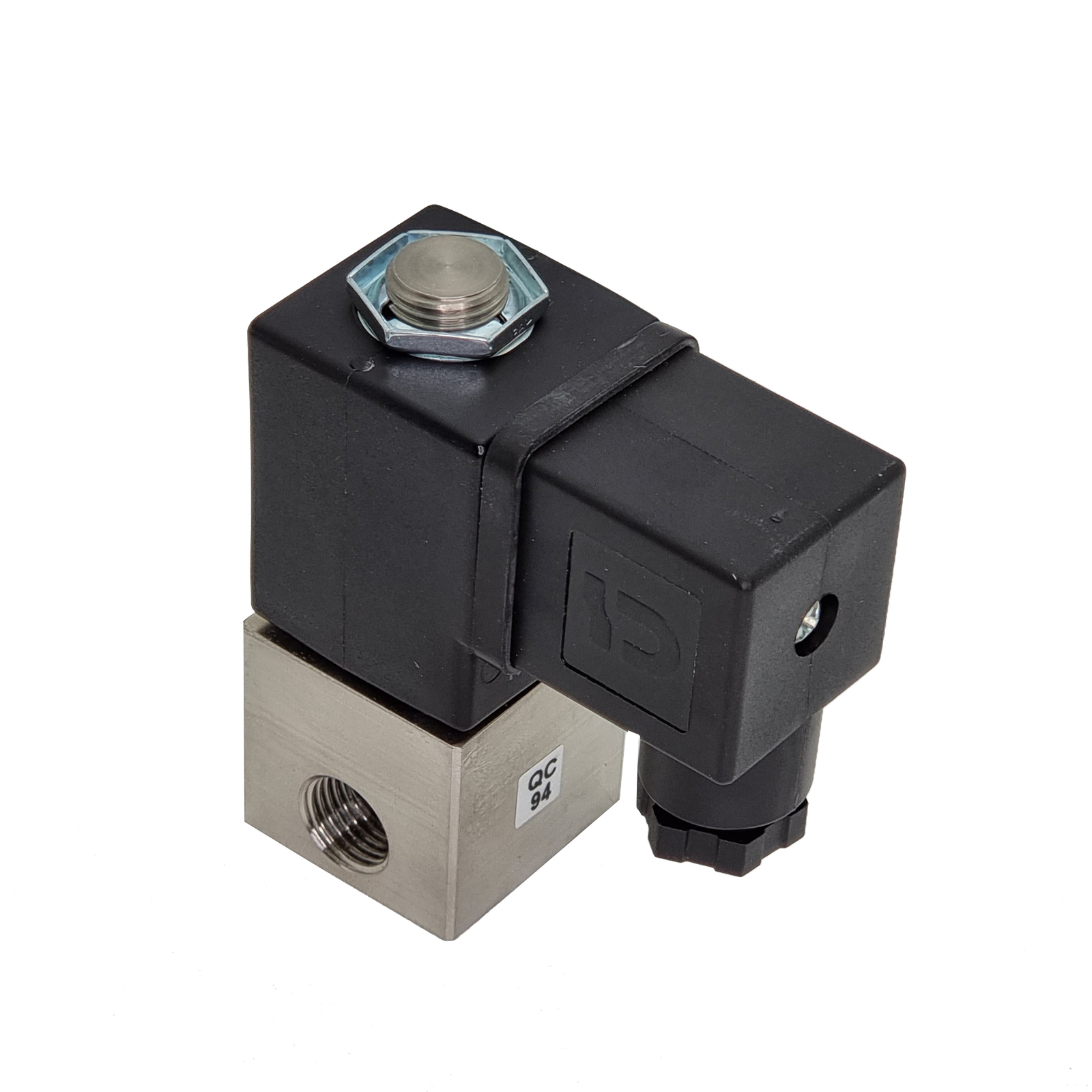

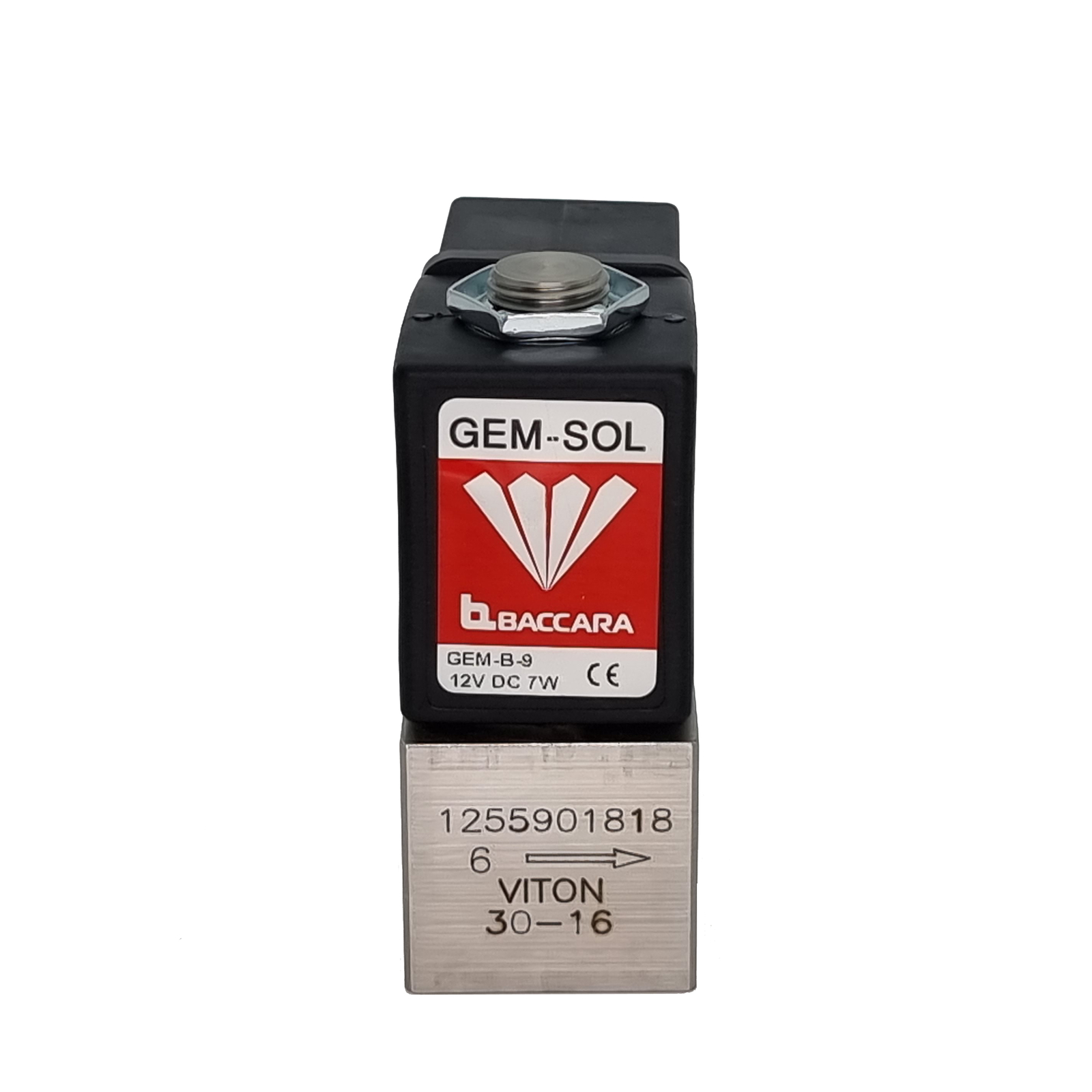

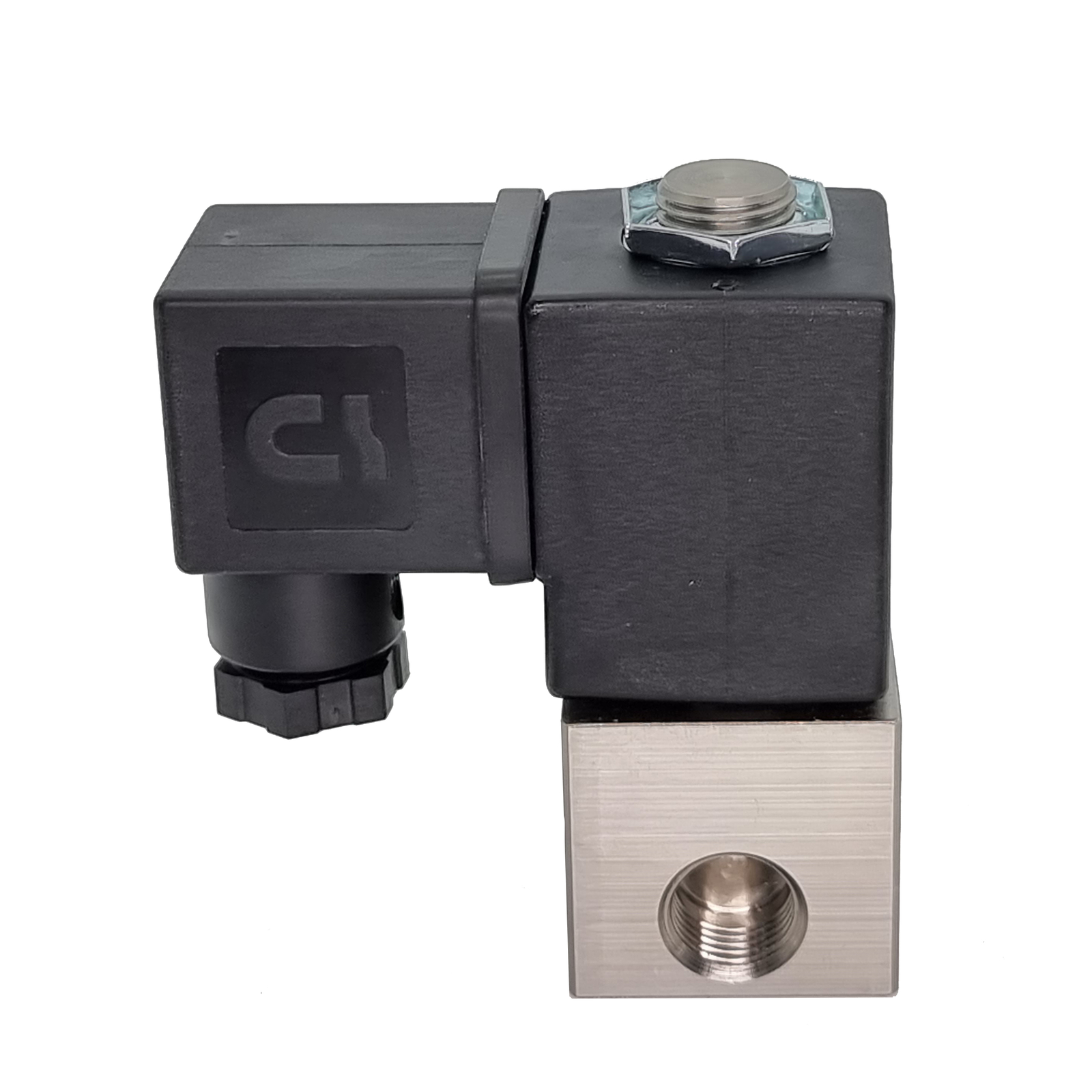

JF100 | 1/2" - 1" BSP Double Acting Stainless Stee
- Ports size: 3/8", 1/2", 3/4", 1", 1 1⁄4”, 1 1⁄2”, 2", 2 1⁄2”, 3" BSP
- Orifice size: 8.0 – 25.0 mm
- Body material: Stainless Steel
AU $317.90
|
Size | 1/4" BSP |
Function | 2 Way Normally Closed |
Valve Operation | Direct Operated |
Body Material | Stainless Steel |
Seal | FPM |
Pressure Range | 2 bar (maximum) |
Media | Air, water, oil |
(1255901818)
Technical Data
Function | 2 Way NC, NO |
Ports size | 1/4" BSP & NPT |
Orifice size | See table |
Pressure range | See table |
Kv (l/min) | See table |
Temperature range | Fluid : -10ºC to 80ºC (no freezing) Ambient : -10ºC to 50ºC |
Materials in contact with media |
Main Valve: Brass or Stainless Steel AISI 316 Solenoid Operator: Stainless Steel AISI 300 & 400 series Seals: FKM, EPDM, FFKM, PTFE |
Recommended use | Vacuum application |
Media | Air, water, oil |
Coil voltage | • Voltage and power consumption - see table • All Baccara coil voltages are ± 10% of nominal |
Standard protection class | IP65 with connector * Option : IP68 (please refer to GEM-BP Coil) |
• Latch valves are available upon request.
Max. Pressure (bar) 2W NC table
Coil Current/Power |
Orifice (mm) | ||
4.5 | 6.0 | 8.0 | |
AC8W | 4.5 | 3.8 | 2.5 |
AC5.5W | 3.8 | 3 | 2 |
DC10W | 4.5 | 3.8 | 1.5 |
DC5.5W | 3.2 | 2 | 1 |
Flow factor Kv(l/min) | 5 | 6 | 10 |
Max. Pressure (bar) 2W NO table
Coil Current/Power |
Orifice (mm) |
|
4.5 | 6.0 | |
ADC * | 4 | 2 |
AC8W, DC10W | 4 | 2 |
Flow factor Kv(l/min) | 5 | 6 |
* ADC valves are only suitable for use with AC8W or DC10W coils.

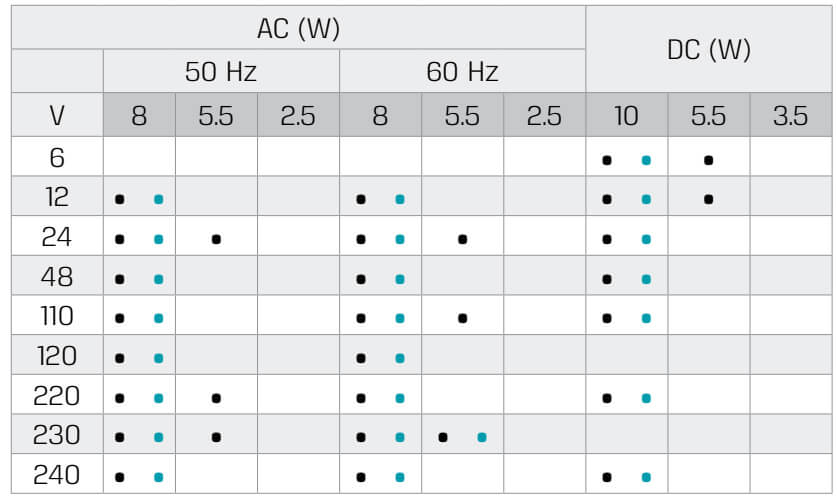

Voltage & Power Consumption
Available options :
• NC valves
• NO valves
