Battery Operated Smart Bluetooth LE Irrigation Controller + 2W NC Valve

Highlights

Single Station Irrigation Controller
Wireless operated by smart device
Four irrigation program types
Min required iOS 7 or Android V4.3
Battery Included

Size	3/4", 1", 1-1/2", 2" BSPT
Function	2 Way Latch
Body Material	Plastic
Pressure Range	0.5 to 8 bar

Programming key features
• Four different irrigation plans

Weekly	Interval Days	Even / Odd Days	Window
Irrigation each day of the week	Periodical days up to 98 periods	Even / odd calendar dates	Repeated cycles within a defined time frame
Set up to 6 cycles per day			Set cycle On and Off duration
Option to set different irrigation durations per cycle			Set start and end times for irrigation

Baccara ii.ri The smart and simple way to control your garden irrigation.

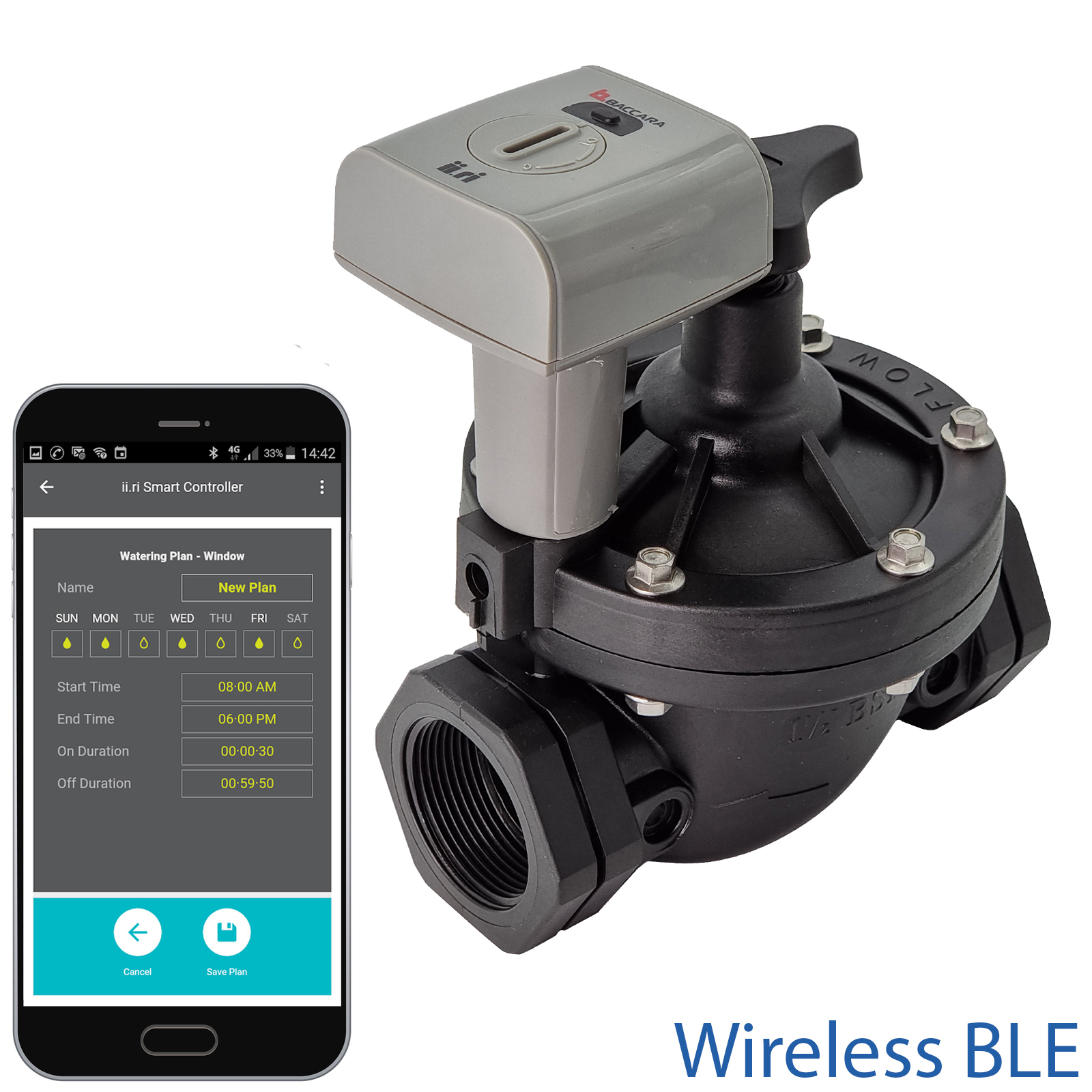

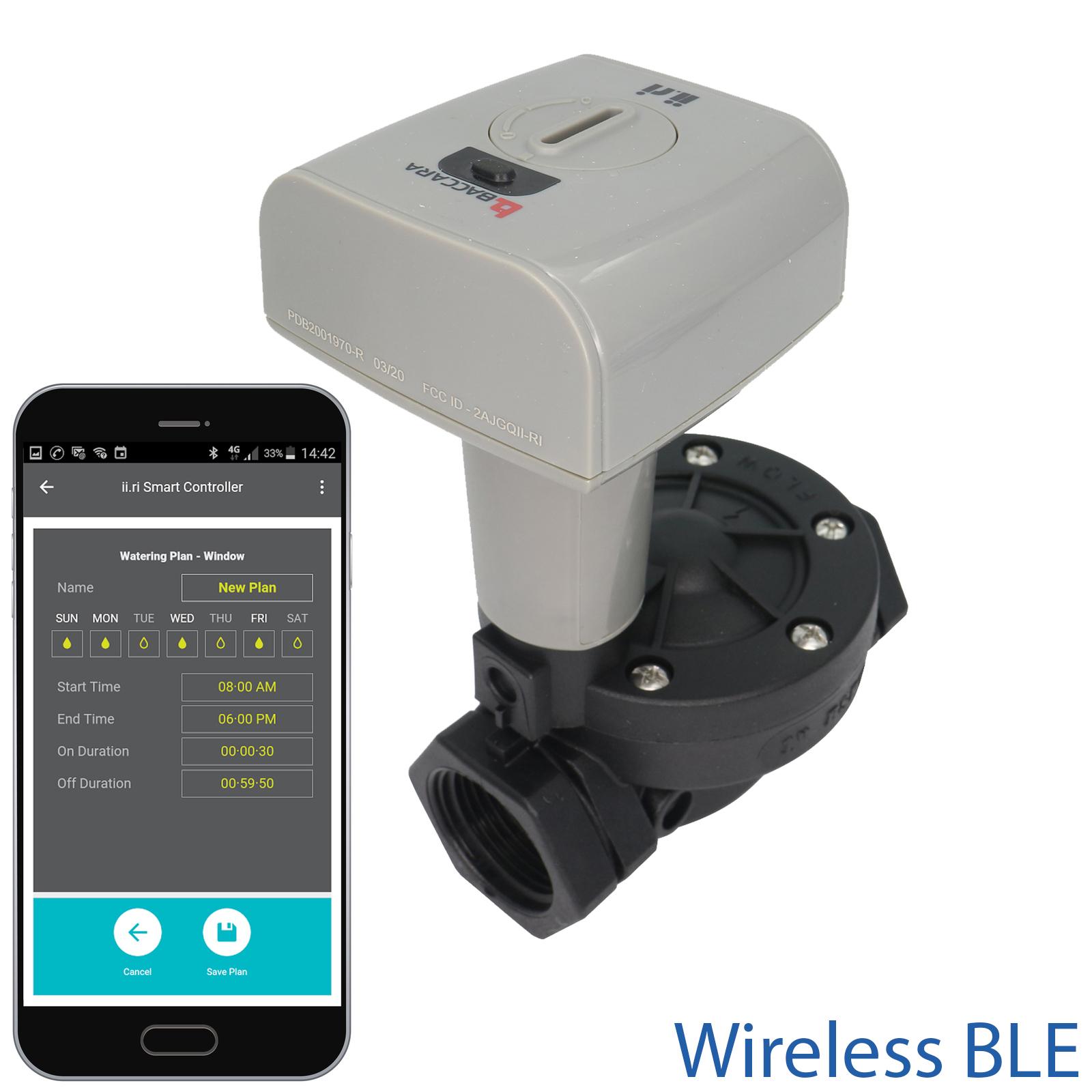

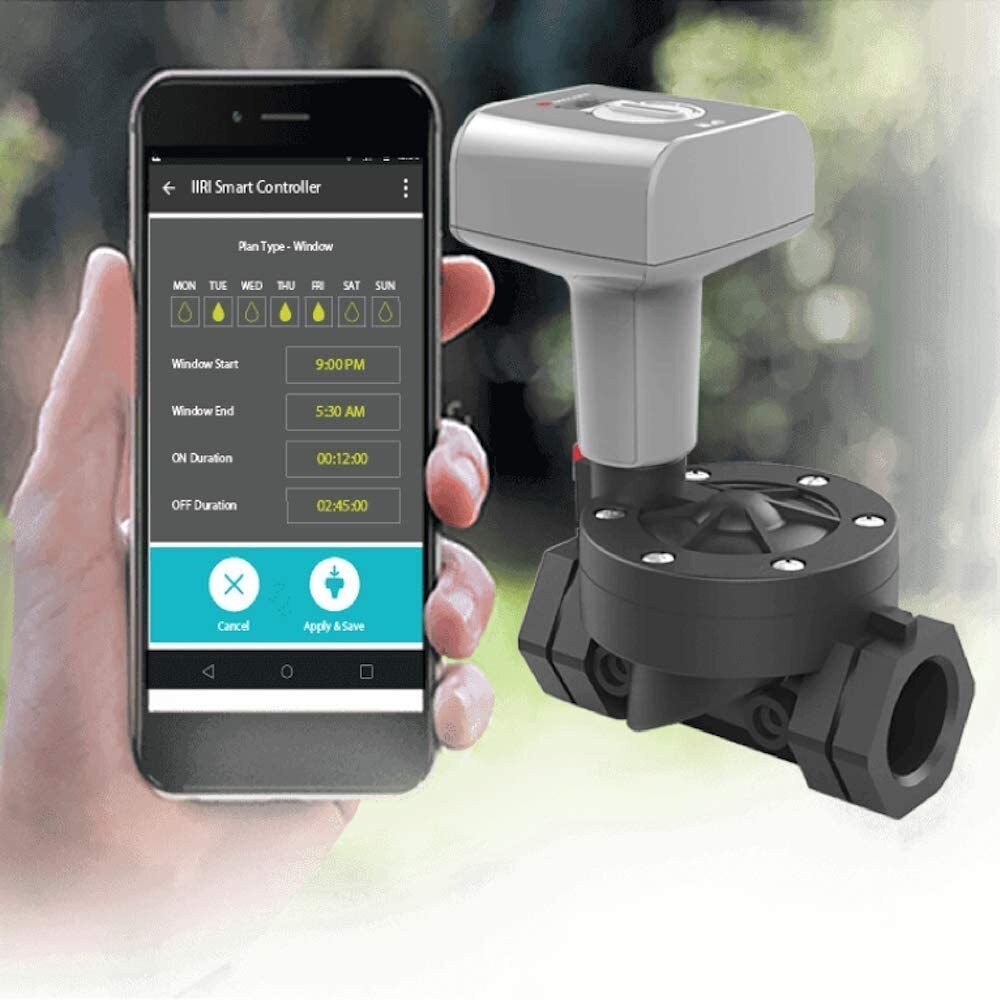

Manage and control your garden irrigation system through a user-friendly smartphone app.Until recently the world of irrigation controllers was reserved for professional gardeners, requiring complicated technical and operational know-how. But that’s all history now.
The new ii.ri by Baccara, is the first irrigation controller that allows anyone and everyone to manage and control their garden irrigation system through a user-friendly smartphone app.

The ii.ri smartphone irrigation controller features four different built-in plans that address most of the automatic irrigation needs
Programming the ii.ri is simple and intuitive, nevertheless it requires a little know-how in order to familiarize yourself with it
It is recommended to define the irrigation areas before starting the programming process
The ii.ri can actuate one valve each time, therefore, one controller would be used for each irrigation area.
There is no need to connect the ii.ri to the smartphone during the programming process.
The irrigation specifications depends on the type of field crops, flowers, trees, etc and may vary depending on the seasons.
The ii.ri it is self-energized by an internal battery and does not require any additional wiring or power supply.
The ii.ri app must be installed and running on the smartphone

for more info click here

(ii.ri-C)

Technical Data

Function	2 Way Latch
Pressure range	0.5 to 8 bar
Temperature range	Fluid : 5º to 50ºC (no freezing) Ambient : -5º to 50ºC
Communication protocol	Wireless BLE (Bluetooth Connect)
App Downloading
Pairing code	Not required
Battery type	CR123
Mounting	Direct mounting on UNEF 3/4"
Standard / Certification	• CE • Federal Communications Commission (FCC)
Standard protection class	• Dust and watertight IP68

Warranty

This Limited Warranty applies to physical goods only, purchased from BACCARA Store.
This Limited Warranty covers any defects in material or workmanship under normal use during the Warranty period.
During the Warranty period, BACCARA will repair or replace products or parts of a product that proves defective because of improper material or workmanship, under normal use and maintenance.
BACCARA will either repair the product using new or refurbished replacement parts.
The Warranty period for physical goods purchased from BACCARA or its authorized distributor or retailers is one year from the date of purchase.
A replacement of a physical good or part assumes the remaining warranty of the original physical good one year from the date of replacement or repair, whichever is longer.
This Limited Warranty does not cover any problem that is caused by conditions, malfunctions or damage not resulting from defects in material or workmanship.
