From $250.11
Operating temp: -10° to 60°C
Options: Solar panel, charger, accurate clock
Battery: 9V alkaline battery included

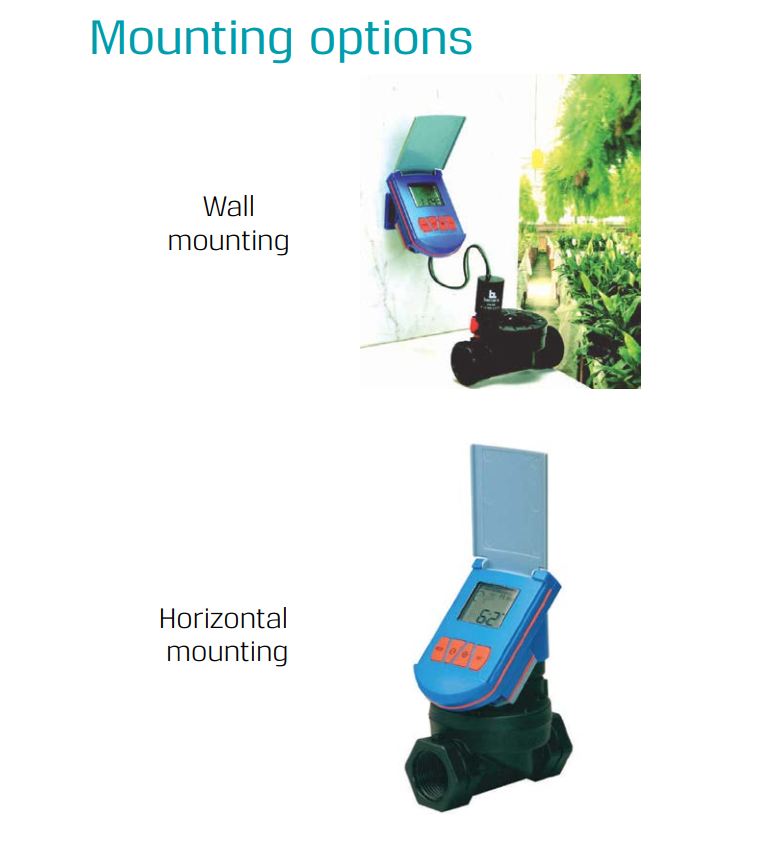

Mounting: Horizontal, vertical, wall mounting
Highlights
Programming key features
| Set start and end hours |
| Set On time (1 second to 12 hours) |
| Set Off time (1 min to 12 hours) |
| Day select |
| OFF |
Note: Window+ options available. Please consult with us to discuss your specific requirements
Technical Data
| Temperature range | -10º to 60ºC |
| Mounting | Various mounting options : • Directly on a 28mm diameter solenoid in horizontal or vertical position with adaptor • Wall mounting with four screws • Accessories provided |
| Electrical | Powered by single 9V alkaline battery; use best quality to ensure at least one year’s autonomous operation • Back-up memory • Low battery warning • Power saving LCD • Battery included |
| Solenoid | Both Window and Window+ controllers have identical programming • Window : compatible with G75 4Ω latch operator • Window+ : has a stronger output to operate G80 latch and GEM-SOL ‘IL’ latch coils |
| Valve | • Window : can operate any valve equipped with 3/4″ UNEF solenoid cavity (Richdel® type) • Window+ : only with Baccara latch valve |
| Software | • 24 hours real time clock • See ‘Programming key features’ table |
| Options | • Solar panel • Charger • Accurate clock (low time drift) |
| Standard / Certification | CE |
| Standard protection class | • Dust and watertight • IP67 and NEMA 4X |
.png)
Only logged in customers who have purchased this product may leave a review.
Operating temp: -10° to 60°C
Options: Solar panel, charger, accurate clock
Battery: 9V alkaline battery included
Mounting: Horizontal, vertical, wall mounting
