| Connector |
|
| Electrical connection |
|
| Body Material | Plastic |
| Coil winding insulation | F 155°C |
| Assembly | On a valve, 4 positions at 90° |
| Fixing | On G80 operator with M8x0.75 nut |

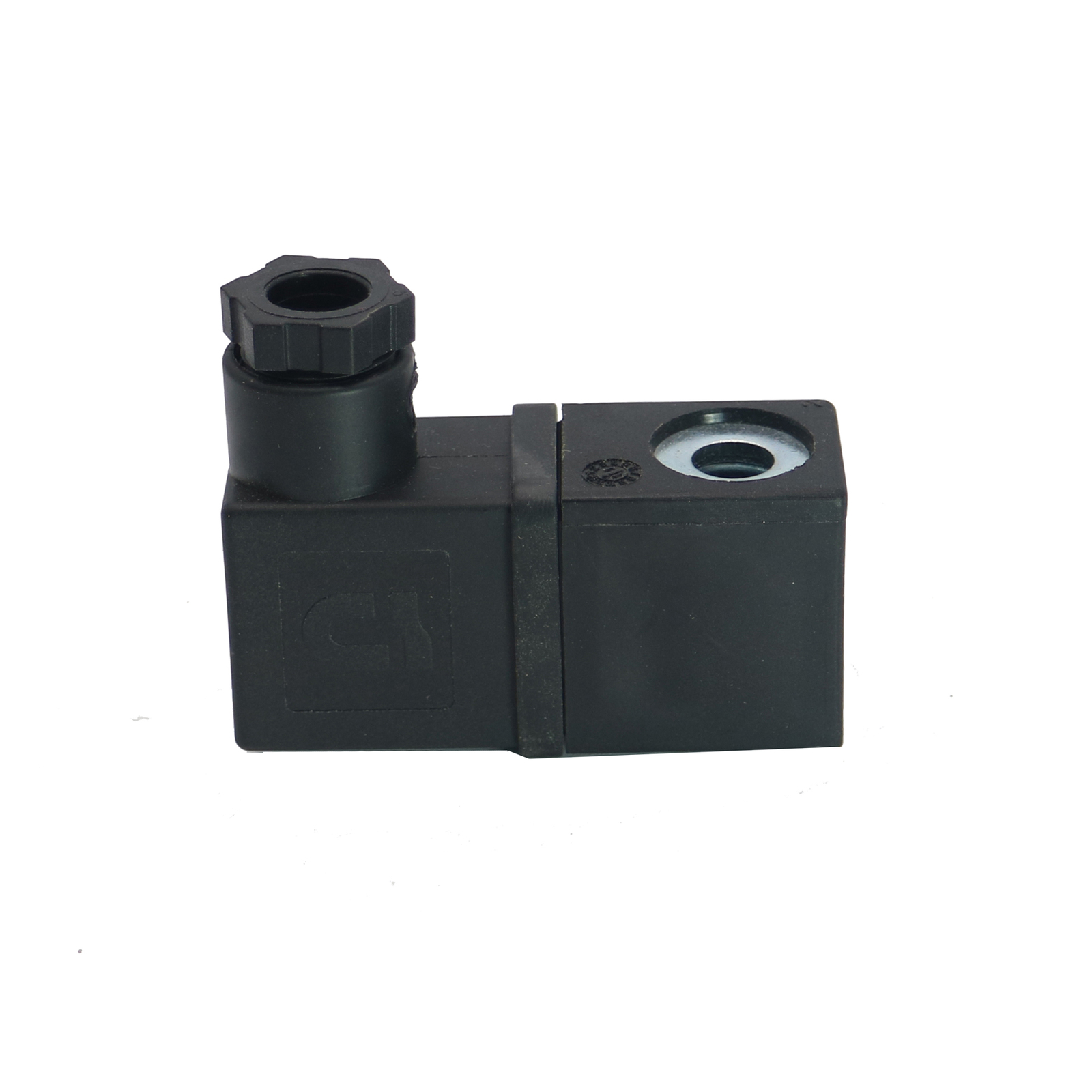

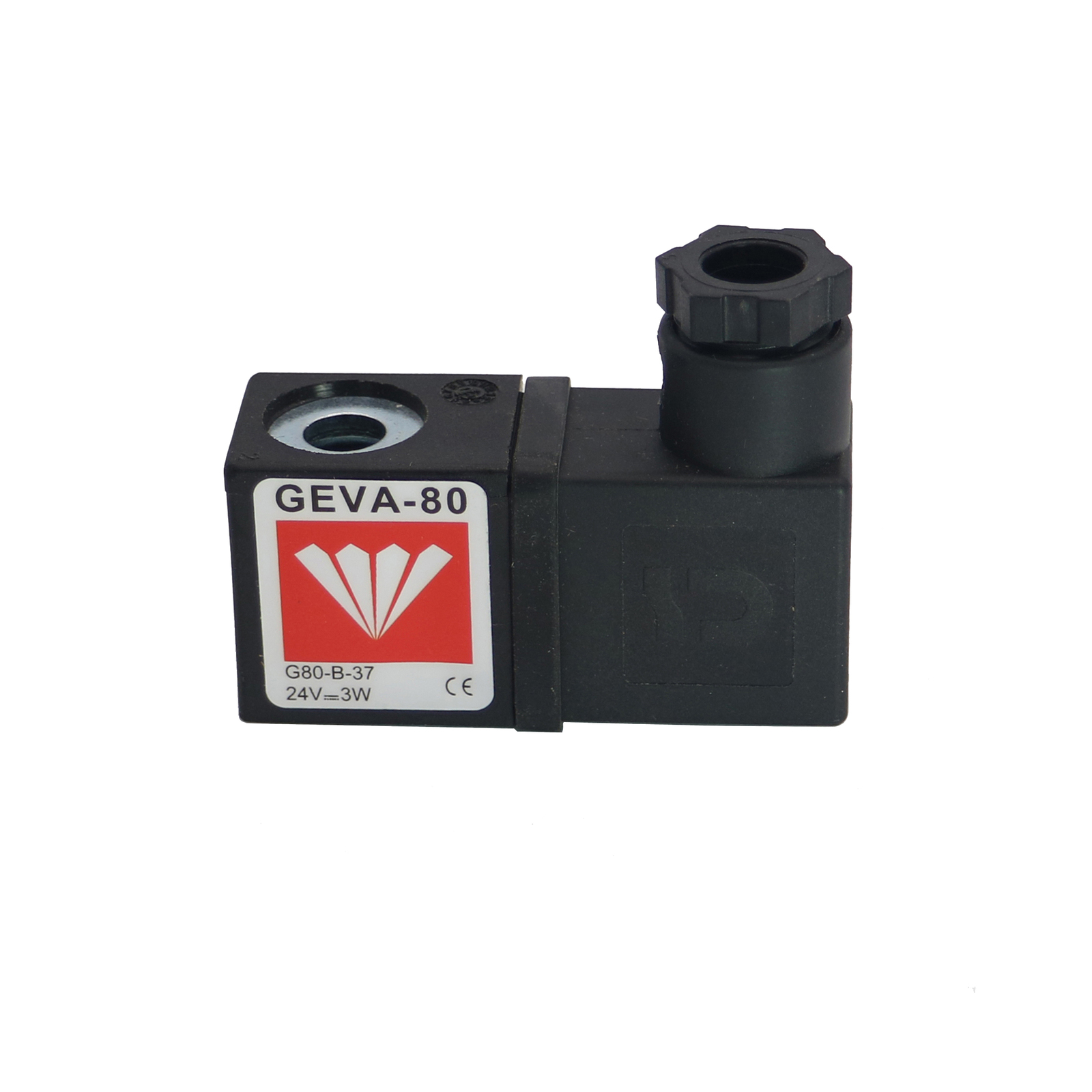

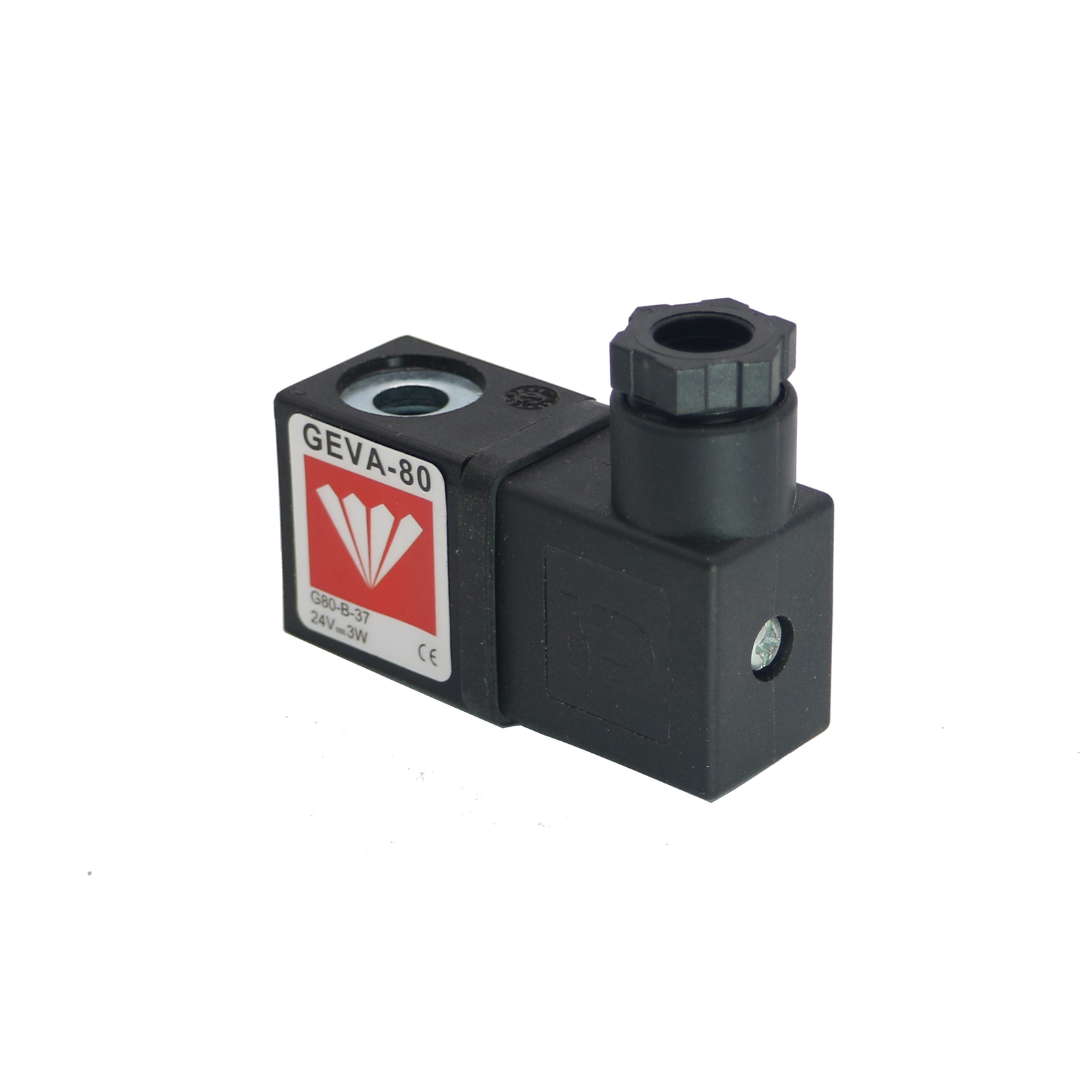

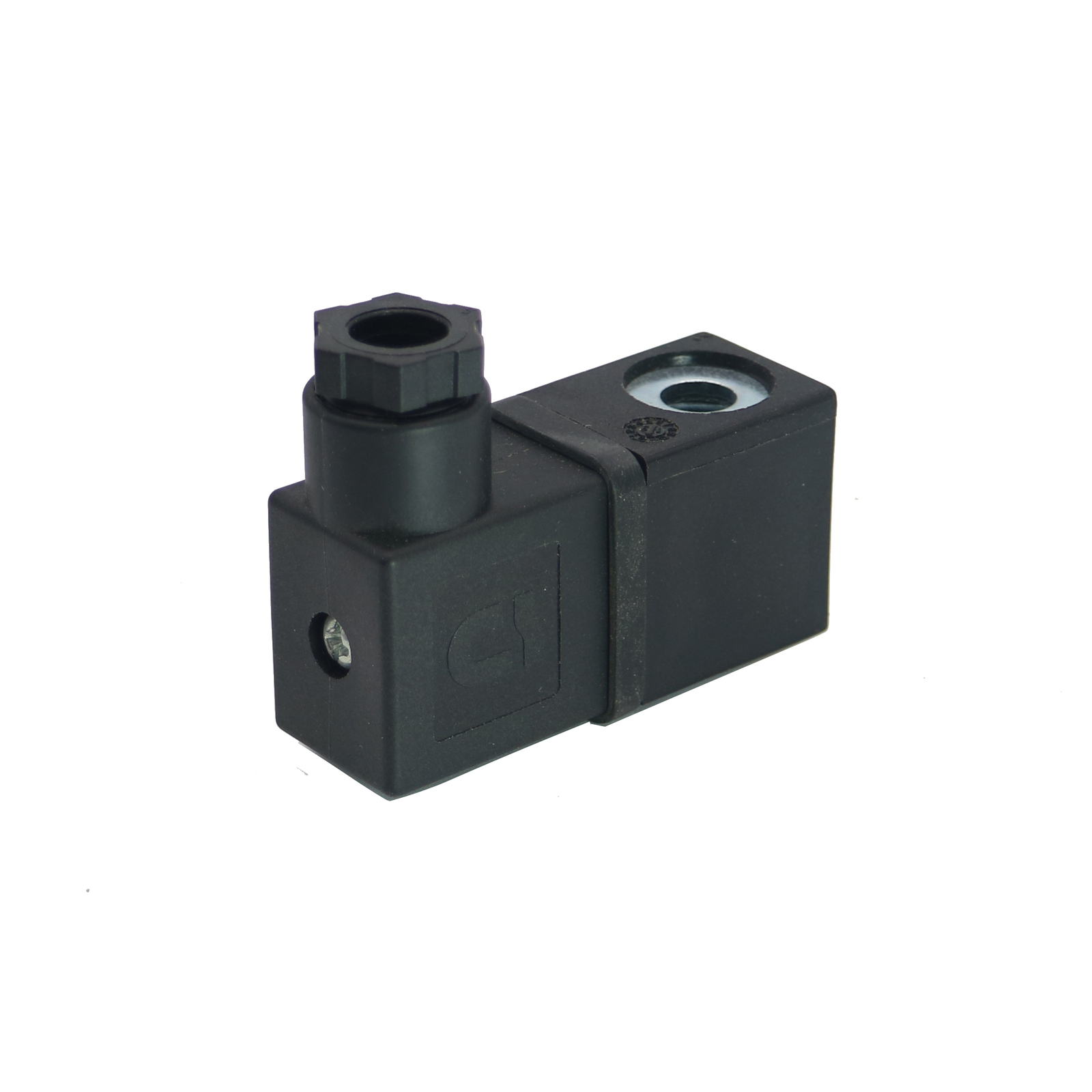

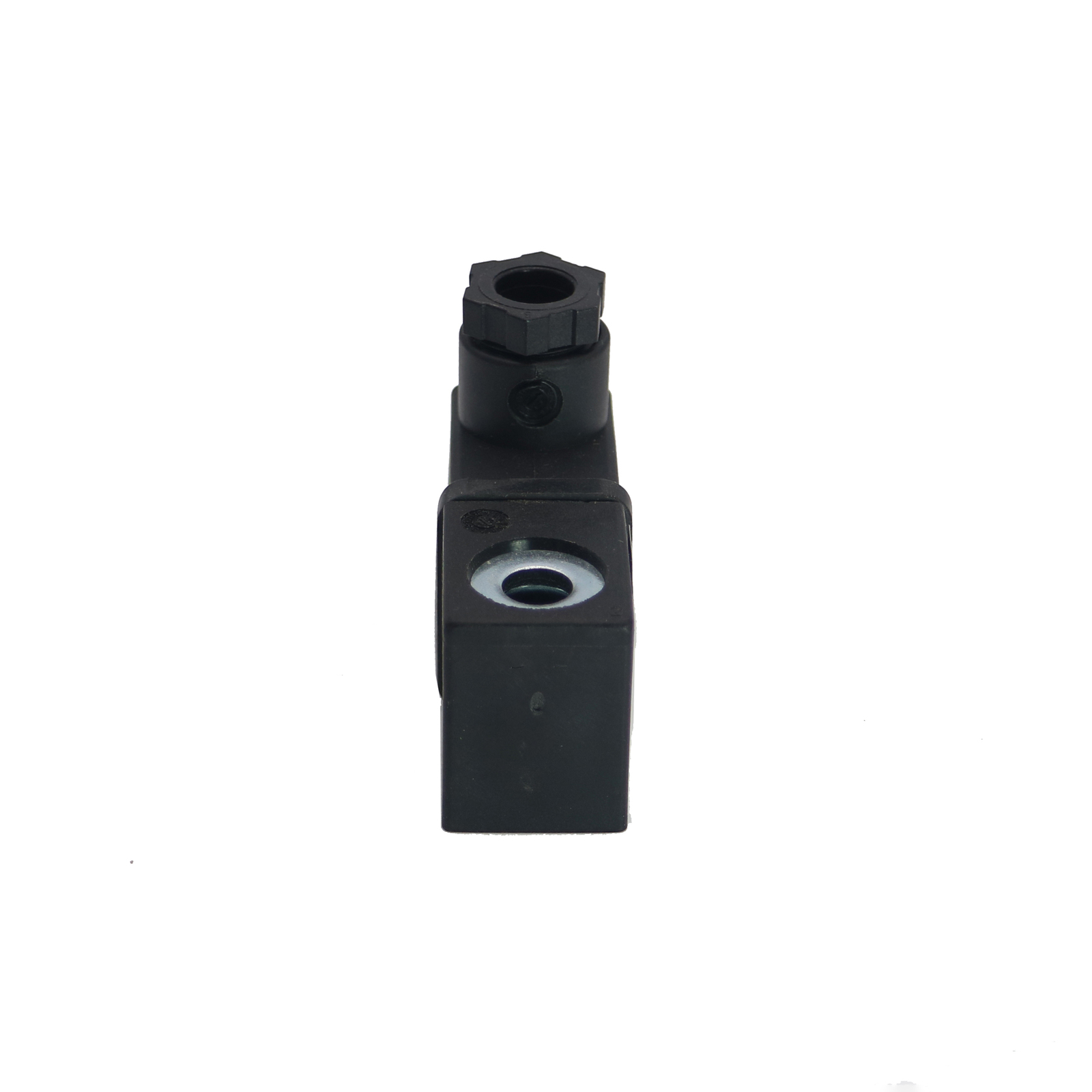

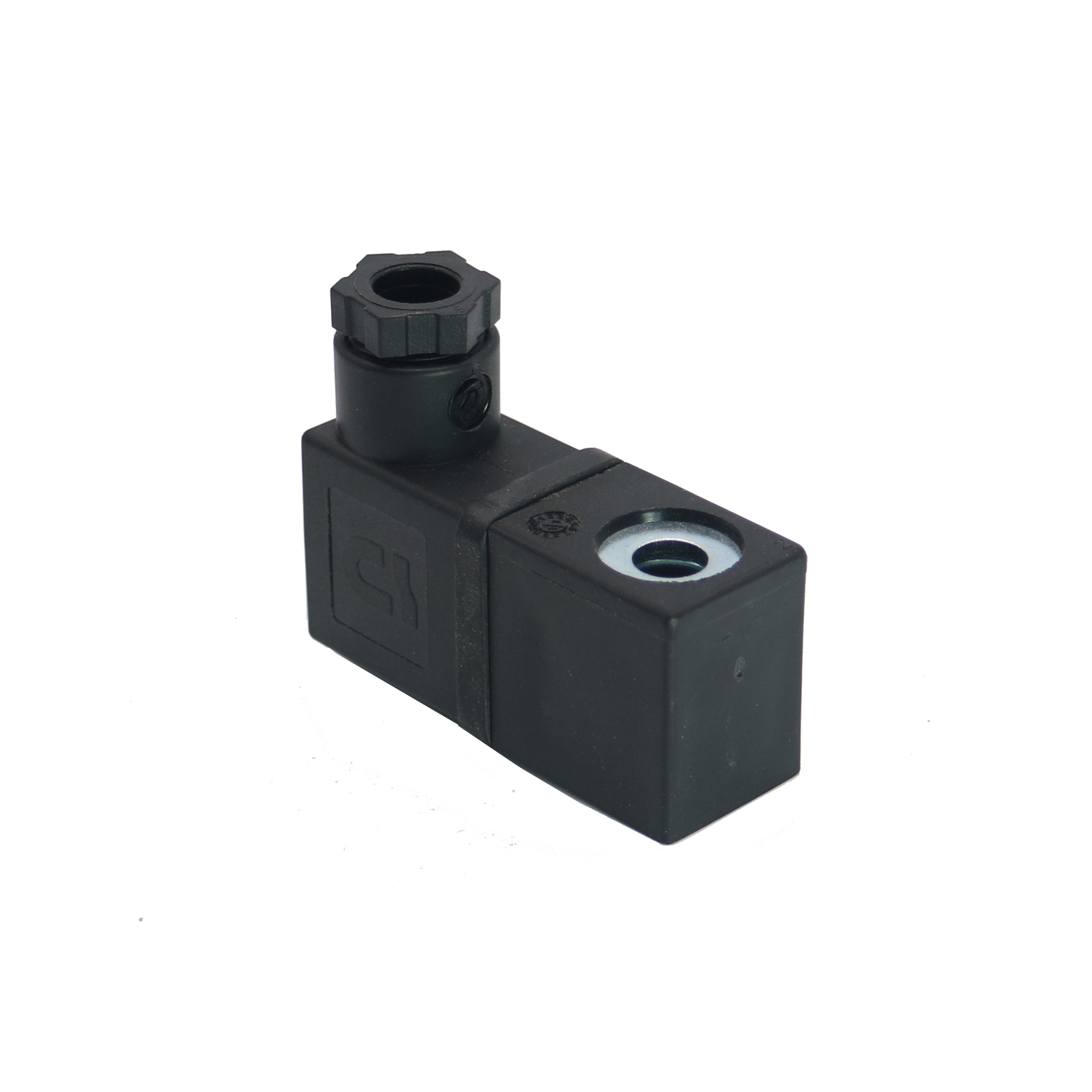

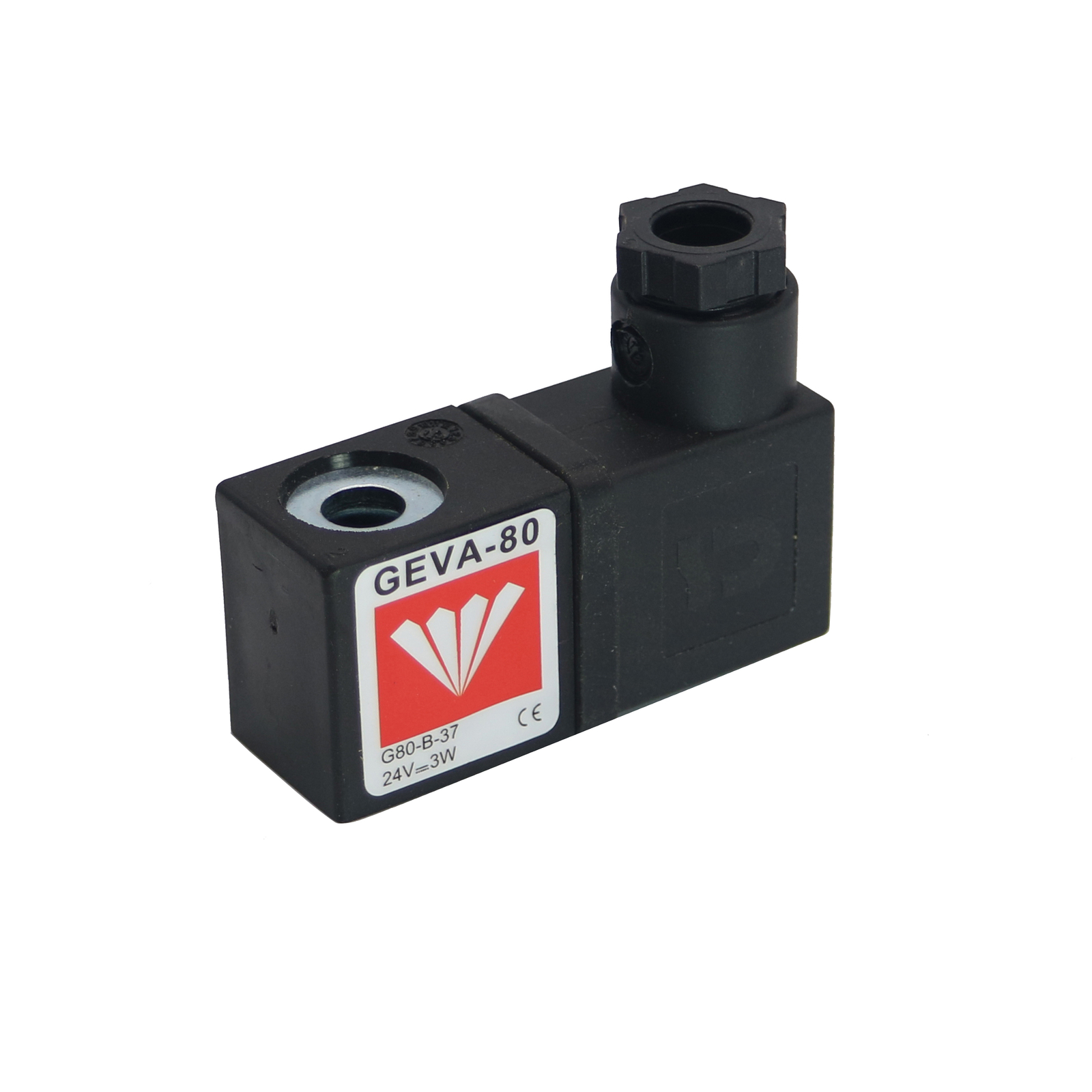

(G80-S-AC)
Technical Data
| Coil winding insulation | F 155ºC |
| Temperature range | Coil : -20ºC to 120ºC | Ambient : -20ºC to 50ºC |
| Construction | in accordance with EN 602041 |
| Duty cycle * | 100% ED |
| Electrical connection | • AMP 6 3x08, DIN 43650, 2 poles + 1 earth • 2 flying leads, 20AWG |

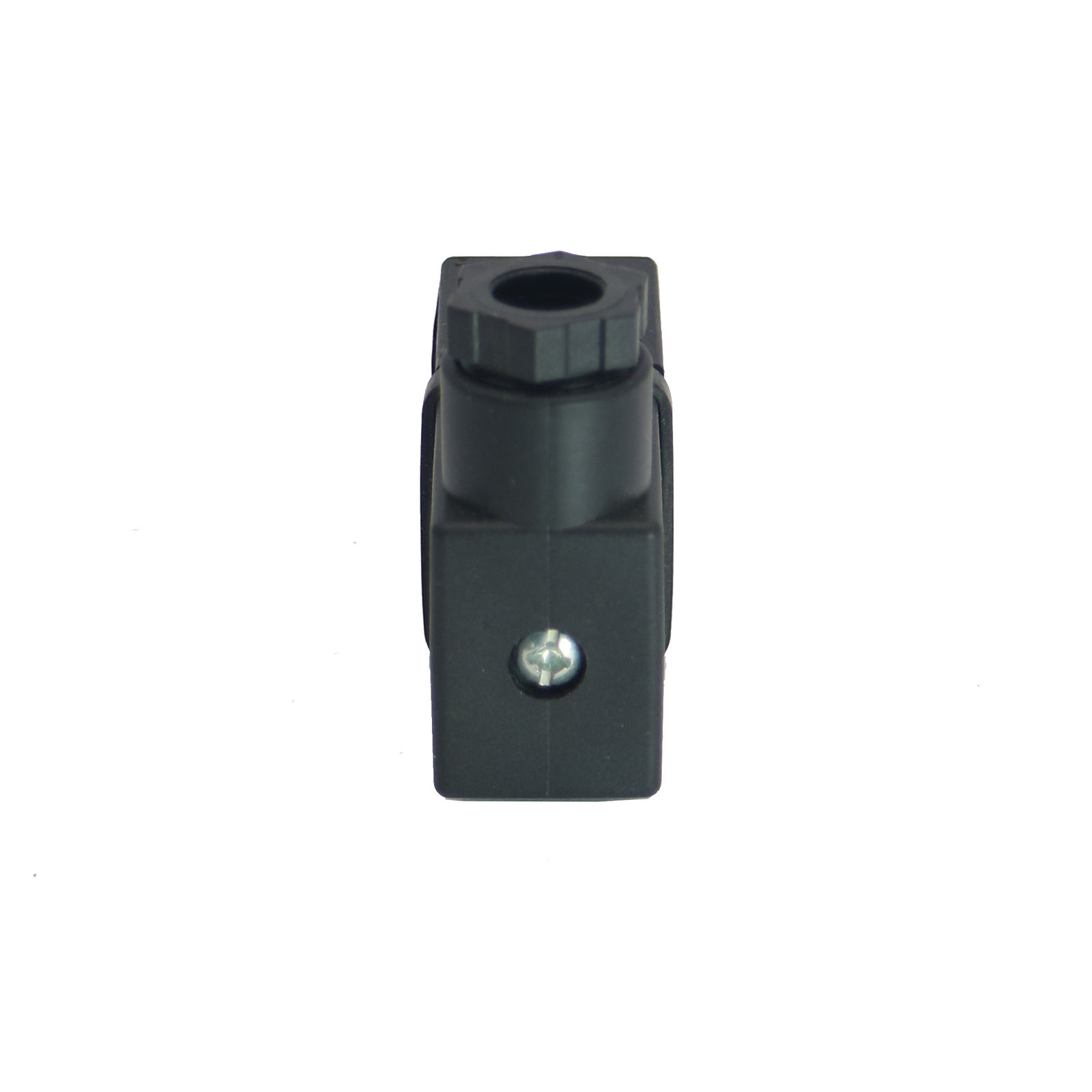

| Connector | • DIN 43650 • Fixture : M3 screws, 2 positions at 180º * Max. tightening torque for the connector screw : 0.5 Nm |
| Assembly | On a valve, 4 positions at 90º |
| Coil fixing | On a G80 operator with M8x075 nut |
| Impregnation | Optional |
| Coil voltage | • Voltage and power consumption - see table • All Baccara coil voltages are ±10% of nominal |
| Standard protection class | IP65 with connector |
The coil should not be energized without being assembled on the operator
* Please consult with our technical sales department :
• for further information on using different power coils (not shown in the table)
• for long term operation
Power Consumption table (AC)
| Type | 50 Hz | |
| Inrush | Holding | |
| 75W | 12 5VA | 105VA |
| 4W | 7VA | 5VA |
Power Consumption table (DC)
| Type |
| 6 5W |
| 3W |

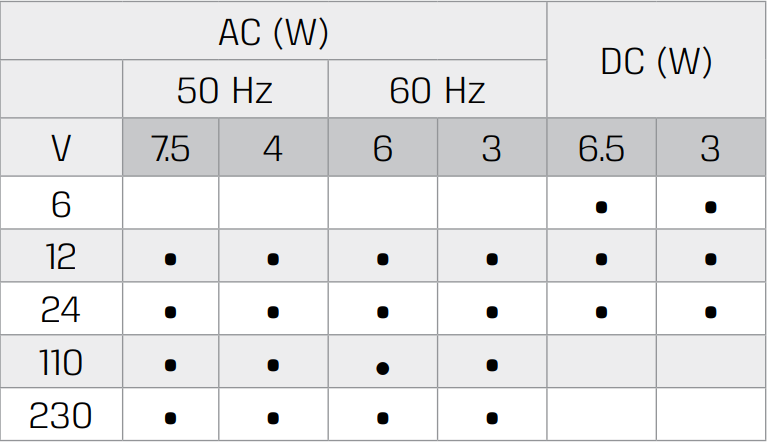

Voltage & Power Consumption
.png)
• Available options
.png)
