A High-Efficiency, Low-Maintenance Solution for Superior Water Filtration

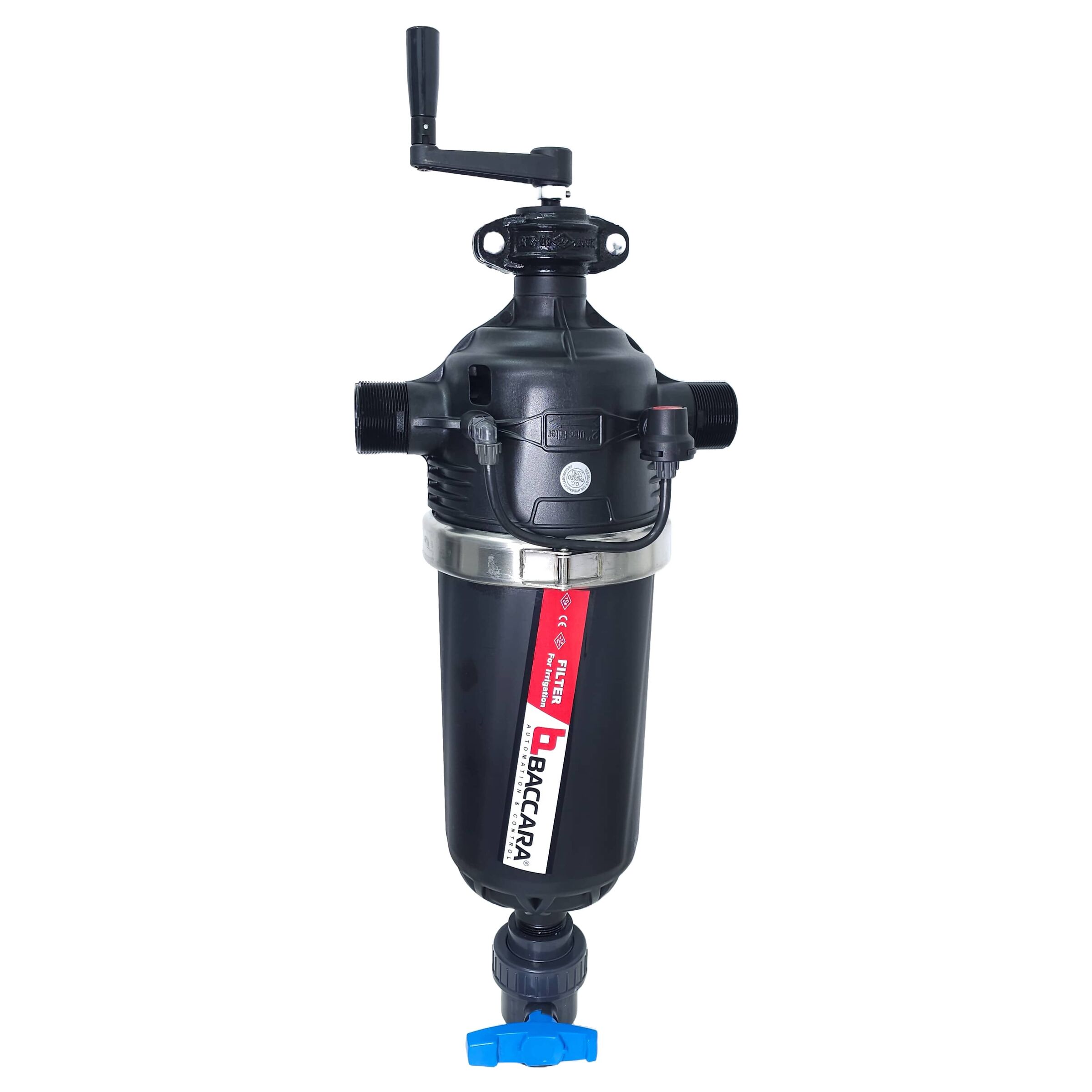

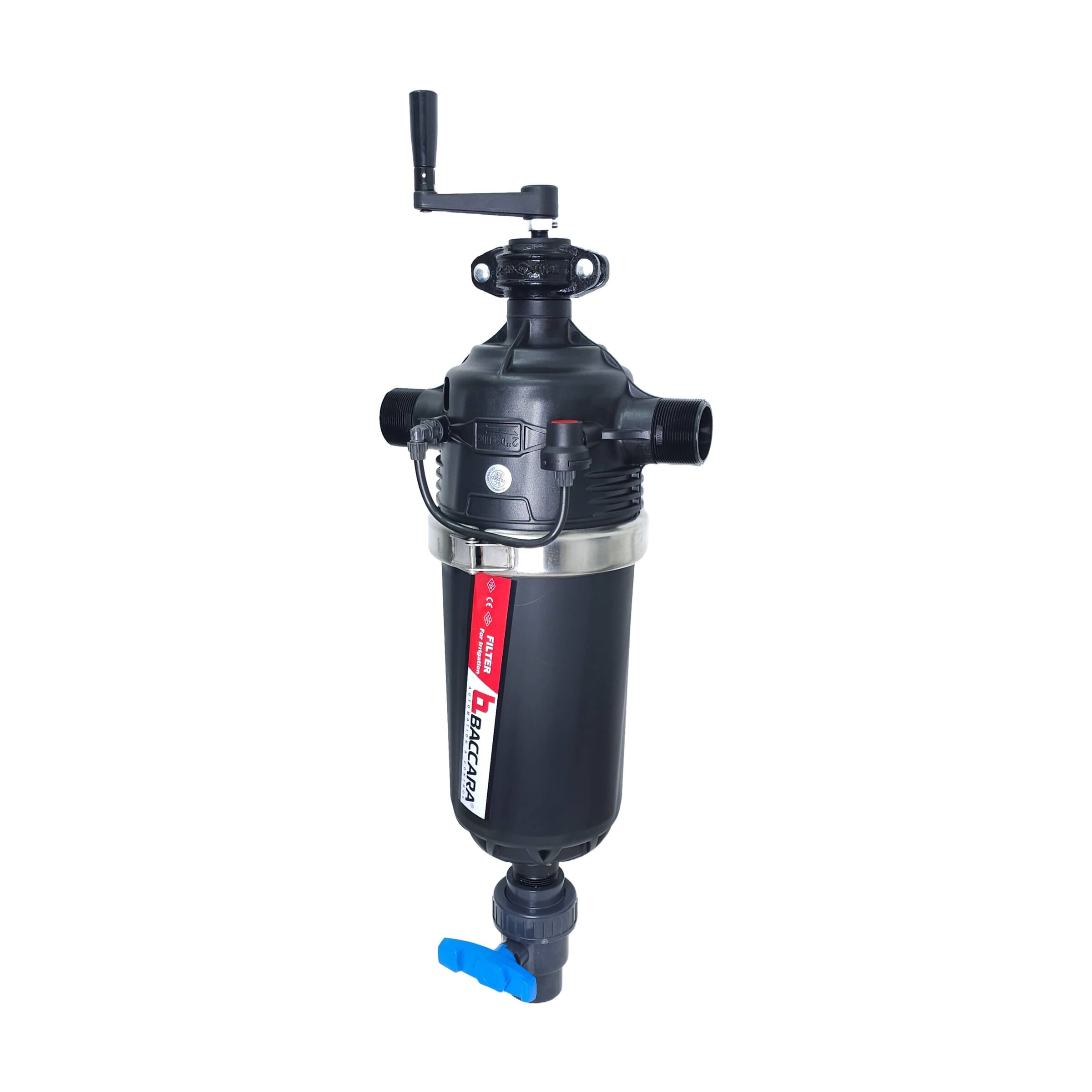

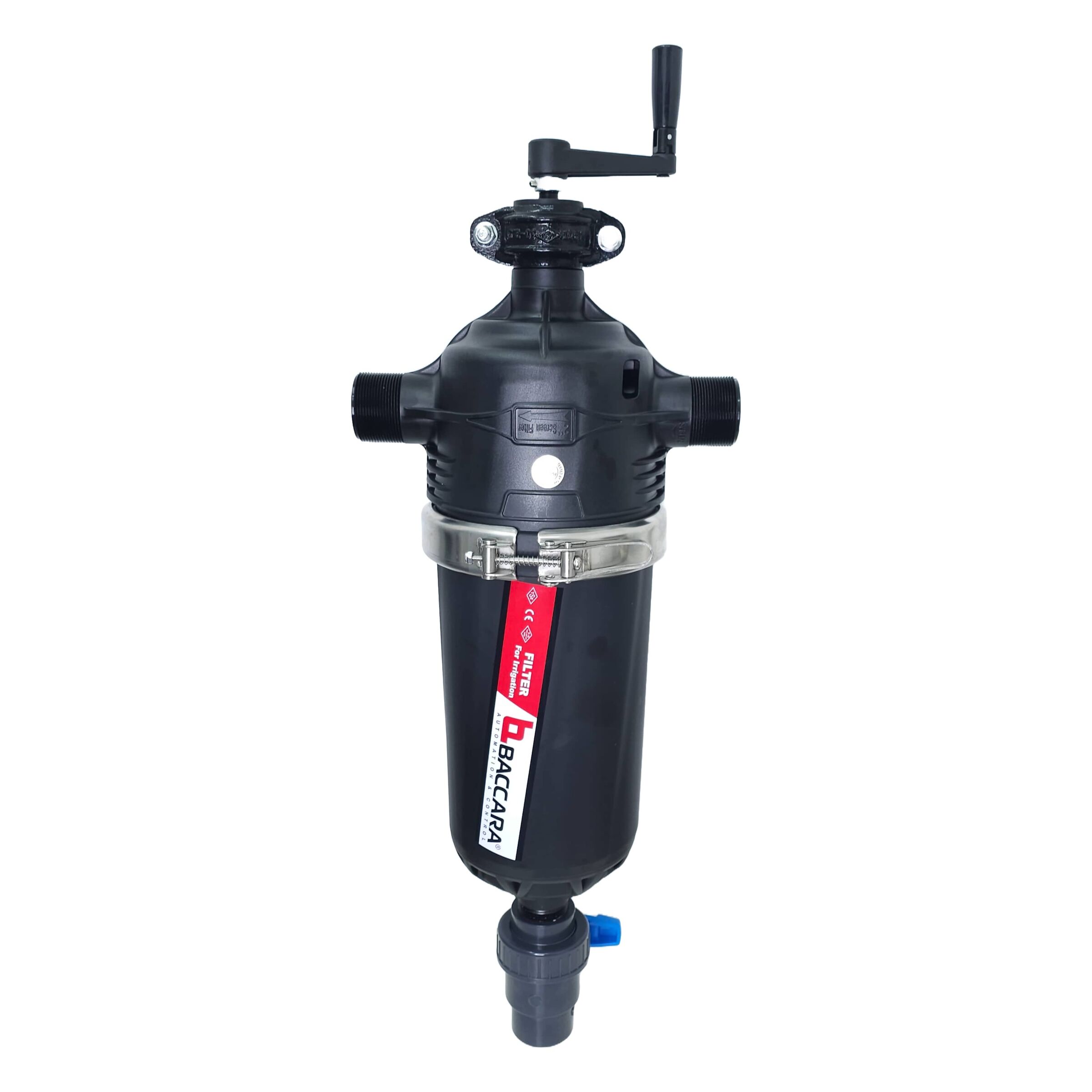

The SASF Spiral Clean Semi-Automatic Screen Filter represents the pinnacle of efficient and reliable water filtration technology. Expertly designed for performance and longevity, this filter provides an optimal solution for removing suspended solids and protecting your irrigation and industrial systems. Its core feature is an innovative semi-automatic cleaning mechanism that ensures a continuous supply of clean water without the need to halt operations or disassemble the unit.

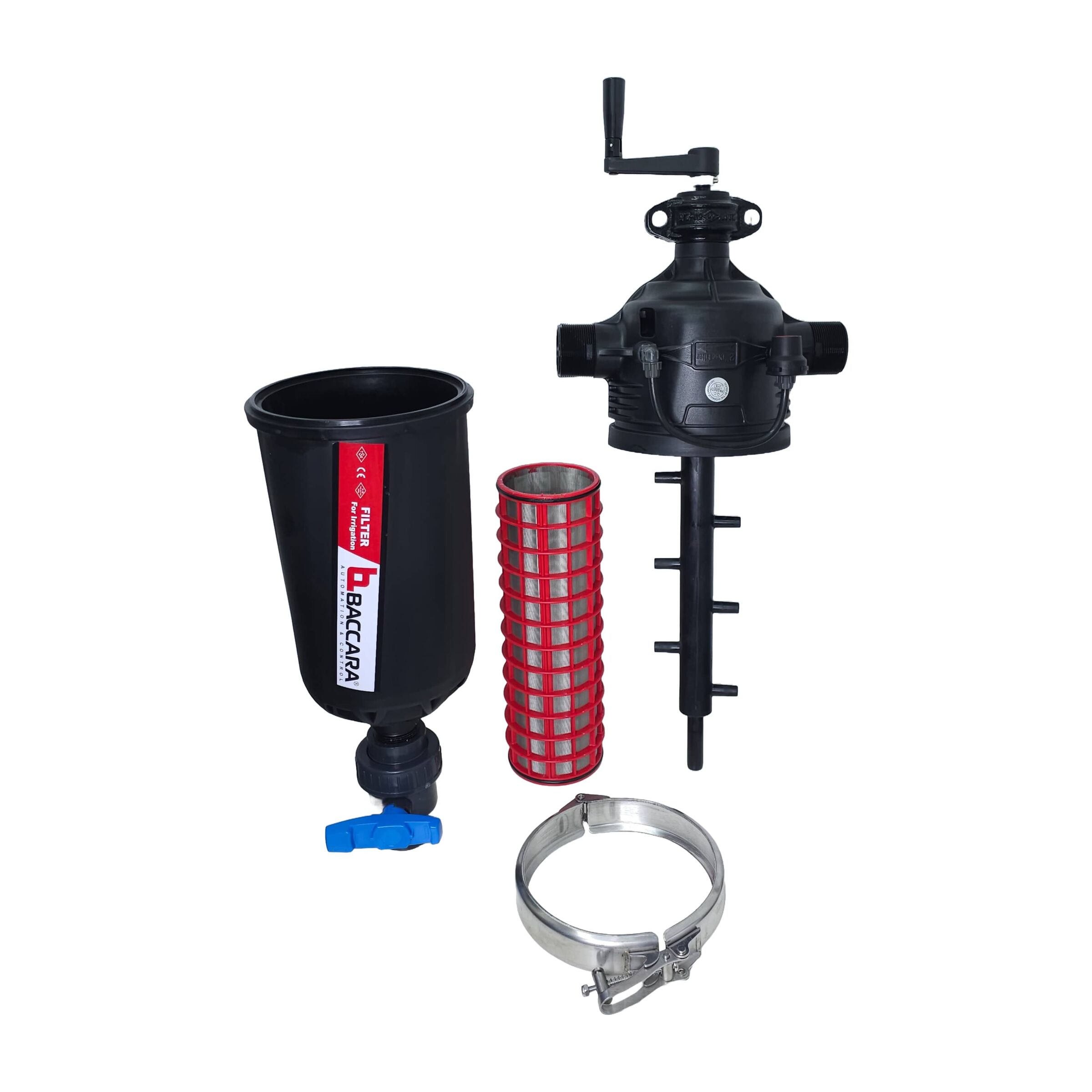

The filter operates by directing water through a high-capacity, stainless steel screen element. As particles accumulate on the screen, a simple turn of a handle activates the revolutionary Spiral Clean system. This triggers a set of powerful suction nozzles that spiral across 100% of the filter screen, vigorously removing trapped debris and flushing it out through a drainage valve. This entire process is completed in seconds with minimal water consumption, offering a sustainable and effective filtration solution.
Continuous Water Supply: Clean the filter without ever stopping the water flow, ensuring your operations run uninterrupted.
Effortless Maintenance: The innovative backflush system is activated by a simple turn of a handle. There is no need for tools or to disassemble the filter for cleaning.
Water & Energy Conservation: The highly efficient cleaning cycle uses a minimal amount of water, saving valuable resources and reducing operational costs.
Maximum Durability & Safety: Built with high-quality, corrosion-resistant materials, the SASF filter guarantees maximum safety and a long service life even in demanding conditions.

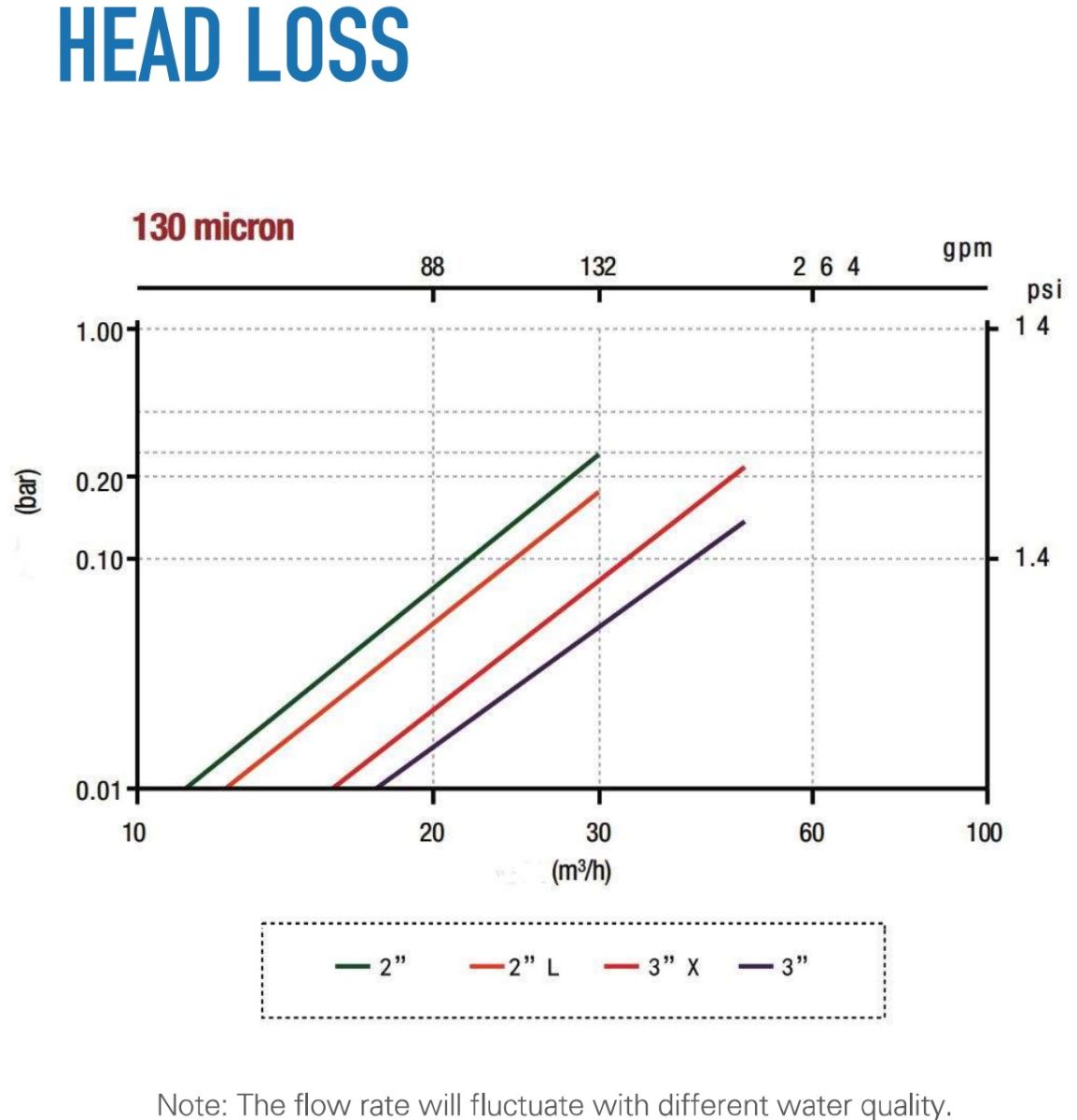

Superior Filtration Performance: The large filtering surface area ensures high flow rates, low pressure loss, and exceptional particle capture.
The versatile design of the SASF filter makes it the perfect choice for a wide range of applications, including:
Agricultural Irrigation: Protect drip emitters, sprinklers, and micro-sprayers from clogging to ensure uniform crop irrigation.
Commercial Landscaping & Turf: Keep golf course and park irrigation systems running flawlessly.
Industrial Process Water: Provide clean water for cooling towers, heat exchangers, and other industrial equipment.
Wastewater Treatment: Ideal for secondary effluent filtration and water reclamation projects.
Municipal Water Systems: Assist in pre-filtration for larger water treatment facilities.
Semi-automatic cleaning with a manual turn-handle operation.
Innovative Spiral Clean suction scanning technology.
Large filtration surface for high flow capacity.
Durable, corrosion-resistant construction.
Filtration down to 130 microns (120 mesh).
Visual pressure differential indicator to signal when cleaning is required.
Minimal water usage during the flushing cycle.
(SASF)

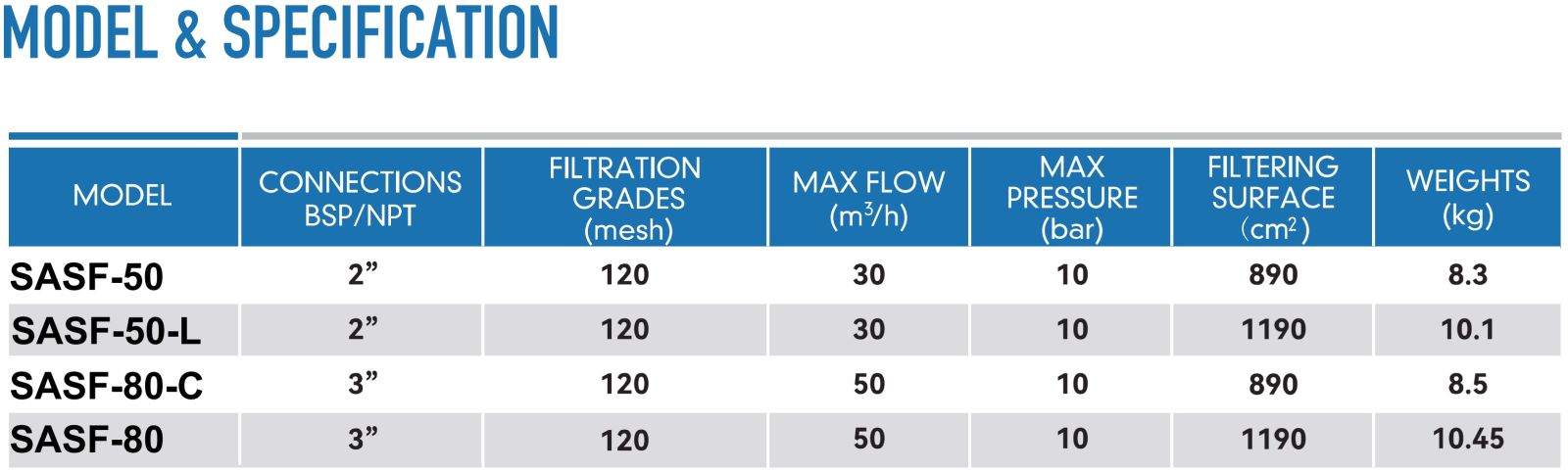

Model |

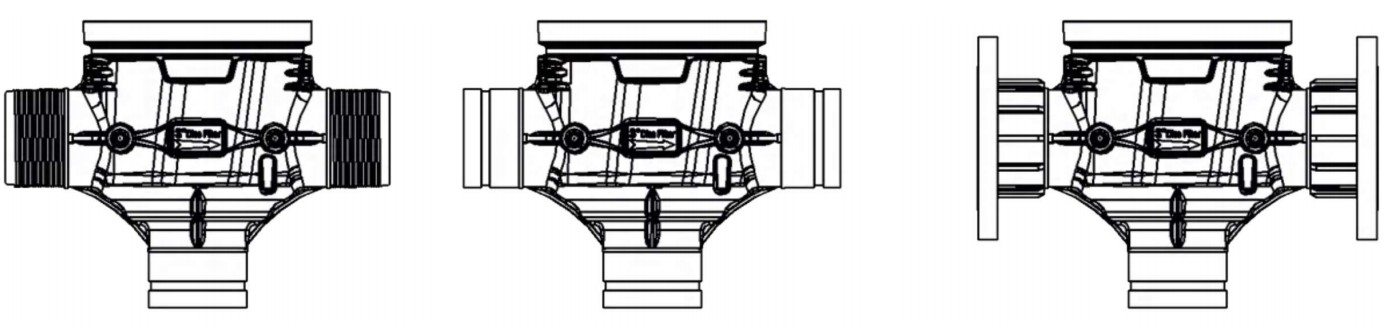

Connections (BSP/NPT) |
Filtration Grade (Mesh) |
Max Flow Rate (m³/h) |
Max Pressure (bar) |
Filtering Surface (cm²) |
Weight (kg) |
---|---|---|---|---|---|---|
SASF-50 |
2" |
120 |
30 |
10 |
890 |
8.3 |
SASF-50-L |
2" |
120 |
30 |
10 |
1190 |
10.1 |
SASF-80-C |
3" |
120 |
50 |
10 |
890 |
8.5 |
SASF-80 |
3" |
120 |
50 |
10 |
1190 |
10.45 |
Note: Flow rates may fluctuate based on water quality.

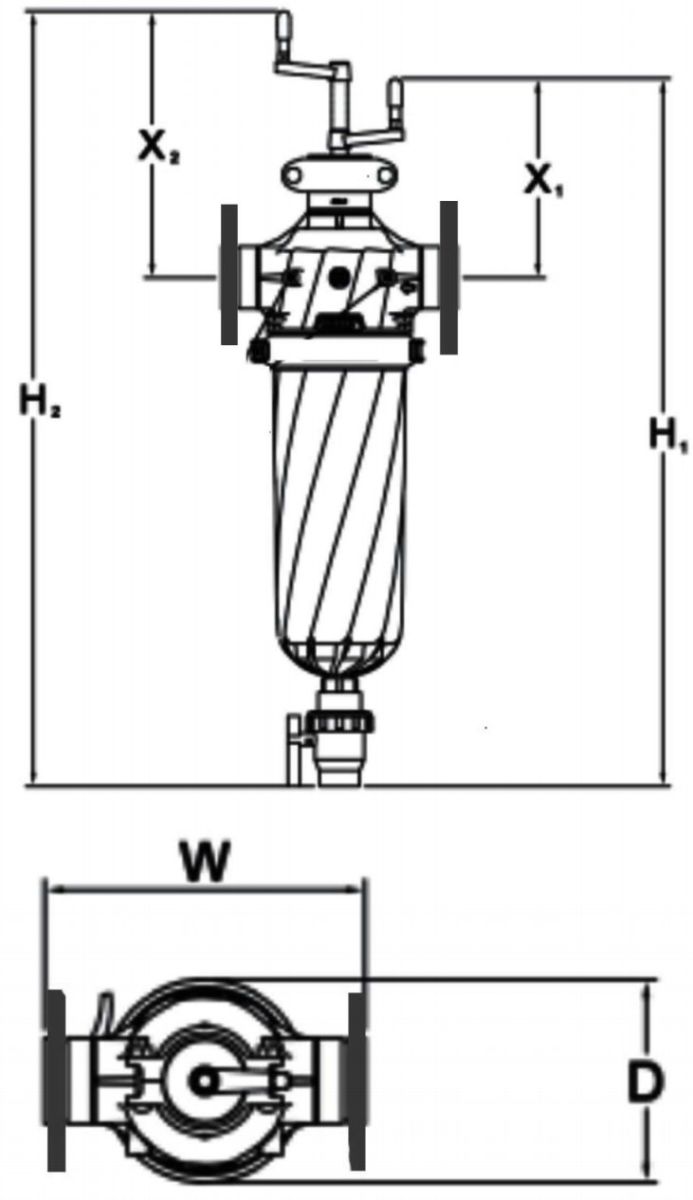

Model |
H1 (mm) |
H2 (mm) |
W (mm) |
X1 (mm) |
X2 (mm) |
D (mm) |
---|---|---|---|---|---|---|
SASF-50 |
905 |
960 |
345 |
280 |
335 |
220 |
SASF-50-L |
1030 |
1085 |
345 |
300 |
355 |
220 |
SASF-80-C |
920 |
975 |
360 |
280 |
335 |
220 |
SASF-80 |
1045 |
1100 |
360 |
300 |
355 |
220 |
