SV | Solenoid Valve 24V AC, 24V DC, 12-40V DC Latch for Automated Irrigation Systems

Introducing the SV Series Solenoid Valve, the robust and reliable solution for converting electrical signals into precise hydraulic control. Specifically designed for modern automated irrigation systems, this valve seamlessly integrates with standard controllers to manage water flow with exceptional accuracy. By applying a power signal, the motor-driven diaphragm shifts the direction of water, providing dependable on/off or directional control in your network. Its versatile design and multiple voltage options make it the ideal choice for a wide range of agricultural, commercial, and residential irrigation applications.

The SV Solenoid Valve is engineered for longevity and performance. Its unique split-structure design separates the motor control body from the water passage, protecting the internal components and ensuring a long service life. Featuring a large flow channel, the valve offers a rapid response time and superior anti-clogging capabilities. For ultimate flexibility, a manual control knob provides three operational modes—Open, Close, and Automatic—allowing for easy system override and maintenance. Built to withstand harsh conditions with an IP68 waterproof rating, this low-energy-consumption valve is perfect for efficient, long-distance control.

Advantages:

Versatile Power Options: Available in 24V AC, 24V DC, and energy-saving 12-40V DC Latch versions to suit any controller type.
Durable Split-Structure Design: Separates electrical components from the water passage, significantly increasing the valve's lifespan and reliability.
Manual Override: Features a three-mode manual knob (Open, Close, Automatic) for easy operation and maintenance without needing controller access.
High-Flow & Anti-Clogging: A large internal flow channel ensures fast valve response and minimizes the risk of blockage from debris.
Low Power Consumption: Ideal for battery-powered controllers and long-distance wiring runs where power efficiency is critical.
Robust & Waterproof: With an IP68 rating, the valve is fully protected against dust and prolonged immersion in water, ensuring performance in any environment.
Flexible Configuration: The base can be configured as a 2-position, 3-way valve, making it perfect for backwash filter systems and other advanced control setups.

Applications:

Automated drip and sprinkler irrigation systems in agriculture and landscaping.
Control of automatic backwash filtration systems.
Greenhouses and nurseries requiring precise watering schedules.
Industrial water control and management systems.
Remote or solar-powered irrigation zones where low power usage is essential.

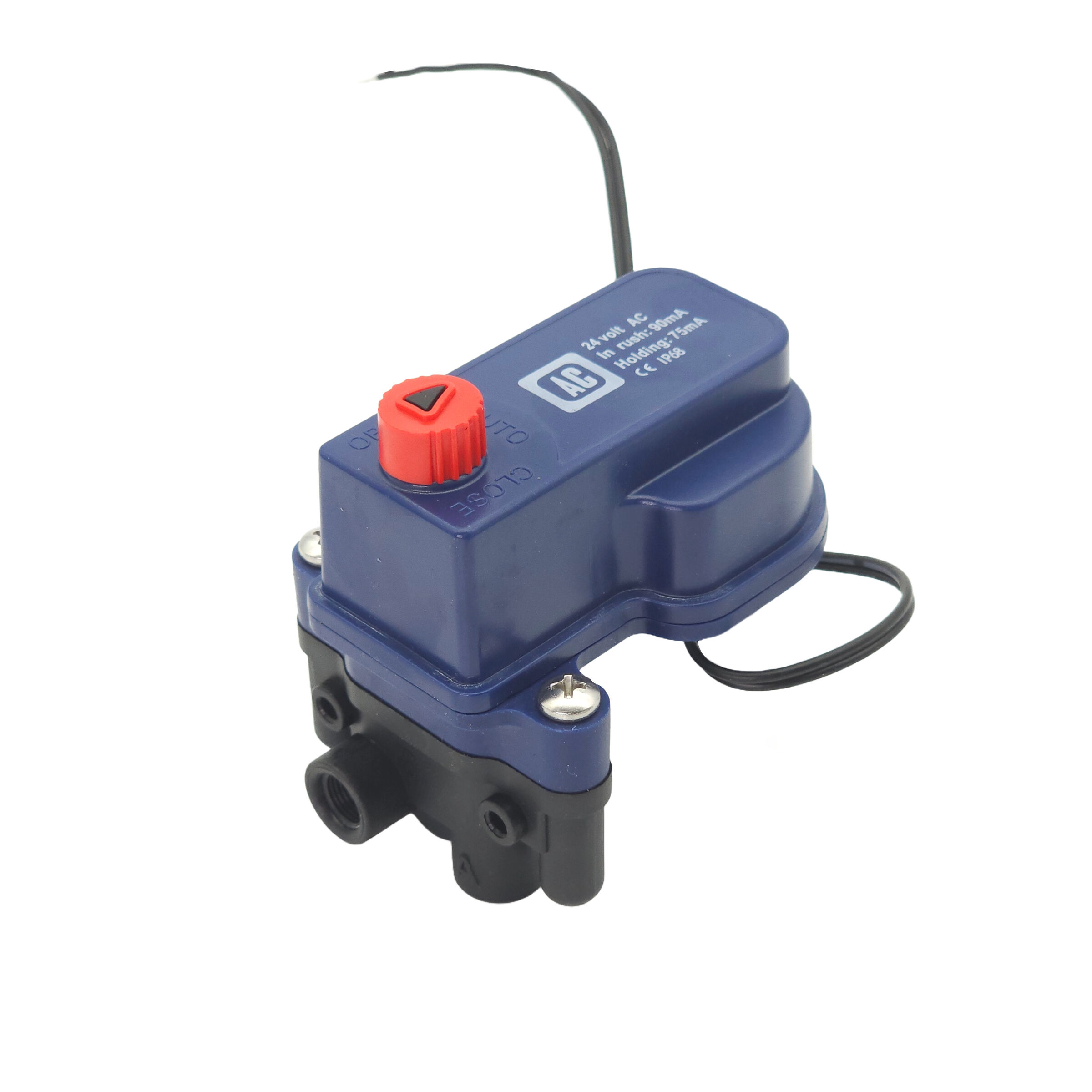

(SV-Irrigation_Valve)

Specification	Value
Working Pressure	0-10 Bar (0-145 PSI)
Waterproof Level	IP68
Minimum Filtration	80 Mesh
Hydraulic Outlet	1/8" BSP Female Thread
Lead Wire Length	1 meter
Operating Modes	Automatic, Manual Open, Manual Close
AC Version	Voltage: 24V AC (Range: 21-27V)
	Wiring: 2x Black wires (non-polarized)
DC Version	Voltage: 24V DC (Range: 21-27V)
	Wiring: Red (+), Black (-)
Latch Version	Voltage: 12-40V DC
	Pulse Width: 100-300 ms
	Wiring: Red (+), Black (-)

Dimensions

Model	L (mm)	H (mm)	W (mm)	D (mm)	M (mm)	Ports (A, B, COM)
SV08-24-AC	84	87.3	64.5	38	4.5	1/8" BSP
SV08-24-DC	84	87.3	64.5	38	4.5	1/8" BSP
SV08-12-40-LATCH	84	87.3	64.5	38	4.5	1/8" BSP
