- Ports size: 3/4″ – 2″ BSP
- Orifice size: 27.0, 55.0 mm
- Body material: Plastic
|Size||3//8", 1/2", 3/4", 1" BSP|
|Function||2 Way NC, NO|
|Valve Operation||Pilot Operated|
|Body Material||Stainless Steel|
|Pressure Range||Vacuum - 10 bar|
|Media||Air, gas, water, fuel, oil etc|
|Function||2 Way NC, NO|
|Ports size||3/8", 1/2", 3/4", 1" BSP|
|Pressure range||See table|
|Temperature range||Fluid : -10º to 150ºC (no freezing)
Ambient : -10ºC to 50ºC
|Materials in contact
|Main Valve: Stainless Steel AISI 316

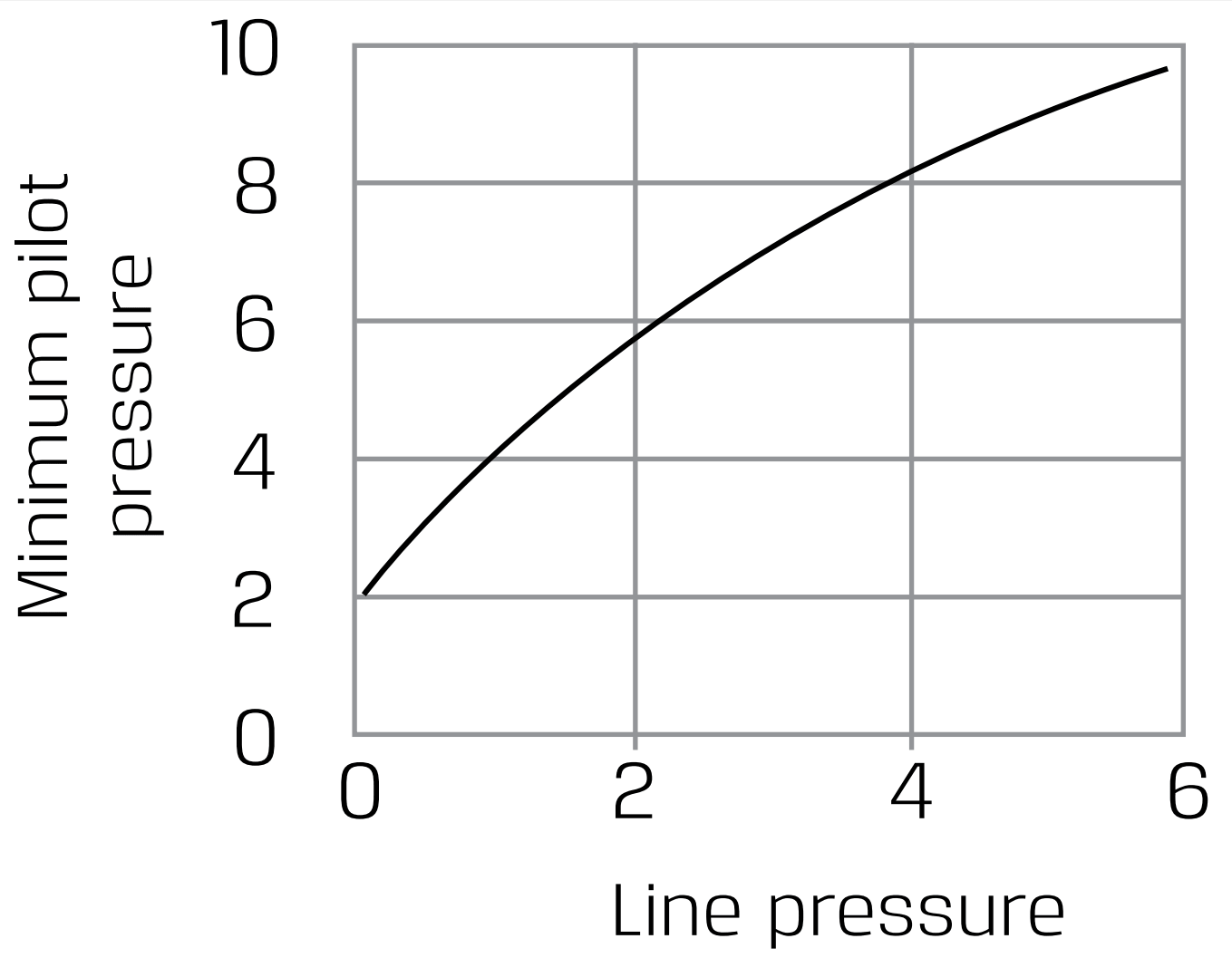

Pressure (bar) & Flow table
|Size||Orifice (mm)||Line Pressure|
|3/8", 1/2"||12||Vacuum - 10 bar|
|3/4"||20||Vacuum - 10 bar|
|1"||25||Vacuum - 10 bar|
