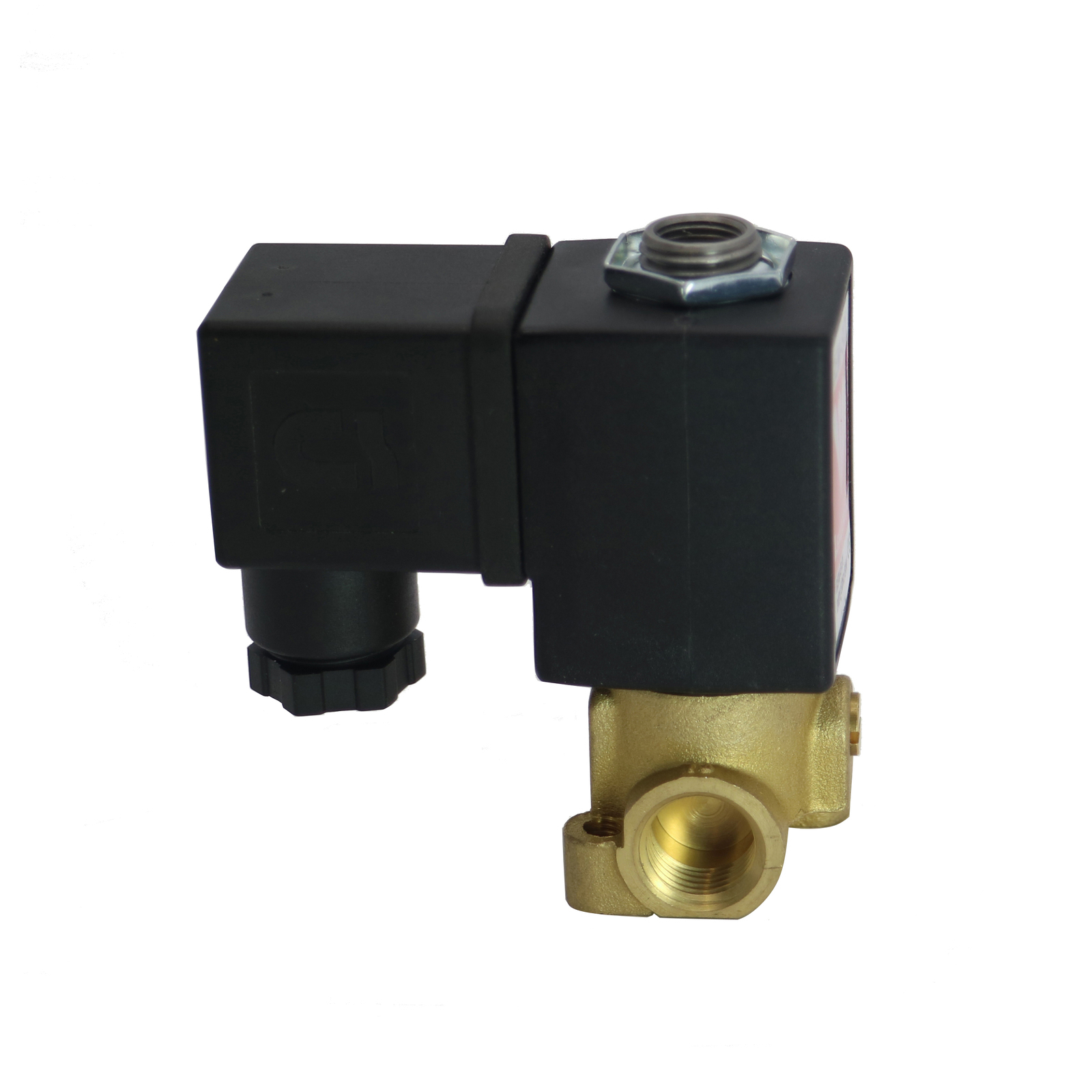

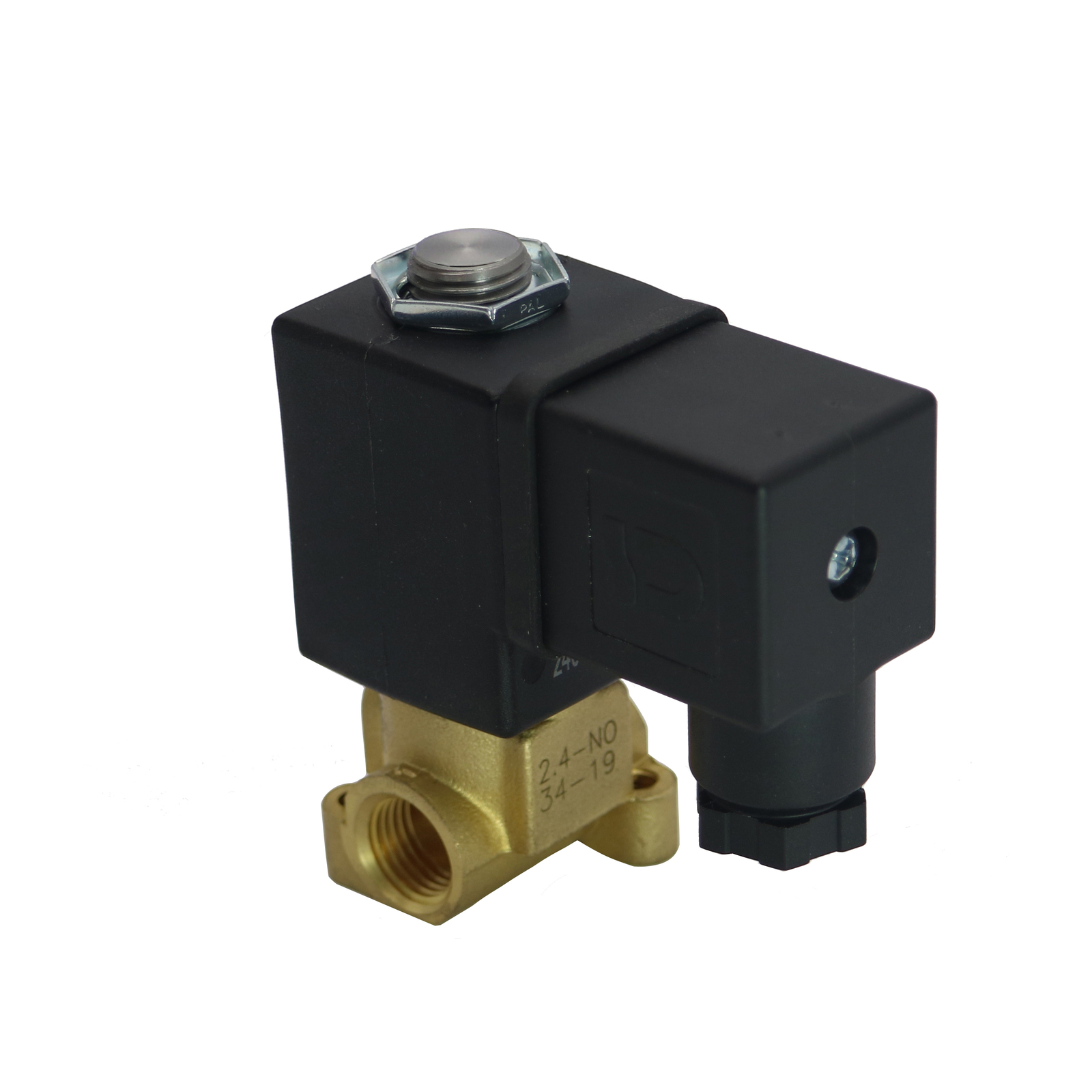

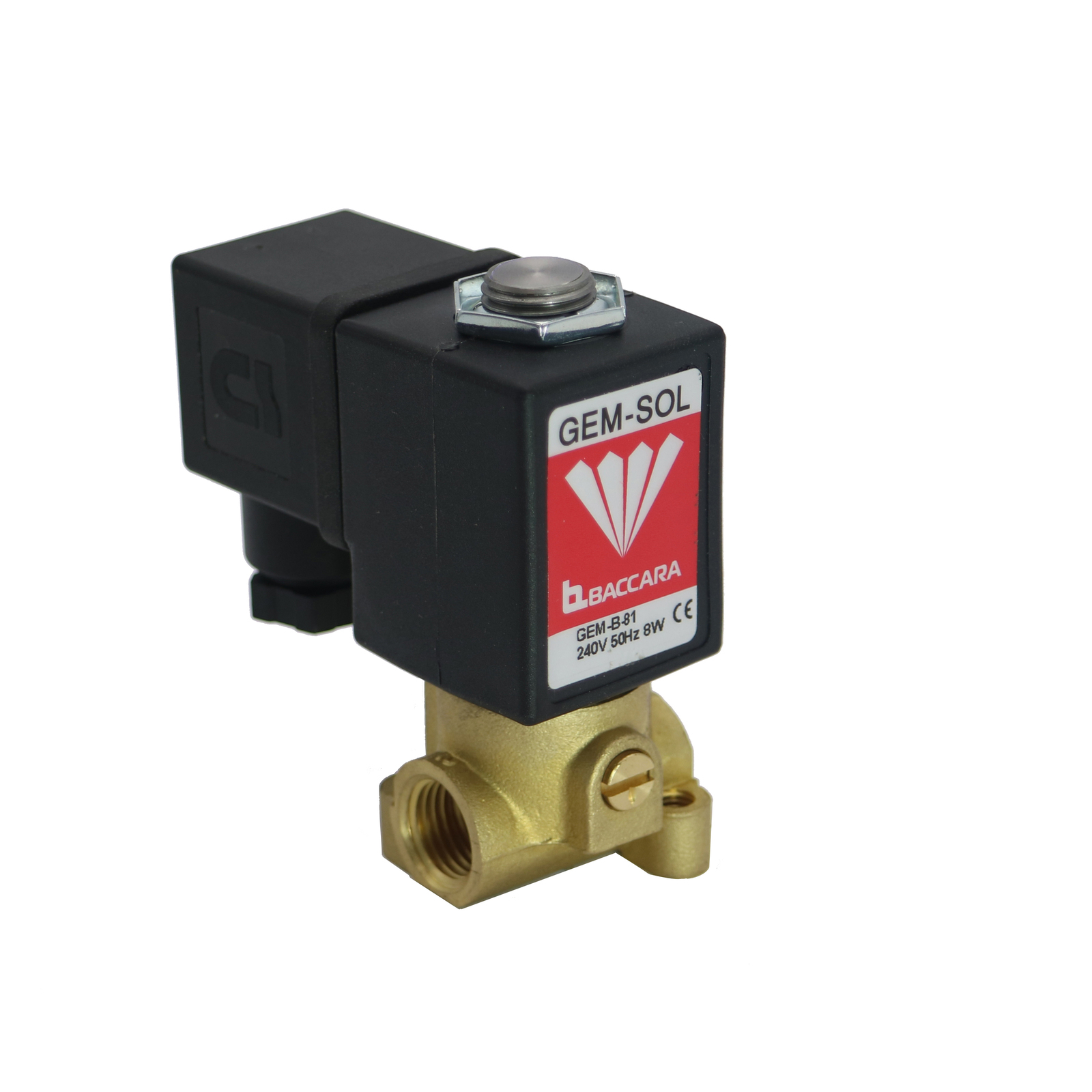

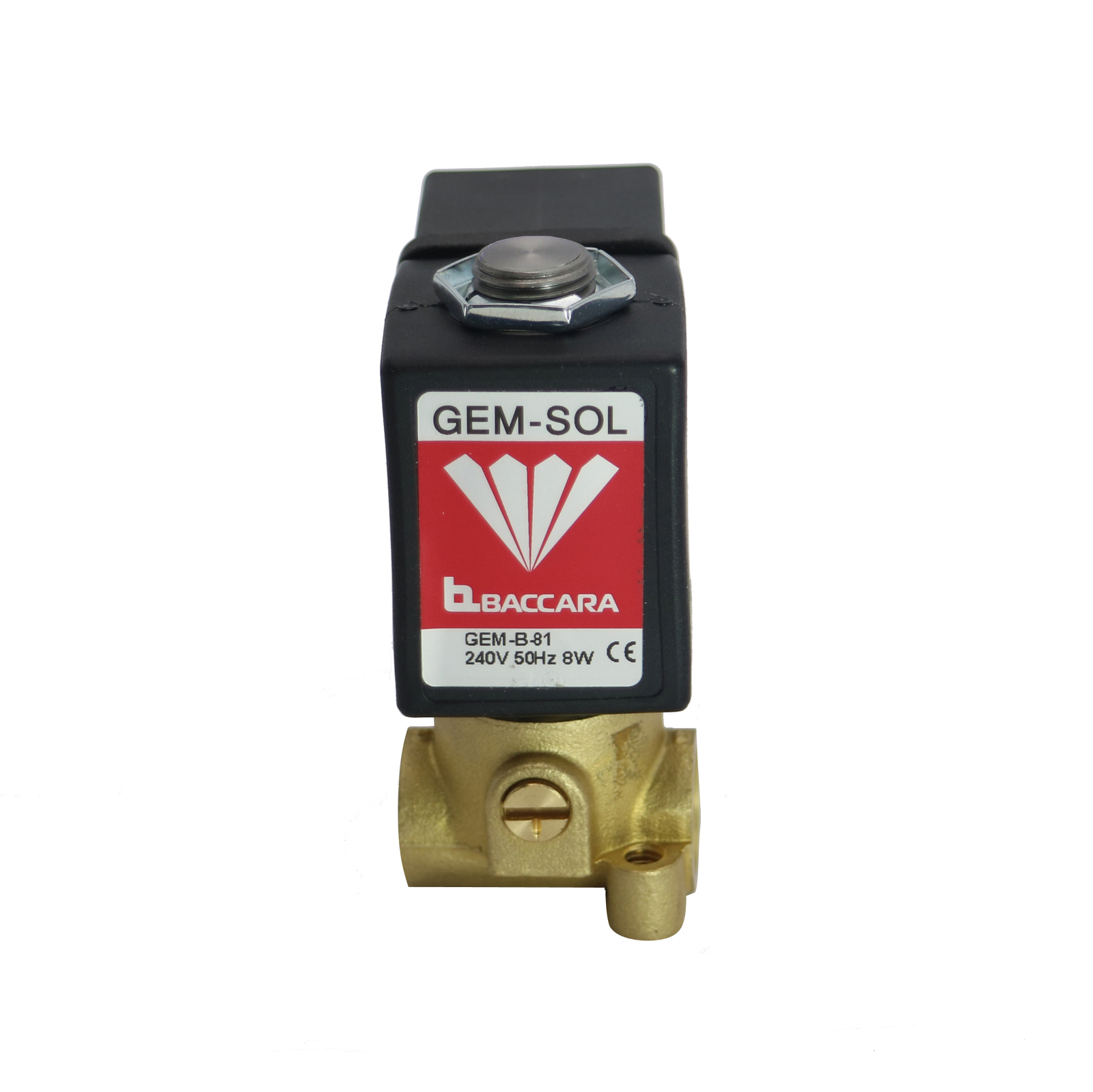

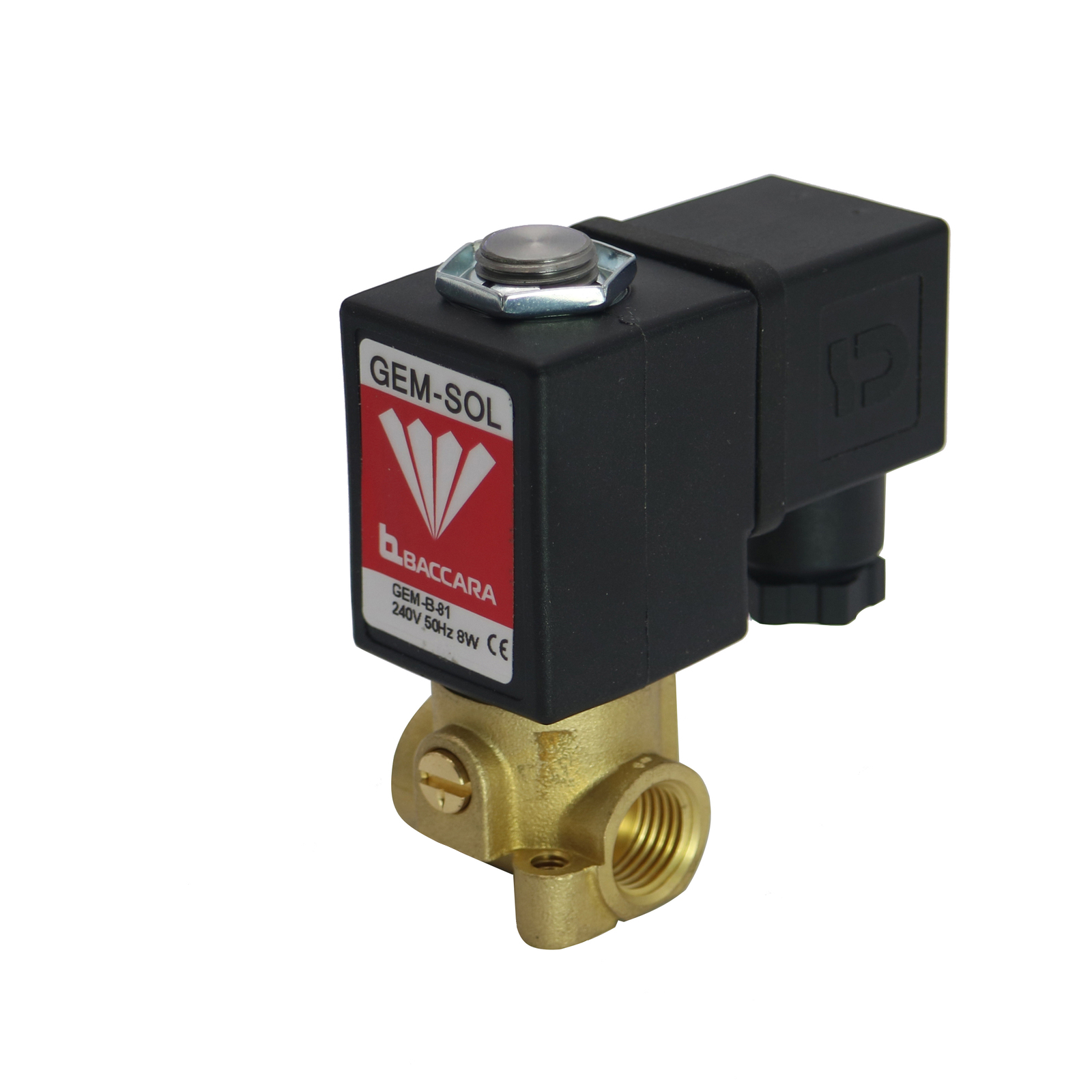

Size | 1/8" or 1/4" BSP |
Function | 2 Way NC, NO |
Valve Operation | Direct Operated |
Body Material | Brass |
Seal | NBR |
Pressure Range | • See technical info • Valves for pressure higher than 25 bar cannot be supplied with manual override |
Media | Air, water, oil |
(GEM-A-2W-BRS)

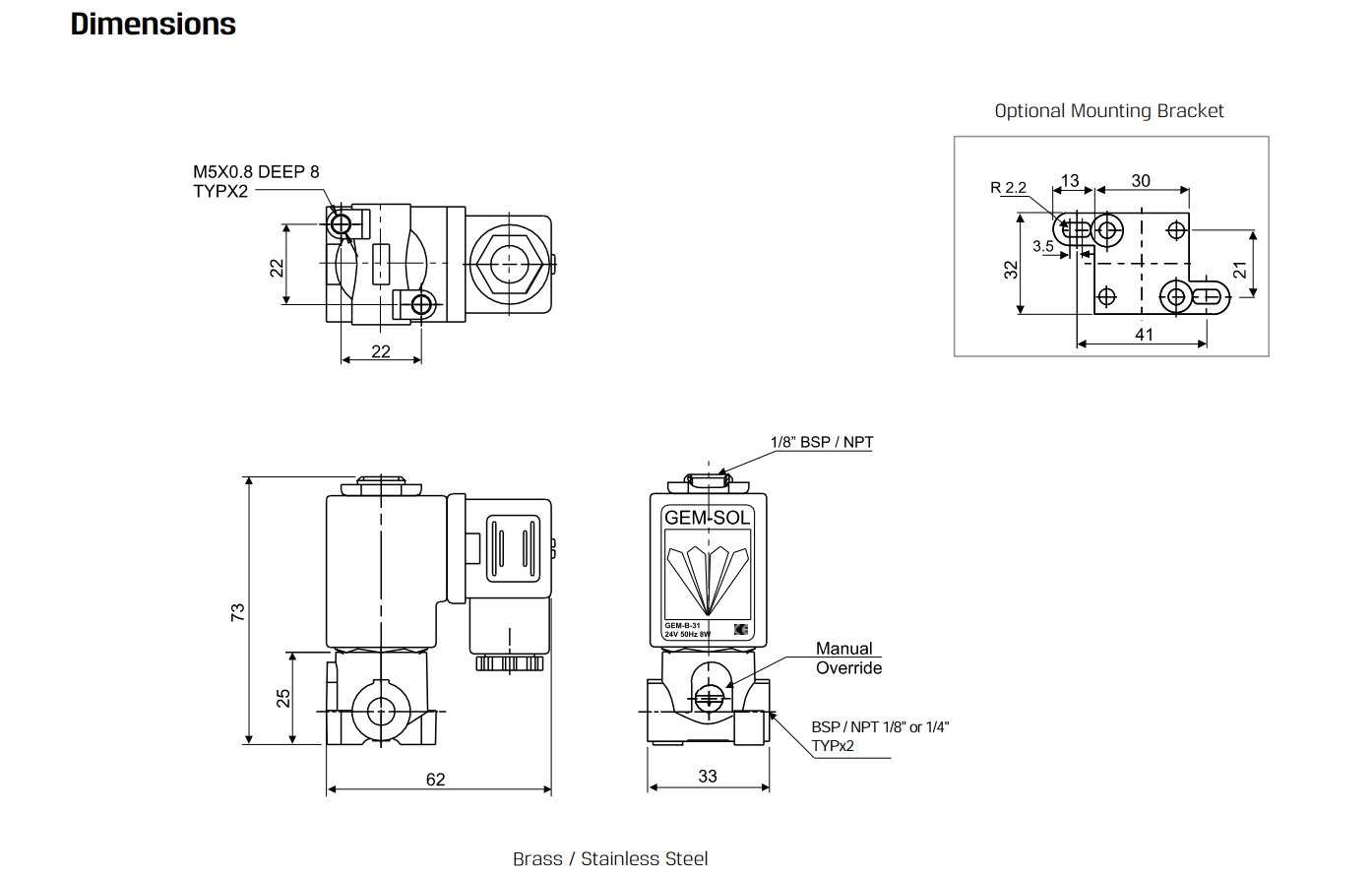

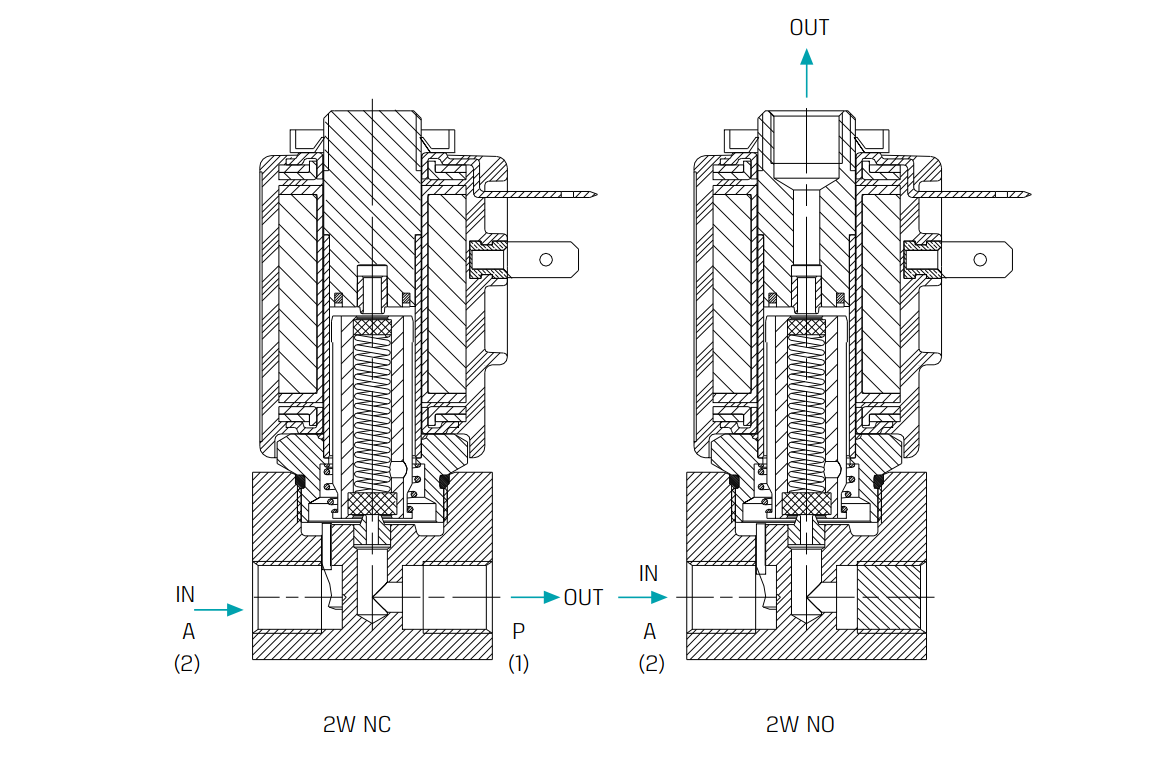

Technical Data
Function | 2 Way NC, NO |
Ports size | 1/8" and 1/4" BSP |
Orifice size | See table |
Pressure range | • See table • Valves for pressure higher than 25 bar cannot be supplied with manual override |
Kv (l/min) | See table |
Temperature range | Fluid : -10ºC to 80ºC (no freezing) Ambient : -10ºC to 50ºC |
Materials in contact with media |
Manual override: Plastic, Brass screw or Brass finger knob (1) Plastic manual override : Maximum pressure : 16 bar (2) Manual override is unavailable in 2W NO through base applications Main Valve: Brass Solenoid Operator: Stainless Steel AISI 300 & 400 series Seals: NBR |
Media | Air, water, oil |
Coil voltage | • Voltage and power consumption - see table • All Baccara coil voltages are ± 10% of nominal |
Standard protection class | IP65 with connector * Option : IP68 (please refer to GEM-BP Coil) |
• Latch valves are available upon request
Max. Pressure (bar) 2W NC table
Coil Current/Power |
Orifice (mm) | ||||||
08 | 1 2 | 1 6 | 2 0 | 2 4 | 30 | 40 | |
ADC * | 60 | 50 | 35 | 20 | 15 | 10 | 5 |
AC8W, DC/10W | 80 | 80 | 60 | 38 | 30 | 18 | 10 |
AC5 5W | 80 | 60 | 40 | 28 | 20 | 15 | 6 |
AC2 5W | 60 | 50 | 35 | 20 | 15 | 9 | 5 |
DC5 5W | 60 | 30 | 18 | 12 | 9 | 6 | 3 |
DC35W | 40 | 20 | 12 | 8 | 6 | 4 | 2 |
Flow factor Kv(l/min) | 05 | 1 1 | 1 7 | 2 5 | 35 | 45 | 5 |
Max. Pressure (bar) 2W NO table
Coil Current/Power |
Orifice (mm) | |||||
08 | 1 2 | 1 6 | 2 0 | 2 4 | 30 | |
ADC * | 25 | 25 | 25 | 20 | 15 | 10 |
Flow factor Kv(l/min) | 05 | 1 1 | 1 4 | 2 5 | 30 | 35 |
* ADC valves are only suitable for use with AC8W or DC10W coils
