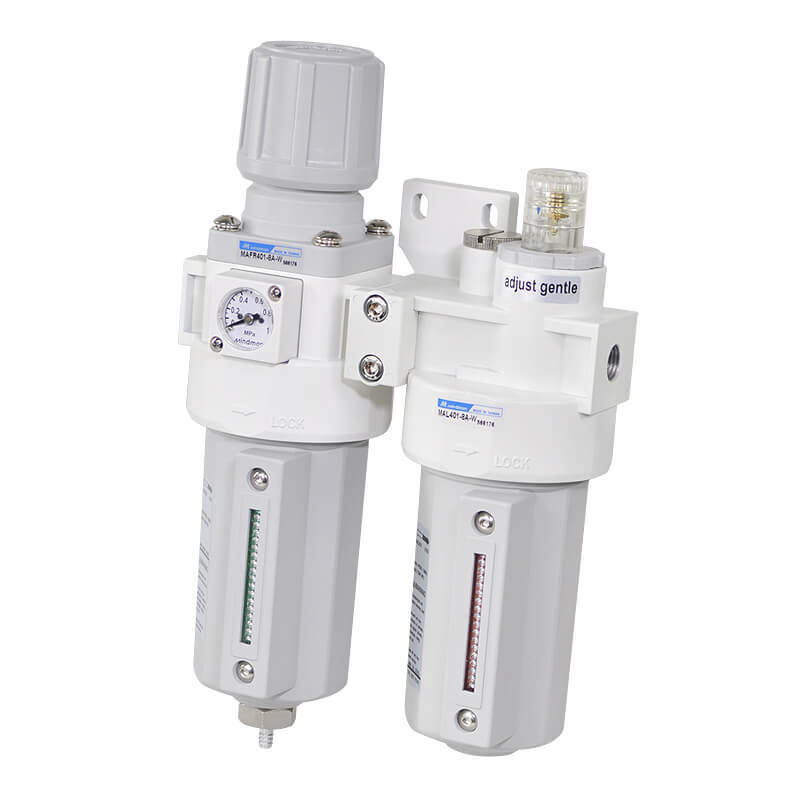

MACP | Filter Regulator & Lubricator Combination Unit with bracket and gauge

This pneumatic FRL (Filter Regulator Lubricator) unit is used to filter out contaminants larger than 5 μm, regulate the output pressure between 0.5 - 10 bar, and lubricate the air with oil. Includes a pressure gauge. The max flow rate is 1200 l/min (always use the flow chart for correct sizing). The semi-auto drain valve will open every time the compressed air is shut off. Suitable for a 10 bar max input and temperatures between -5 and 60 °C. The min flow for oil drip is 50 l/min. The oil capacity is 65 cm3. To adjust the output pressure, pull the hand wheel up and twist. Lock by pushing the wheel back in. Includes mounting bracket.

This filter regulator lubricator (FRL) combines three functions. The filter removes water, dirt and other harmful particles larger than 5 μm for your air system. The pressure regulator adjusts the pressure continuously to a stable level, even when the input pressure varies. The level can be adjusted between 0.5 - 10 bar. The lubricator introduces oil into the pneumatic air to reduce internal friction for pneumatic components. Only use a lubricator if downstream equipment requires lubrication. The recommended lubricating oil type is ISO-VG32 turbine oil. Verify the type and quantity of oil needed for your component. . Please note that the maximum flow rate alone doesn’t provide enough information to properly size your filter regulator lubricator. Use the flow curve to determine if the pressure drop (droop) within your expected flow rate range is acceptable. The flow curve shows the flow rate for a set input pressure with multiple output pressures. For each output pressure, it can be seen how the pressure changes with increasing flow rate. It is recommended to use the device in the flat range of the curve, and not on the beginning or the end of the curve. Note that the pressure regulator controls the output pressure, not the flow rate. The output pressure can be adjusted by pulling the hand wheel up and twisting. The output pressure can be locked after adjustment by pushing the hand wheel back in. The max input pressure is 10 bar and the temperature range is between -5 and 60 °C. The filter is rated for 5 microns, meaning it will not allow contaminants larger than this through. To empty, it has a semi-auto condensate drain with a drain capacity of 35 cm3. The lubricator requires a minimal flow rate of 50 l/min and can hold 65 cm3 of oil. The housing material is made out of aluminium and the filter and lubricator bowls are made of Polycarbonate (PC). It has a mounting bracket to mount it to a wall or your machine.

Pros:

Combines three functions (filtering, regulating, lubricating) in one, compact device
It has a semi-auto condensate drain to reduce maintenance cost
It has a mounting bracket to mount it to a wall or your machine

Cons:

It has a semi-auto condensate drain, which is suited for systems that are regularly depressurized.
In some other cases, automatic condensate drains might be preferred For some applications, it is not required to use all three functions (filtering, regulating, lubricating). Only select a lubricator when down-stream equipment requires lubrication

MACP302 series

Our range of high quality Mindman filters, regulators, and/or lubricators treat your pneumatic air to maintain proper air quality, reduce equipment down time, and reduce operating costs when installed correctly. The function can be derived from the series name. MAFR represent filter-regulators, MAF filters, MAR pressure regulators, MACP FRL units, and MAL lubricators. Higher numbers in the series (e.g. MAFR501) typically represent higher flow rates. They can be purchased individually, or as a combined it, such as an air filter regulator (FR) or an air filter regulator lubricator combo (FRL). Varying options of filter mesh sizes, operating pressure ranges, pressure adjustment ranges, flow rate, lockability, and drainage options are available. Mindman is a global leader in the pneumatics industry and manufacturers a wide range of high quality pneumatic products. They follow strict manufacturing standards (ISO 9001) and verify their end products with numerous testing and calibration steps to ensure they meet specifications. You can be assured of high quality, efficiency, life cycle and excellent cost to performance ratio for these air treatment units.

(MACP)

Components	MACP302 = MAFR302 + MAL302 & MACP401 = MAFR401 + MAL401
Bore No.	8A (MACP302), 15A (MACP401)
Port size	1/4 (MACP302), 1/2 (MACP401)
Medium	Air
Operating pressure range (※)	0.05~1 MPa (MACP302), 0.05~1.5 MPa (MACP401)
Proof pressure	1.5 MPa (MACP302), 2 MPa (MACP401)
Regulated pressure range	0.05~0.85 MPa (MACP302), Standard type: 0.1~0.85 MPa,High pressure type: 0.1~1.5 MPa (MACP401)
Ambient temperature	－5~＋60℃ (no freezing)
Filter element	Standard: 5μm Option: 40μm (MACP302), Standard:40μm Option:5μm (MACP401)
Lubricating oil capacity	65c.c (MACP302), 200c.c (MACP401)
Min. flow for oil drip	8A: 50 l/min、10A,15A: 60 l/min (MACP302), 30 l/min~80 l/min (MACP401)
Recommended lubricating oil	Turbine oil ISO-VG32 30 l/min~80 l/min (MACP401)
Attachment	Pressure gauge (PG-20), T-type bracket (MACP302), L-type bracket (MACP401)
Weight	845 g (MACP302), 1518 g (MACP401)
Remark	※1.Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2.Choose auto-drain FMRF300,the pressure range is 0.15~1 MPa.

MACP501

Components	MAFR501,MAL501
Bore No.	20A,25A
Port size	3/4, 1
Medium	Air
Operating pressure range (※)	0.05~1 MPa
Proof pressure	1.5 MPa
Regulated pressure range	0.05~0.85 MPa
Ambient temperature	－5~＋60℃ (No freezing)
Filter element	40 μm
Lubricating oil capacity	200c.c
Min. flow for oil drip	25 l/min, 33 l/min
Recommended lubricating oil	Turbine oil ISO-VG32
Attachment	Pressure gauge (PG-20), T type bracket
Weight	PC,Nylon bowl: 3480g / Metal bowl: 3720g
Remark	※1.Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2.Choose auto-drain FMRF300, the pressure range is 0.15 ~ 1 MPa.
