| Size | 1/8", 1/4" BSP |
| Function | 3 Way NC, NO |
| Valve Operation | Direct Operated |
| Body Material | Brass |
| Seal | EPDM |
| Pressure Range | See technical data |
| Media | Air, water, oil |

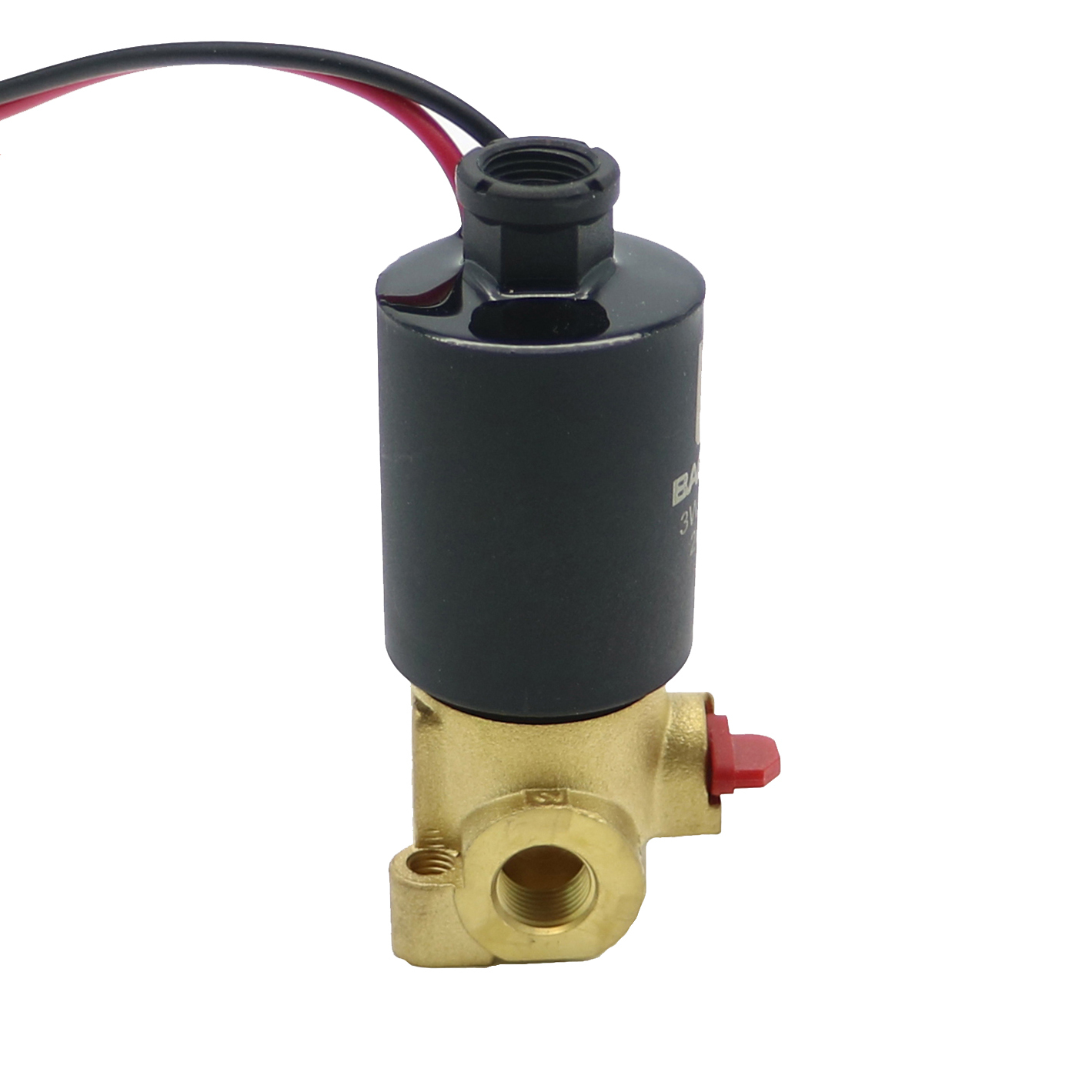

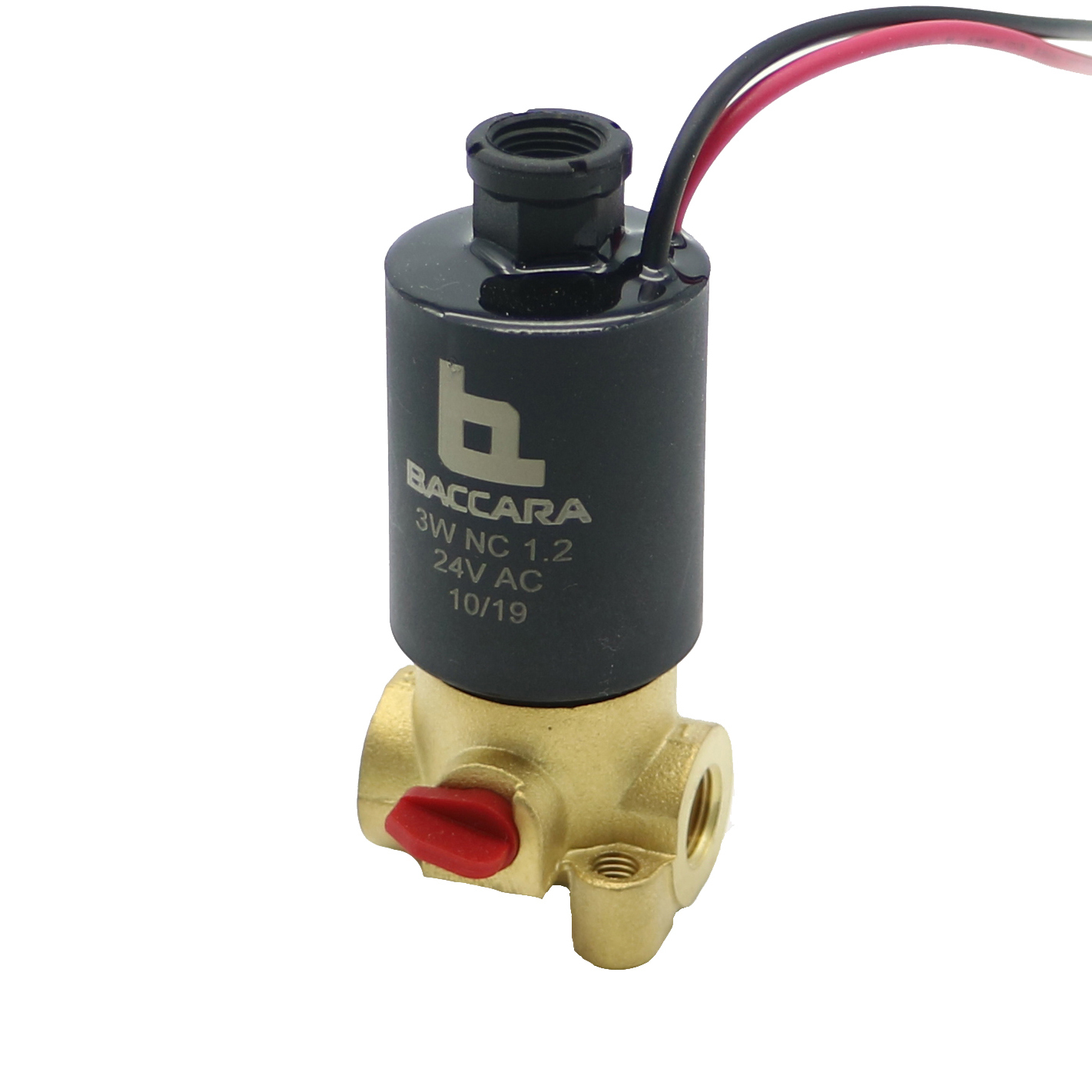

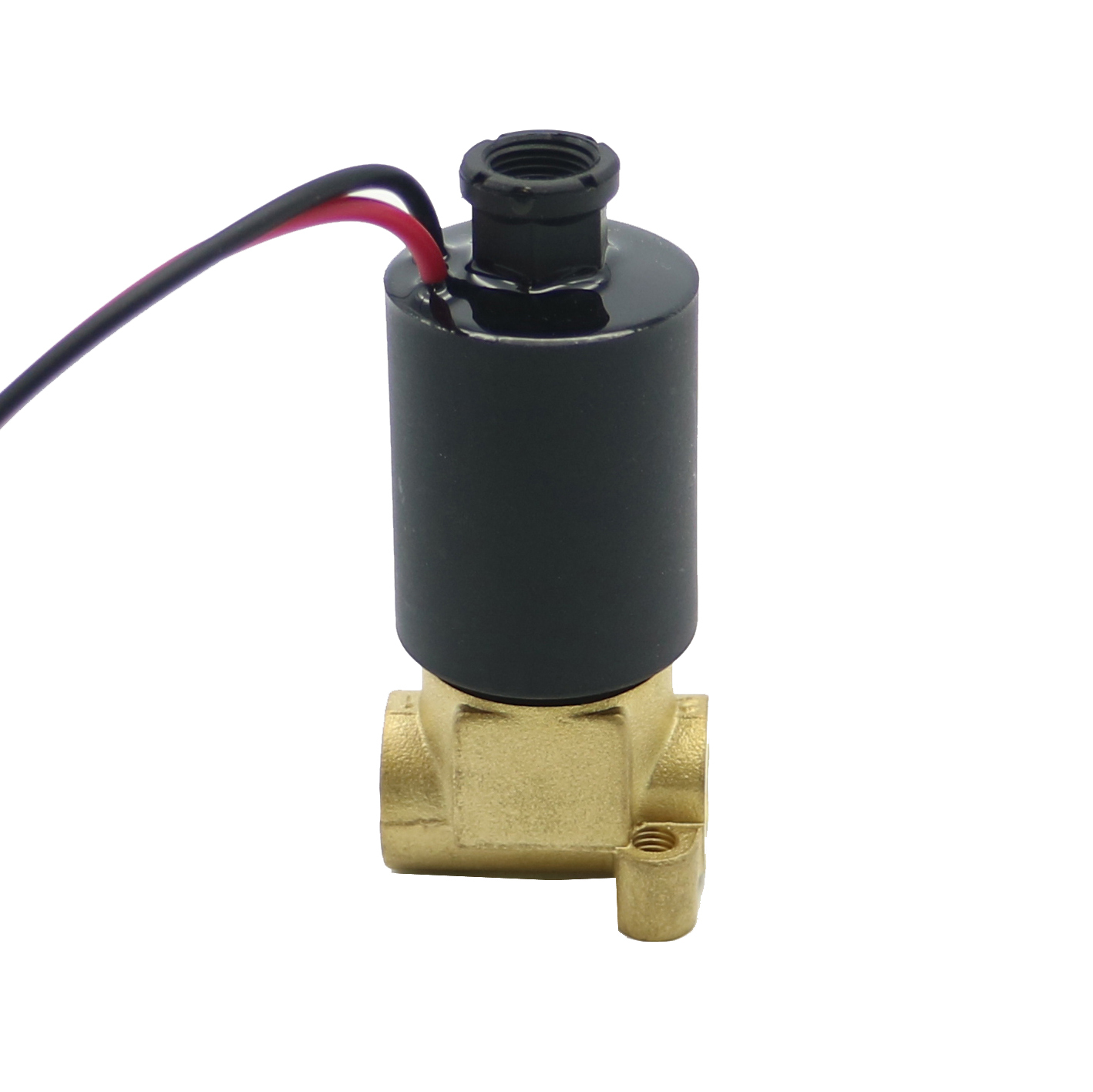

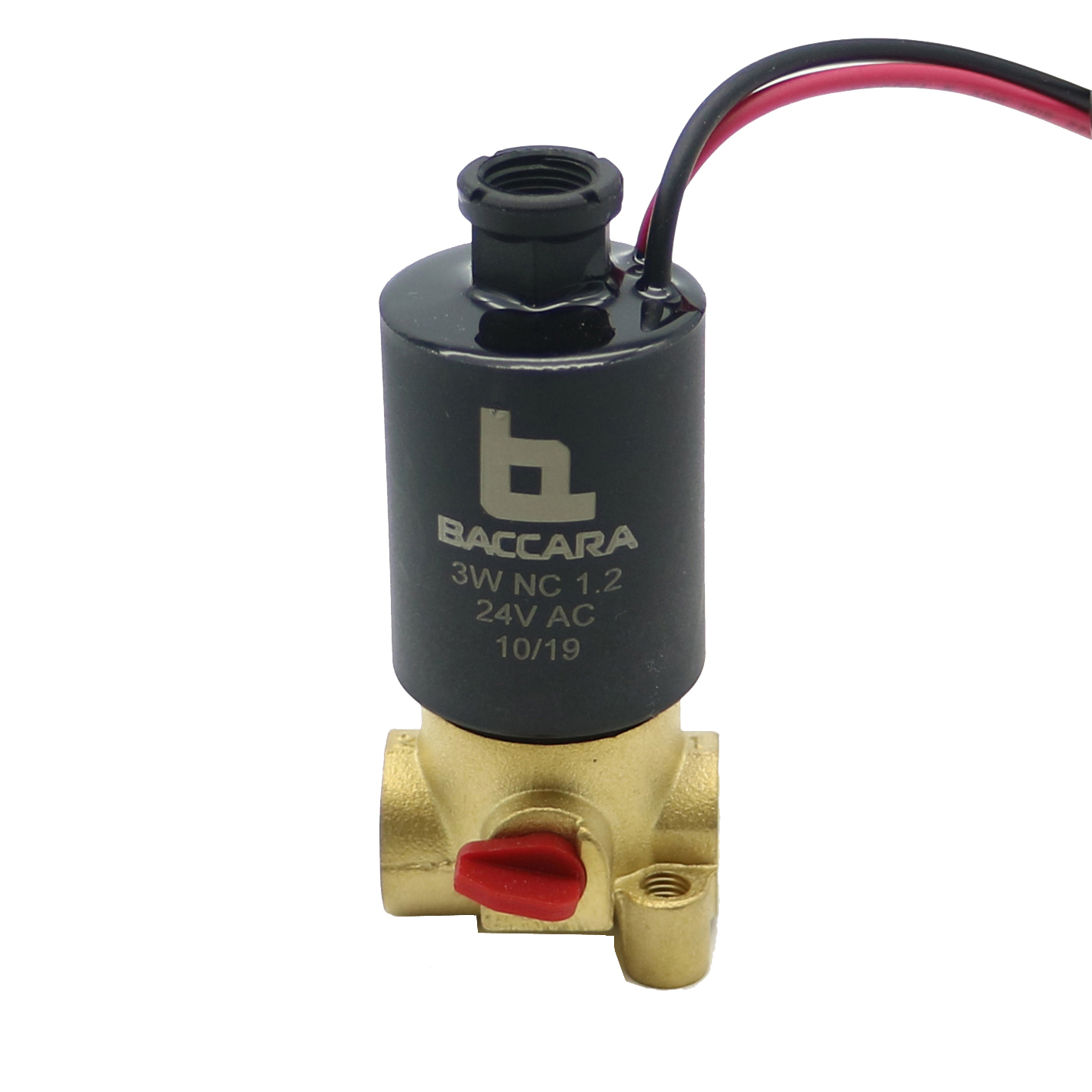

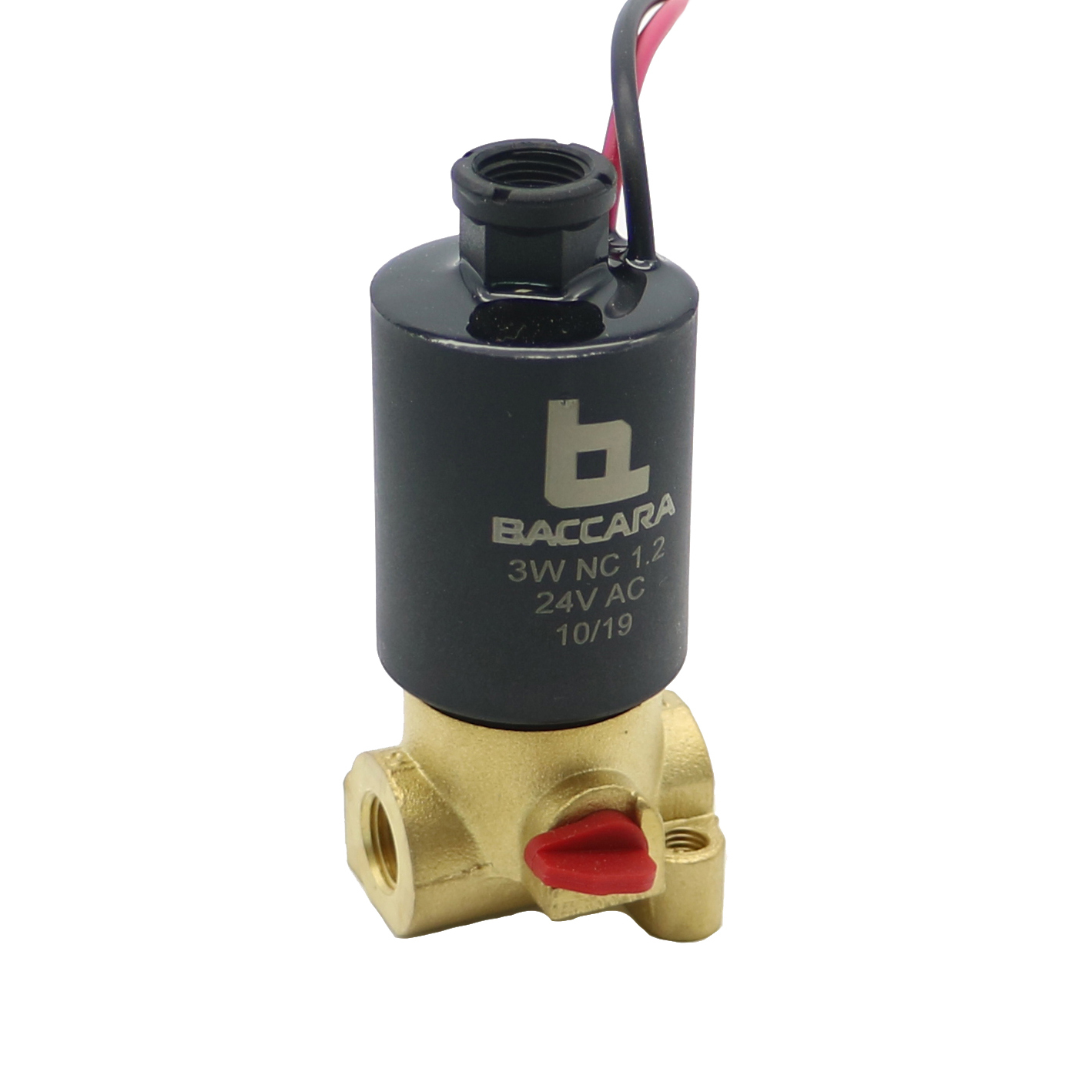

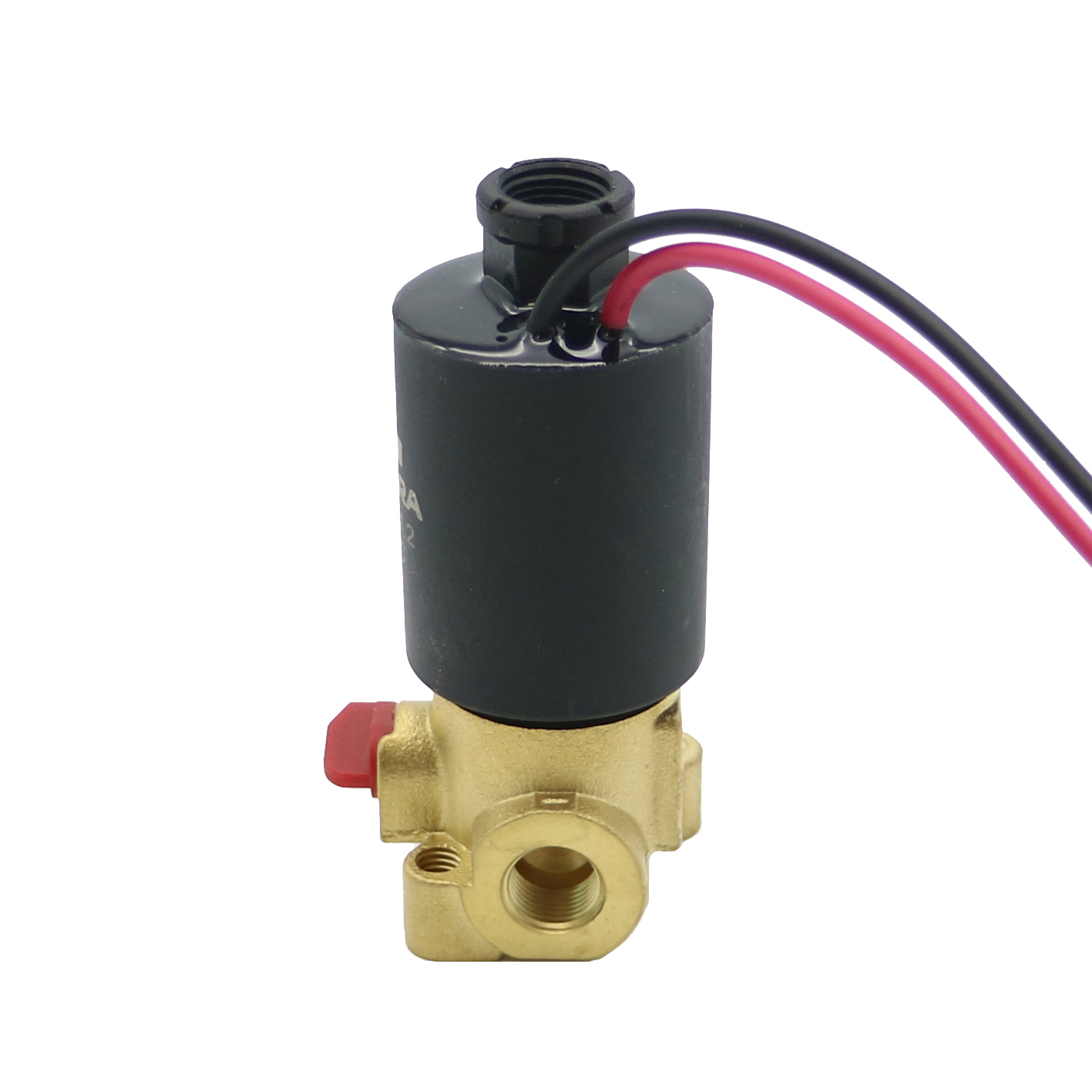

(G75-A-3W-BRASS)
Technical Data
| Function | 3 Way NC, NO |
| Ports size | 1/8" and 1/4" BSP & NPT |
| Orifice size | See table |
| Pressure range | See table |
| Temperature range | Fluid : 5ºC to 50ºC (no freezing) Ambient : -10ºC to 50ºC |
| Materials in contact with media | Manual override: Reinforced Nylon Main Valve: Brass Solenoid Operator: Stainless Steel AISI 300 & 400 series Seals: EPDM |
| Coil voltage | • Voltage and power consumption - see table • All Baccara coil voltages are ± 10% of nominal |
| Standard protection class | IP66 |
Max. Pressure (bar) universal function
| Function | Orifice (mm) | AC | DC | DC Latch |
| 3W NC | 1 | 16 | 12 | 16 |
| 1.2 | 11 | 9 | 11 | |
| 1.6 | 6 | 5 | 6 | |
| 3W NO | 1.0 | 16 | 16 | 16 |
| 1.2 | 12 | 12 | 12 | |
| 1.6 | 10 | 10 | 10 |
Voltage & Power Consumption
| AC (W) | DC (W) | |
| 50 Hz | ||
| V | 2 | 4.5 |
| 12 | • | • |
| 24 | • | • |
• Available options
Voltage & Current table
| Solenoid | Voltage | Inrush [A] | Holding [A] |
| 2W 50 Hz | +10% n-20% V | 0.3 | 0.19 |
| 2W 60 Hz | 0.2 | 0.14 | |
| 3W 50/60 Hz * | 0.125 | 0.125 | |
| DC | 4.5W | ||
* Except 24V AC without Diode
