STC | Pressure Transducer Sensing Element: Piezo R
- Ports size: 1/4″ BSPP
- Pressure: -1 to 1000 Bar ( -14.5 to 14,500 PSI )
- Body material: SS304
AU $426.25
|

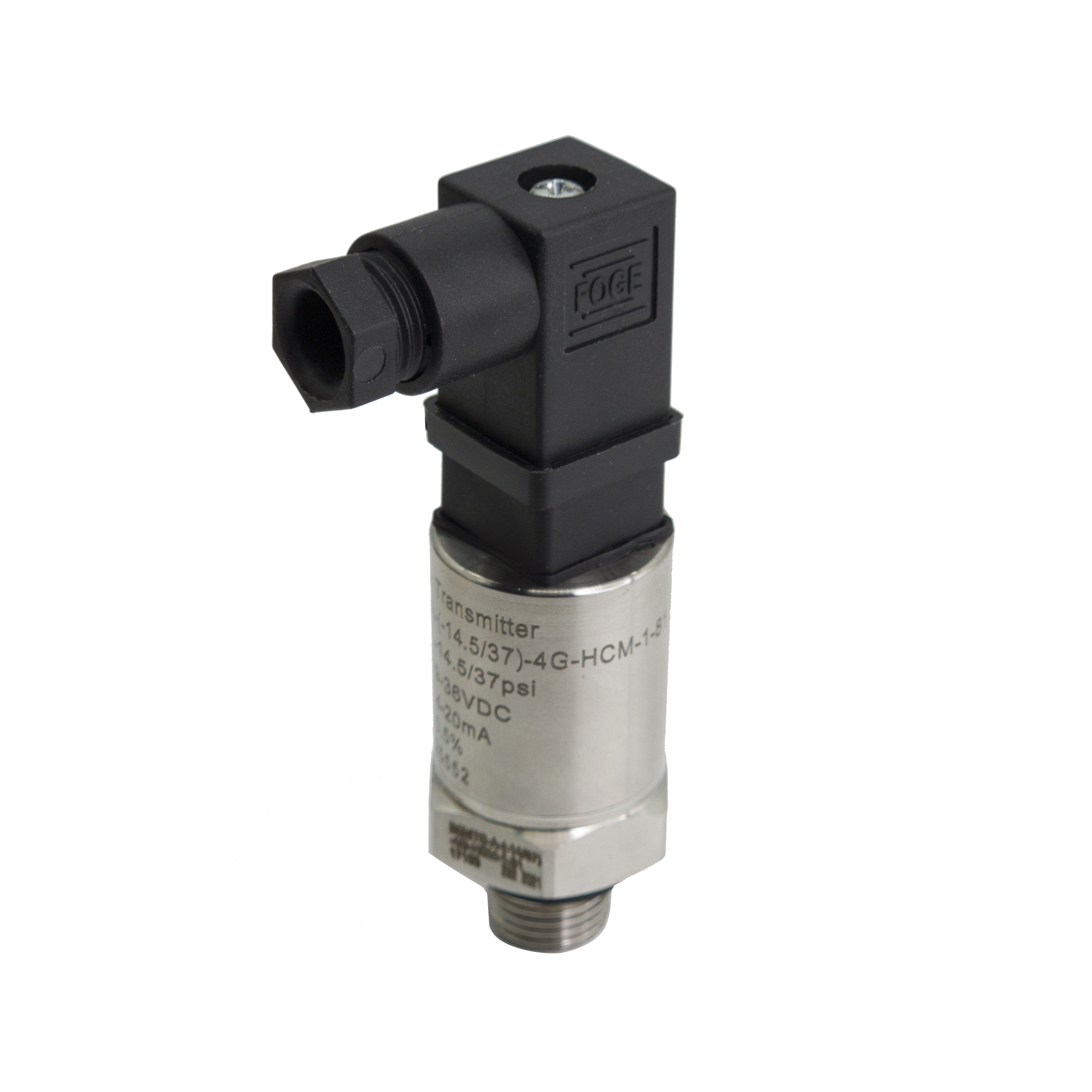

The PCM303 Universal Pressure Transmitter is an economical and highly reliable solution for a wide range of pressure measurement applications. It uses a high-performance diffused silicon pressure sensor as its core sensing element, converting pressure signals into a standardized current or voltage output. Its robust, all-stainless-steel construction ensures durability and performance even in corrosive environments.
Designed for easy integration, the PCM303 can be connected directly to control instruments, PLCs, or computer interface cards, making it an ideal choice for automated control and monitoring systems.
Durable Stainless Steel Construction: Features an all SS316L diaphragm and sealed structure, offering excellent corrosion resistance and a long service life.
High Accuracy & Stability: Delivers a measurement accuracy of 0.5%FS with excellent repeatability (0.1%FS) and low hysteresis (0.1%FS). Strong anti-interference capabilities ensure reliable long-term performance.
Compact and Lightweight Design: Its small size makes it perfect for installation in tight spaces without adding significant weight to your assembly.
Vibration and Shock Resistant: Engineered to withstand high levels of vibration (20g) and shock (200g), ensuring dependable operation in demanding industrial environments.
Zero and Full Span Adjustable: Allows for on-site calibration and fine-tuning to match specific application requirements.
Versatile and Easy to Install: Comes with a wide variety of process connections and electrical outputs to suit diverse installation requirements.
Wide Pressure Measurement Range: Capable of measuring absolute, gauge, and sealed gauge pressure from -100kPa up to 100MPa.
The PCM303's versatility and robust design make it the perfect choice for numerous industries and applications, including:
Industrial Process Control: Monitoring and controlling pressure in manufacturing lines and automated systems.
HVAC Systems: Ensuring optimal performance and safety in heating, ventilation, and air conditioning units.
Pipeline and Hydraulic Systems: Accurately measuring fluid and gas pressure in pipelines and hydraulic equipment.
Automotive and Medical Equipment: Providing precise pressure sensing for specialized automotive and medical devices.
Aerospace: Used in various non-critical aerospace applications requiring reliable pressure monitoring.
(BAC303)
Parameter |
Value |
---|---|
Pressure Range |
-100kPa...0~35kPa...100MPa |
Pressure Reference |
Gauge, Absolute, Sealed Gauge |
Accuracy |
0.5%FS |
Overpressure |
150%FS to 300%FS (see range table) |
Burst Pressure |
300%FS to 600%FS (see range table) |
Response Time |
≤1ms (Up to 90%FS) |
Service Life |
≥1 x 10⁶ pressure cycles |
Ambient Temperature |
-20°C ~ 85°C |
Medium Temperature |
-30°C ~ 105°C |
Protection Grade |
IP65 |
Ex-proof Grade |
Exia II CT6 (for 4~20mA output only) |
Net Weight |
150g ~ 180g |
Output Signal |
Code |
Power Supply |
---|---|---|
4~20mA |
B1 |
12-30VDC |
0~5V |
B3 |
12-30VDC |
1~5V |
B2 |
12-30VDC |
0~10V |
B7 |
12-30VDC |
1~10V |
B12 |
12-30VDC |
0.5~4.5V R/M |
B6 |
5VDC |
For detailed ordering information, specific pressure range selection, or to discuss your application needs, please contact our technical sales team today.
