Connector | DIN 43650 |
Electrical connection | AMP pins, DIN 46242, 2 poles + 1 earth |
Body Material | Plastic |
Coil winding insulation | H 180°C |
Assembly | In any position |
Fixing | One nut G1/4″ hexagonal 19mm |

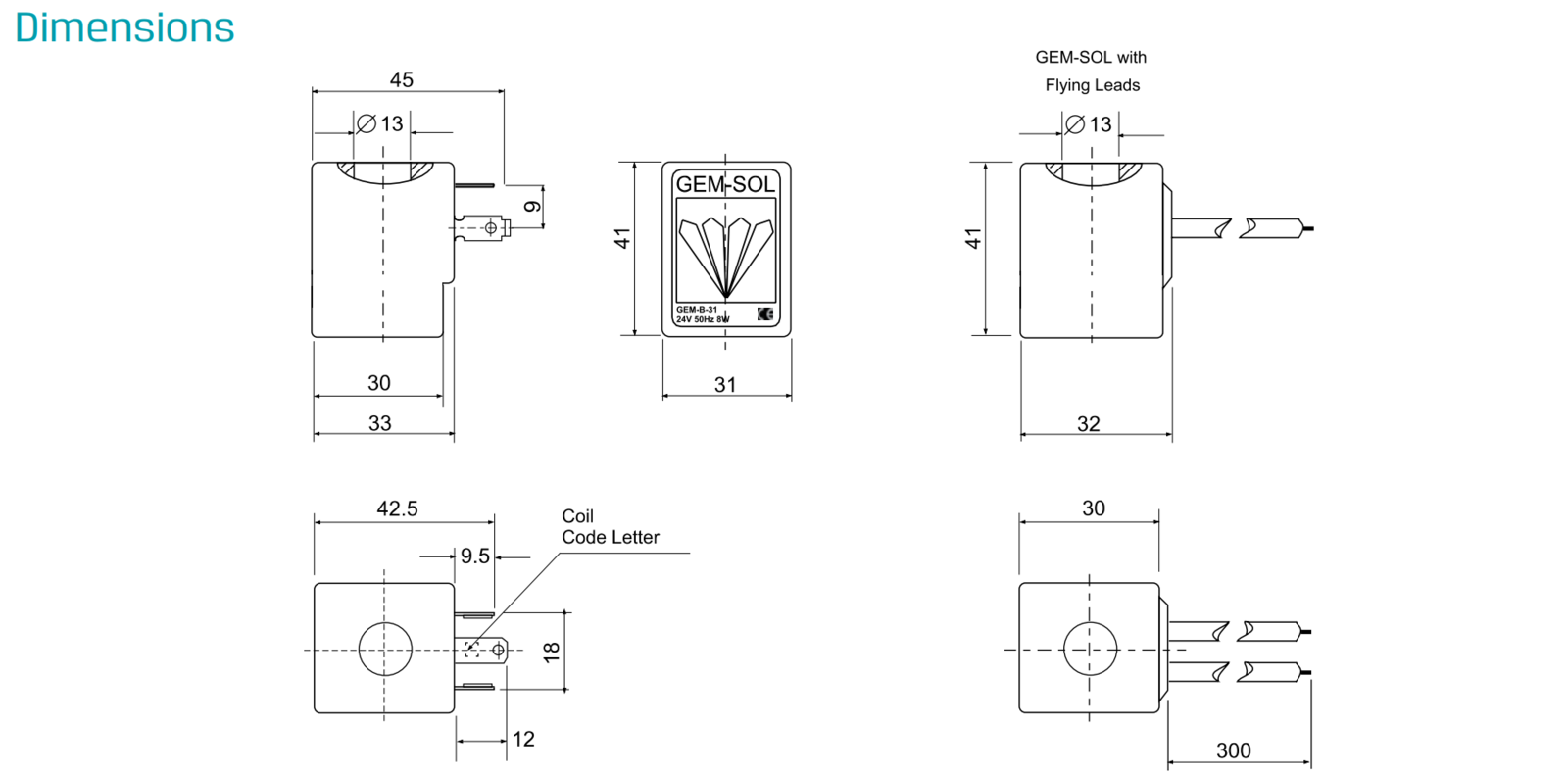

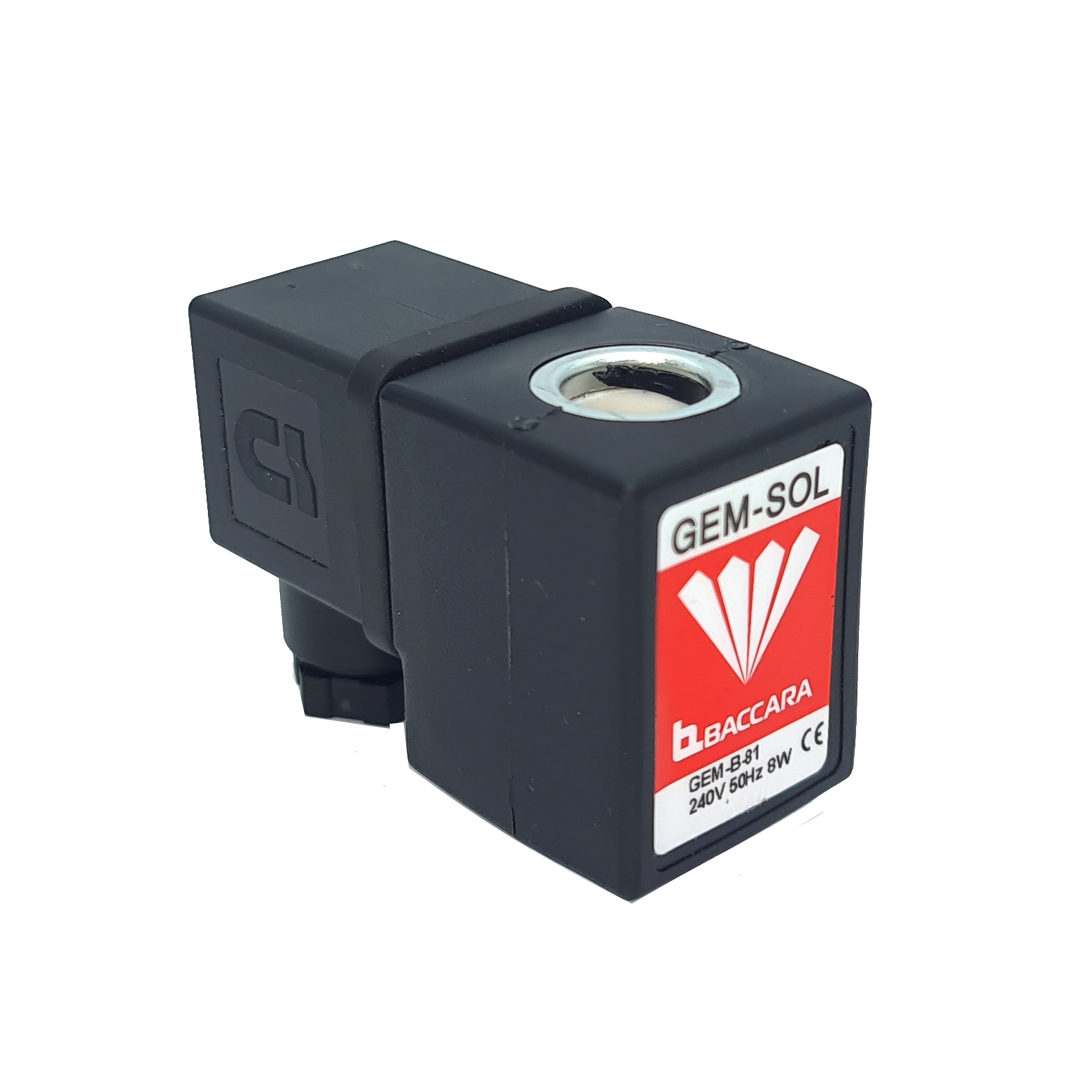

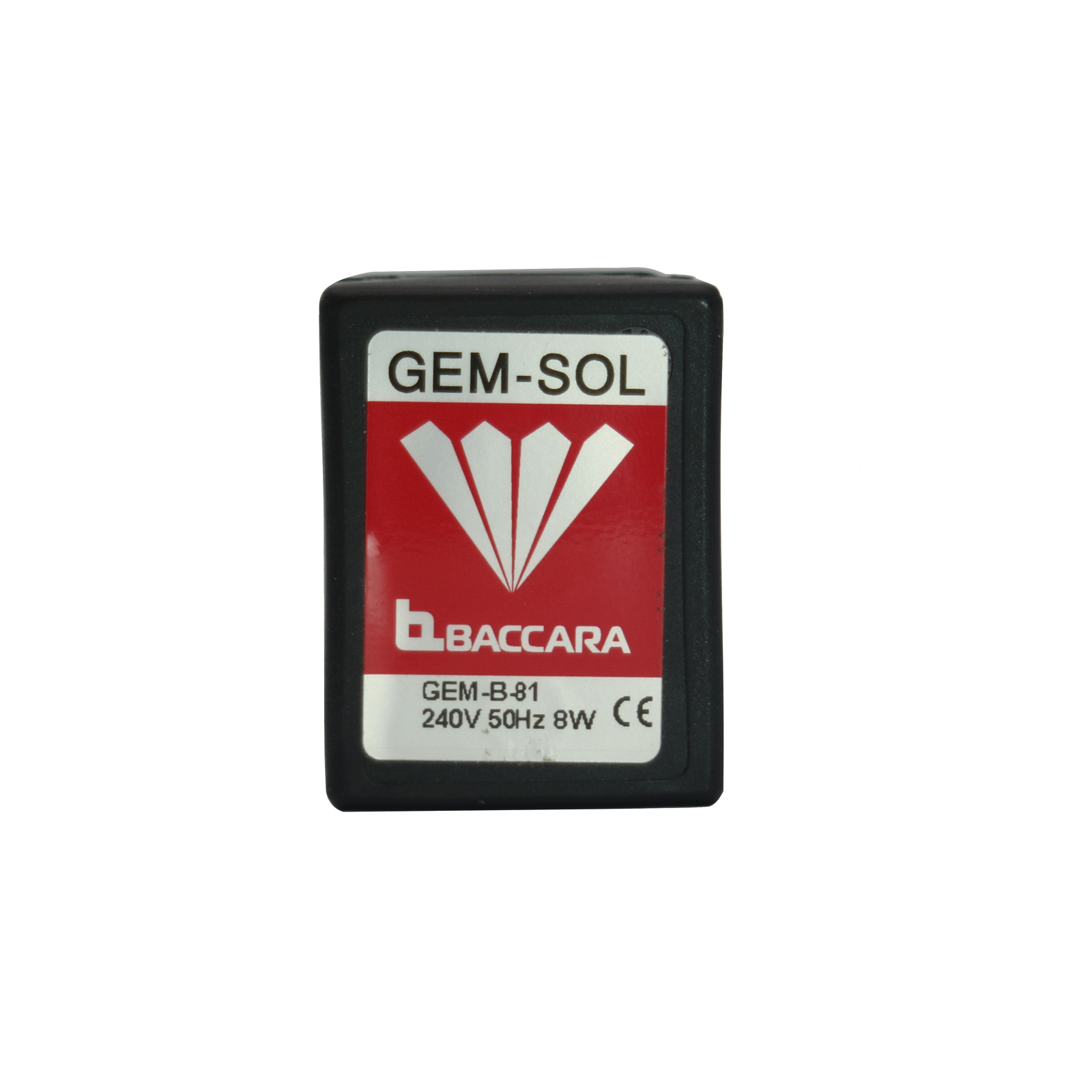

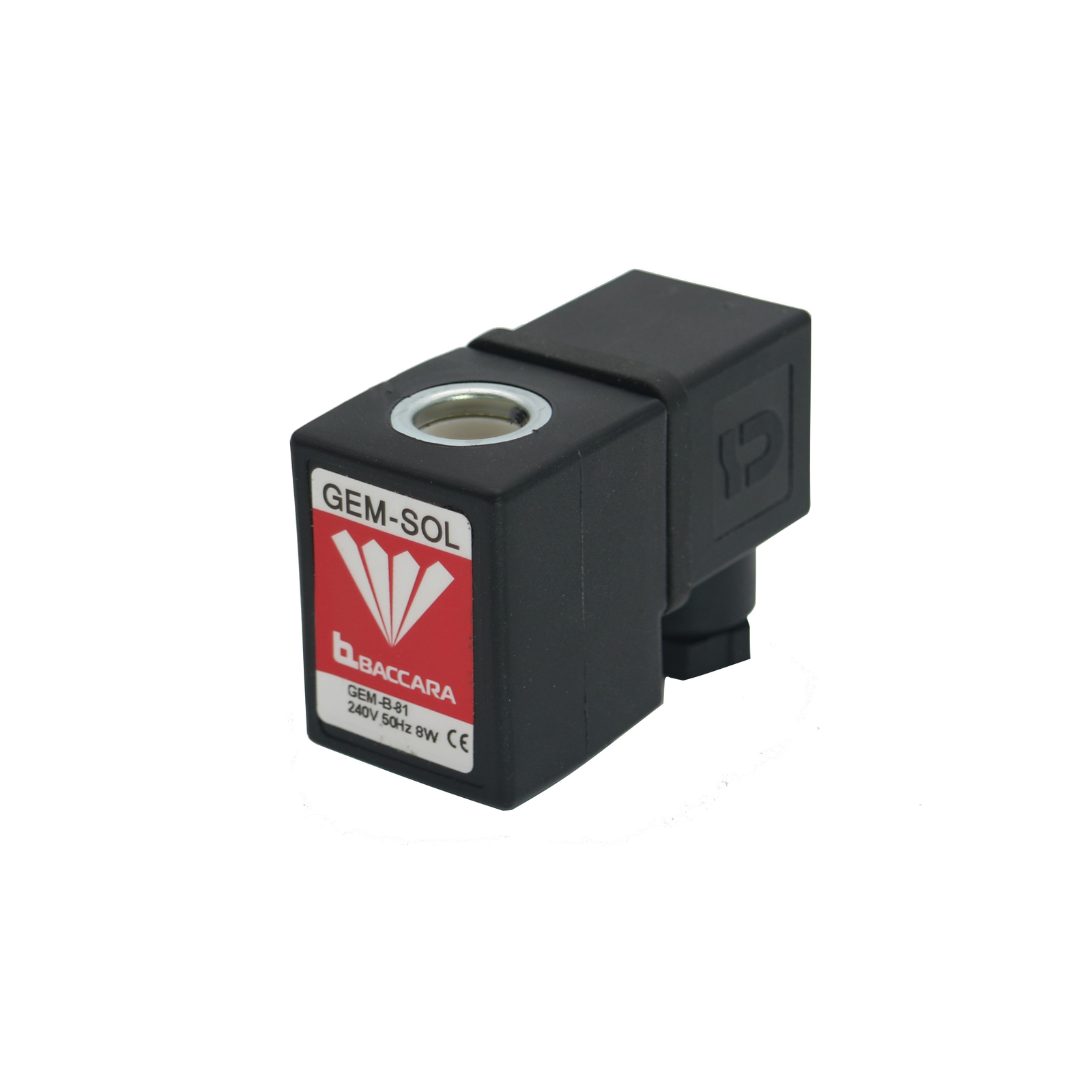

(GEM-S-COIL)
Technical Data
Coil winding insulation | H 180ºC |
Temperature range | Coil : -20ºC to 150ºC | Ambient : -20ºC to 70ºC |
Duty cycle * | 100% ED |
Electrical connection | • AMP pins, DIN 46242, 2 poles + 1 earth • 2 flying leads, 18 AWG (075mm2), 300 mm length |
Connector | • DIN 43650 • PG9 or 1/2" NPT * Max. tightening torque for the connector screw : 0.5 Nm |
Assembly | In any position |
Coil fixing | One nut G1/4" hexagonal 19mm |
Impregnation | Optional |
Coil voltage | • Voltage and power consumption - see table • All Baccara coil voltages are ±10% of nominal |
Standard / Certification | CE |
Standard protection class | IP65 with connector * Option : IP68 (please refer to GEM-BP Coil) |
• The coil should not be energized without being assembled on the operator
* Please consult with our technical sales department :
Power Consumption table (AC)
Type | Inrush | Holding |
8W | 26VA-13W | 16VA-8W |
5 5W | 16VA-8W | 12VA |
2 5W | 2 5W | 2 5W |
Power Consumption table (DC)
Type |
10W |
5 5W |
2 5W |
