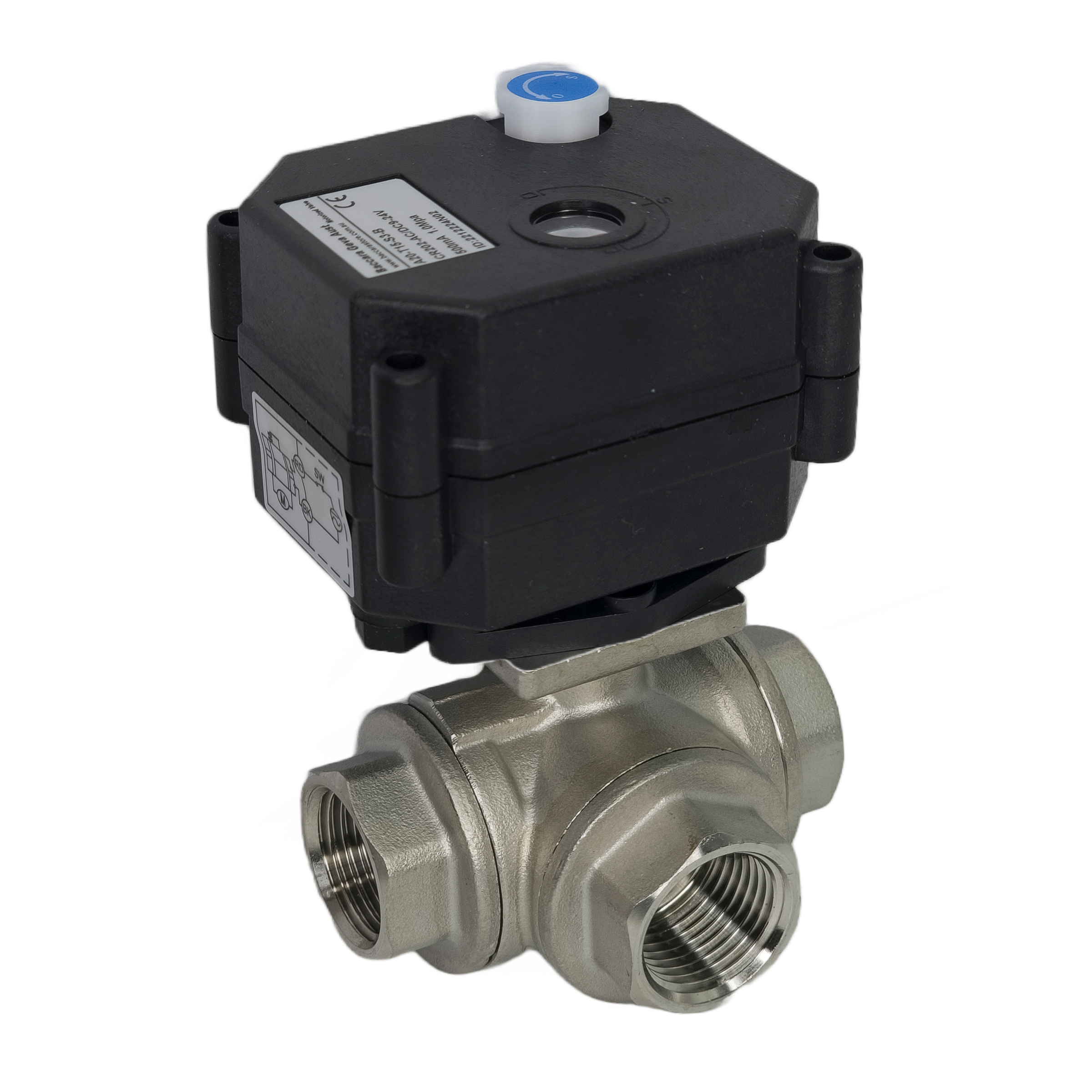

The 3 Way T-port and L-port type 304 stainless steel ball valve auto return electric actuator and manual override with visual indicator is a high-performance valve that can switch or divert the flow of fluids and air in various applications. The valve has a 304 stainless steel body and ball, with reinforced PTFE seats and seals for durability and corrosion resistance. The valve can operate in temperatures up to 90°C and pressures up to 10 bar. This unit has IP67 protection and is available in two port configurations: T-port and L-port . The T-port valve can be used as a mixing or diverting valve, while the L-port valve can be used as a switching or selecting valve. The valve is available in four sizes: 1/4"BSP, 1/2"BSP, 3/4"BSP, and 1"BSP. The voltage options are: (9-24V AC / DC) or (24V AC and 12-24V DC). The 3 way t-port and l-port type stainless steel 304 auto return electric actuated ball valve with manual override and visual indicator is a versatile and reliable valve that can meet your flow control needs.
Application
Design Features
| Size | 1/2″ – 2″ BSP |
| Function | 2 Way NC/NO |
| Valve Operation | Power to open and Power to close |
| Body Material | UPVC |
| Seal | FKM & PTFE |
| Pressure Range | 10 bar |
| Valve Type | Auto return valve |
| Manual Override | Yes |
| Feedback | Yes |
| Open/close indicator | Yes |
| Cable lenght | 0.5m |
| Media | Air & Fluid |
(SS304-3W-Ball-Valve)
Technical Data
|
Product size |
1/2”, 3/4" ,1”, 11/4", 11/2", 2" BSP |
Valve Body Material |
UPVC |
|
Maximum working pressure |
1.0 MPa (10 bar) |
Actuator Material |
Polyphenylene Oxide |
|
Open/close time |
≤2 sec / 90° |
Sealing Material |
EPDM, FKM & PTFE |
|
Working voltage |
DC12V, DC24V |
Manual Override |
Yes |
|
Wiring control methods |
CR201, CR501, CR303 |
Visual Indicator |
Yes |
|
Working current |
≤2A (DC12V), ≤1A (DC24V) |
Feedback |
Yes (only with CR501) |
|
Locked Rotor Current |
5A (DC12V), 3.5A (DC24V) |
IP Rating |
IP68 |
|
Max. torque force |
15 N.m |
Environment temperature |
-15℃~90℃ |
|
Lifetime |
50,000 times at least |
Liquid temperature |
2℃~90℃ |
|
Cable Length |
0.5m |
Actuator rotation |
90° |
|
Cable Specification |
UL 2464 22awg |
Circulation medium |
Fluid, air |

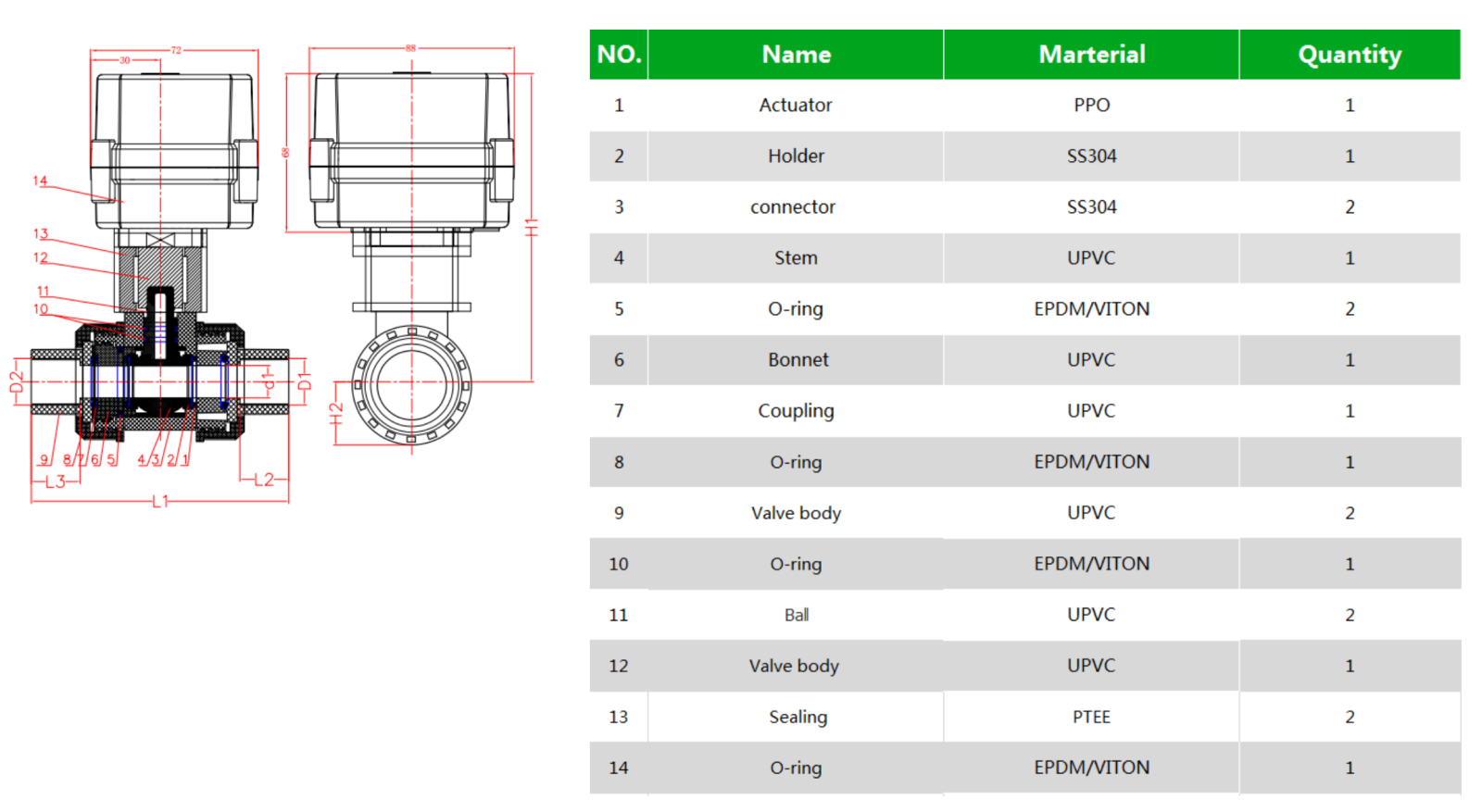

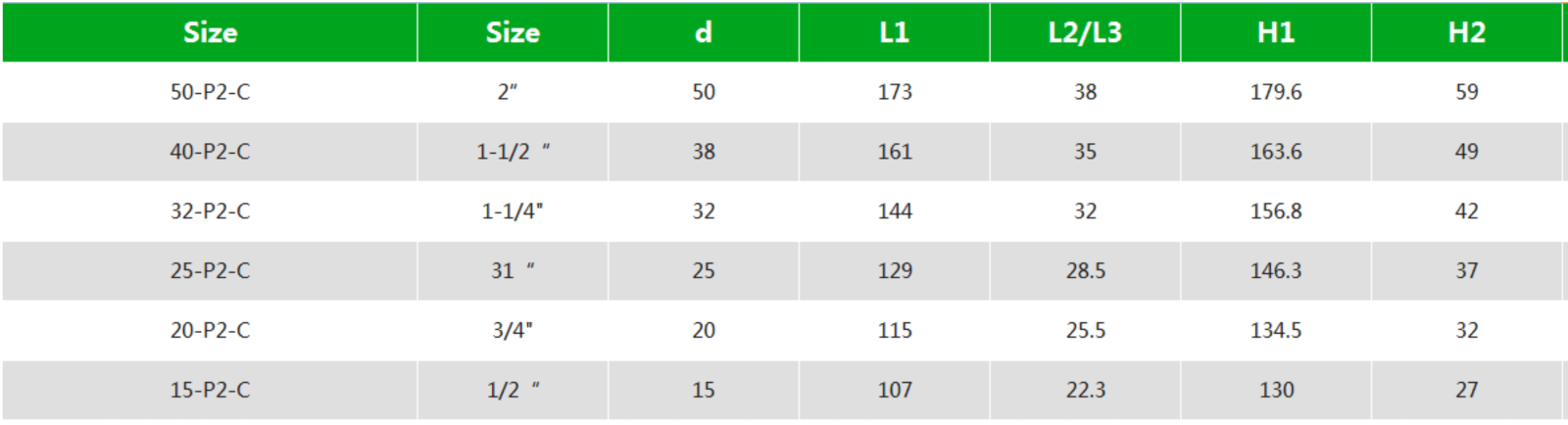

Construction Diagrams

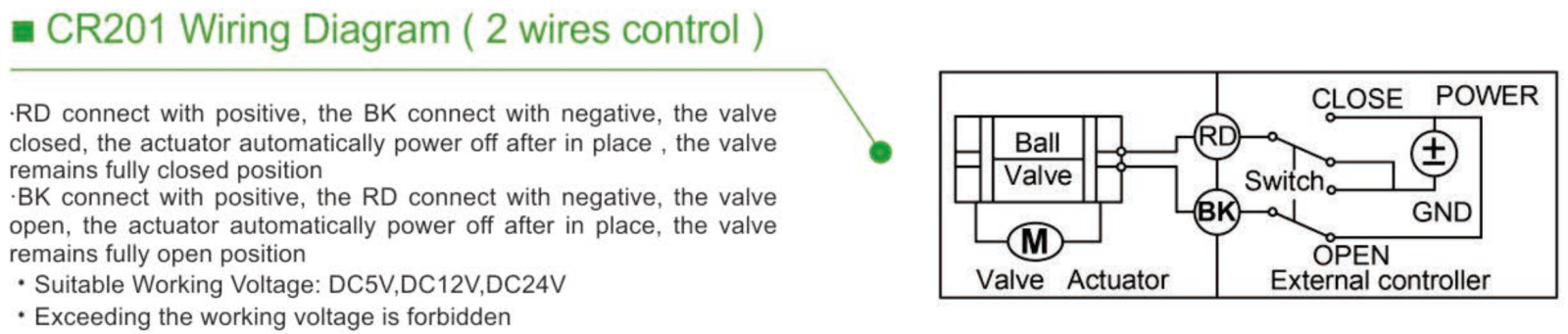

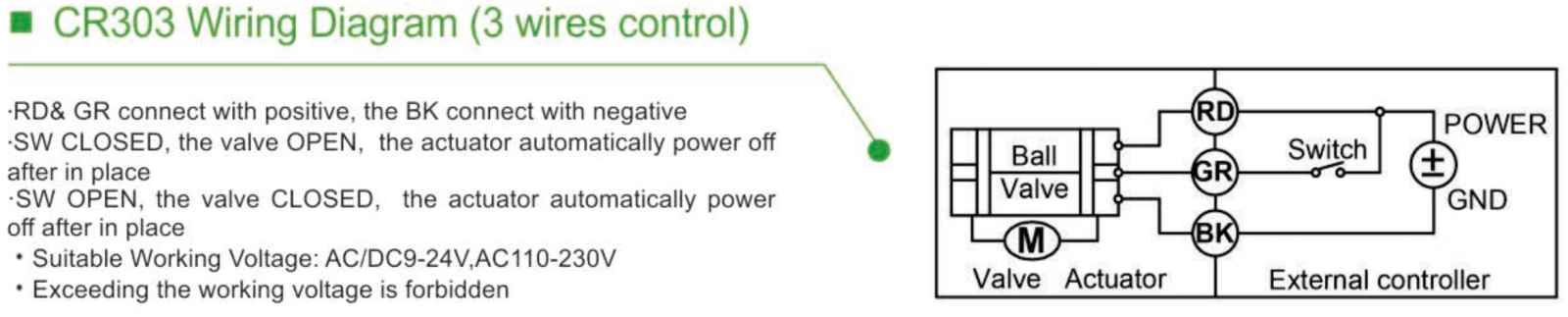

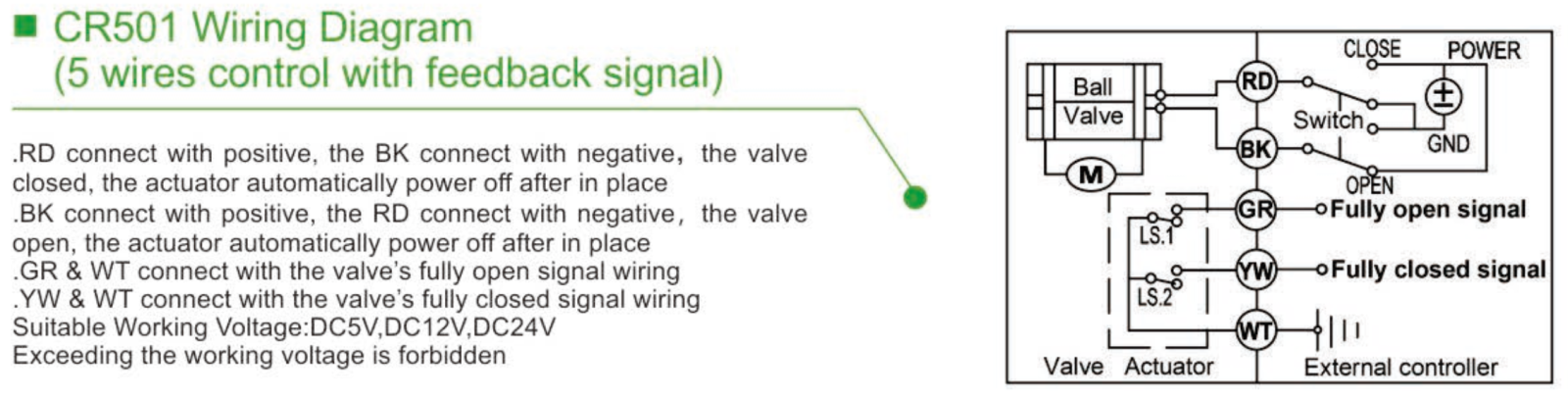

Wiring Diagrams
