This range of single pole double throw type pressure switches is available with adjustment options spanning 0.1 to 300 bar and comes in a format that is familiar to customers but has many different options for those with specific requirements including body materials, electrical contacts and thread types. Standard models are supplied complete with DIN 43650A electrical connector.
Designed by and manufactured exclusively for Applications Engineering, the APA pressure switch range offers exceptional value for money matched with a proven quality
Size | 1/8″ – 1/4″ BSP |
Function | NC, NO, SPDT |
Switch Type | Snap Action |
Body Material | 316 Stainless Steel |
Seal | NBR, EPDM, FKM |
Maximum Overpressure | 24 bar |
Please note: APA series the gold contacts are rated at 0.02A for use in up to a 60VDC system.

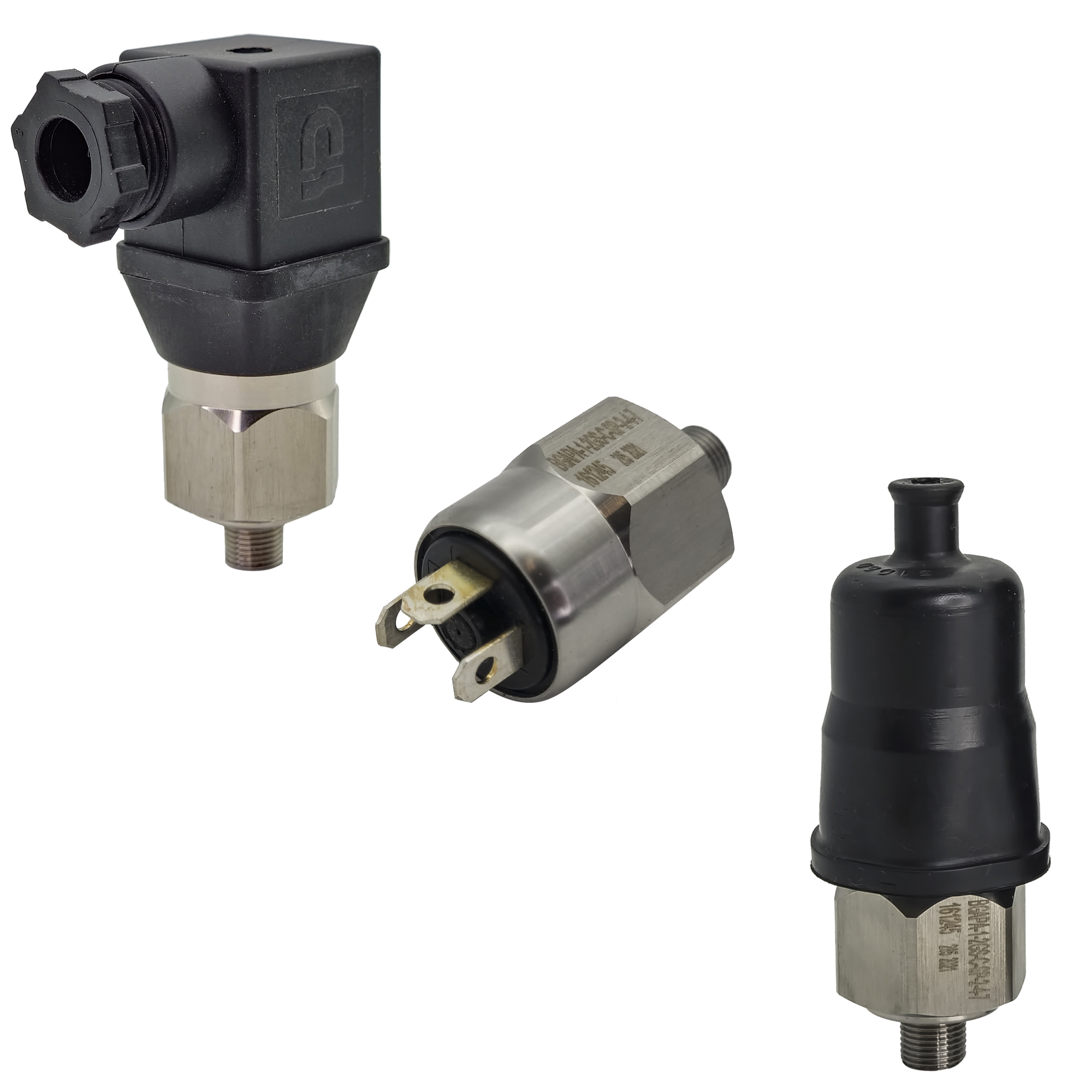

(APA-SST)
Technical Data
Function | NC, NO, SPDT |
Ports size | 1/8", 1/4" BSP |
Switch Type | Snap Action |
Maximum Overpressure | 24bar (350PSI) |
Temperature range | Buna – N: -15° to +230°F (-26° to 110°C) EPDM: -10° to +250°F (-23° to 121°C) KAPTON®: -40° to +230°F (-40° to 110°C) VITON®: 0° to +302°F (-18° to 150°C) ® Registered Trademark of DuPont |
Materials in contact with media |
Diaphragm: Buna-N (standard) (optional EPDM, KAPTON®, VITON® ) Housing: 316 Stainless Steel |
Electrical | Standard: 5A, 125V/250VAC - U.L. Recognized* 5A, 12/24VDC - U.L. Recognized* Option -7: 0.02A, 60VDC - U.L. Recognized* Gold contacts may be required for less than 12 VDC and 20 milliamps |
Manufaturer's Other Rating | 5A @ 40V DC |
Protection | Exposed Terminals – IP00 DIN HC - IP65 Flying Leads, M12, Deutsch Integral - IP6 |
Reliability | ±2% of full set point range at 70°F (21°C) Ambient Temperature |
Mechanical Life | 1,000,000 cycle |
Weight | 70grams (0.15 LBS) |
