PMN | Stainless Steel Adjustable Diaphragm Pressur
- Port Size(inch): 1/8", 1/4"
- Electric contact: SPST
- Environment temperature: -40°C to +120°C
- Body Material: Stainless Steel 316
AU $98.08
Technical Data
| Switch rating | 6(2)A / 250Vac |
| Electrical connection | DIN 43650 PG09 (standard)/PG11 |
| Adjusting range | 0.2…2 bar; 1…10 bar; 10…50 bar; 10…100 bar; 30…150 bar; 50…300 bar |
| Max static pressure | 300 bar, 600 bar (according to the possible pressure range and the body material) |
| Hysteresis | Adjustable 10% to 30% set-point |
| Operating temperature | – 25C …+140C (according to diaphragm/piston seal material) |
| Contact (without pressure) | SPDT |
| Body material | Brass – Zinc plated steel – S.S. 316 on request for all models |
| Diaphragm/Piston seal | NBR – HNBR – FKM – Silicone – EPDM – Neoprene – Stainless Steel (only for PMS2 and PMS10) |
| Threads | Taper: G1/8 BSPT – G1/4BSPT – M10x1 Parallel: M12x1.5 – G1/4 BSPP – G1/8 BSPP |
| Protection | IP65 |
| Mechanical life | 106 operations |

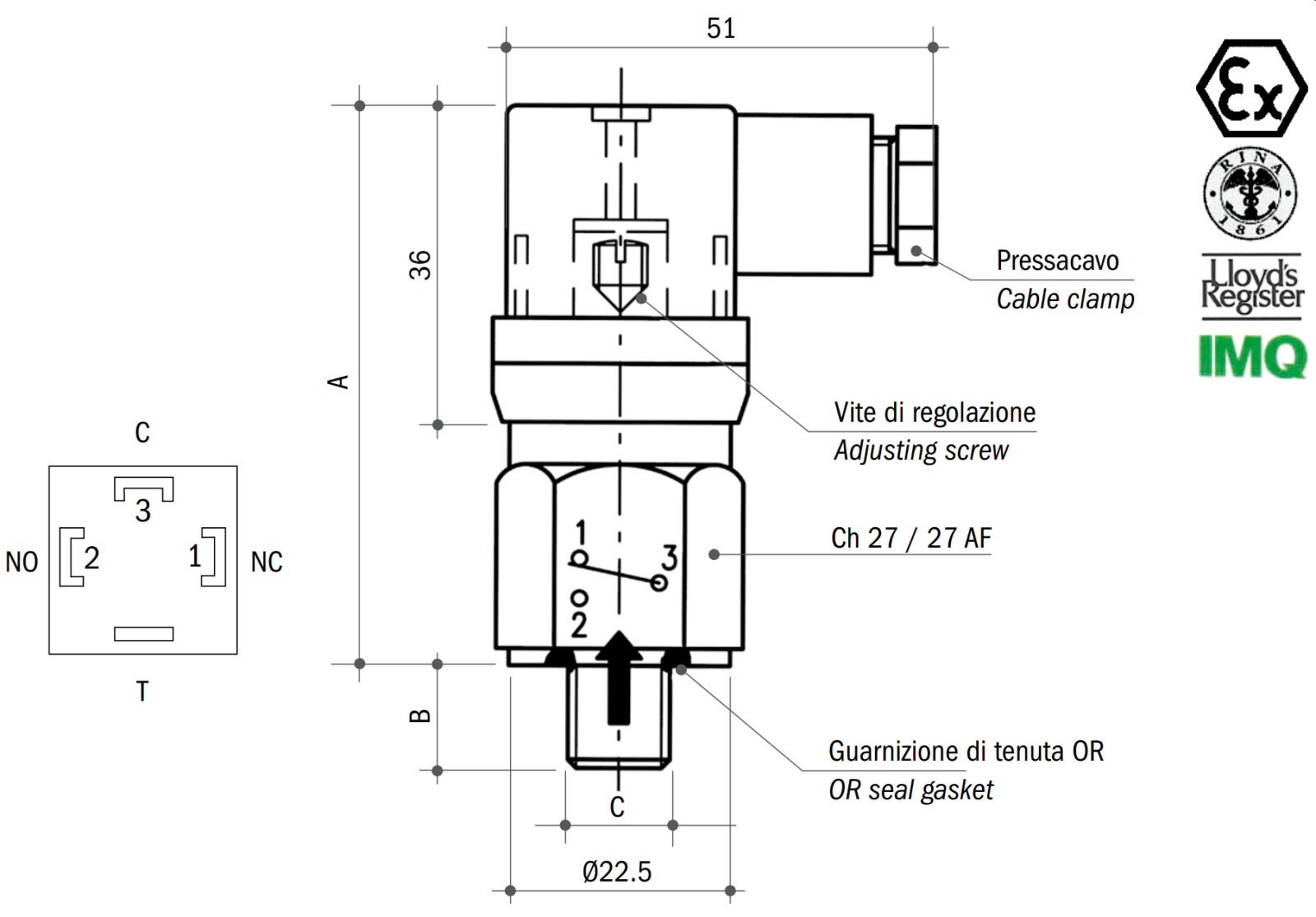

| Size | Body 27 AF Max height 73mm |
| Certifications and Approvals | CE, IMQ, RINA, Lloyds Register, ATEX |
| Options | Set-point adjustment rising Set-point adjustment falling Factory set-point and hysteresis adjustment Gold contacts Degreasing for oxygen applications Gas test High pressure executions Special thread connections |

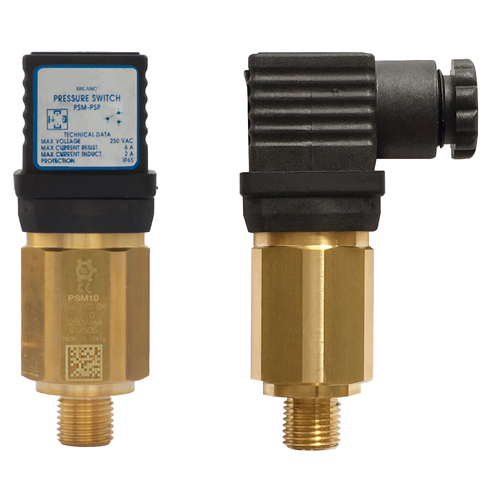

(PSM-BRASS)
Technical Data
| Switch rating | 6(2)A / 250Vac |
| Electrical connection | DIN 43650 PG09 (standard)/PG11 |
| Adjusting range | 0.2…2 bar; 1…10 bar; 10…50 bar; 10…100 bar; 30…150 bar; 50…300 bar |
| Max static pressure | 300 bar, 600 bar (according to the possible pressure range and the body material) |
| Hysteresis | Adjustable 10% to 30% set-point |
| Operating temperature | – 25C …+140C (according to diaphragm/piston seal material) |
| Contact (without pressure) | SPDT |
| Body material | Brass – Zinc plated steel – S.S. 316 on request for all models |
| Diaphragm/Piston seal | NBR – HNBR – FKM – Silicone – EPDM – Neoprene – Stainless Steel (only for PMS2 and PMS10) |
| Threads | Taper: G1/8 BSPT – G1/4BSPT – M10x1 Parallel: M12x1.5 – G1/4 BSPP – G1/8 BSPP |
| Protection | IP65 |
| Mechanical life | 106 operations |
| Size | Body 27 AF Max height 73mm |
| Certifications and Approvals | CE, IMQ, RINA, Lloyds Register, ATEX |
| Options | Set-point adjustment rising Set-point adjustment falling Factory set-point and hysteresis adjustment Gold contacts Degreasing for oxygen applications Gas test High pressure executions Special thread connections |
